Pre-K Bi-Level Outdoor Drinking Fountain with Water Bottle Filling Station - ADA, Stainless Steel

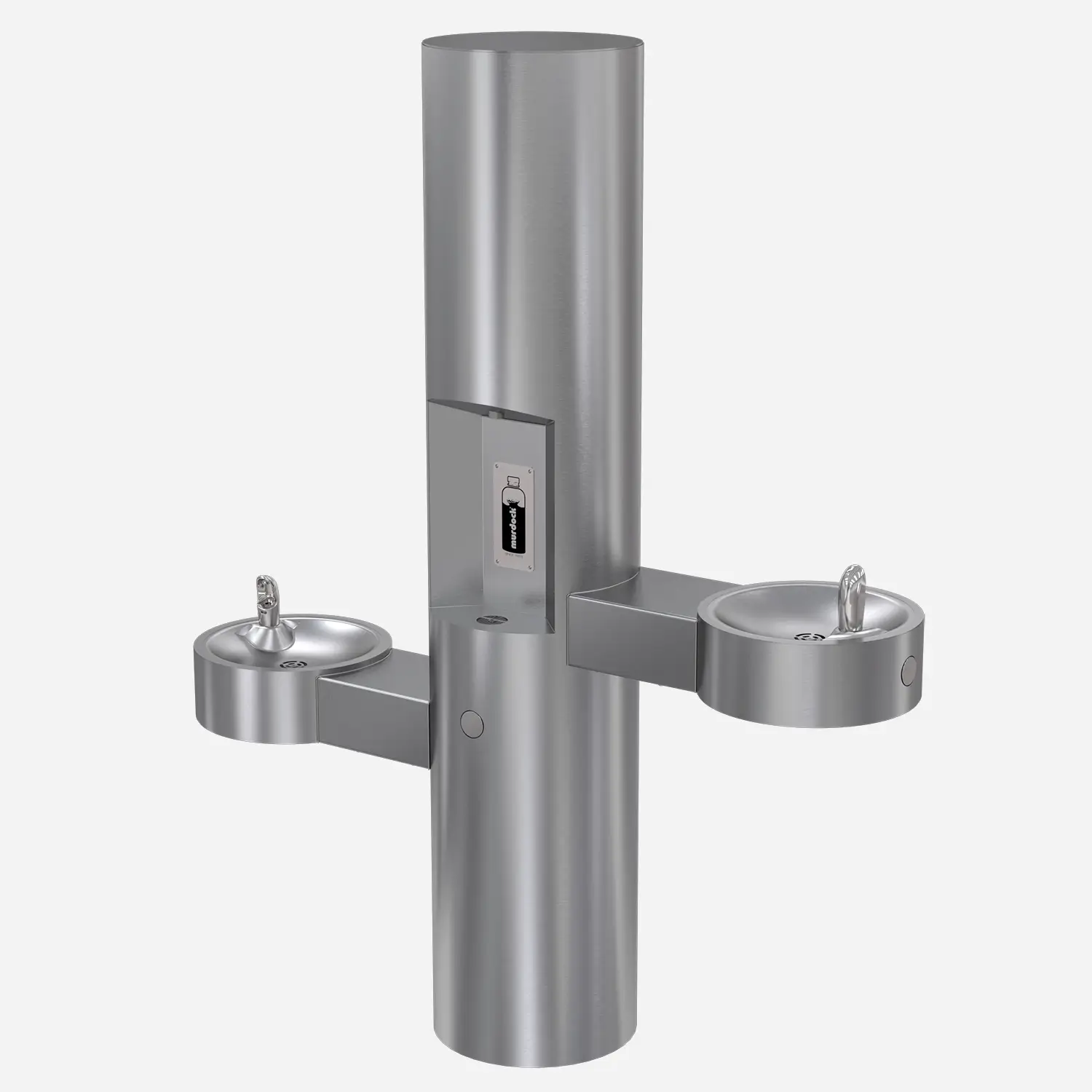

Pre-K Child Height pedestal-mounted Bottle Filler with Child Height bi-level Drinking Fountain shall be Murdock model GYQ84-PK. Construction shall be heavy-gauge, all-stainless steel with 18-gauge stainless steel Fountain Bowls. Pedestal shall have four mounting holes. Access covers shall be secured with vandal-resistant stainless steel screws.
The bottle filler shall be activated by a 9-volt sensor or a pushbutton as standard and shall provide 1.5 GPM (5.7 LPM) flow. The Auto-Purge Sensor function shall activate the Bottle Filler for 10 seconds 24 hours after the last activation as standard and allow for purge cycle adjustment. Unit shall contain a 100-mesh inlet Strainer, 6-AA Battery Pack and laminar-flow spout. Self-closing pushbuttons needing less than 5 pounds of force shall activate internally mounted valves with adjustable stream regulators.
Bubblers shall be stainless steel with a non-squirt feature and operate with side-approach pushbuttons on a water pressure range of 20-105 psig. The drink Fountain is certified to ANSI A117.1. Unit shall be certified to Public Law 111-380 (NO LEAD) and NSF/ANSI/CAN 61. Fixture meets suggested ADA Child Height requirements when mounted appropriately.
 |
 |
|||

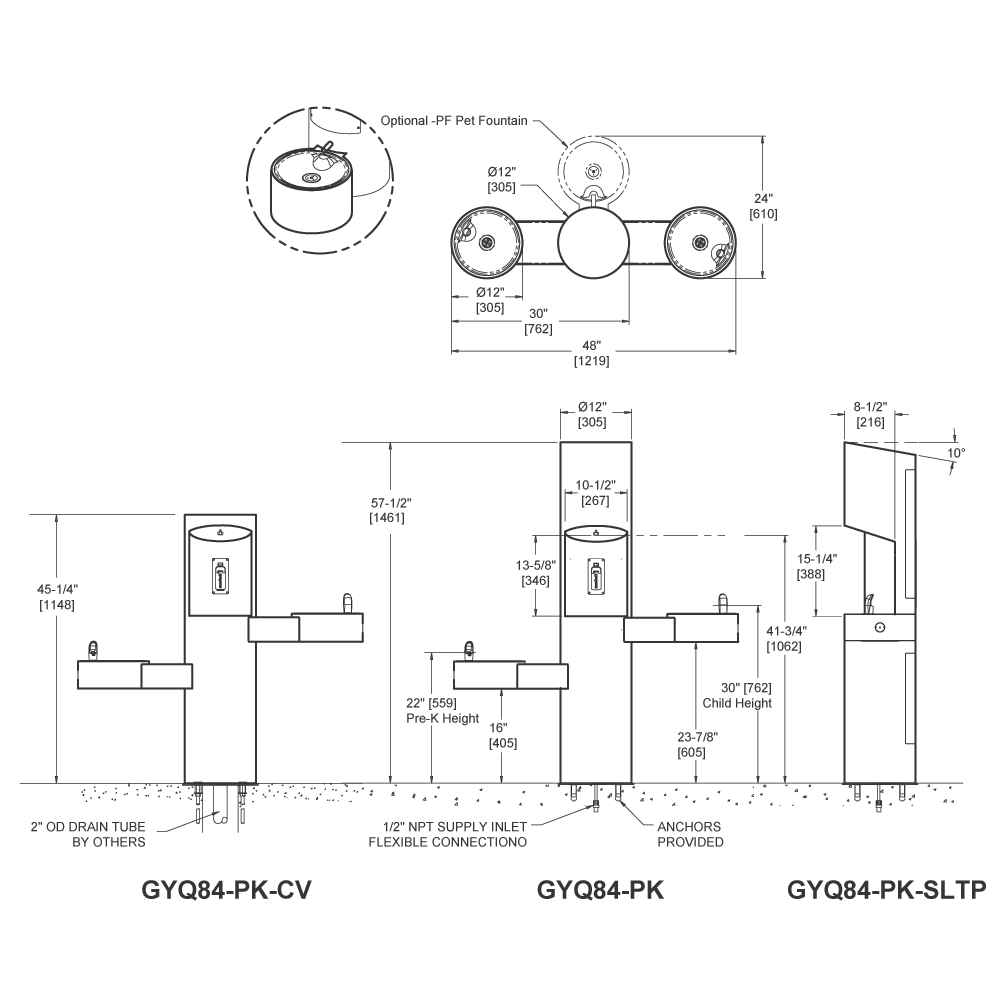

| Heights | (Standard) GYQ84 | GYQ84-CH30 | GYQ84-PK | GYQ84-PK-CV |
| Overall | 56-1/2" (1435 mm) | 56-1/2" (1435 mm) | 57-1/2" (1461 mm) | 45-1/4" (1148 mm) |
| Bottle Filer Spout |
53-1/8" (1062 mm) | 53-1/8" (1062 mm) | 41-3/4" (1062 mm) | 41-3/4" (1062 mm) |
| Upper Drinking Bubbler |
41-3/8" (1051 mm) | 41-3/8" (1051 mm) | CHILD HEIGHT 30" (762 mm) |
CHILD HEIGHT 30" (762 mm) |
| Lower Drinking Bubbler |
ADA HEIGHT 33-1/8" (841 mm) |
CHILD HEIGHT 30" (762 mm) |
PRE-K HEIGHT 22" (559 mm) |
PRE-K HEIGHT 22" (559 mm) |

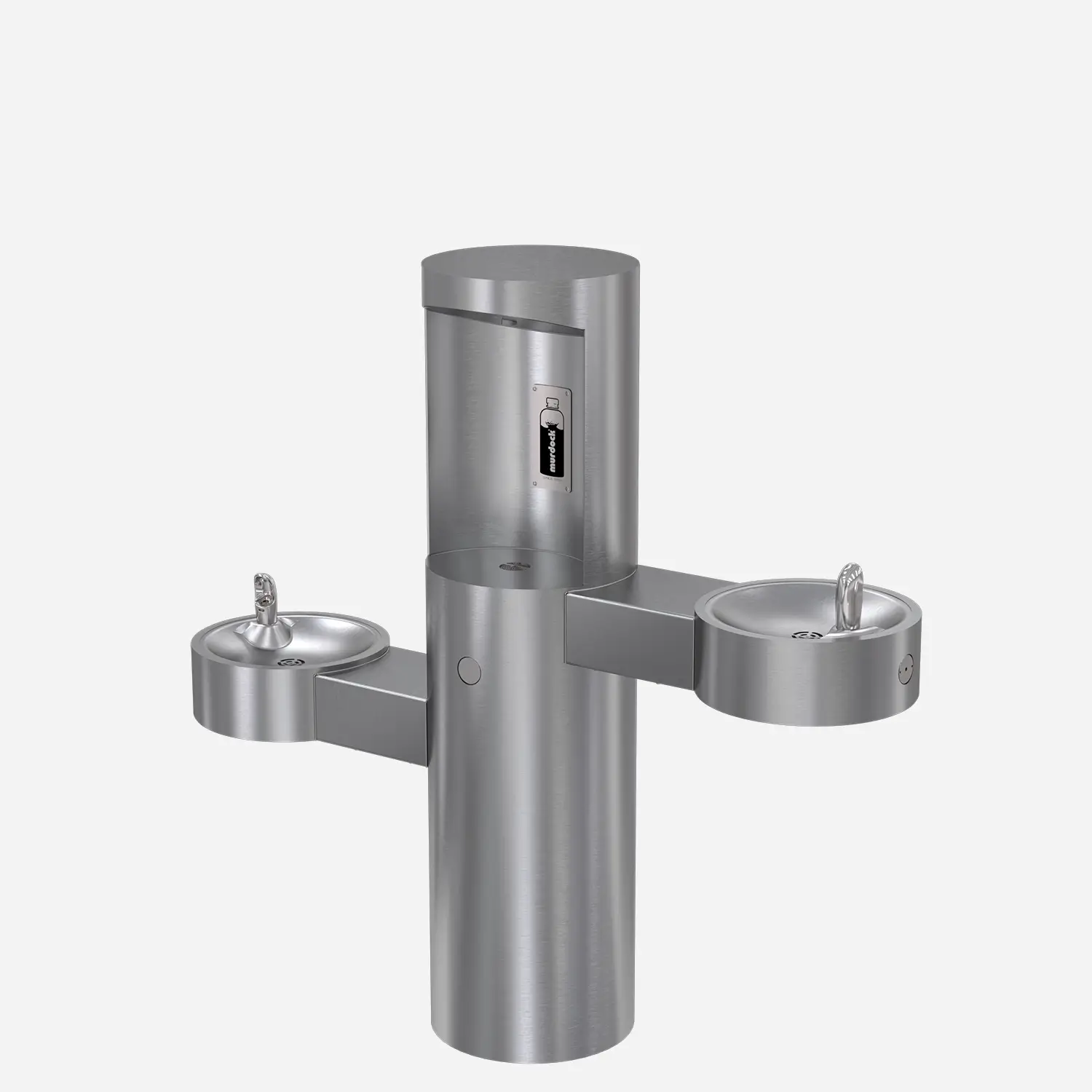

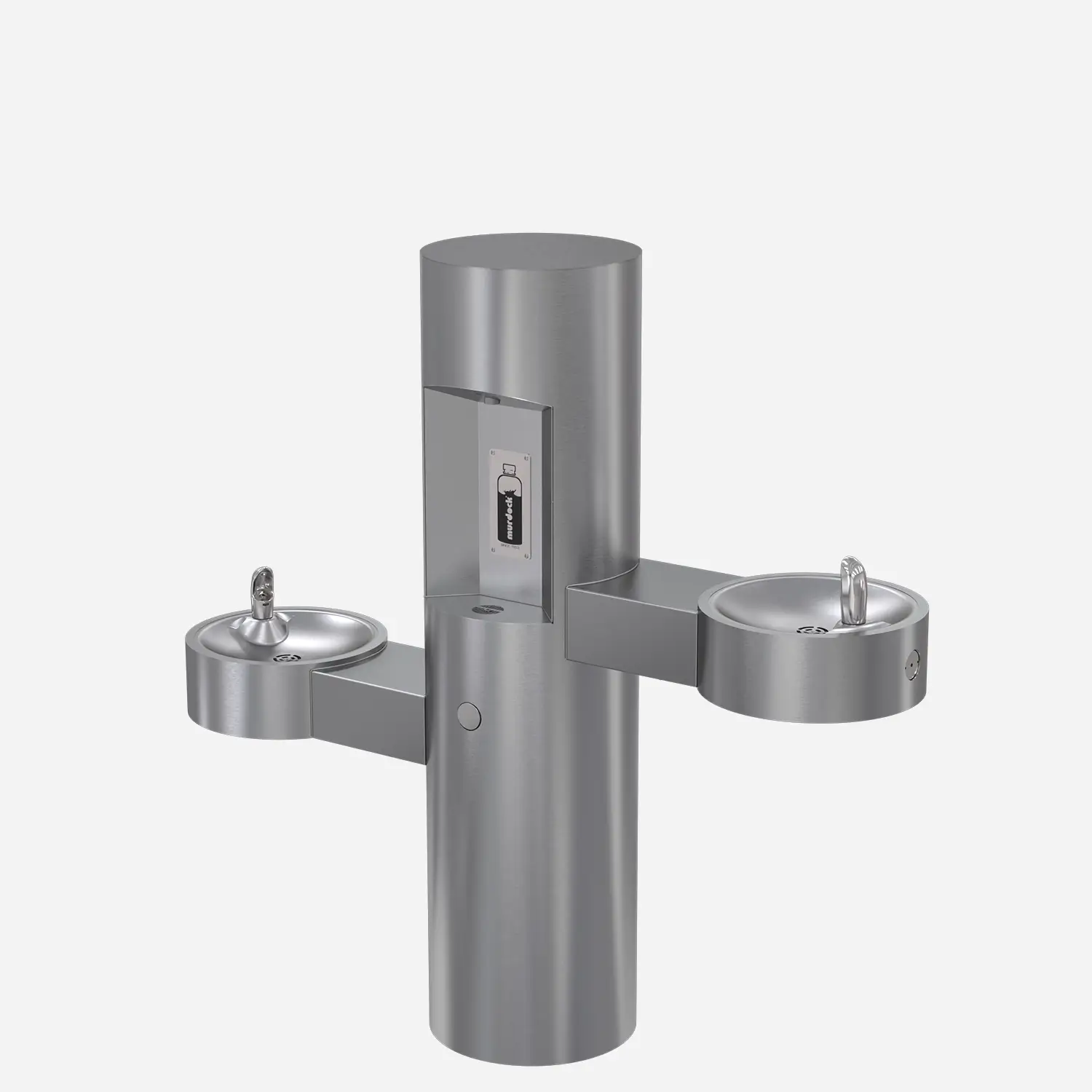

Option -CV features cartridge valves on the drinking fountain. This option will lower the overall height. This option will reduce the bottle filler flow rate to 0.7 gallons (2.65 liters) per minute. Freeze-resistance (Options FRU or NP) is not available with this option.
Standard Features
- Pre-K Child Height Bubblers with Lower Height Bottle Filler
- Side-Approach Bi-Level Drinking Fountain
- Pushbutton and Hands-Free Sensor Operated Bottle Filler
- Auto-Purge Sensor Function to Assure Fresh Water Supply

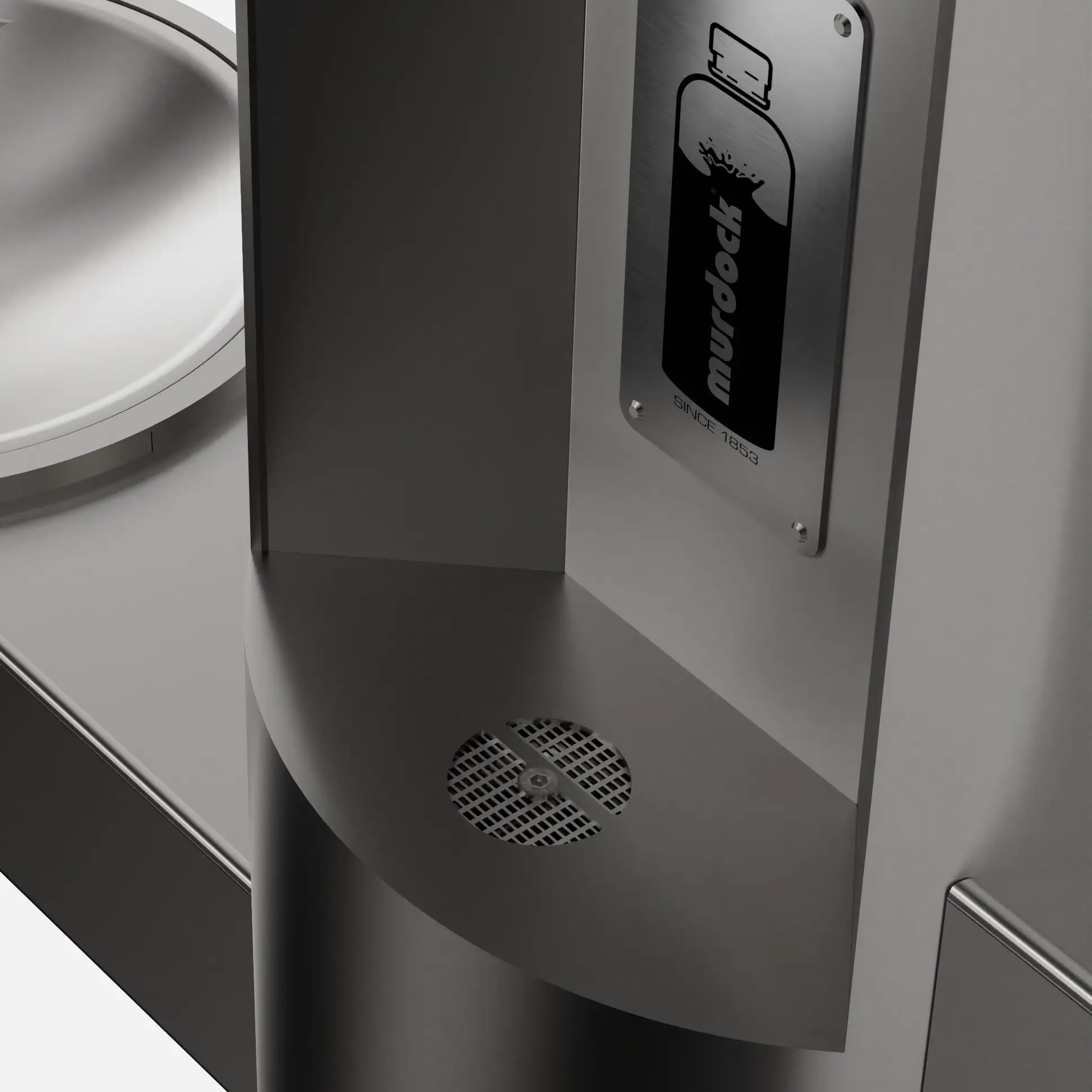

- Oversized Bottle Filler Opening with Laminar Flow Spout
- Accommodates Extra Large Bottles Up to 7" (178 mm) Diameter x 13" (330 mm) Tall
- Resistant to Sunlight, Heat, Moisture and Wear
- 18 Gauge, Type 304 Stainless Steel Drinking Fountain Bowls
- Heavy Gauge, Type 304 Stainless Steel Construction
- Stainless Steel, Anti-Rotation Non-Squirt Bubbler
- 100-Mesh Inlet Strainer
- Access Cover, Heavy Duty Stainless Steel Vandal Resistant
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|

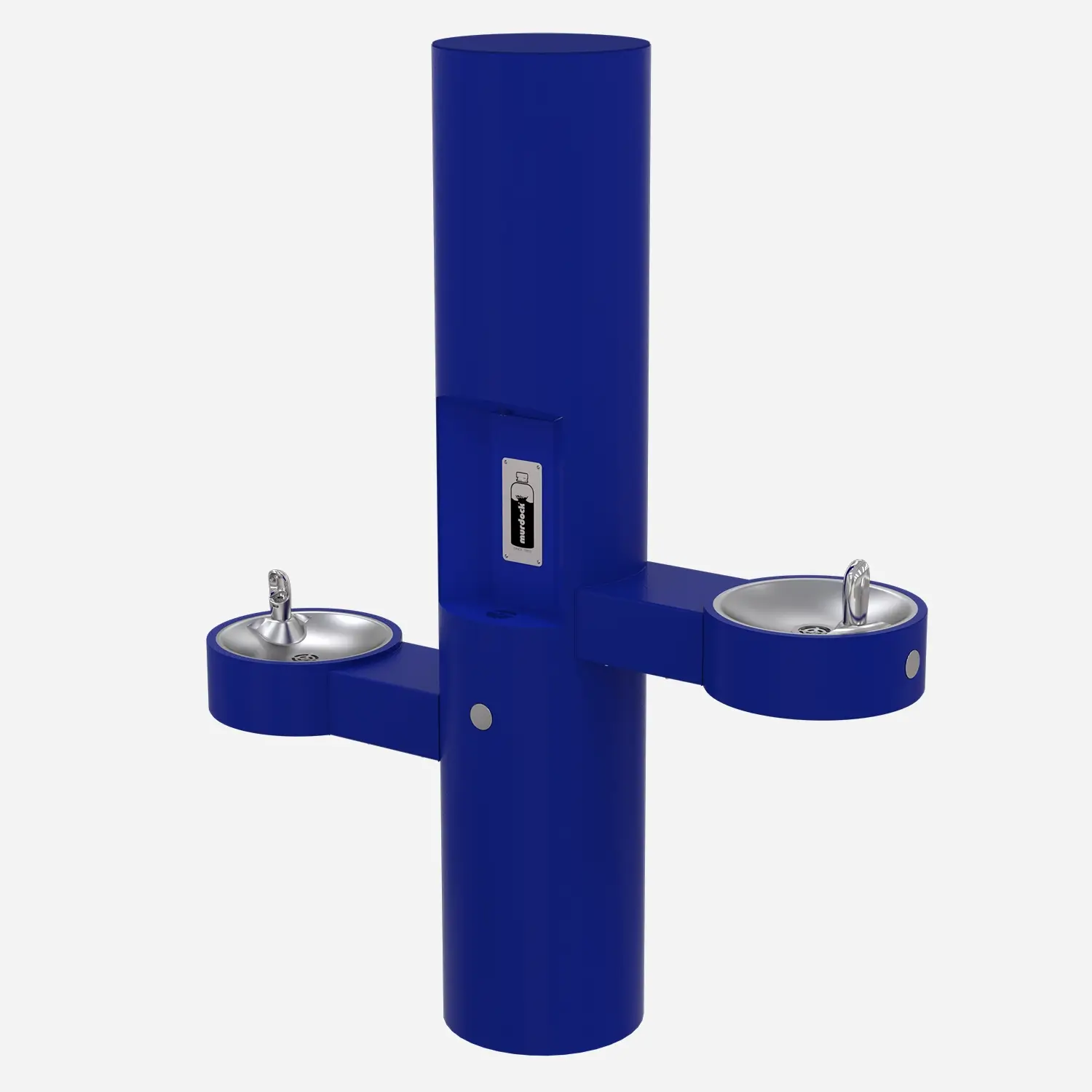

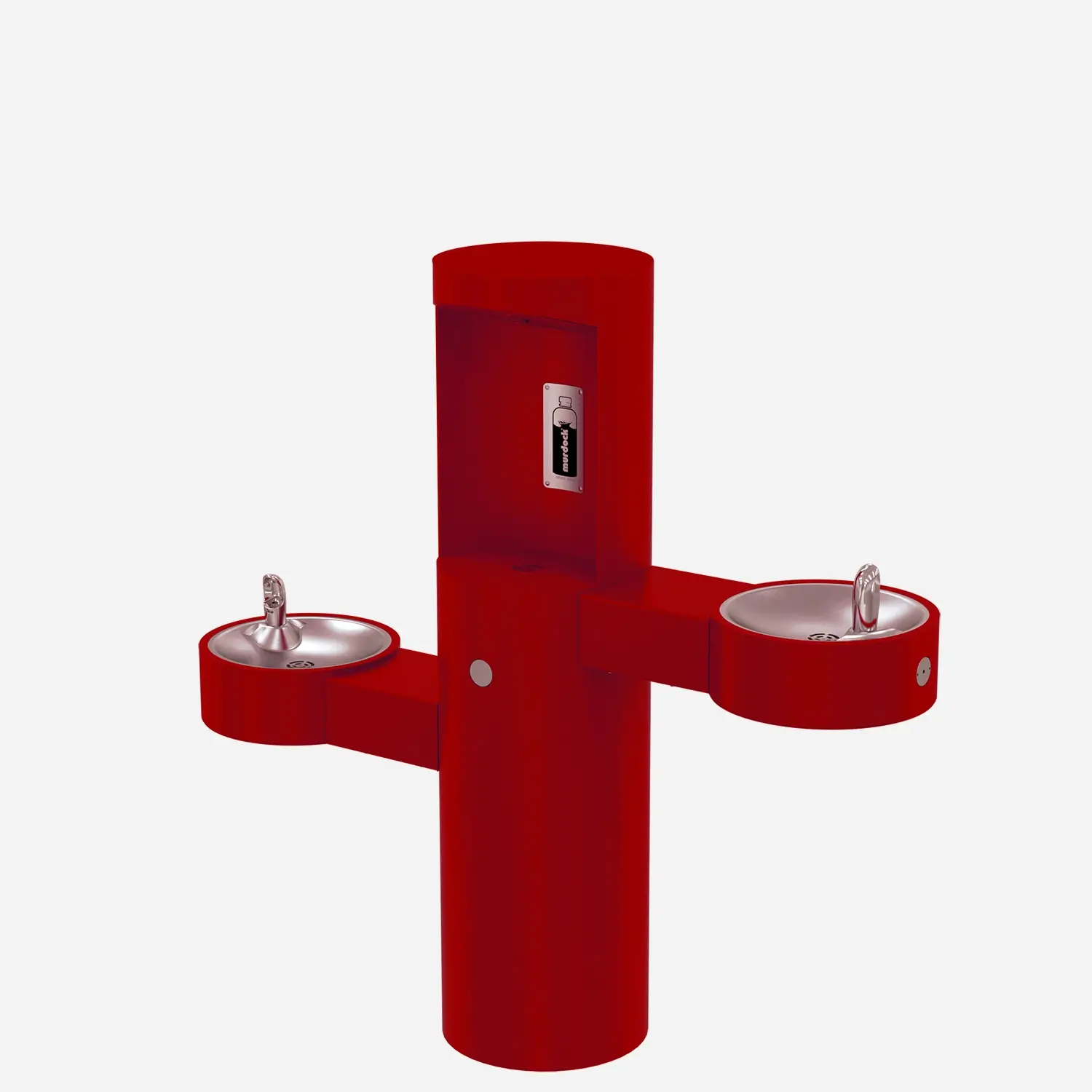

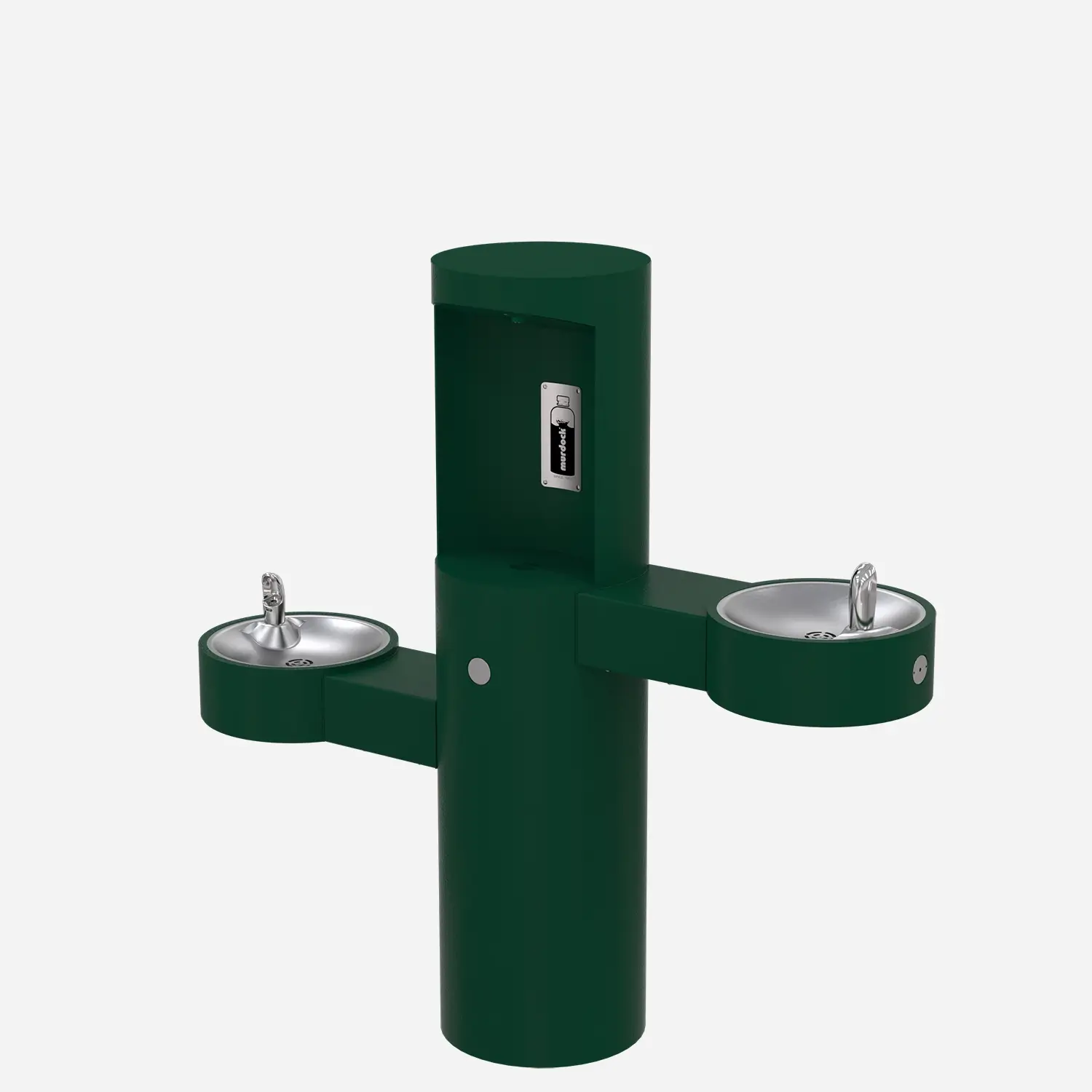

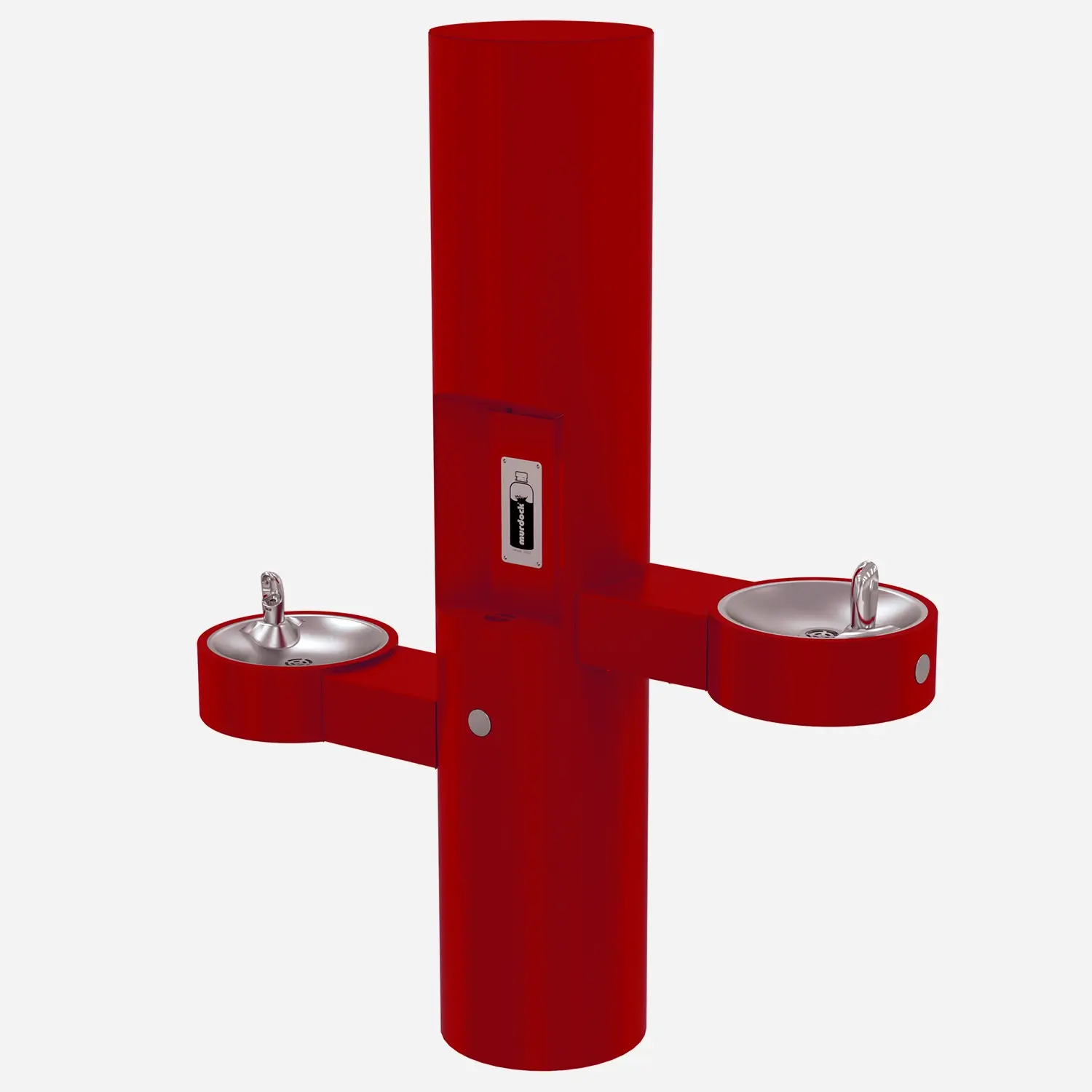

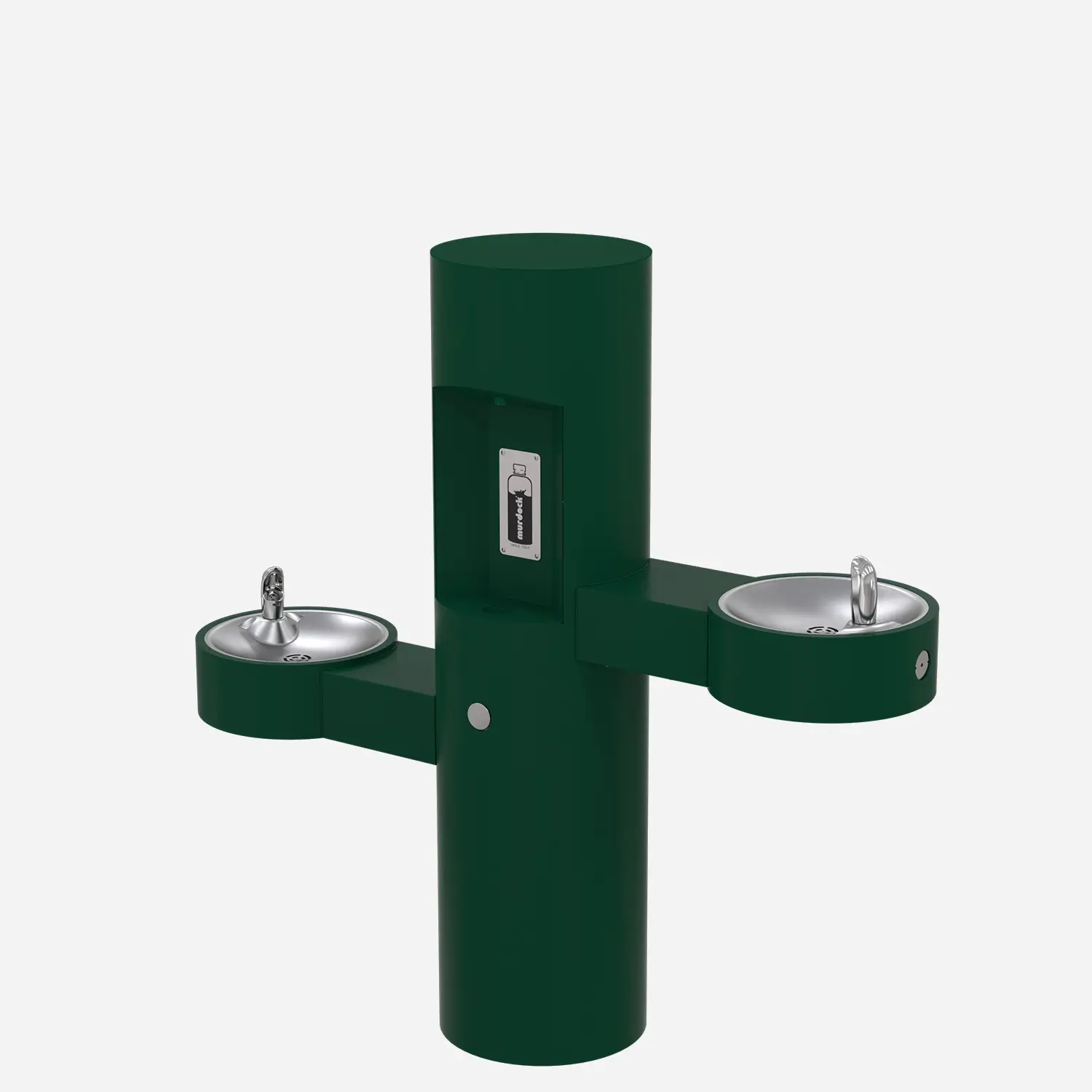

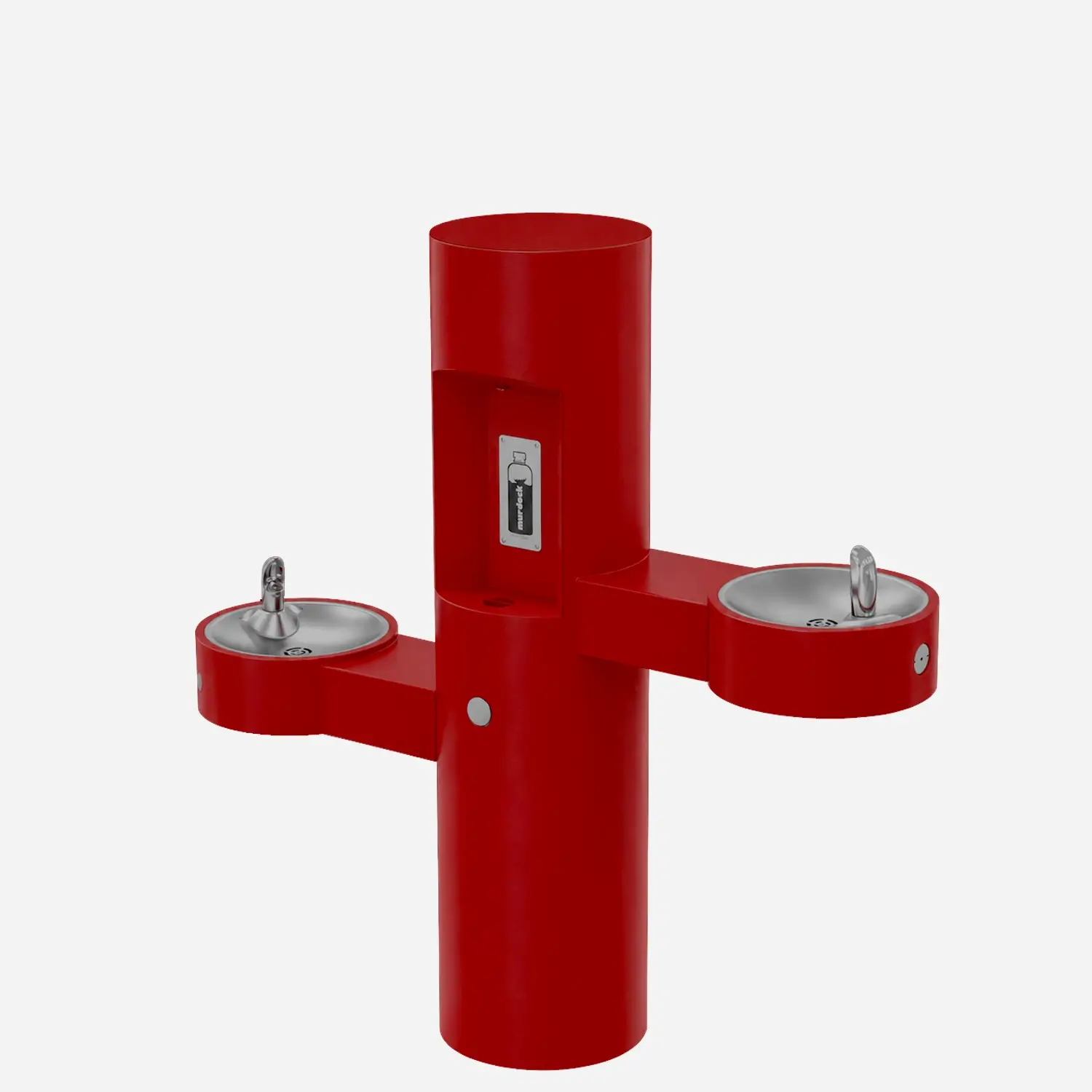

 | | Pre-K Bi-Level Outdoor Drinking Fountain with Water Bottle Filling Station - ADA, Stainless Steel [GYQ84-PK | All-Stainless Steel; GYQ85-PK | Textured Fairway Green; GYQ86-PK | Textured Firehouse Red; GYQ87-PK | Textured Alpine Blue; GYQ84-PK-CV | All-Stainless Steel, Cartridge Valve on Fountain - Lowered Overall Fixture Height; GYQ85-CV | Textured Fairway Green, Cartridge Valve on Fountain - Lowered Overall Fixture Height; GYQ86-PK-CV | Textured Firehouse Red, Cartridge Valve on Fountain - Lowered Overall Fixture Height; GYQ87-PK-CV | Textured Alpine Blue, Cartridge Valve on Fountain - Lowered Overall Fixture Height] | 494 KB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 106 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 6 MB | ||
| | Outdoor Hand Washing, Drinking Fountains, and Shower Stations for National Parks | 1 MB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 1 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | How to Service an Outdoor Drinking Fountain | 133 KB |
Specifications
| Mounting | Pedestal |
| Material | Stainless Steel |
| Pet-Friendly | Available Option |
| Sanitary Product | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button, Bottle filler - sensor |
| Material Detail | Green, All-Stainless Steel, Blue, Red |
| Accessibility | ADA Compliant |
| Usage | Outdoor,Pre-K |
| Compliances | cUPC, Lead-Free Federal Law 111-380, NSF/ANSI/CAN 61 |
| Product Features | Designed for Pre-K and Young Child |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AP | Accessory: Auto-Purge Function Controller | ||
 | LSR | Accessory: Leaf and Debris Strainer for Round Outdoor Drinking Fountains | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -FRU3 | Option: Below Ground, Freeze Resistant Valve, Three Station | ||
 | -FRU4 | Option: Below Ground, Freeze-Resistant Valve, Four-Station | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB3 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -IGM | Option: In-ground 14" mounting | ||
 | -MO | Bottle Filler Activated by Push Button Only | ||
 | -NP2 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station | ||
 | -NP3 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station | ||
 | -NP4 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Four Station | ||
 | -PF | Option: Contemporary Round Pet Fountain | ||
 | CV | Option: Cartridge Valve on Drinking Fountains | ||
 | SLPT | Option: 10° Bottle Filler Sloped Top |
Models
 |
 |
 |
 |
|
| GYQ84-PK | GYQ85-PK | GYQ86-PK | GYQ87-PK | |
 |
 |
 |
 |
|
| GYQ84-PK-CV | GYQ85-PK-CV | GYQ86-PK-CV | GYQ87-PK-CV | |
 |
GYQ84-PK-SLTP | GYQ85-PK-SLTP | GYQ86-PK-SLTP | GYQ87-PK-SLTP |
 |
GYQ84-PK-PF | GYQ85-PK-PF | GYQ86-PK-PF | GYQ87-PK-PF |
Additional Popular Options/Accessories include:
-FRU3, -FRU4 | Freeze-Resistance
-NP2, -NP3, -NP4 | Non-Polutable Freeze-Resistance
-HB1, -HB3 | Hose bibbs
-IGM | In-ground 14" Mounting Adapter
-MO | Bottle filler operated by pushbutton only (Standard with freeze-resistant valves)
-AP | Auto-Purge Sensor Function Controller
-IAP | In-Ground Anchor Plate
-LSR | Leaf and Debris Strainer
-WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
