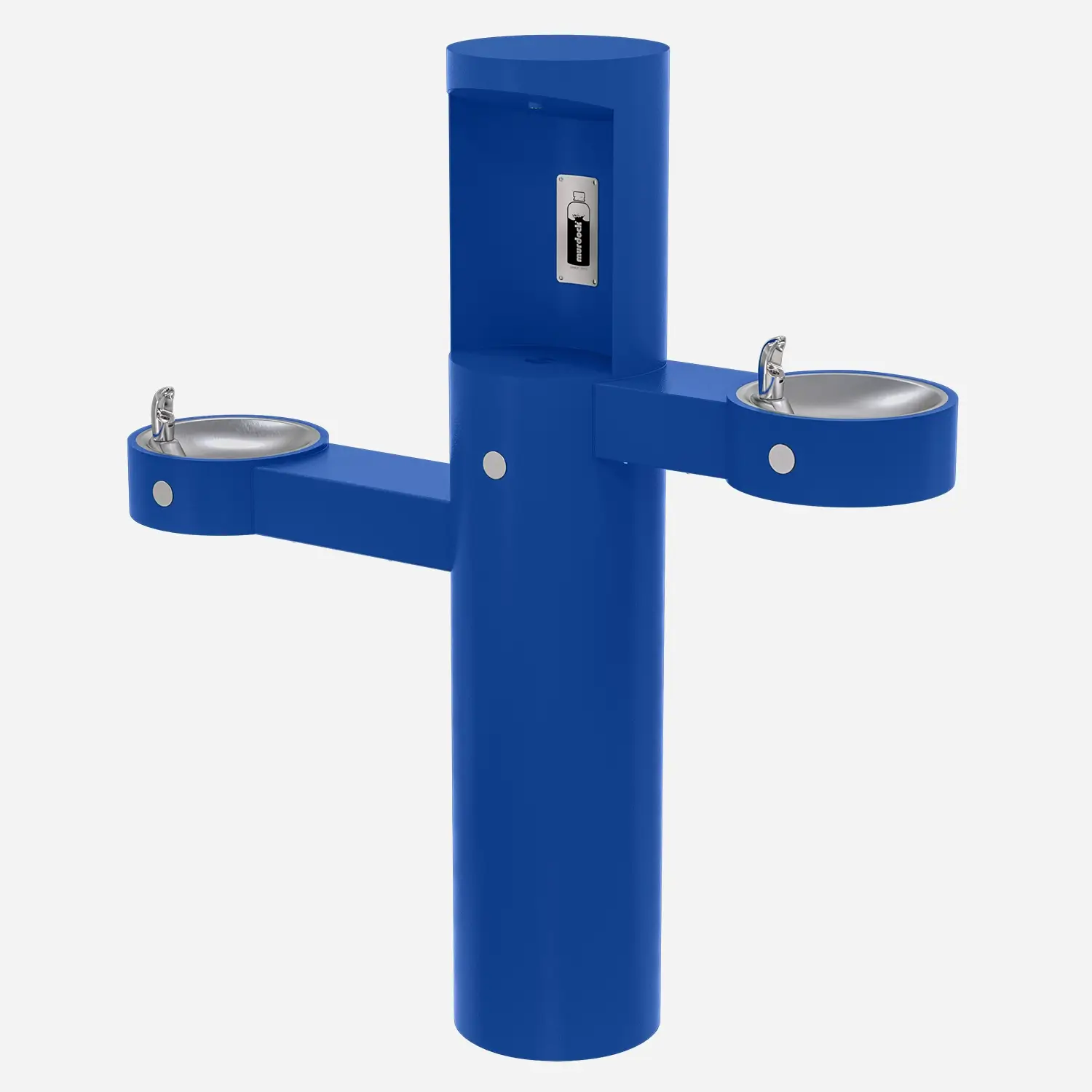

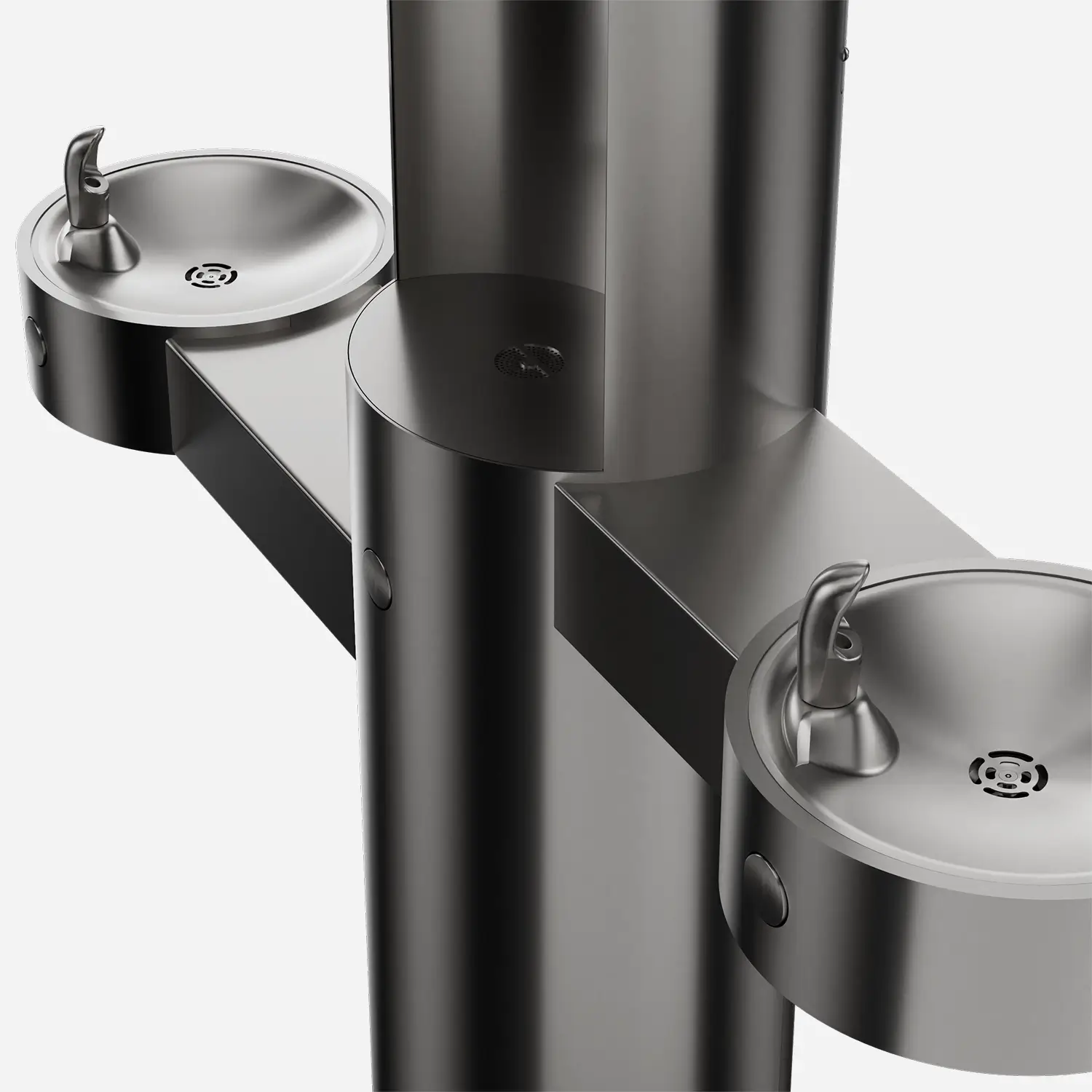

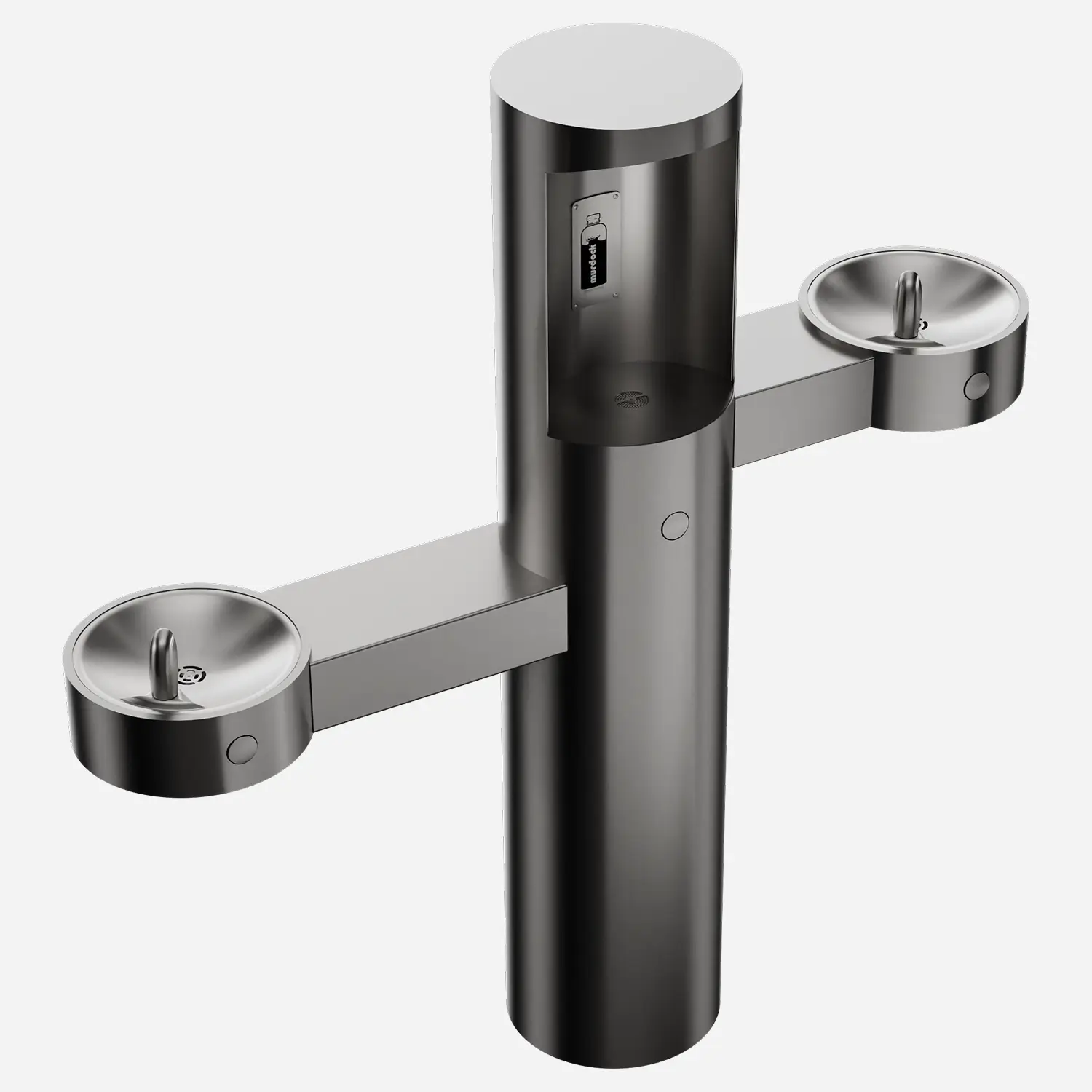

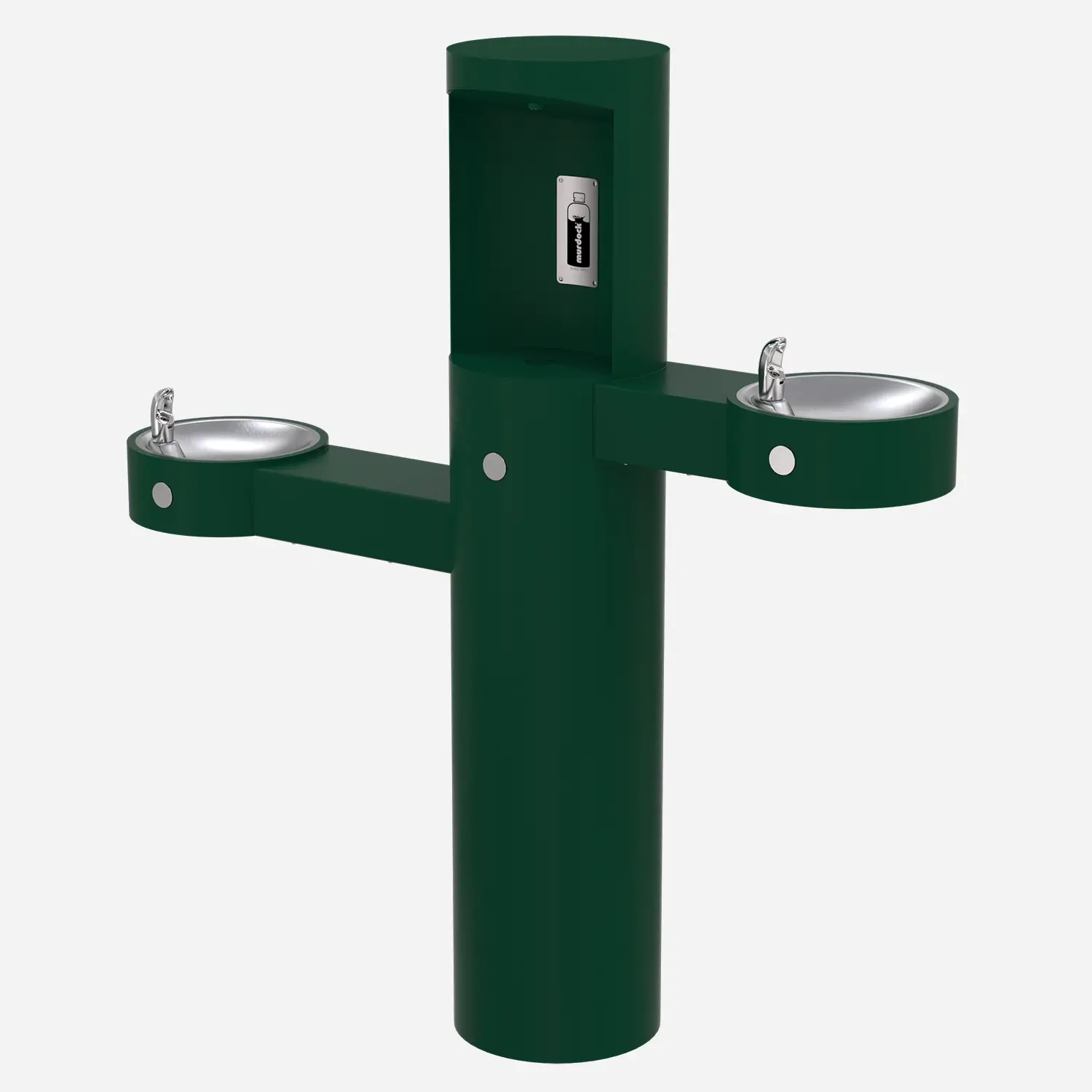

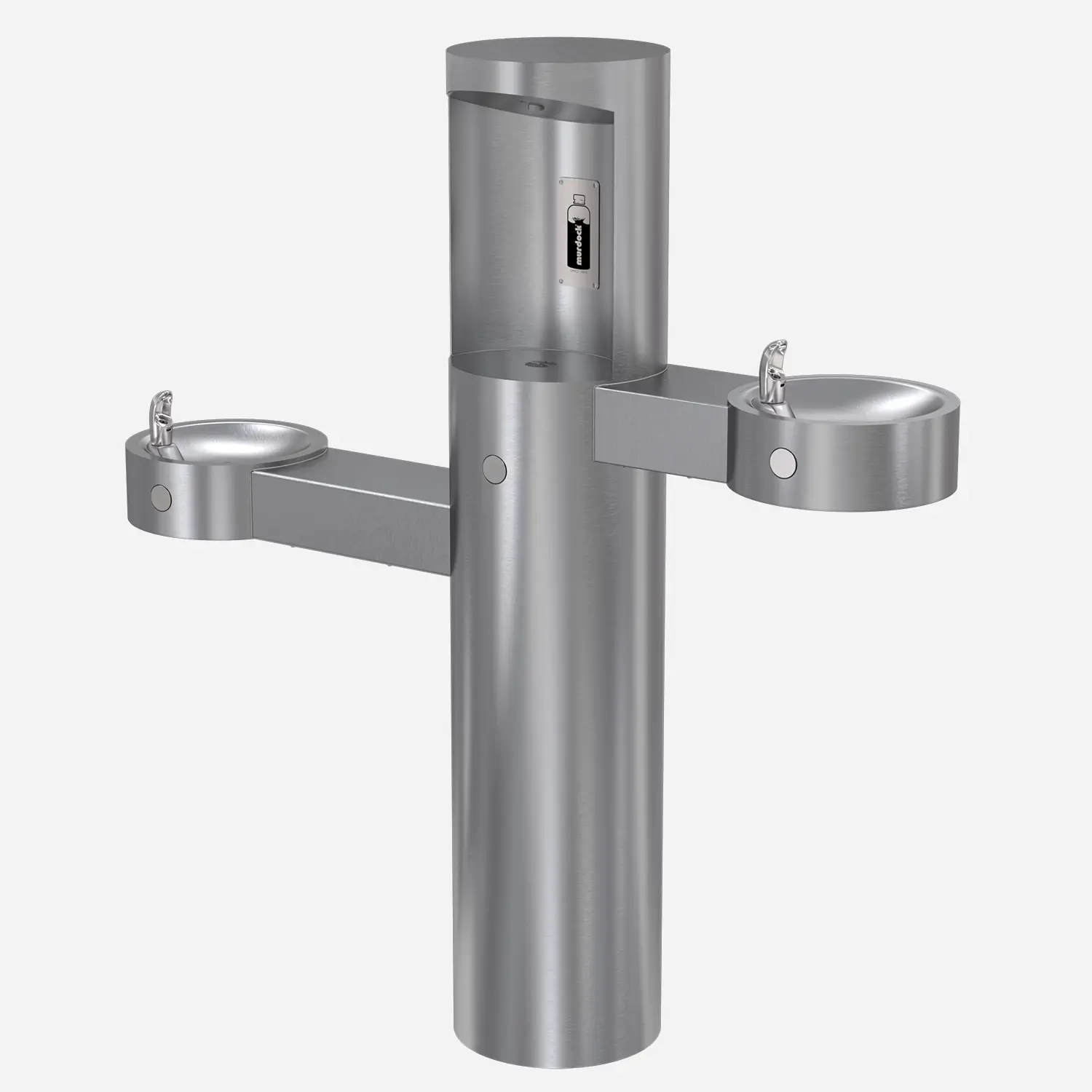

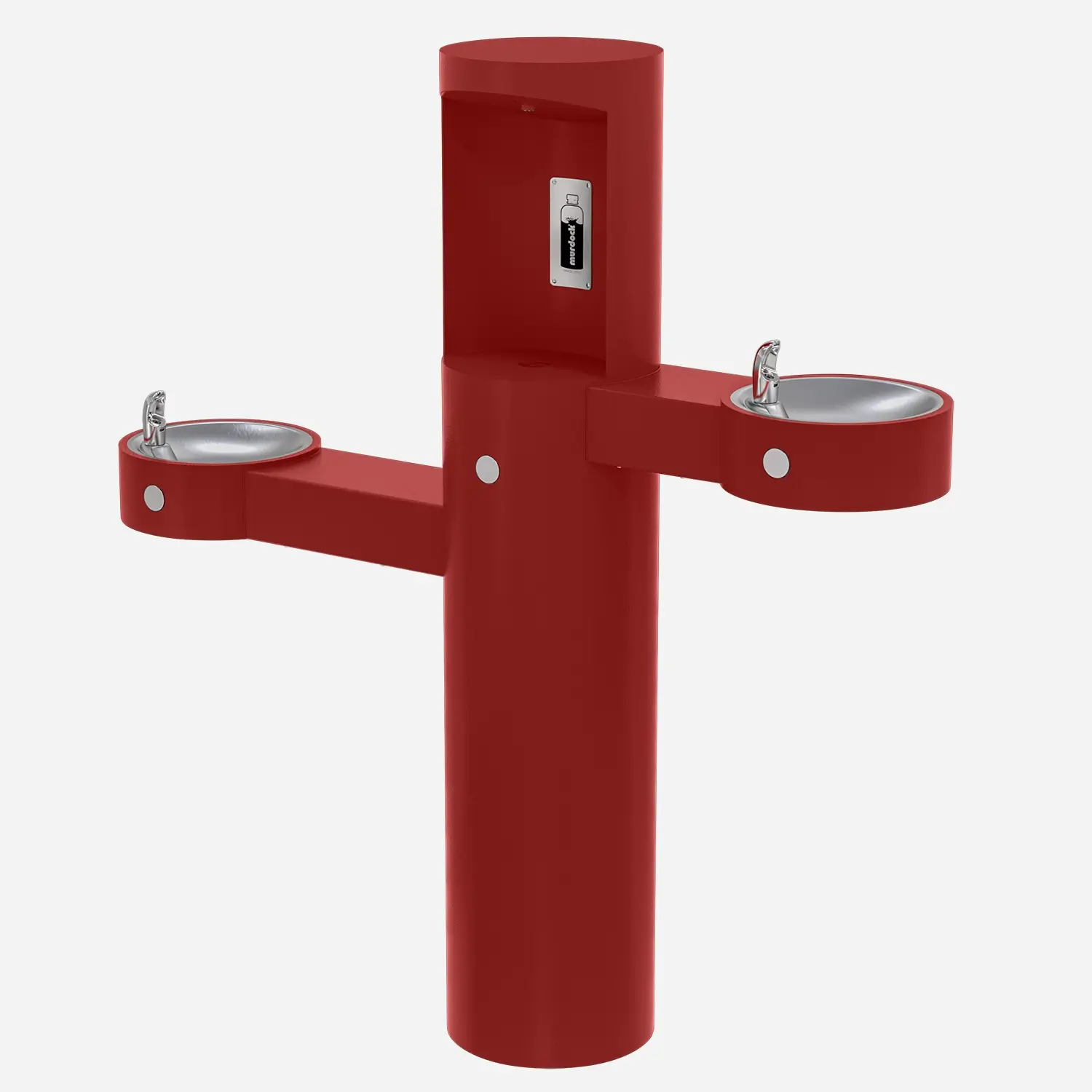

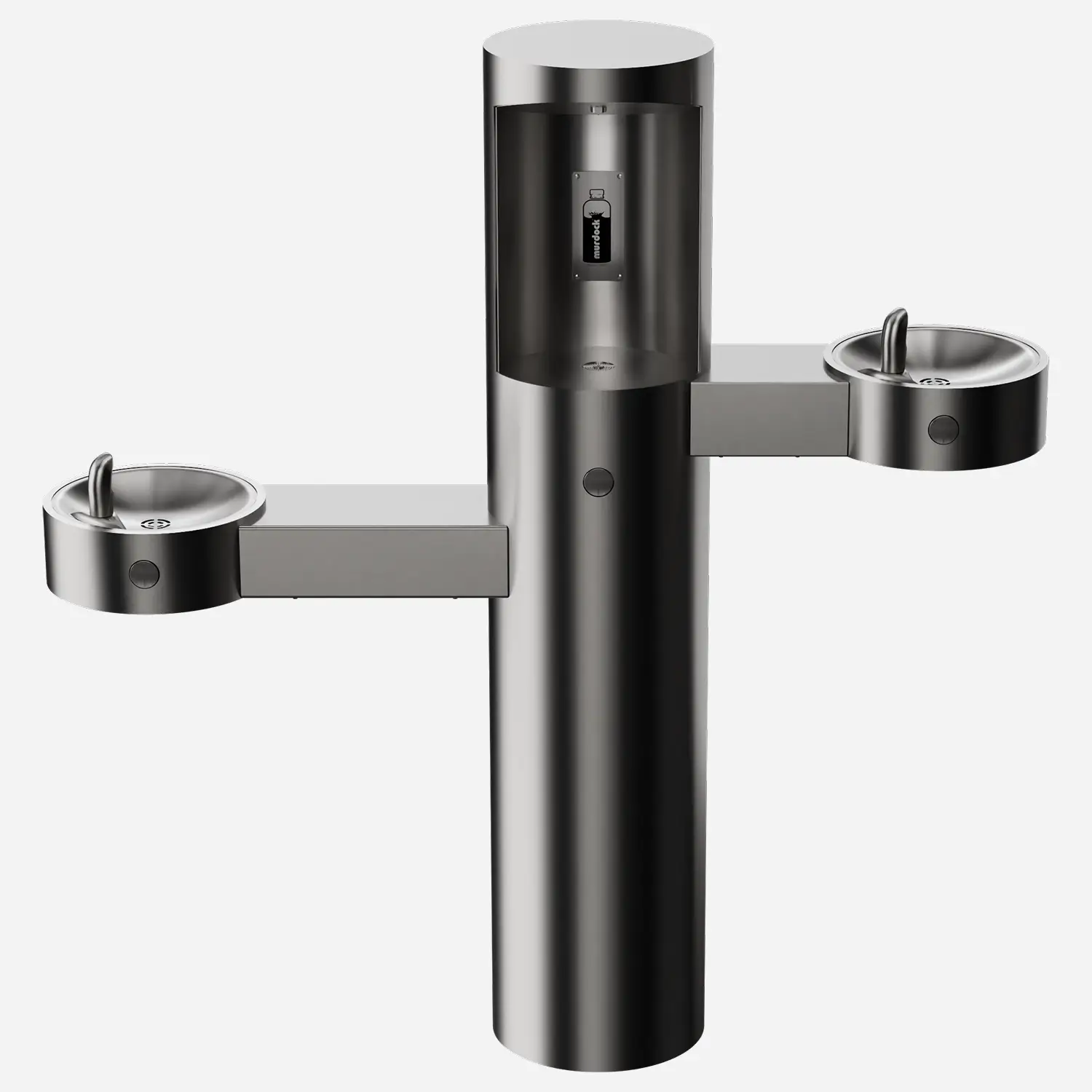

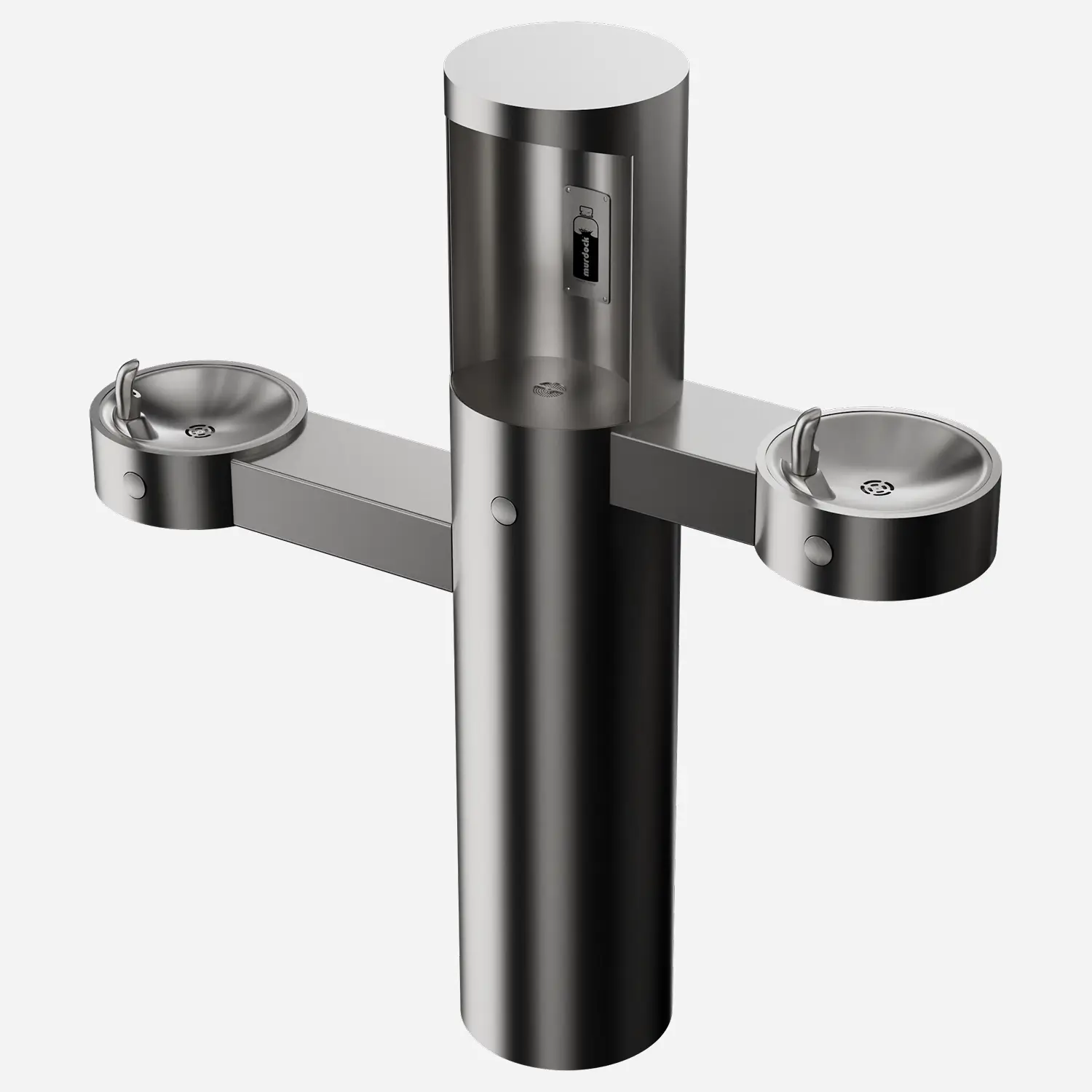

Bi-Level Outdoor Drinking Fountain with Water Bottle Filling Station - ADA, Stainless Steel

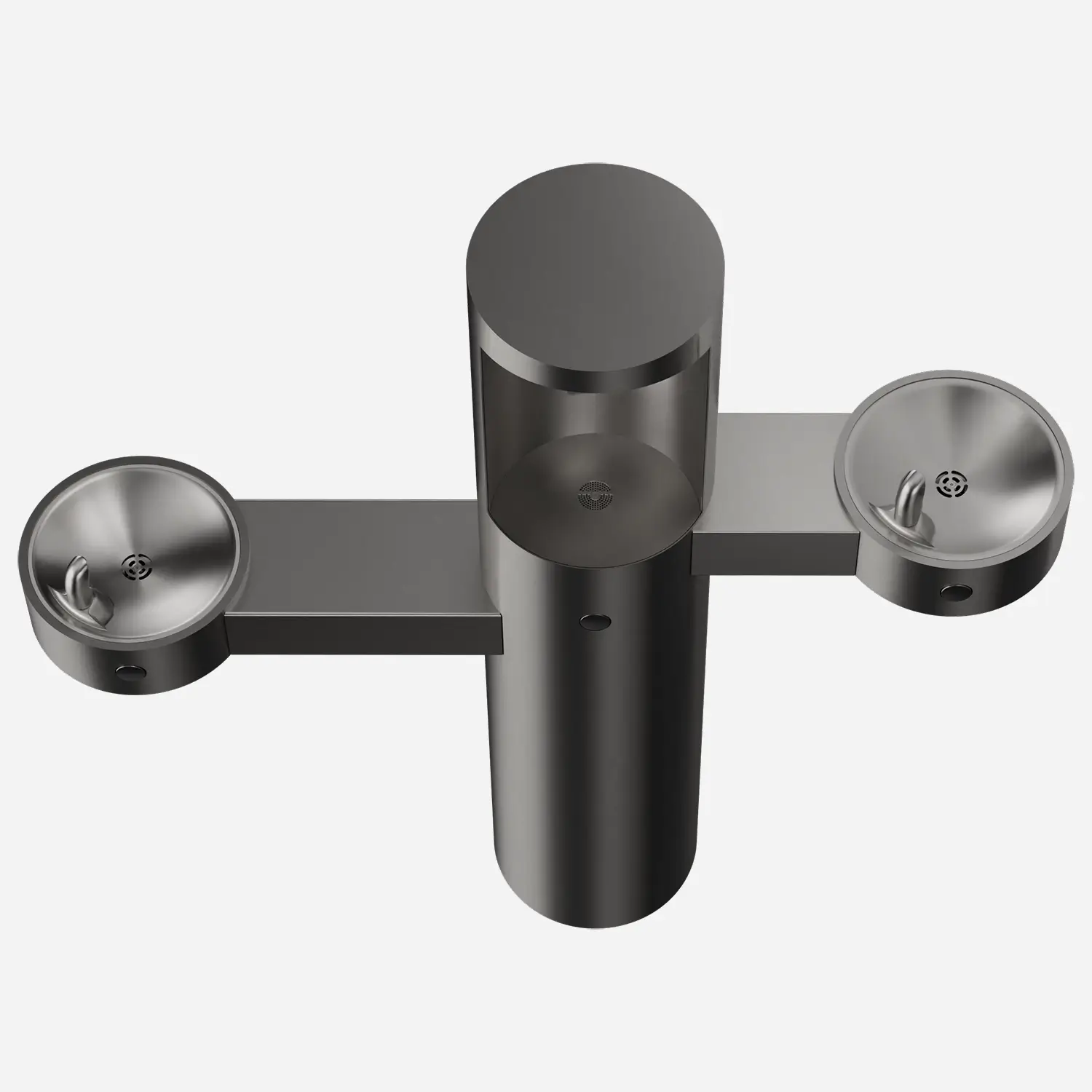

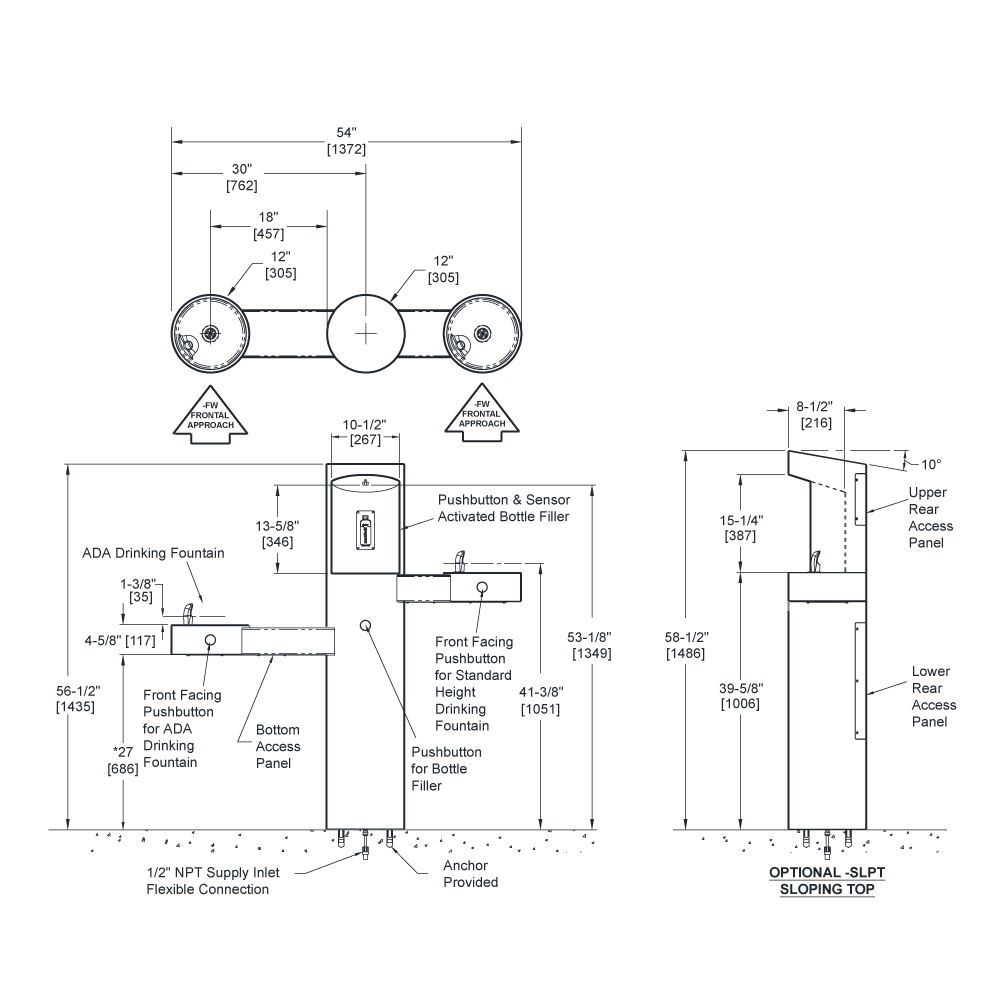

Front Access Drinking Fountains (top view shown)
Pedestal-mounted bottle filler with bi-level drinking fountain shall be Murdock model GYQ84-FW for Frontal Wheelchair Approach. Construction shall be heavy-gauge, all-stainless steel with heavy-gauge stainless steel fountain bowls. Pedestal shall have four mounting holes. Access covers shall be secured with vandal-resistant stainless steel screws. Bottle filler shall be activated by a 9-volt sensor or a pushbutton as standard and provide 1.5 GPM (5.7 LPM) flow.
Auto-Purge Sensor function shall activate Bottle Filler for a 10-second duration 24 hours after last activation as standard and allow for purge cycle adjustment. Unit shall contain a 100-mesh inlet strainer, 6-AA battery pack, and laminar-flow spout. Self-closing pushbuttons needing less than 5 pounds of force shall activate internally mounted valves with adjustable stream regulators. Bubblers shall be stainless steel with a non-squirt feature and operate with a water pressure range of 20-105 psig. Fountain is certified to ANSI A117.1. Unit shall be certified to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61. Fixture meets ADA and ADA Standing Person requirements when mounted appropriately. Conformance is subject to the interpretation and requirements of the local code authority.
Standard Features
- Frontal Approach Drinking Fountain, Adult ADA Compliant
- Pushbutton & Hands Free Sensor Operated Bottle Filler
- Auto-Purge Sensor Function to Assure Fresh Water Supply
- Large Capacity Bottle Filler with Laminar Flow Spout
- Accommodates Extra Large Bottles Up to 7" Dia x 13" Tall
- Resistant To Sunlight, Heat, Moisture And Wear
- Heavy Gauge, Type 304 Stainless Steel Drinking
- Fountain Bowls
- Heavy Gauge, Type 304 Stainless Steel Construction with Corrosion and Scratch Resistant Finish
- Stainless Steel, Anti-Rotation Non-Squirt Bubbler
- 100-Mesh Inlet Strainer
- Access Cover, Heavy-Duty Stainless Steel Vandal-Resistant
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Barrier-Free Round Pedestal Bottle Filler with One Arm Drinking Fountain Arm Side Approach (GYM74 Series) or Front Approach (GYM74-FW Series); Bi-Level Arm Drink Fountains Side Approach (GYQ84 Series) or Front Approach (GYQ84-FW Series) | 2 MB | ||
| | Pedestal Outdoor Bottle Filler with Front Approach Bi-Level Drinking Fountain [GYQ84-FW | All-Stainless Steel; GYQ85-FW | Textured Fairway Green; GYQ86-FW | Textured Firehouse Red; GYQ87-FW | Textured Alpine Blue] Winter 2025 Version | 481 KB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 106 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 6 MB | ||
| | Outdoor Hand Washing, Drinking Fountains, and Shower Stations for National Parks | 1 MB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 1 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Wash-N-Go!® Hand Washing Station Flyer (pdf) | 520 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | How to Service an Outdoor Drinking Fountain | 133 KB | ||
 | | Pedestal bottle filler with bi-level drink fountain [GYQ84 | All-Stainless Steel; GYQ85 | Textured Fairway Green; GYQ86 | Textured Firehouse Red; GYQ87 | Textured Alpine Blue] Winter 2025 Version | 1 MB | ||
 | | Pedestal bottle filler with bi-level drink fountain [GYQ84 | All-Stainless Steel; GYQ85 | Textured Fairway Green; GYQ86 | Textured Firehouse Red; GYQ87 | Textured Alpine Blue] Winter 2025 Version | 788 KB | ||
| | Murdock Kwik Ship® vs Elkay, MDF [Outdoor Drinking Fountain GRM45, GRM45-PF, GRJ85-PF; Outdoor Bottle Filler with Drinking Fountain GYM74, GYM75, GYQ84, GYQ85, GYE24-R; Pet Fountains GRT74-PF-RFS, GRT75-PF-RFS, M-PM35, M-PM14, M-PM15; Hydrant M-75-BD2, M-75-BD3, M-75-BD4; Accessories WF3000, 7007-007-001 (IAP), MD-LSR, RWF3000, RWF3000-20] Lit # L1001746 6/26 | 547 KB |
Specifications
| Mounting | Pedestal |
| Material | Stainless Steel |
| Pet-Friendly | Available Option |
| Sanitary Product | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button, Bottle filler - sensor |
| Material Detail | Green, All-Stainless Steel, Blue, Red |
| Variations | GYQ84: Satin Stainless Steel, GYQ85: Green Powder Coated Stainless Steel, GYQ86: Red Powder Coated Stainless Steel, GYQ87: Blue Powder Coated Stainless Steel |
| Legacy Model | GYQ54, GYQ55, GYQ56, GYQ57 |
| Accessibility | ADA Compliant |
| Usage | Outdoor |
| Compliances | cUPC, Lead-Free Federal Law 111-380, NSF/ANSI/CAN 61 |
| Product Features | Front-Access Drinking Fountain |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AP | Accessory: Auto-Purge Function Controller | ||
 | SK10 | Accessory: Skirt Assembly for Bi-Level Pedestal Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU3 | Option: Below Ground, Freeze Resistant Valve, Three Station | ||
 | -FRU4 | Option: Below Ground, Freeze-Resistant Valve, Four-Station | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB3 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -IGM | Option: In-ground 14" mounting | ||
 | -MO | Bottle Filler Activated by Push Button Only | ||
 | -NP2 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station | ||
 | -NP3 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station | ||
 | -NP4 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Four Station | ||
 | -PF | Option: Contemporary Round Pet Fountain | ||
 | CV | Option: Cartridge Valve on Drinking Fountains | ||
 | LOGO | Option: Customize Graphics | ||
 | LSR | Option: Leaf and Debris Strainer for Round Outdoor Drinking Fountains | ||
 | SLPT | Option: 10° Bottle Filler Sloped Top |
Models
 |
 |
 |
 |
|
| GYQ84-FW | GYQ85-FW | GYQ86-FW | GYQ87-FW | |
 |
GYQ84-FW-SLTP | GYQ85-FW-SLTP | GYQ86-FW-SLTP | GYQ87-FW-SLTP |
 |
GYQ84-FW-PF | GYQ85-FW-PF | GYQ86-FW-PF | GYQ87-FW-PF |
Popular Options/Accessories include:
-AP | Auto-Purge Sensor Function Controller
-CH30 | Child height, 30" bubbler height
-FRU3, -FRU4 | Freeze-Resistance
-NP2, -NP3, -NP4 | Non-Polutable Freeze-Resistance
-FS | Foot shower
-HB1, -HB3 | Hose bibbs
-LSR | Leaf and Debris Strainer
-MO | Bottle filler operated by pushbutton only (Standard with freeze-resistant valves)
-SK10 | Cane Detection Skirt for Non-ADA Drinking Fountain
-WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
