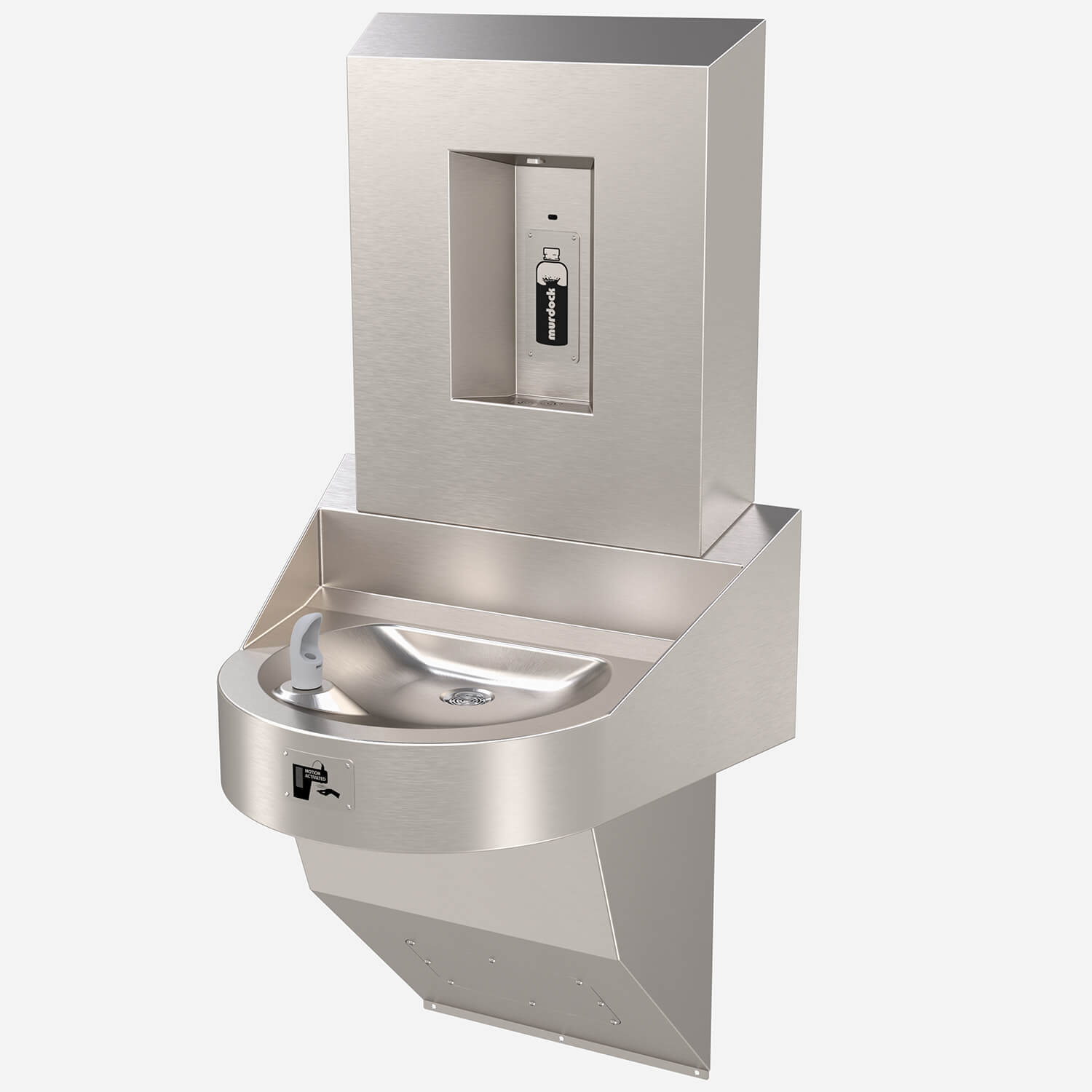

Heavy-Duty, Wall-Mounted, Touchless Drinking Fountain & Water Bottle Filling Station - Concealed Sensor, Non-Refrigerated, ADA, Stainless Steel
The drinking fountain shall be activated by a 9-volt infrared sensor concealed beneath the basin skirt for wave-on and wave-off operation. Bubbler shall deliver 0.3 gallons (1.14 liters) per minute flow with a maximum run time of 10 seconds. Flexible or stainless steel drinking fountain bubblers are available. The fountain to include an integral D-shape basin with a grid strainer, waste piping, and P-trap waste fitting.

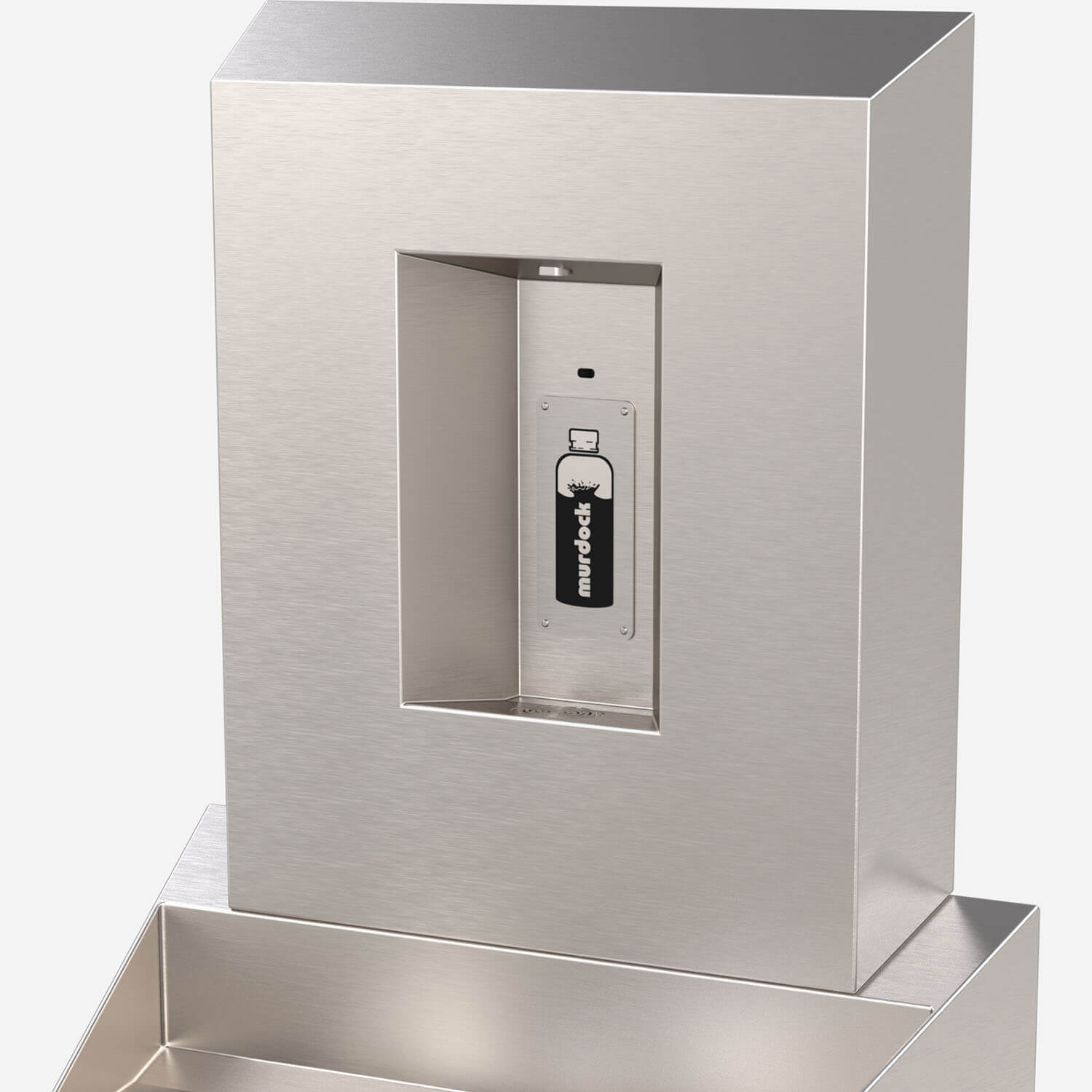

Bottle Filler shall be provided with sensor-operated control with a 20-second maximum run time. Sensor solenoid valve assembly to include Battery Operation. An enclosure is provided to conceal the P-trap and solenoid valve assembly.
The Drinking Fountain, Bottle Filler, and Trap Enclosure are constructed of heavy gauge type 304 stainless steel with exposed surfaces polished to a #4 satin finish. Unit to conform with ANSI, UFAS, and ADA accessibility standards, when installed properly. Unit shall conform with ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875, and NSF/ANSI 61, Section 9.
Drinking Fountain
- Hands-free sensor with wave-on/wave-off operation
- Child or adult ADA compliant -when properly installed
- Sensor with a maximum run time of 10 seconds or less
- Lead-free
- 100-mesh inlet strainer
Bottle Filler
- Hands-free sensor activation
- ADA compliant - reach requirement
- The sensor is battery-operated.
- Laminar flow water supply to reduce splashing
- 1 gallon (3.78 liters) fill rate
- The sensor has a 20-second maximum run time
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Heavy-Duty, Barrier-Free, Wall Mount Drinking Fountain with Concealed Sensor and Sensor Activated Bottle Filler [M-DFBF-F with flexible drinking fountain bubbler; M-DFBF-S with stainless steel bubbler; M-DFBF-LR with Ligature-Resistant Bubbler] | 0 | 2 MB | ||
| | Heavy-Duty, Barrier-Free, Wall Mount Drinking Fountain with Concealed Sensor and Sensor Activated Bottle Filler [M-DFBF-F with flexible drinking fountain bubbler; M-DFBF-S with stainless steel bubbler; M-DFBF-LR with Ligature-Resistant Bubbler] | 0 | 185 KB | ||
 | | Heavy-Duty, Barrier-Free, Wall Mount Hand-Free Drinking Fountain and Bottle Filler M-DFBF; Ligature-Resistant M-DFBF-LR | 0 | 744 KB | ||
| | Heavy-Duty, Barrier-Free, Wall Mount Hand-Free Drinking Fountain and Bottle Filler M-DFBF; Ligature-Resistant M-DFBF-LR | 0 | 293 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB |
Specifications
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Product Features | Hands-Free Operation, D-Shape Basin, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Under basin concealed sensor activation |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Refrigeration | No Refrigeration |
| Accessibility | ADA Compliant |
Options
Models

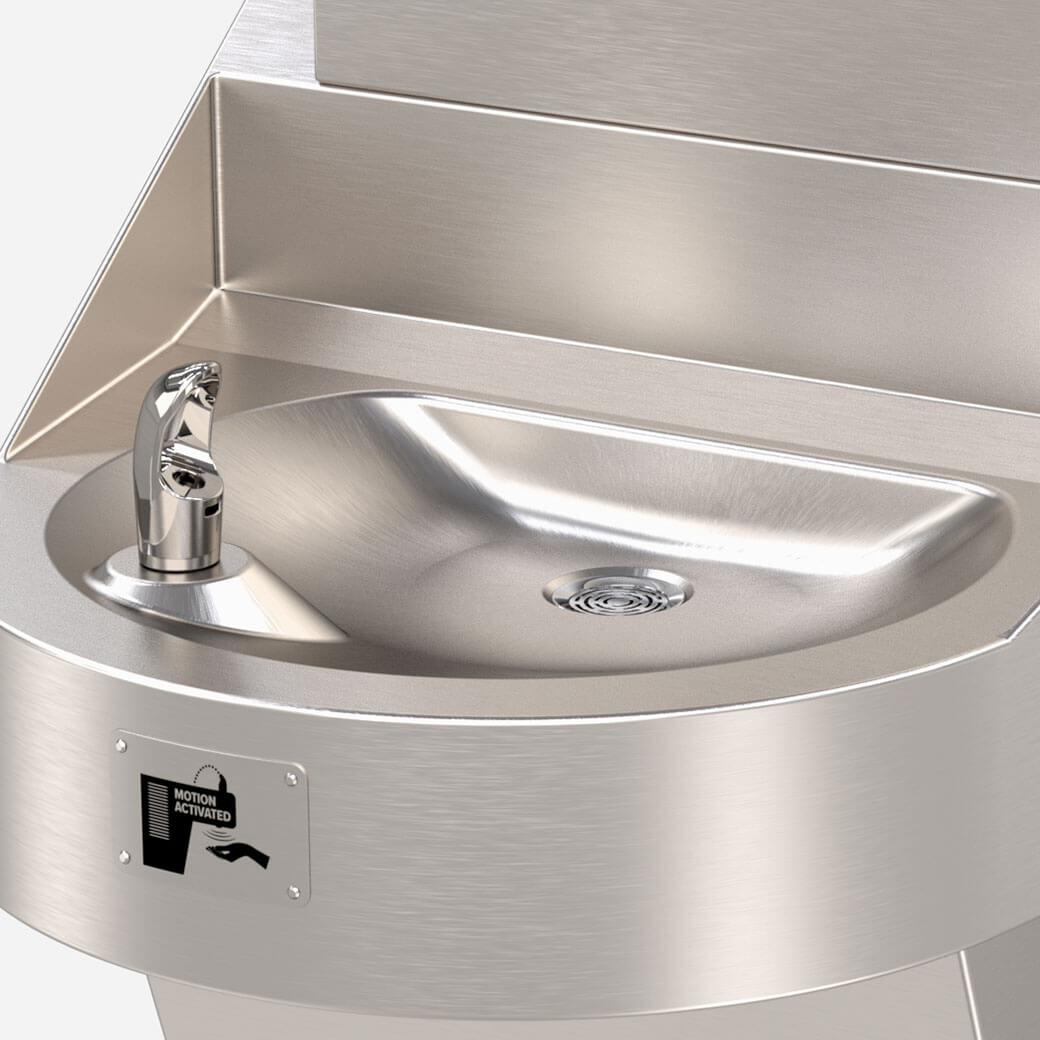

M-DFBF-S Stainless steel drinking fountain bubbler

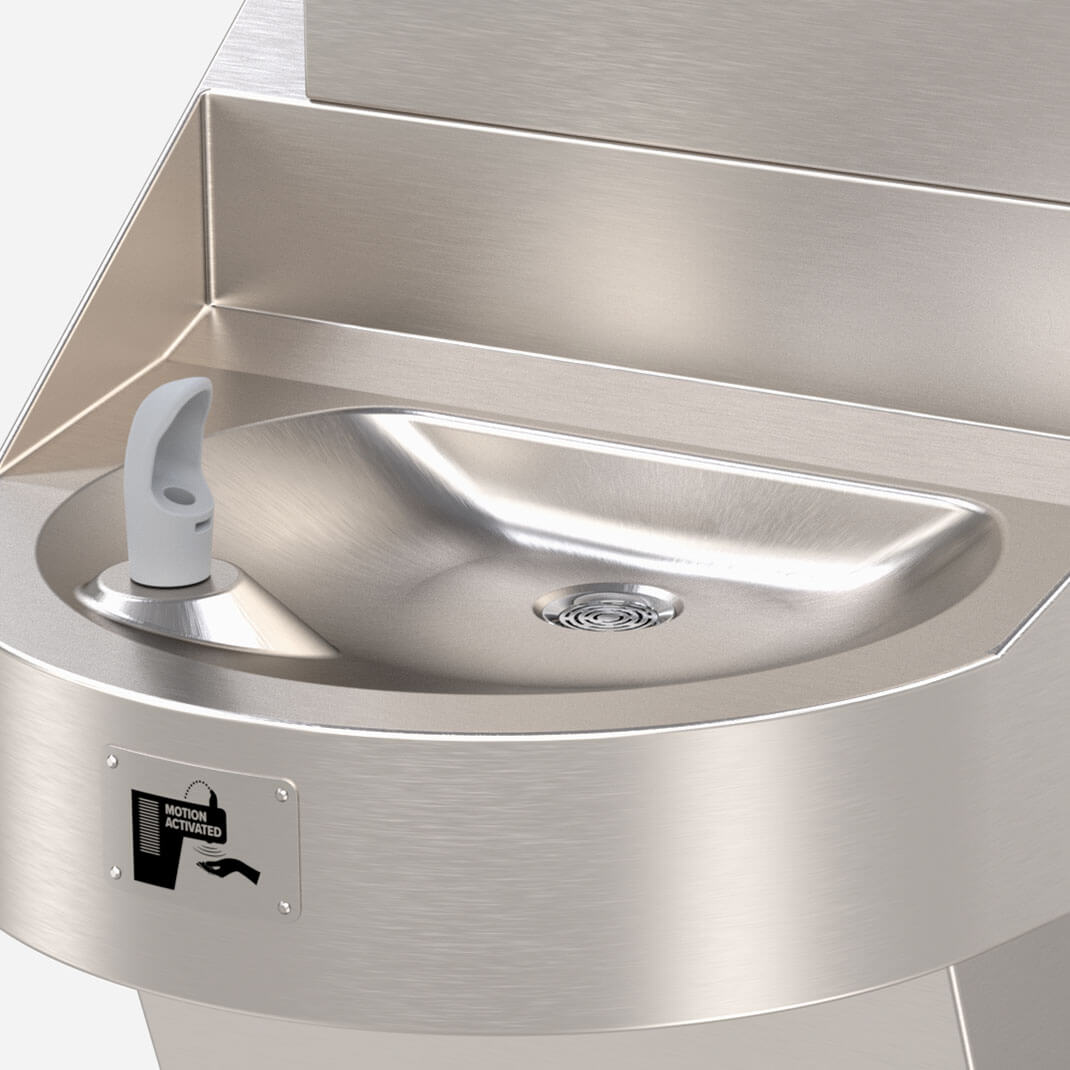

M-DFBF-F Flexible drinking fountain bubbler
Other options are available including custom graphics & colors; see the Options/Variations Tab and/or Submittal
Maximized ligature-resistance specify: Model M-DFBF-LR
