Model A171-UG Series

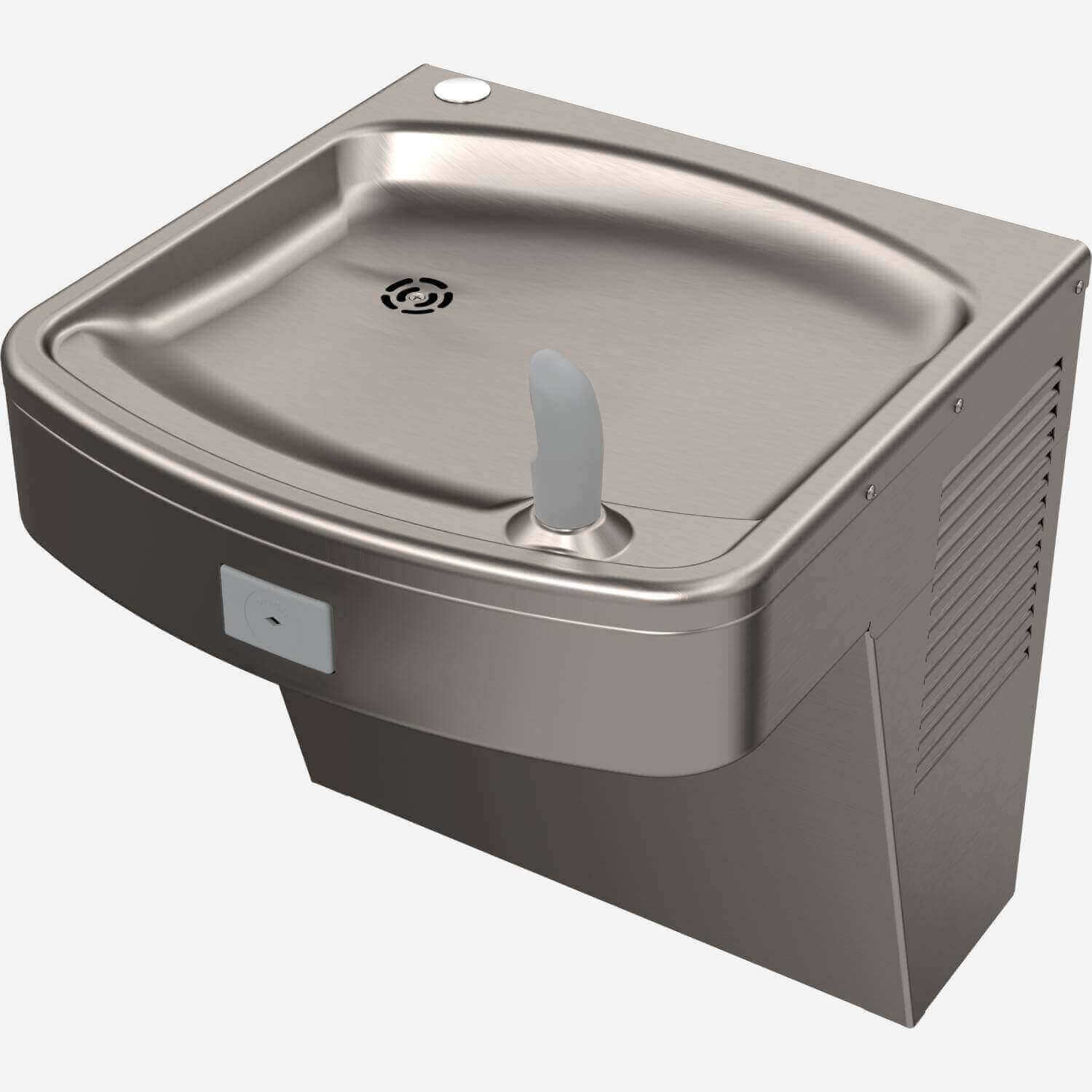

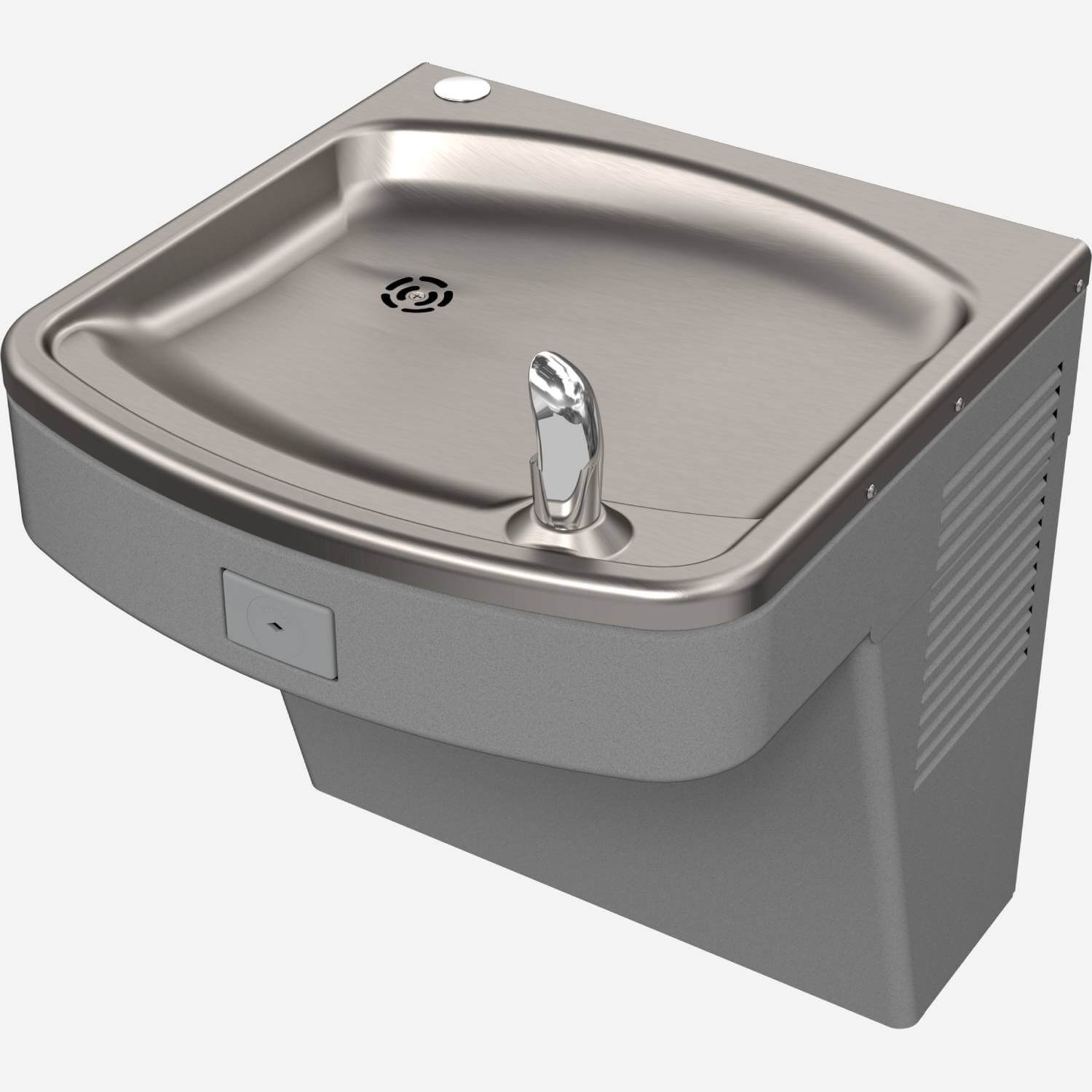

Wall-Mounted Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel
The A171-UG Series is an ADA-compliant drinking fountain. Rough-ins match other manufacturers’ water coolers for easy replacement, and Maintenance Advantage ® design makes access and service a breeze.
Drinking Fountain Features
- Single uncomplicated round mechanical activation button
- Flexible, antimicrobial, non-squirt bubbler
- Available in galvanized steel with grey powder coat or all stainless steel
- Child or Adult ADA Compliant when properly installed
Model Variations
- A171100F-UG | Textured Grey Finish Bottom, Flexible Bubbler
- A171100S-UG | Textured Grey Finish Bottom, Lead-Free Stainless Steel Bubbler
- A171400F-UG | All-Stainless Steel, Flexible Bubbler
- A171400S-UG | All-Stainless Steel, Lead-Free Stainless Steel Bubbler
Water Filter
Popular option provides a water filter for A171 and A172 Series water coolers. WF3EZ provides a 3,000 gallon (11,356 liters) capacity filter. This EZ Door® Filter option features a panel assembly which allows for fast and easy water filter changes without removing the shroud.
- Chlorine Reduction greater than 97.3%, 10,000 gallons (37,854.12 liters) @ 1.67 gallon (6.32 liters) per minute
- Lead Reduction Greater than 99.7%, 2,500 gallons (9,463.53 liters) @ 1.67 gallons (6.32 liters) per minute, lead reduction to one micron
- Complies with NSF/ANSI Standard 42+53
- Complies to NSF 42 - the standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- Complies to NSF 53 - the standard regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- Cyst, Cryptosporidium, Giardia Reduction greater than 94.95%
- Total PFAS Reduction includes PFOA, PFOS, PFHpA, PFHxS, and PFNA
- Replacement filters are sold through Murdock
The unit does not have components for refrigerating the water, if refrigeration is desired see A171.8 Series Water Cooler.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | ADA Wall Mount Drink Fountain [Model A171-UG - Standard, A171-UG-SO Sensor Activated, A171-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 2 MB | ||
| | ADA Wall Mount Drinking Fountain - No Refrigeration | 230 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 924 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | MM - Maintenace Advantage (pdf) | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 101 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | Textured Grey, All-Stainless Steel |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, UPC, Lead-Free Federal Law 111-380 |
| Refrigeration | No Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design |
| Activation | Drinking fountain - rectangular button |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US 12,410,592 B2 (Drop-down Filter) |
| Usage | Indoor, Corporate Campus, School Campus, Train Station |
| Brand | EZ Door™, Maintenance Advantage® |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WB1 | Accessory: Wall Panel for Single-Station Handicap Water Cooler/Drinking Fountain |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
A171100F-UG Textured Grey Finish/ Flexible Bubbler
A171100S-UG Textured Grey Finish/ Stainless Steel Bubbler
A171400F-UG All-Stainless Steel/ Flexible Bubbler
A171400S-UG All-Stainless Steel/ Stainless Steel Bubbler
