Model A171.8-UG Series

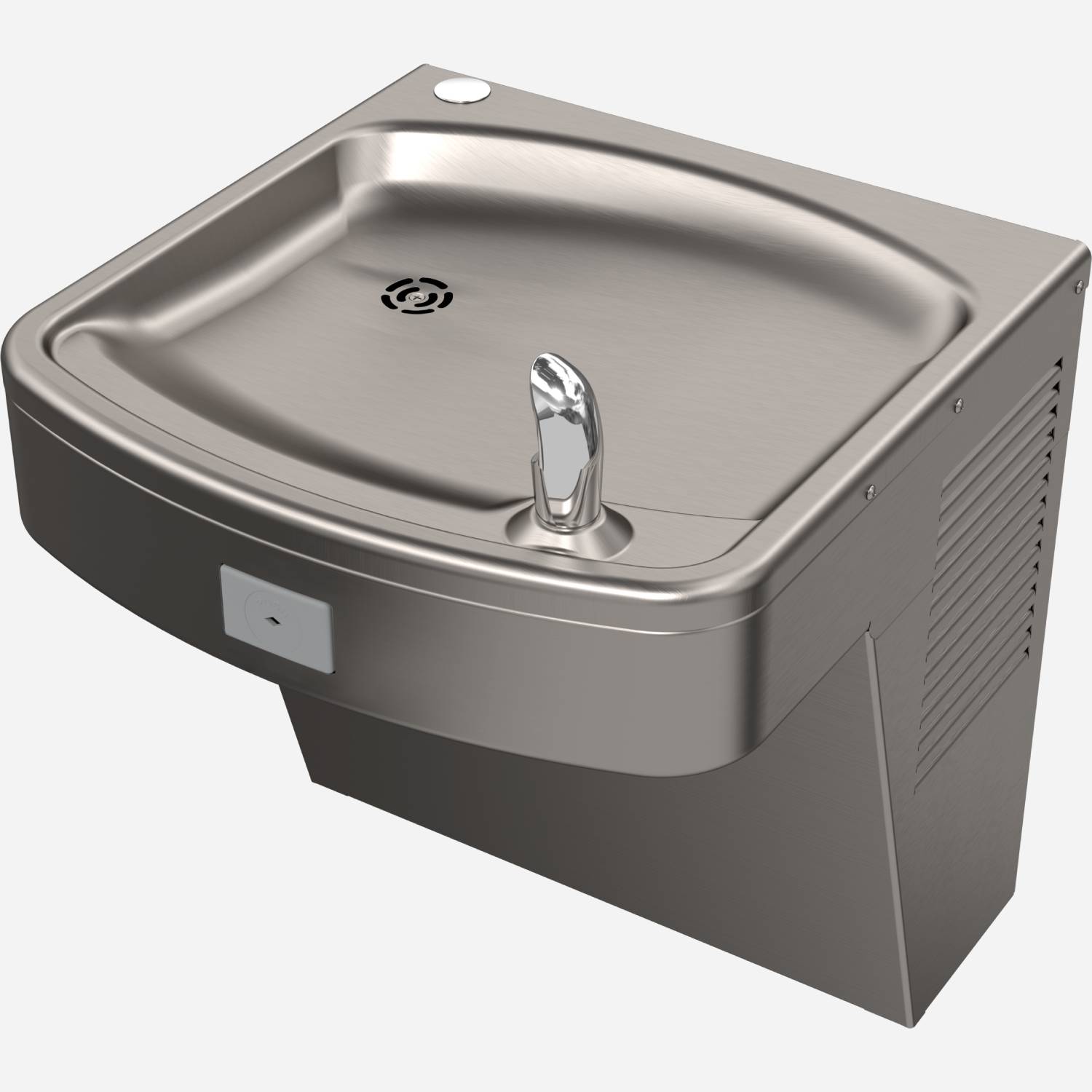

Wall-Mounted Drinking Fountain - In-Unit Refrigeration (8 GPH), ADA, Stainless Steel
The A171.8-UG Series is an ADA-compliant drinking fountain with in-unit refrigeration. Rough-ins match other manufacturers’ water coolers for easy replacement, and the Maintenance Advantage ® design makes access and service a breeze.
Electric Water Cooler Features
- Crisp, chilled water at 8 Gallons (3.79 Liters) Per Hour
- Flexible, antimicrobial, non-squirt bubbler
- Available in galvanized steel with grey powder coat or all stainless steel
- Child or Adult ADA Compliant when properly installed
- Chiller includes Water Leak Detection Auto Shut-Off Valve
Model Variations

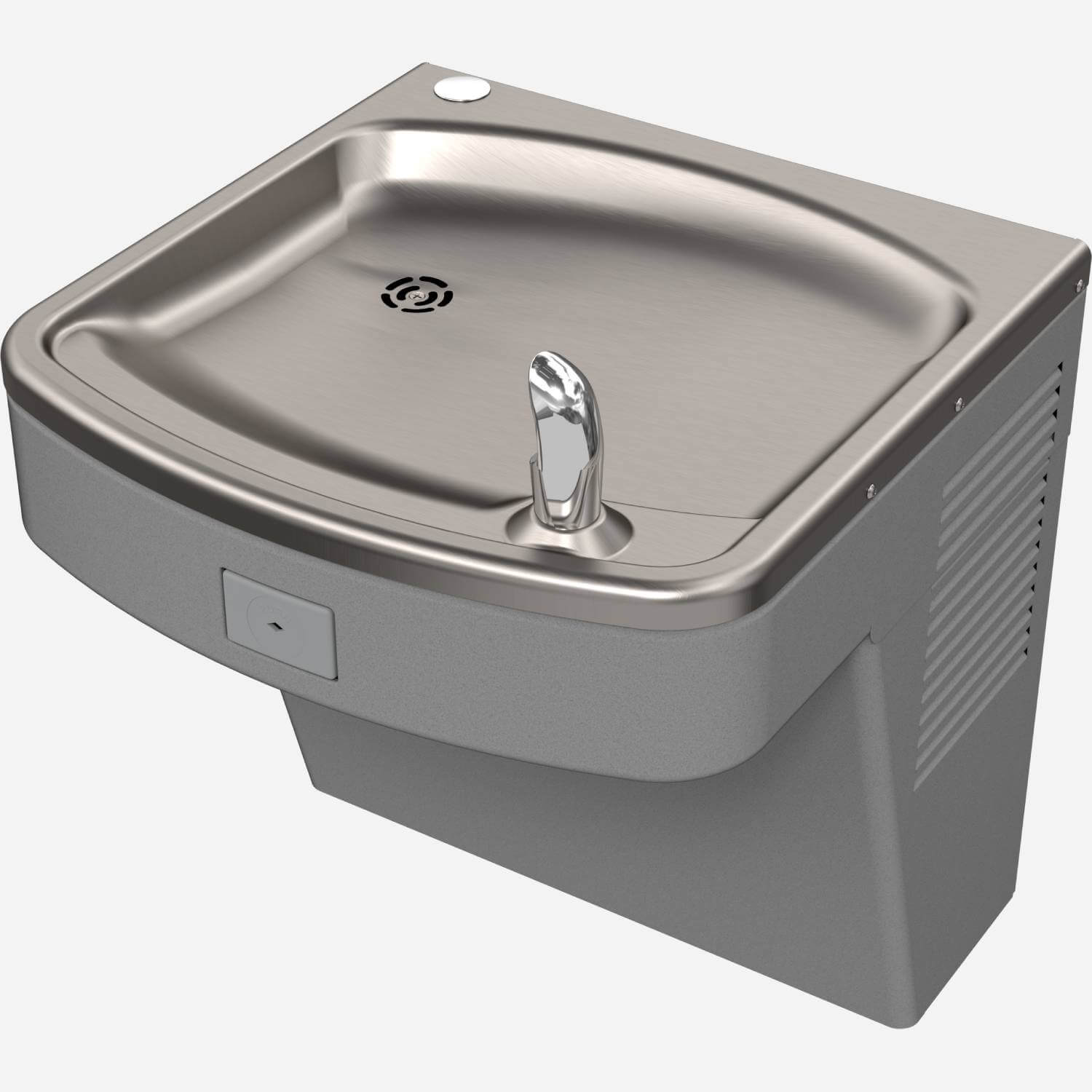

- A171108F-UG | Textured Grey Finish Bottom, Flexible Bubbler
- A171108S-UG | Textured Grey Finish Bottom, Lead-Free Stainless Steel Bubbler
- A171408F-UG | All-Stainless Steel, Flexible Bubbler
- A171408S-UG | All-Stainless Steel, Lead-Free Stainless Steel Bubbler
Water Filter
The popular option provides a water filter for A171 and A172 Series water coolers. WF3EZ provides a 3,000-gallon (11,356 liters) capacity filter. This EZ Door® Filter option features a panel assembly that allows for fast and easy water filter changes without removing the shroud.
- Chlorine Reduction greater than 97.3%, 10,000 gallons (37,854.12 liters) @ 1.67 gallons (6.32 liters) per minute
- Lead Reduction Greater than 99.7%, 2,500 gallons (9,463.53 liters) @ 1.67 gallons (6.32 liters) per minute, lead reduction to one micron
- Complies with NSF/ANSI Standard 42+53
- Complies with NSF 42 - the standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc, and total dissolved solids (TDS).
- Complies to NSF 53 - the standard regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs, and chromium.
- Cyst, Cryptosporidium, Giardia Reduction greater than 94.95%
- Total PFAS Reduction includes PFOA, PFOS, PFHpA, PFHxS, and PFNA
- Replacement filters are sold through Murdock
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Pressure Water Coolers | 146 KB | ||
 | | ADA Self-Contained Wall Mount Water Coolers [Model A171.8-UG - Standard (Rectangular Pushbutton, A171.8-UG-SO Sensor-Activated, A171.8-UG-VR with Round Vandal Resistant Pushbutton] - includes parts manuals | 2 MB | ||
| | ADA Self-Contained Wall Mount Water Cooler | 279 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 924 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | Kwik Ship Brands: Murdock Mfg (pdf) | 401 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 1 MB | ||
| | MM - Maintenace Advantage (pdf) | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
| | Murdock Kwik Ship® vs Elkay, Oasis [A171108F-UG, A172108F-UG, A171408F-UG, A171408S-UG, A172408F-UG, A172408S-UG, BF11, BF12, BF12-BCD, BF11S, BF12S, BF12S-BCD, BFEZS168, BFEZS168-BCD, BF15, BF16, BF16-BCD, BF15S, BF16S, BF16S-BCD, A0004000-SK5, A000G000-SK5, WF3EZ, WF3000, RWF3000, RWF3000-20] Lit# L1001747 6/26 | 665 KB | ||
 | | Barrier-Free Wall Mount Water Cooler - 8 gph Refrigeration | 836 KB | ||
| | Barrier-Free Wall Mount Water Cooler - 8 gph Refrigeration | 286 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 101 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | Lead-Free Federal Law 111-380, CE complaint for 220 V electrical, cUPC, NSF/ANSI/CAN 61, ANSI/ASHRAE 18, UL Listed (US and Canada) |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Maintenance Advantage® – Easy Maintenance Design, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Chiller includes Water Leak Detection Auto Shut-Off Valve |
| Activation | Drinking fountain - rectangular button |
| Accessibility | ADA Compliant |
| Usage | Indoor, Corporate Campus, School Campus |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US 12,410,592 B2 (Drop-down Filter) |
| Brand | Maintenance Advantage®, EZ Door™ |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WB1 | Accessory: Wall Panel for Single-Station Handicap Water Cooler/Drinking Fountain |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts | ||
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
A171108F-UG Textured Grey Finish/ Flexible Bubbler
A171108S-UG Textured Grey Finish/ Stainless Steel Bubbler
A171408F-UG All-Stainless Steel/ Flexible Bubbler
A171408S-UG All-Stainless Steel/ Stainless Steel Bubbler
