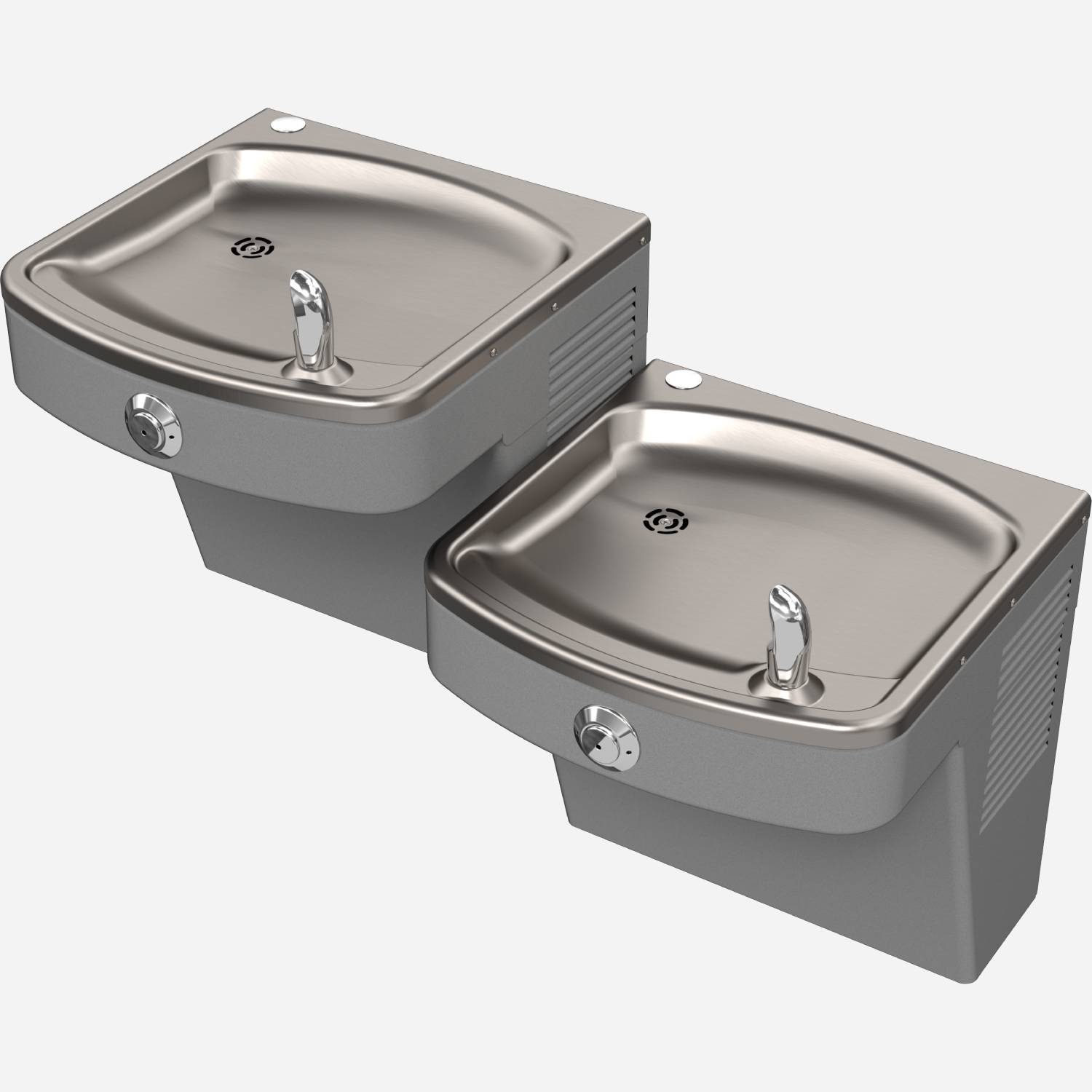

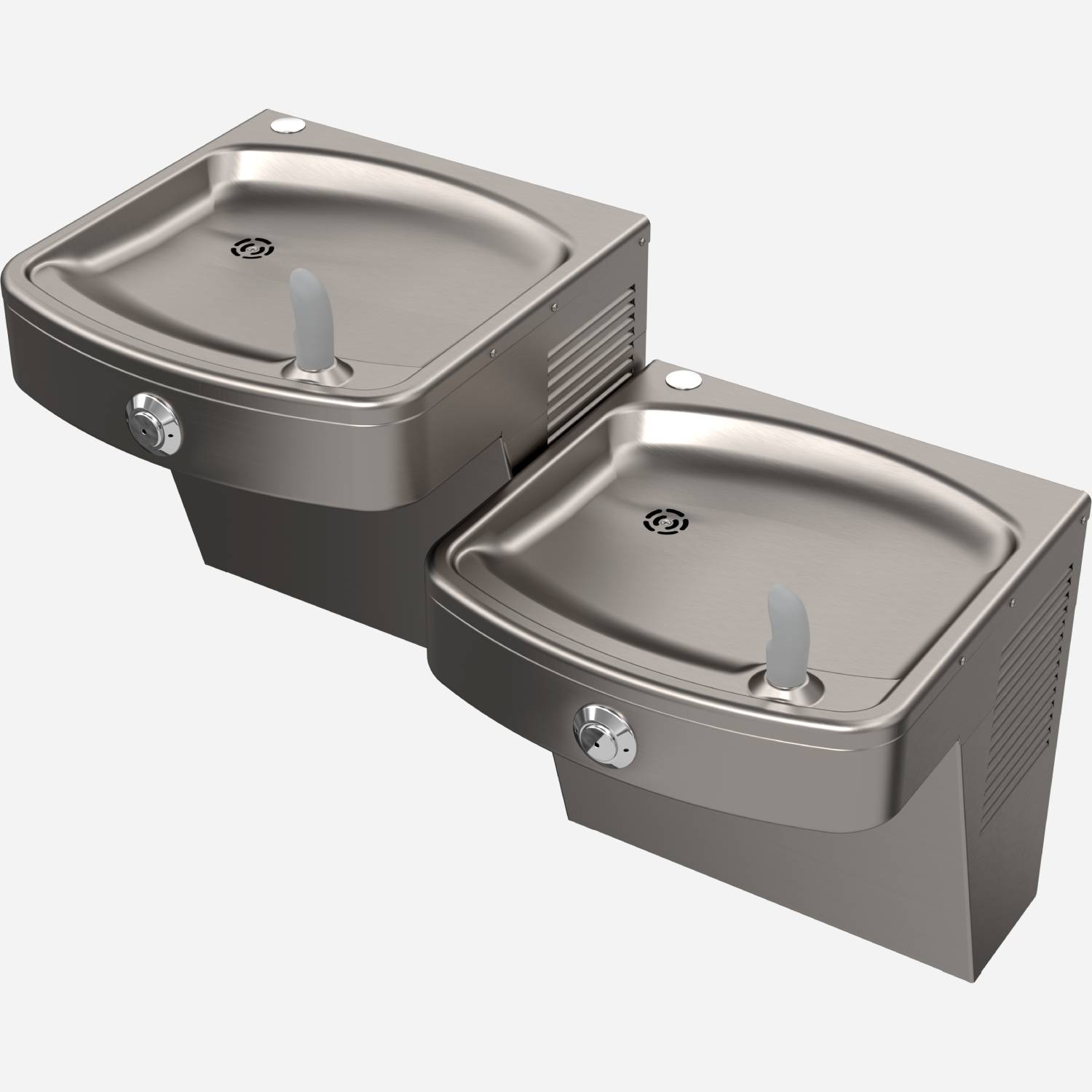

Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
In StockThis product is available for quick shipment nationwide.
Model A172.8-UG-VR Series
Installation Instructions
2 available
Submittal
Submittal A172.8-UG-VR Water Cooler (pdf)
Model A172.8-UG-VR Series
Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
This durable, vandal resistant, stainless steel barrier free, wall mounted, bi-level water cooler is suitable for just about any application. Vandal-resistant buttons provides a durable reasurrance. It features a chiller rated at 8 gallon (30.3 liters) per hour. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Murdock's Maintenance Advantage design allows for easy maintenance and installation. Non-refrigeration units are also available.
Electric Water Cooler Features
- Crisp, chilled water at 8 gallons (30.28 liter) per hour
- Universal Bi-Level allows for left-side or right-side high on drinking fountain
- Designed for vandal-resistance, featuring round buttons.
- Each drinking fountain station features an uncomplicated single mechanical activation button
- Flexible, antimicrobial, non-squirt bubbler or stainless steel bubblerx
- Available in galvanized steel with grey textured powder coat or all-stainless steel
- Child or Adult ADA Compliant when properly installed
- Chiller includes Water Leak Detection Auto Shut-Off Valve
Model Variations
- A172108F-UG-VR | Textured Grey Finish Bottom, Flexible Bubbler
- A172108S-UG-VR | Textured Grey Finish Bottom, Lead-Free Stainless Steel Bubbler
- A172408F-UG-VR | All-Stainless Steel, Flexible Bubbler
- A172408S-UG-VR | All-Stainless Steel, Lead-Free Stainless Steel Bubbler
Water Filter
Water filters in 3,000 gallon capacity are available for A171 and A172 Series water cooler/drinking fountains. Upgrade your water cooler/drinking fountain with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. The filter is NSF 42, 53, 401 compliant.
- NSF 42The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- NSF 401NSF 401 addresses PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA
- Replacement filters are sold through Murdock
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Pressure Water Coolers | 146 KB | ||
 | | ADA Self-Contained Universal Bi-Level Wall Mount Water Coolers [Model A172.8-UG | Standard (Rectangular Pushbutton), A172.8-UG-SO | Sensor-Activated, A172.8-UG-VR | Vandal Resistant Push Button] - includes parts manuals | 3 MB | ||
| | ADA Self-Contained Universal Bi-Level Wall Mount Water Cooler with Vandal Resistant Push-Button | 296 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 924 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | MM - Maintenace Advantage (pdf) | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel [A172108S-UG-VR, A172108F-UG-VR, A172408S-UG-VR, A172408F-UG-VR] | 334 KB | ||
| | Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain - In-Unit Refrigeration (8GPH), ADA, Stainless Steel [A172108S-UG-VR, A172108F-UG-VR, A172408S-UG-VR, A172408F-UG-VR] | 832 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 101 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | ANSI/ASHRAE 18, UL Listed (US and Canada), CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, cUPC, NSF/ANSI/CAN 61 |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Round Vandal-Resistant Pushbutton, Universal bi-level - can be installed left high or right high, Chiller includes Water Leak Detection Auto Shut-Off Valve |
| Activation | Drinking fountain - round vandal-resistant button |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US 12,410,592 B2 (Drop-down Filter) |
| Usage | Indoor, School Campus, Train Station, Corporate Campus, Outdoor |
| No. of Stations | 2 |
| Brand | Maintenance Advantage®, EZ Door™ |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SK5 | Accessory: Skirt Assembly for ADA Bi-Level Water Cooler |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts | ||
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
Bi-Level Water Cooler- each fountain features the following:
A172108F-UG-VR Textured Grey Finish/ Flexible Bubblers
A172108S-UG-VR Textured Grey Finish Stainless Steel Bubblers
A172408F-UG-VR All-Stainless Steel Flexible Bubblers
A172408S-UG-VR All-Stainless Steel Stainless Steel Bubblers
Popular Options-WF3EZ| 3000-Gallon Easy Door PFAS Filter -SK5 | Cane Detection Skirt for Upper Unit -220V| 200 Volt/50 Hz or 60 Hz CompressorOther options or accessories may be available see the submittal or options section
