Wall-Mounted SpringH2O® Pushbutton All-Stainless Steel Water Bottle Filling Station - In-Wall Refrigeration (8 GPH), ADA, Standalone
The SpringH20™ BF158S Bottle Filler is a standalone pushbutton activated stainless steel bottle filler. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.
This bottle filler is provided with an in-wall refrigeration chiller. A back panel is provided with a ventilation louvered grille for the chiller.
Standard Features
- Heavy-gauge type 304 stainless steel polished to #4 satin finish
- Vandal resistant, seamless alcove
- In-wall chiller shall deliver a minimum of 8.0 gallons (30.3 liters) per hour of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Cooling system shall use R-134a refrigerant and be capillary tube regulated.
- Back Panel and Louvered Grille
- ADA compliant
- Hemispherical stainless steel pushbutton
- 1.2 gallon (4.54 liters) per minute laminar flow nozzle
- Standalone unit
- Rated for indoor use
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wall-Mounted SpringH2O® Pushbutton All-Stainless Steel Water Bottle Filling Station - In-Wall Refrigeration (8 GPH), ADA, Standalone | 0 | 4 MB | ||
| | Wall-Mounted SpringH2O® Pushbutton All-Stainless Steel Water Bottle Filling Station - In-Wall Refrigeration (8 GPH), ADA, Standalone | 0 | 239 KB | ||
| | SpringH2O® bottle fillers are stainless steel, providing upscale aesthetics with the vandal-resistant durability Murdock is known for. They feature an industry-leading 1.2 GPM laminar water flow. | 0 | 5 MB |
Specifications
| Brand | SpringH2O® |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Black |
| Mounting | Wall-Mounted |
| Activation | Bottle filler - hemispherical pushbutton |
| Style | BF16/BF15, Stand-Alone |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| Product Features | Bottle Filler - Heavy Duty All-Stainless Steel |
| Accessibility | ADA Compliant |
| Compliances | ANSI/ASHRAE 18, Lead-Free Federal Law 111-380, NSF/ANSI/CAN 61, UPC, UL Listed (US and Canada), CE complaint for 220 V electrical |
| Usage | Indoor, Corporate Campus, School Campus, Train Station |
| Patent | US D1,062,348 S (Ornamental Design of Standalone SpringH2O Wall-Mounted Bottle Filler) |
Options
Models
Typical models are shown below

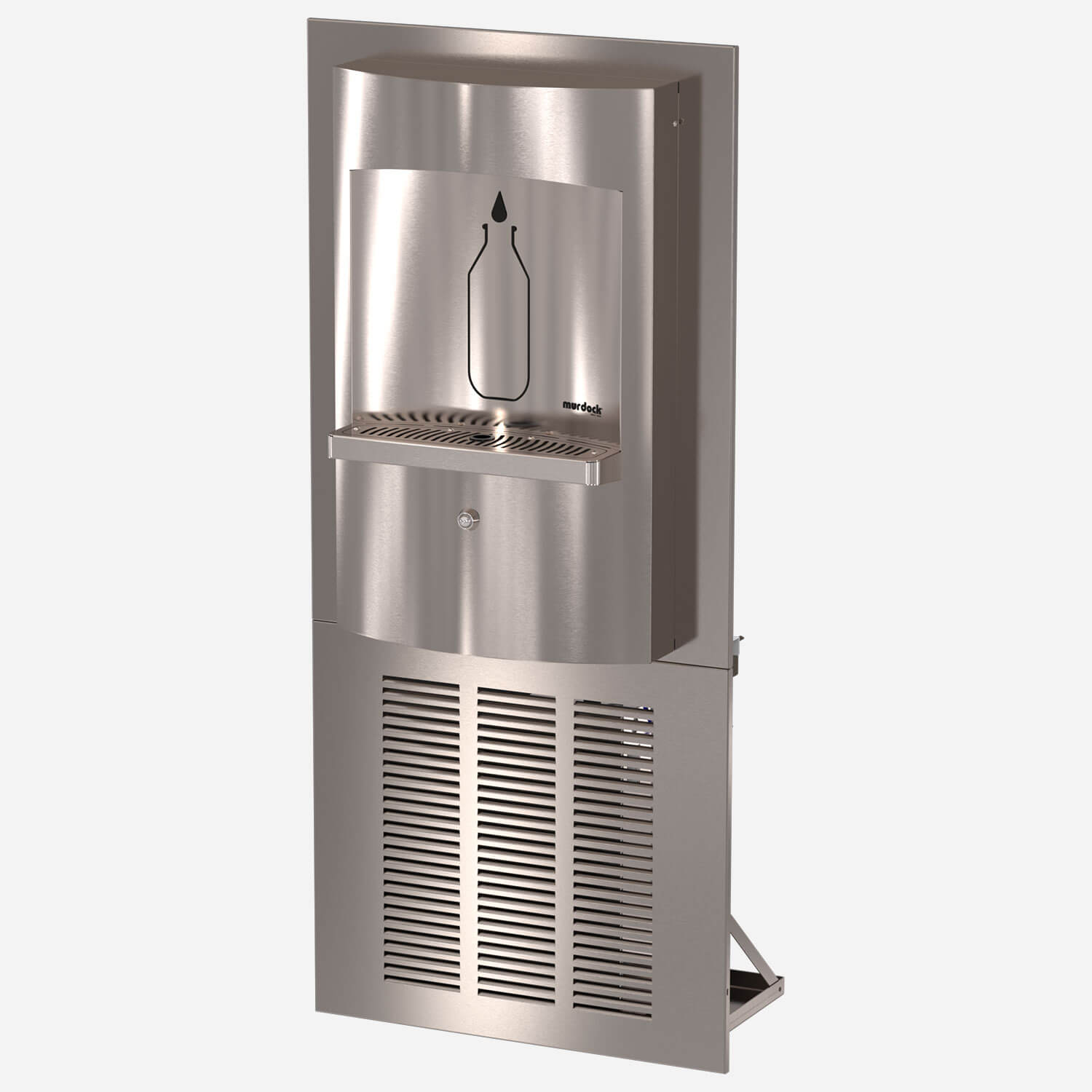

BF158S Standard - All-Stainless Steel

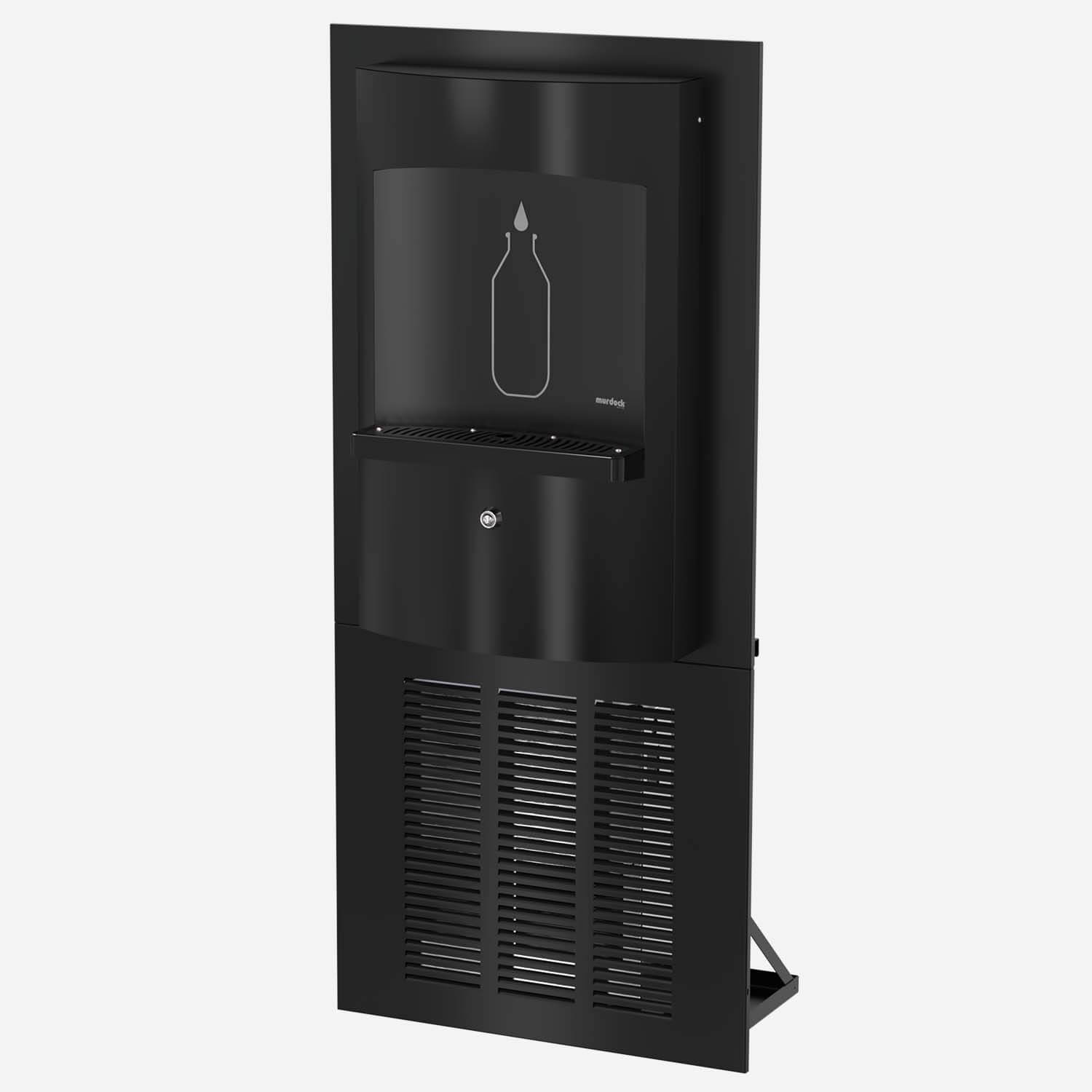

BF158S-EG22 Popular Option Matte Black Powder Coating
Options and Accessories -EG22 | Enviro-Glaze® Matte Black Powder Coat -220V | 220 volt/50 Hz or 60Hz Compressor(CE complaint) -LOGO | Customer Specified Logo/Graphics -WF3000 | 3000-gallon PFAS Water Filter NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
