Name: Heavy-Duty, Deck-Mounted, Push Button, Universal, Compact Water Bottle Filling Station - Stainless Steel
Brand: Murdock Manufacturing
SKU: BF1SC

Model BF1SC

Heavy-Duty, Deck-Mounted, Push Button, Universal, Compact Water Bottle Filling Station - Stainless Steel

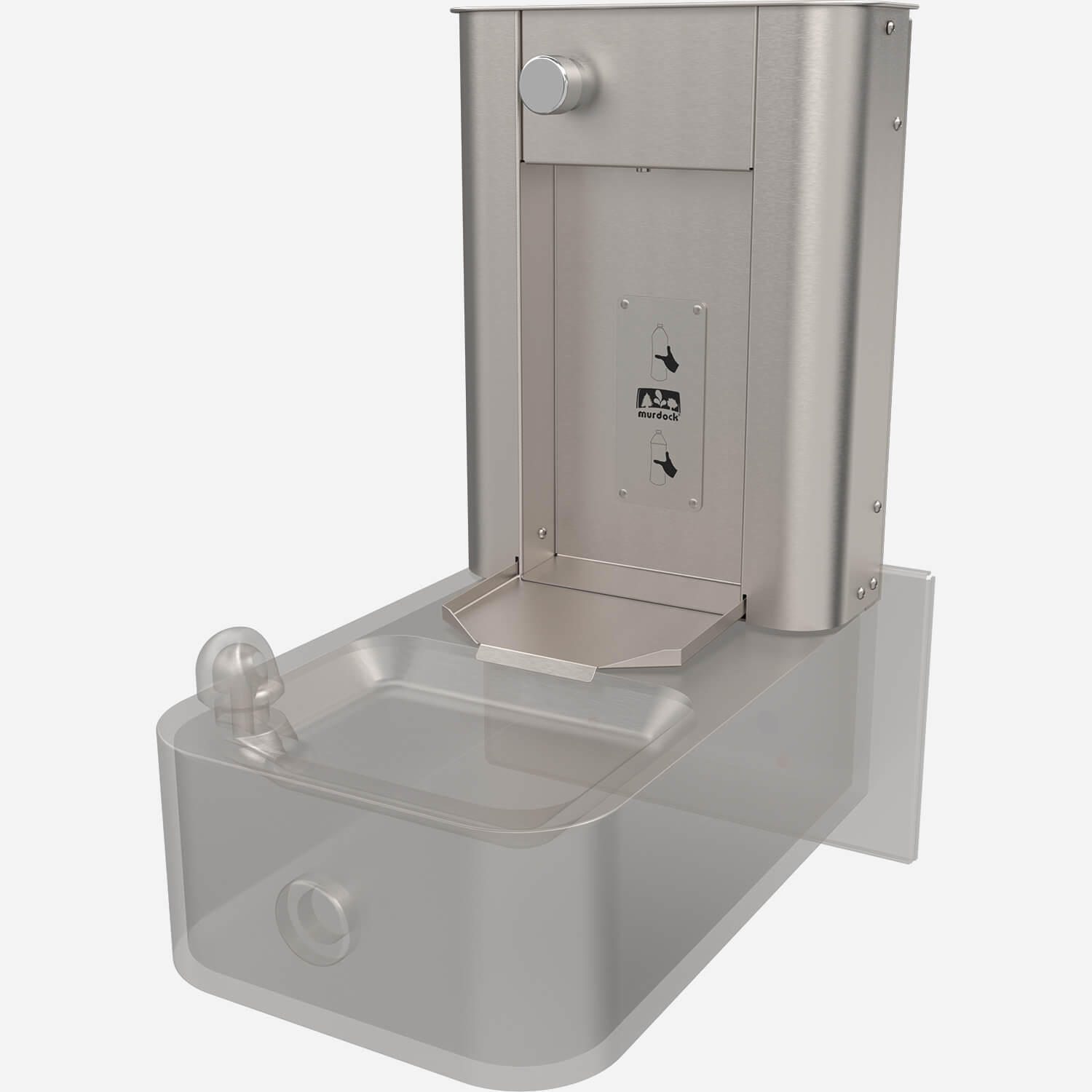

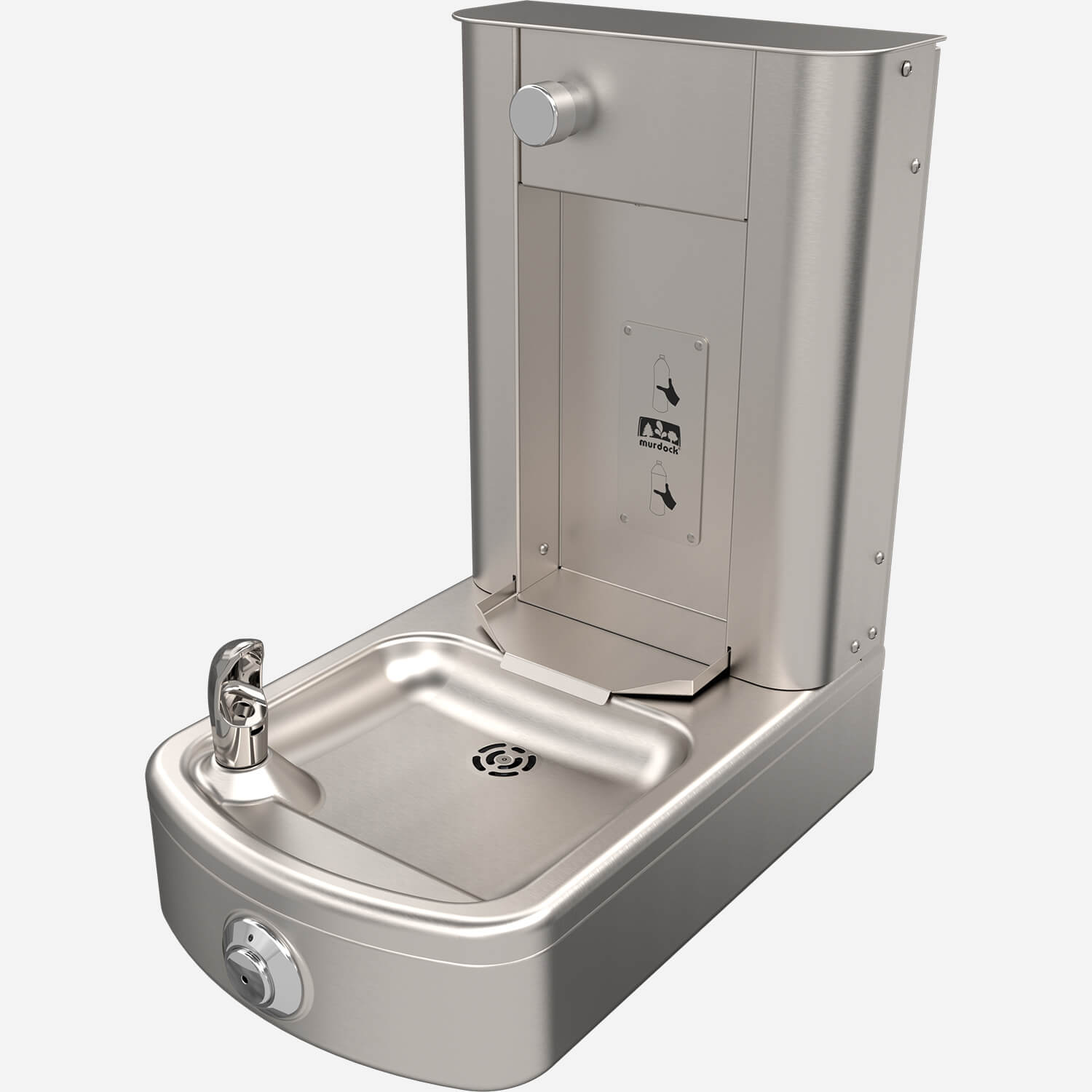

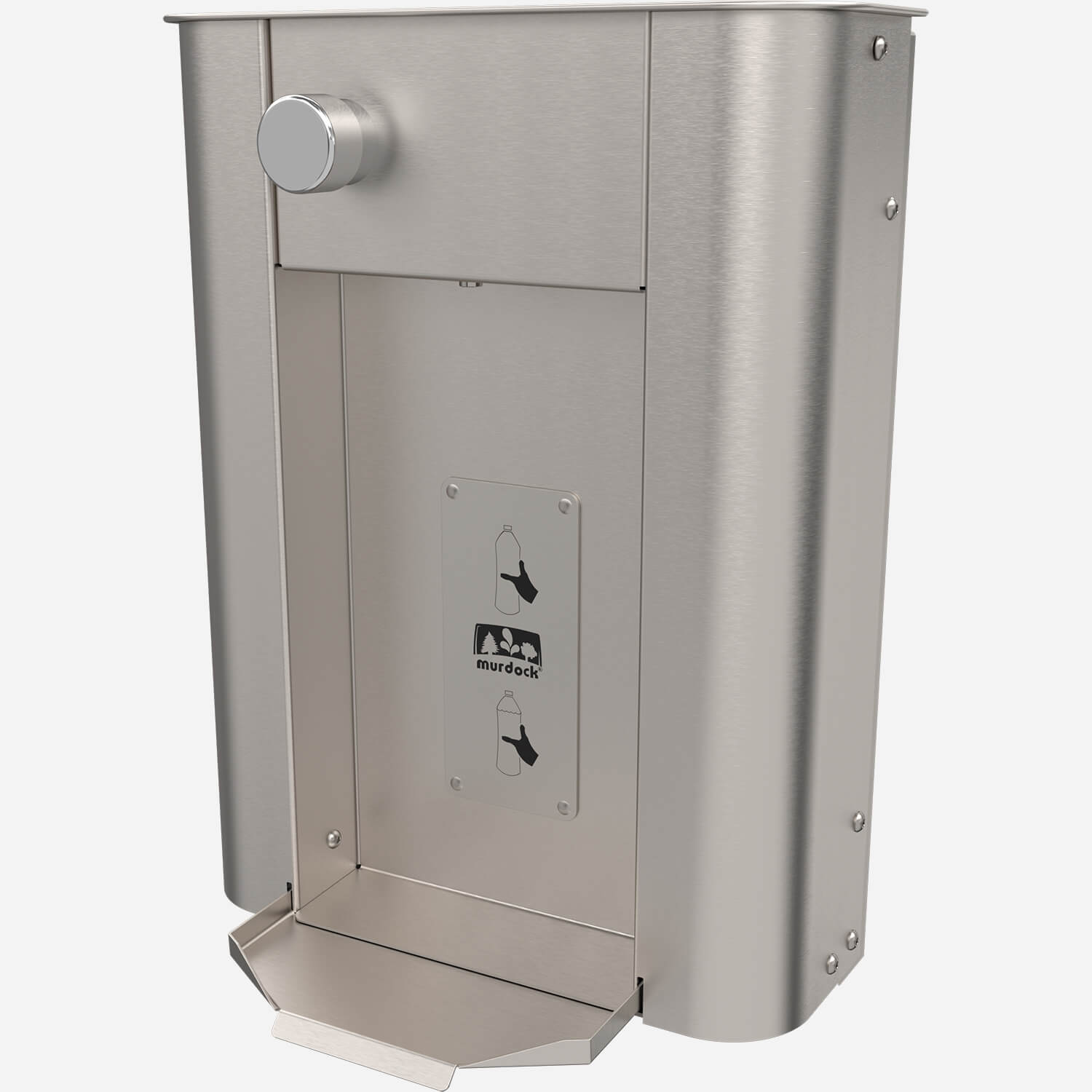

Model BF1SC is a 12" (305 mm) wide bottle filler designed to be mounted on top of an existing Murdock A151 style or comparable competitors' drinking fountain. This bottle filler is activated by a large push button.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide BF2SC and BF1SC	Universal Heavy Duty Compact Bottle Filler BF2SC (Sensor Operated) and BF1SC (Push Button Operated)	158 KB
Submittals	Submittal BF1SC Bottle Filler	Universal Heavy Duty Compact Bottle Filler, Push Button Operated for Retrofit and New Installations, add-on	157 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Brochures/Flyers	Universal Compact Bottle Filler Sell Sheet (pdf)	Universal Compact Bottle Filler Sell Sheet (pdf)	170 KB
Videos	How to Add a Filter to the Murdock Universal Compact Bottle Filler (video)	The Universal Compact Retro-Fit Bottle Filler from Murdock Manufacturing is designed to upgrade any existing brand of "Stainless Steel Box-Style" fountain. Our heavy-duty, stainless steel product can be operated by a sensor or manual push button, or both,	101 KB
Videos	How To Set Up a Murdock Universal Compact Bottle Filler (video)	The Universal Compact Retro-Fit Bottle Filler from Murdock Manufacturing is designed to upgrade any existing brand of "Stainless Steel Box-Style" fountain. Our heavy-duty, stainless steel product can be operated by a sensor or manual push button, or both,	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Mounting	Deck-Mounted
Activation	Push Button
Compliances	NSF/ANSI/CAN 61, Lead-Free Federal Law 111-380, IAPMO tested to NSF/ANSI 61, Section 9
Patent	US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler)
Product Features	Maintenance Advantage® – Easy Maintenance Design, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Designed for retrofitting on older/existing units
Usage	Indoor
Accessibility	ADA Compliant

Options

Accessories

	Image	Model	Description	Downloads
		-ETB	Accessory: Extended Trim Bracket
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
No available options

Details

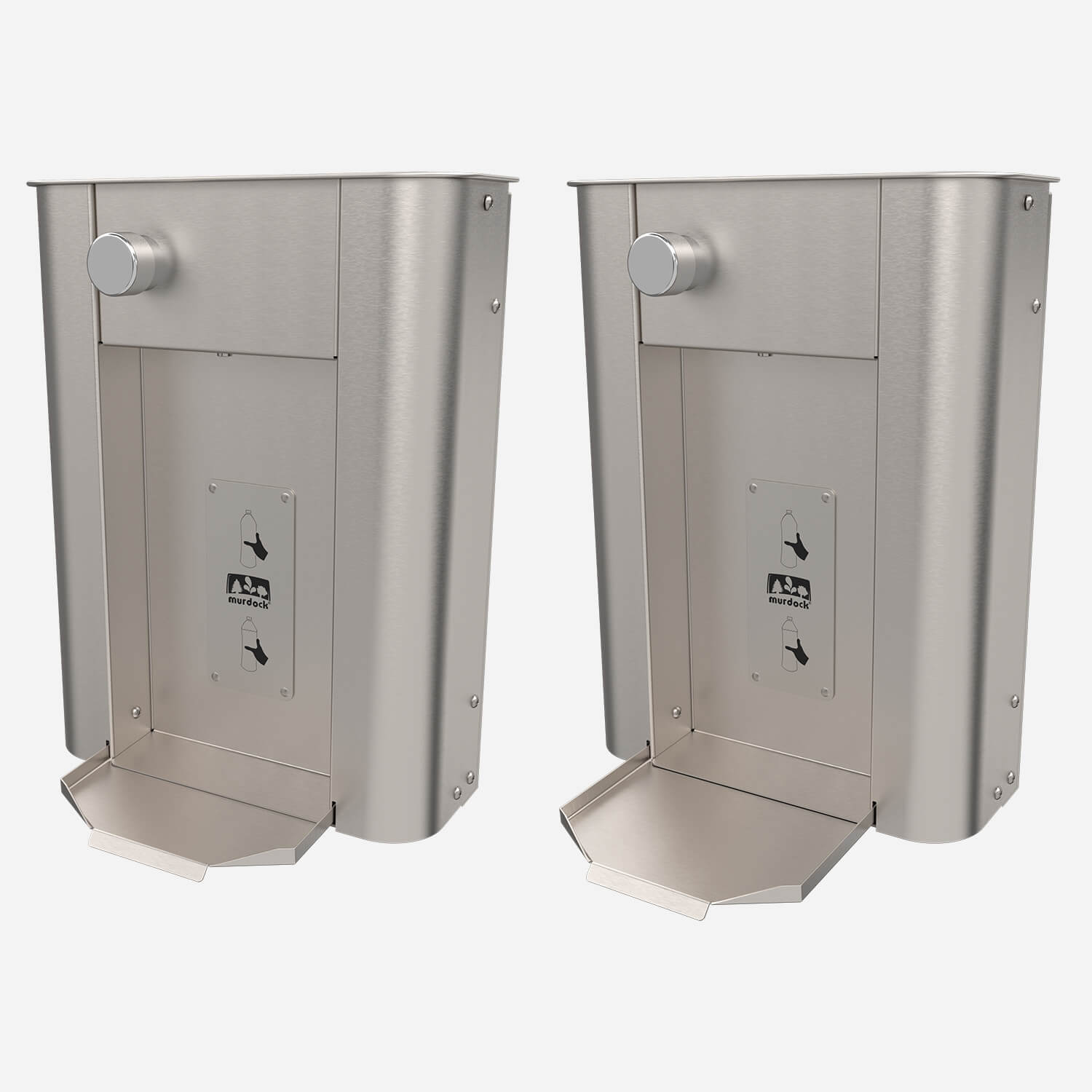

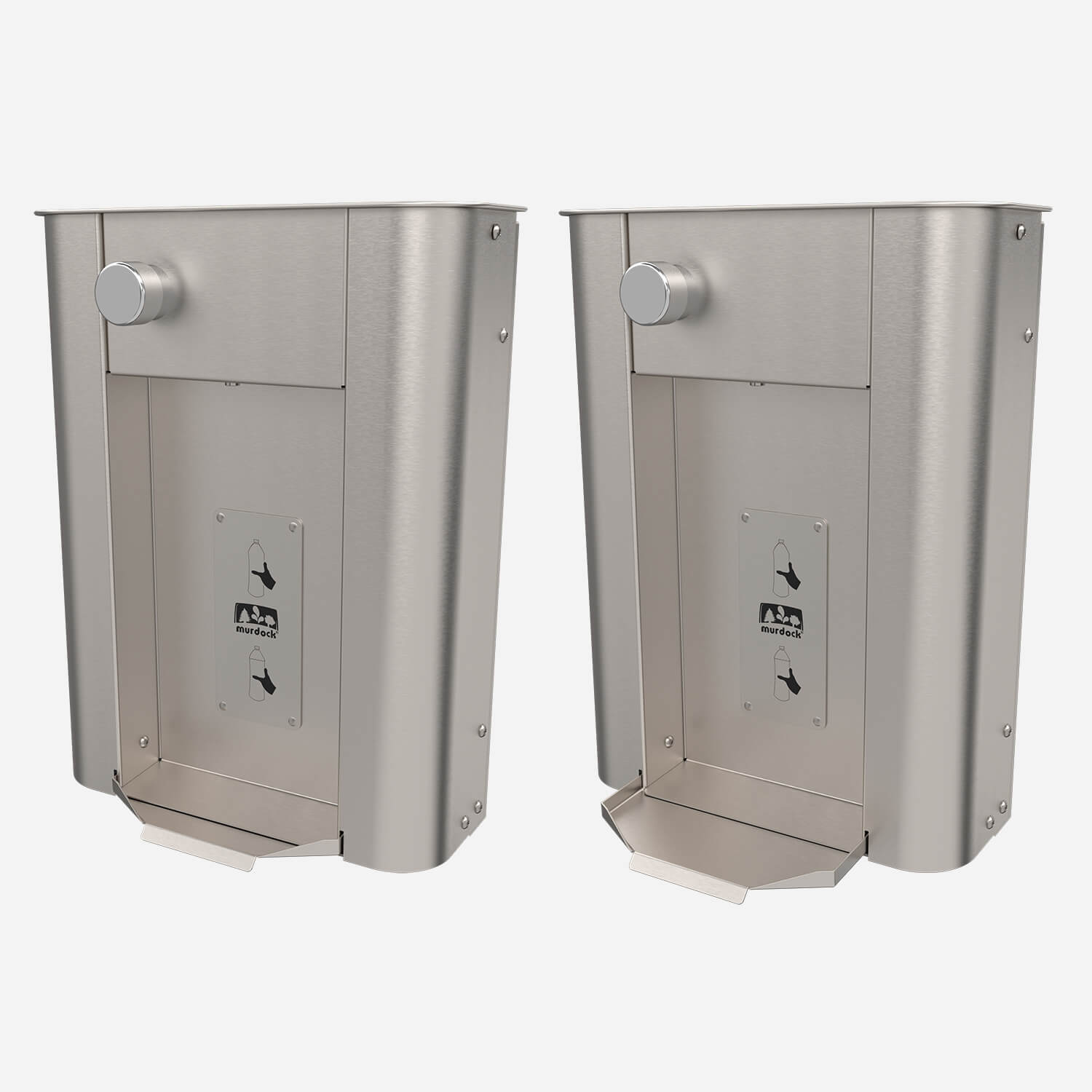

The bottle filler cabinet is fabricated of 18 gauge, type 304 stainless steel. The water for the bottle filler is supplied from the drink fountain on which it mounts. The uncollected water spills a tray which directs the water to the drain of the drinking fountain. To accommodate Murdock and comparable drinking fountains, two trays are provided - installed on the bottle filler one tray measures 5 to 7" (127 to 178 mm) from the back of the drinking fountain. The other measures 7 to 9" (178 to 229 mm).

When installed properly, the Bottle Filler complies with ADA forward reach requirements. Unit is certified to ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875 and NSF/ANSI 61, Section 9.
