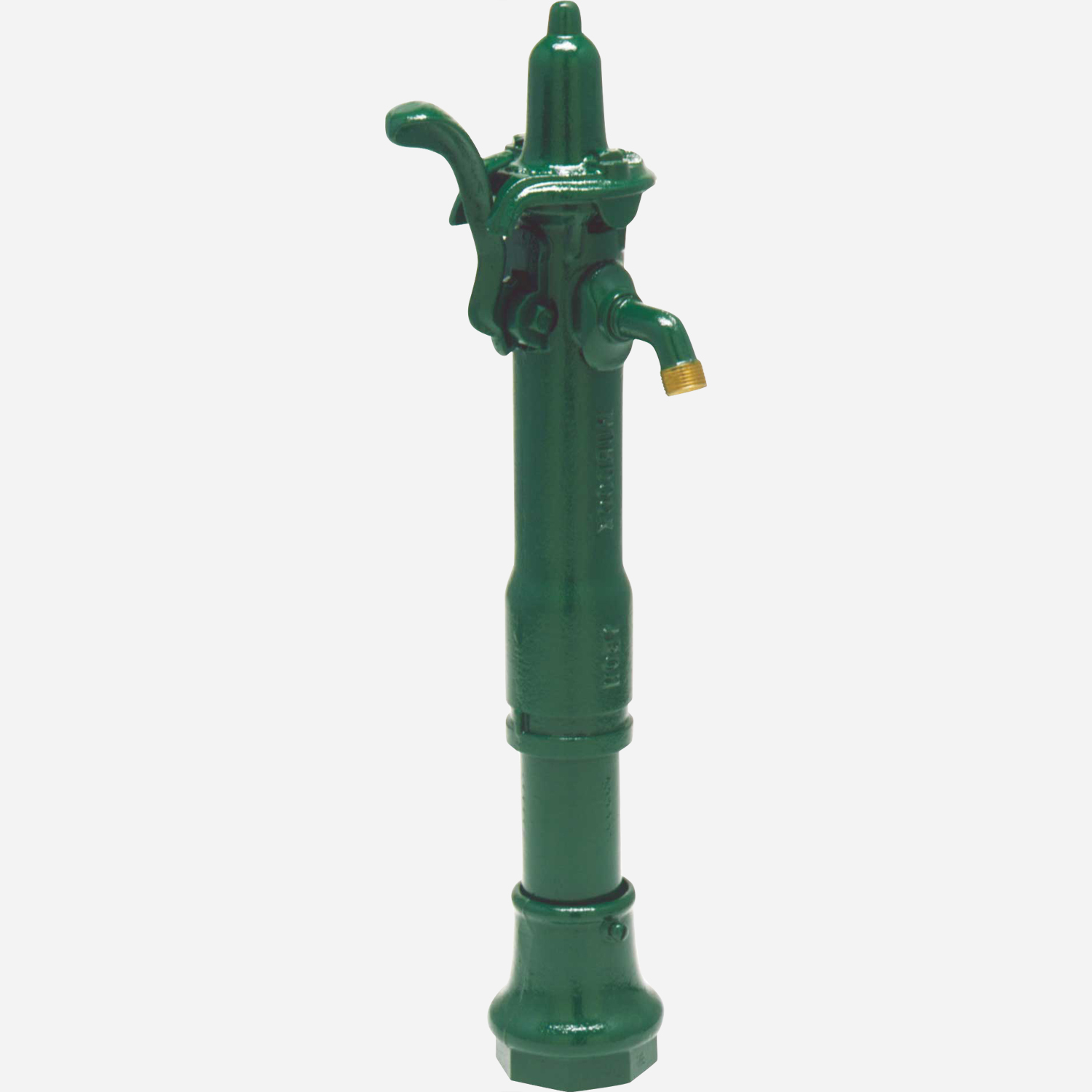

Model M-1100
1" Self-Closing Lever Handle Hydrant

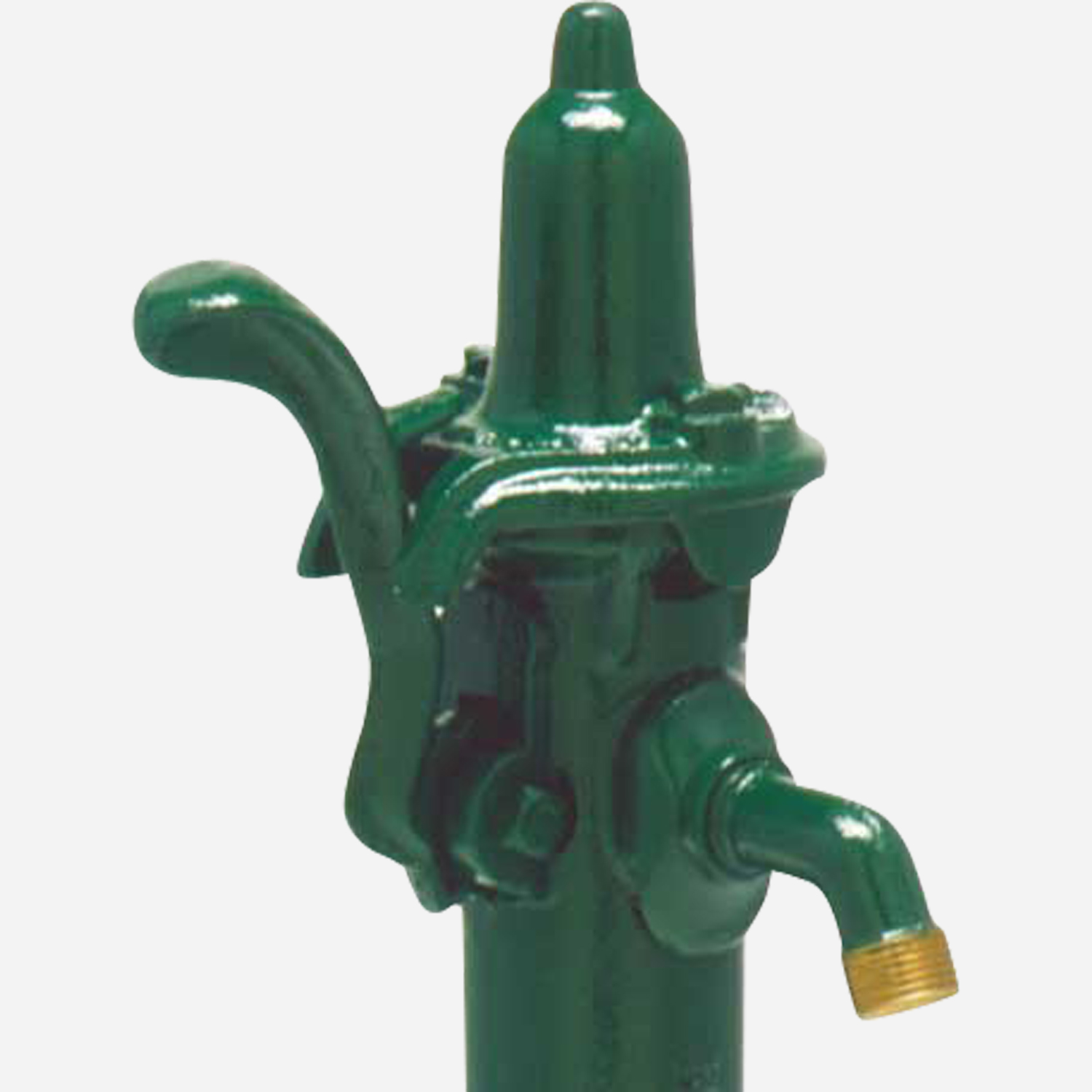

This self-closing, lever handle hydrant delivers year-round service outside or in unheated buildings. To provide freeze resistant functionality, the control valve is located below the frost line. The spring-loaded handle raises and lowers the internal supply line assembly, controlling the valve. The internal supply column is evacuated through drainage ports in the bottom. The hydrant must be operated fully "on."
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 1" Self-Closing Lever Handle Hydrant | 0 | 588 KB | ||
| | 1" Self-Closing Lever Handle Hydrant | 0 | 182 KB | ||
| | Cast Iron Hydrants | 0 | 24 KB | ||
| | Discharge Rates for Murdock Cast Iron Hydrants | 0 | 28 KB | ||
 | | Murdock Mfg - Domestic Water Piping Specialties | 0 | 251 KB | ||
| | Murdock Mfg - Domestic Water Piping Specialties | 0 | 291 KB | ||
| | Hydrants-Wall, Ground, Yard and Roof | 0 | 5 MB | ||
 | | 1.5 Inch Compression Hydrant | 0 | 317 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Post-Mounted |
| Material | Cast Iron |
| Bury Depth | 2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft |
| Freeze-Resistance | Yes |
| Inlet Size | 1" |
| Activation | Lever |
| Material Detail | Green |

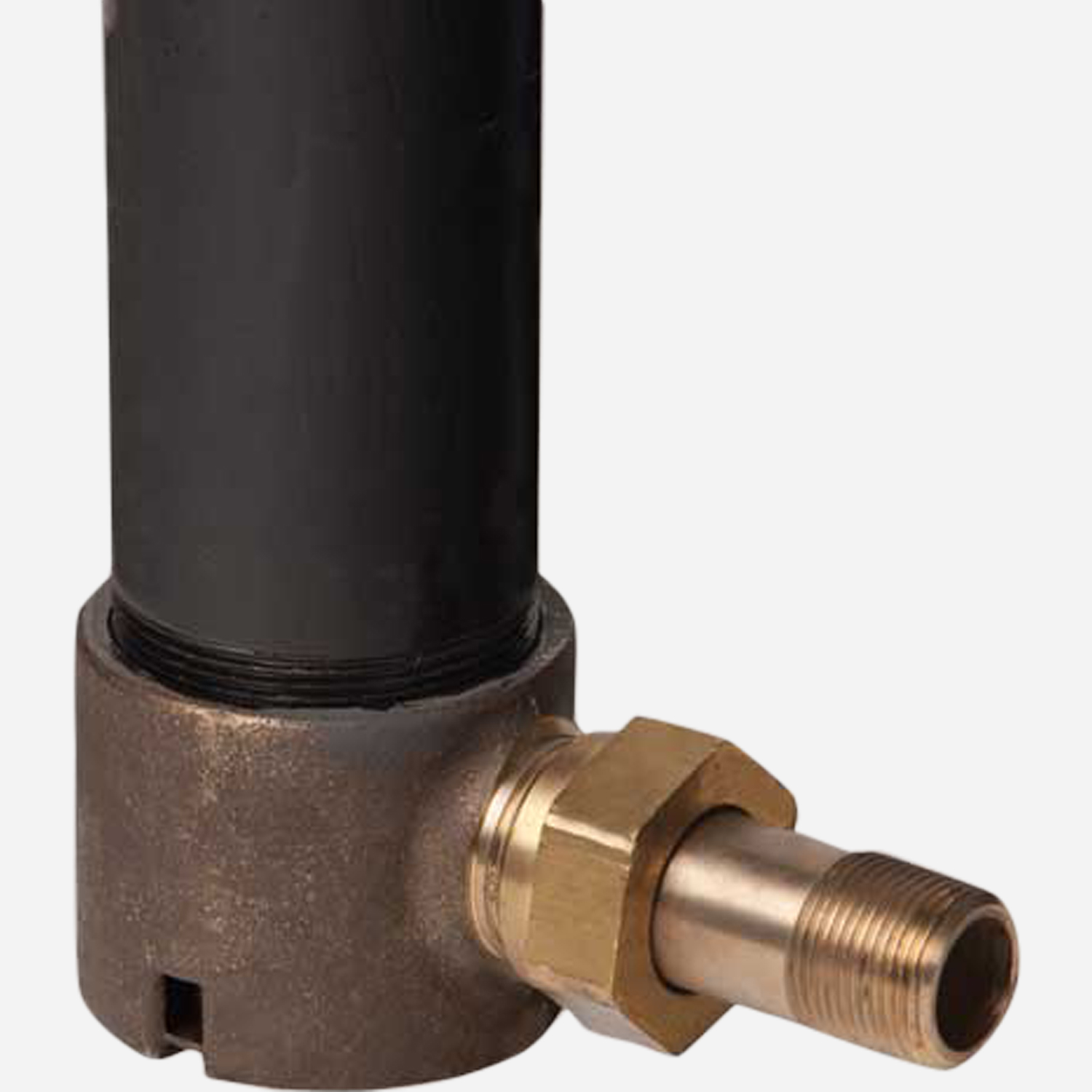

| Hydrant Inlet Type | Union Tail Side Inlet |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -BFH | Option: Double-Ball Check Valve, Cast Iron Hydrants | ||
 | -SWD | Option: Sewer Drain Bottom Connection on 3/4" or 1" Murdock hydrants | ||
 | -VB | Option: Vacuum Breaker |
