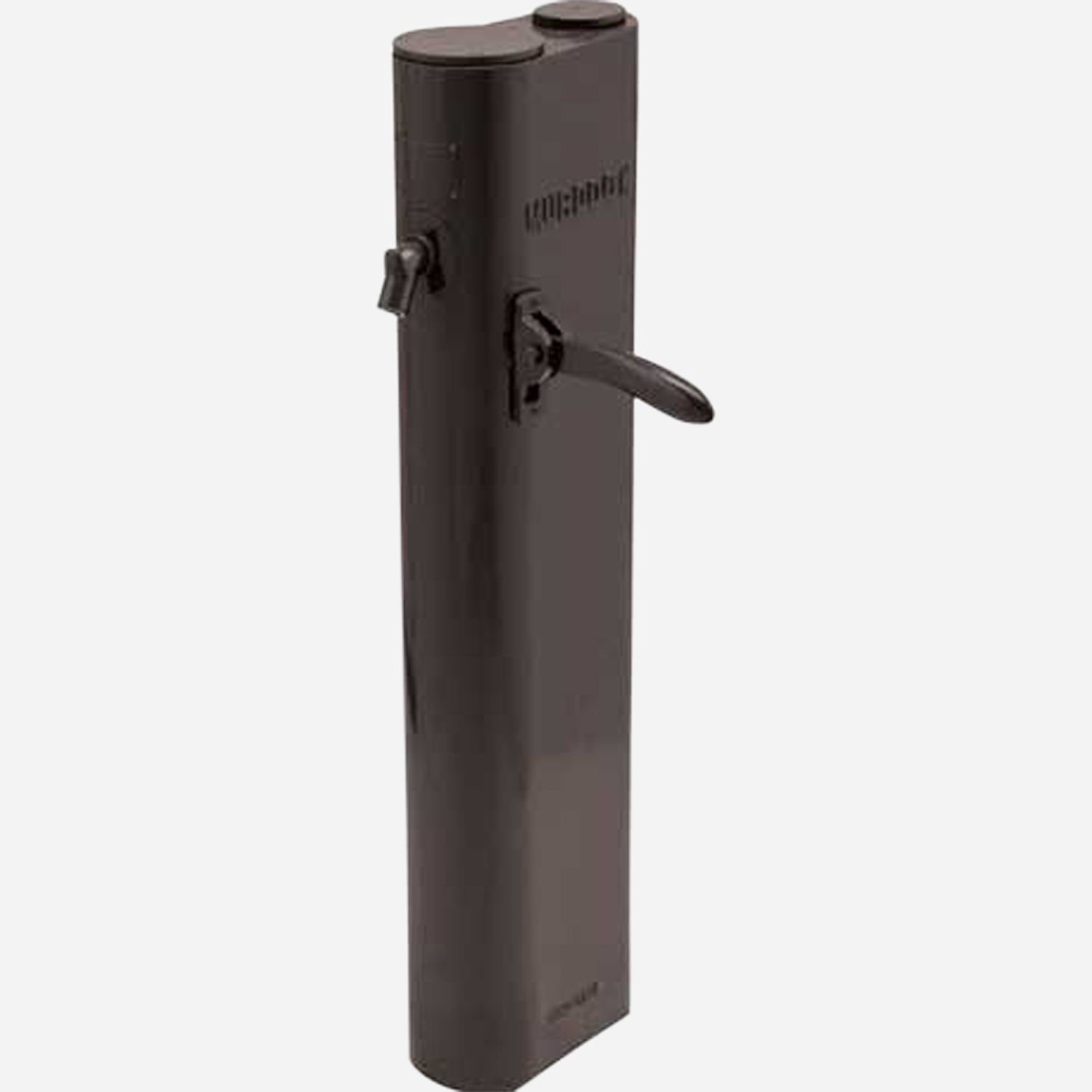

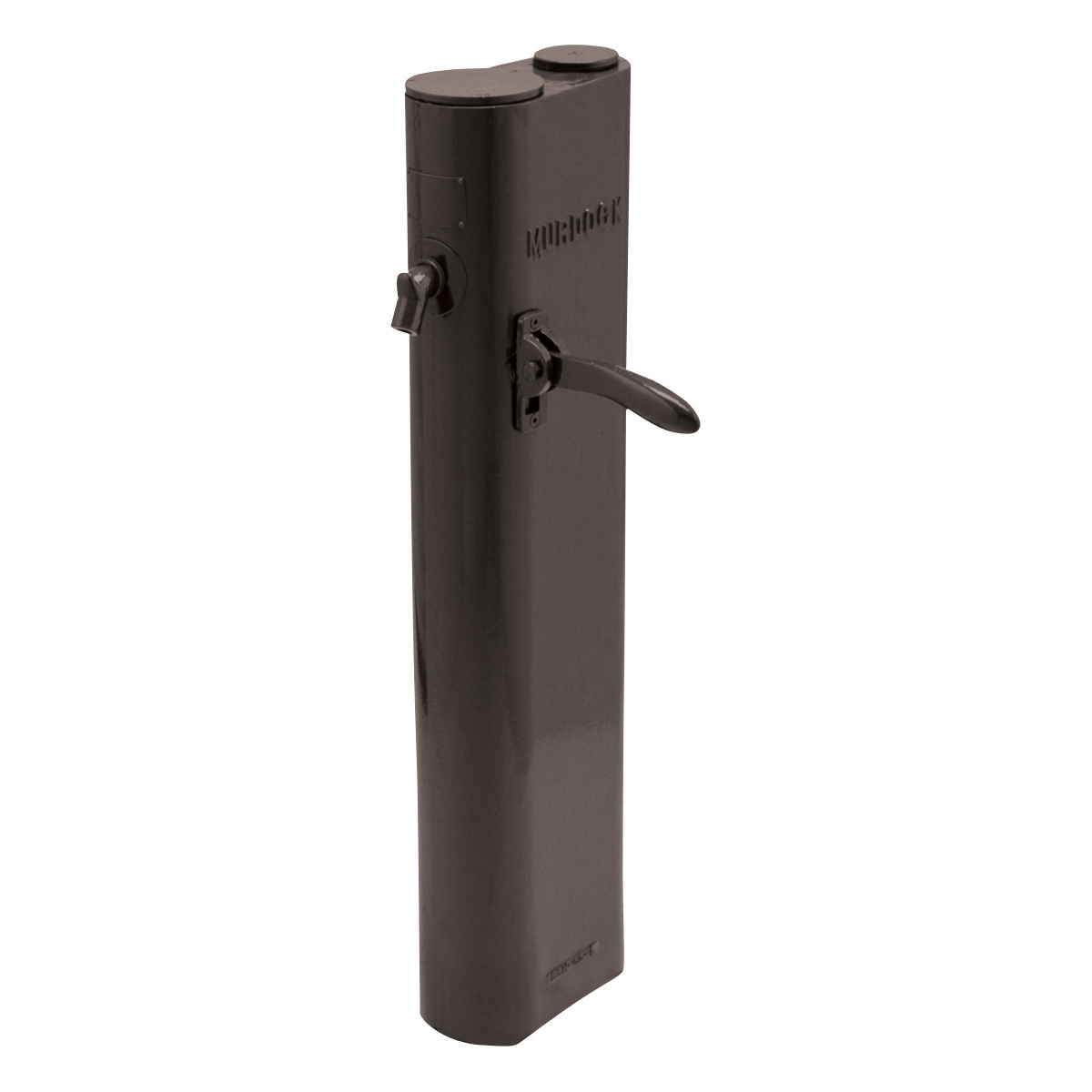

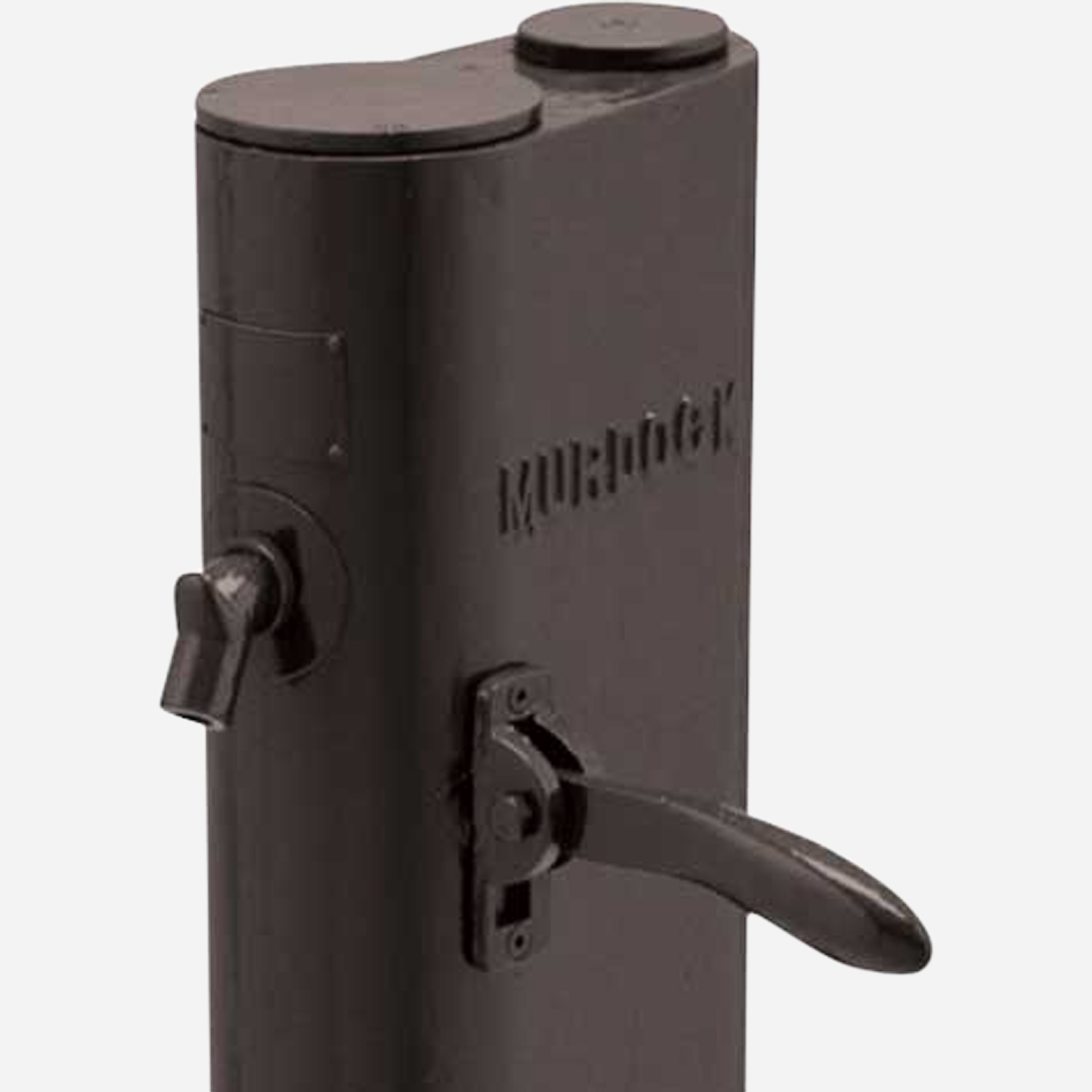

3/4" Self-Closing Lever Handle VA Post Hydrant Jug Filler
This post hydrant features a self-closing, lever handle, compression jug filler that delivers year-round service outside or in unheated buildings for maintenance. To provide freeze resistant functionality, the control valve is located below the frost line. The spring-loaded handle raises and lowers the internal supply line assembly, controlling the valve. The internal supply column is evacuated through drainage ports in the bottom and an integral internal shut-off valve ensures easy maintenance. This trimline design complements any setting. The hydrant must be operated fully "ON." It is designed for trouble-free reliability and easy maintenance.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type
Title
Description
File Size
Action
Revit/BIM/CAD Drawings
M-ESH175 Hydrant (dwg)
3/4" Compression Jug Filler, Self-Closing Lever Handle, Side Inlet
96 KB
Images
M-ESH175VA Hydrant (hi res jpg)
0.75 Inch Self-Closing Reduced Pressure Spring Lever Handlle Jug Filler
206 KB
Installation Instructions
Installing M-ESH175VA Hydrant
3/4" Compression Jug Filler, Self-Closing Lever Handle, Reduced Pressure Spring, Side Inlet
555 KB
Submittals
Submittal M-ESH175VA Hydrant (pdf)
3/4" Compression Jug Filler, Self-Closing Lever Handle, Reduced Pressure Spring, Side Inlet
249 KB
Technical Data Sheets
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants
24 KB
Technical Data Sheets
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers
6 MB
