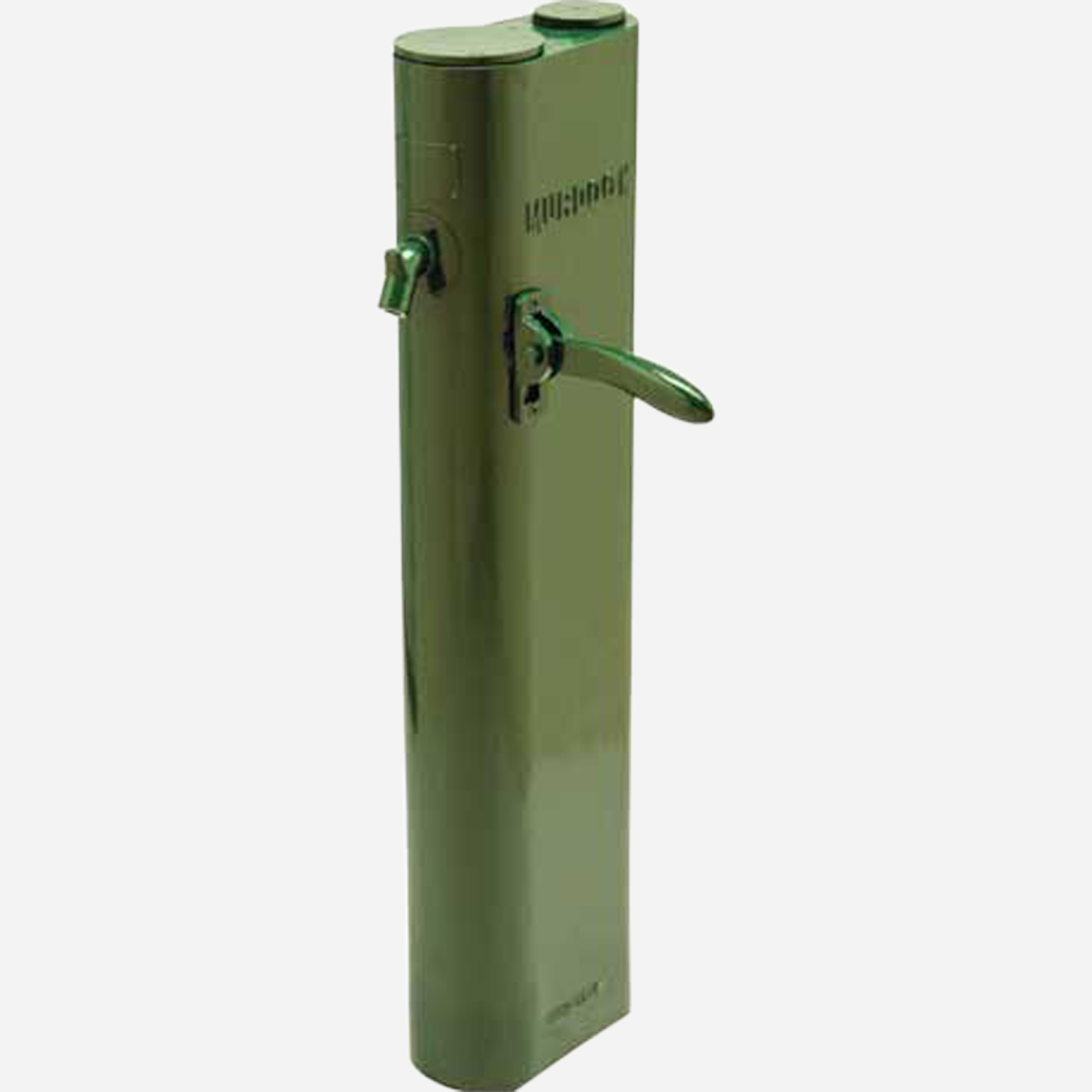

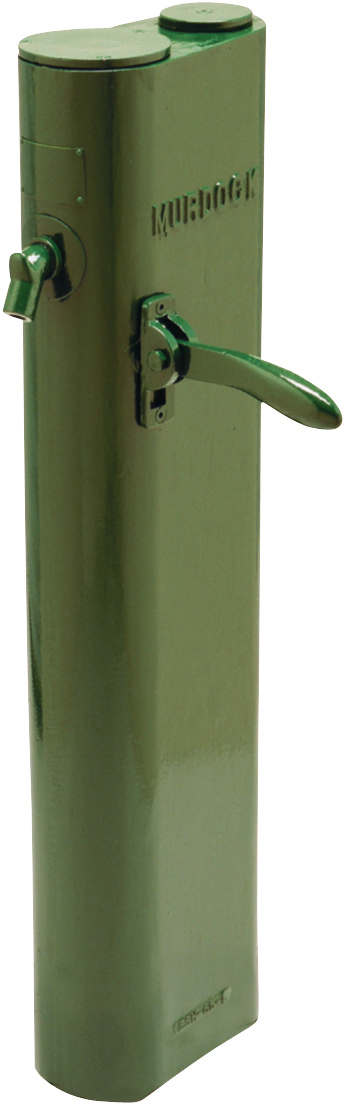

3/4" Self-Closing Lever Handle Jug Filler

Find A Representative
Model M-ESH175
Installation Instructions
Installing M-ESH175 Hydrant
View
Submittal
Submittal M-ESH175 Hydrant
View
Model M-ESH175

3/4" Self-Closing Lever Handle Jug Filler

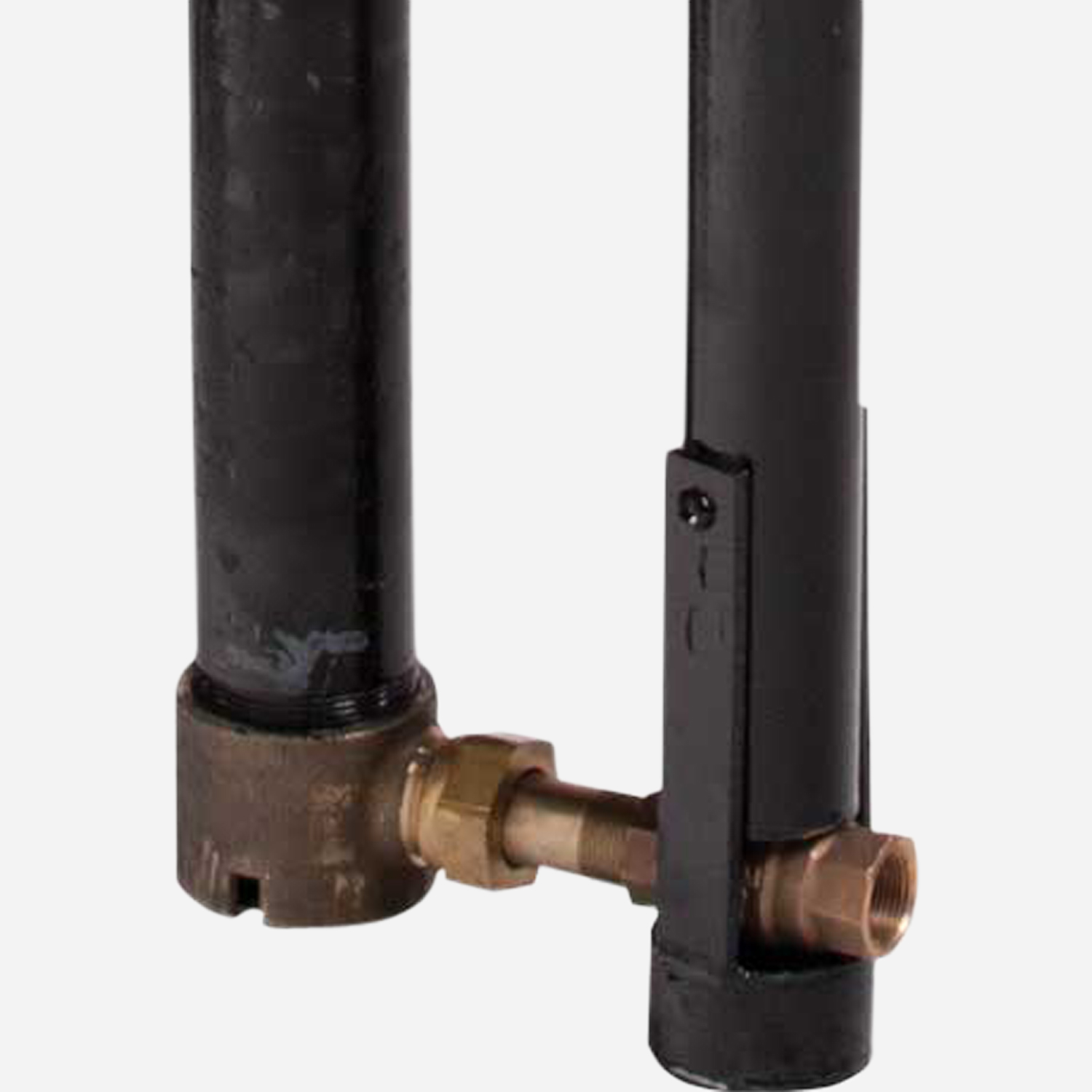

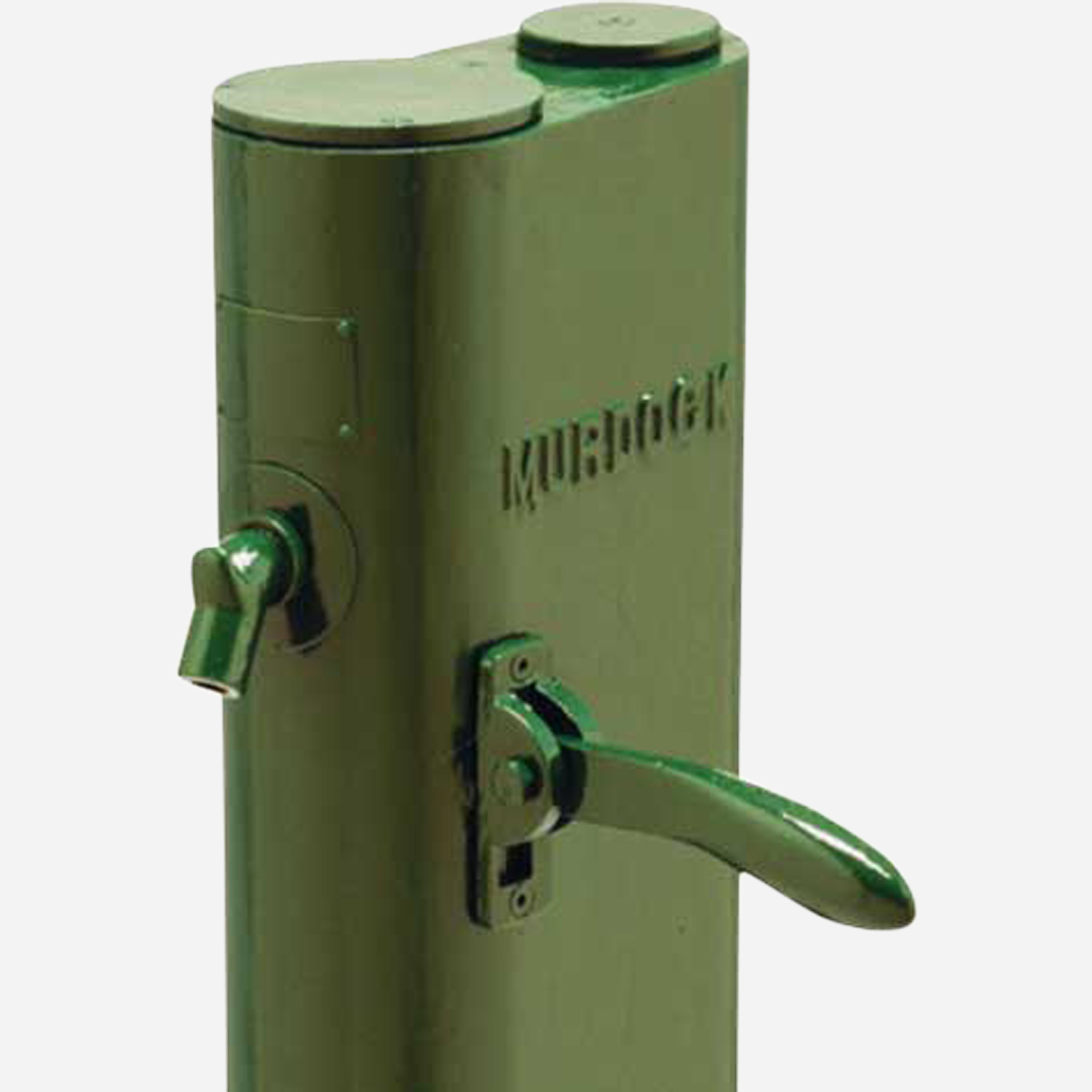

This post hydrant features a self-closing, lever handle, compression jug filler that delivers year-round service outside or in unheated buildings for maintenance. To provide freeze resistant functionality, the control valve is located below the frost line. The spring-loaded handle raises and lowers the internal supply line assembly, controlling the valve. The internal supply column is evacuated through drainage ports in the bottom and an integral internal shut-off valve ensures easy maintenance. This trimline design complements any setting. The hydrant must be operated fully "ON." It is designed for trouble-free reliability and easy maintenance.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing M-ESH175 Hydrant
3/4" Self-Closing Lever Handle Jug Filler0555 KB
PDF icon
Submittals
PDF icon
Submittal M-ESH175 Hydrant
3/4" Self-Closing Lever Handle Jug Filler0615 KB
drawing/dwg icon
Revit/BIM/CAD Drawings
drawing/dwg icon
M-ESH175 Hydrant (dwg)
3/4" Compression Jug Filler, Self-Closing Lever Handle, Side Inlet096 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants024 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants028 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof05 MB
PDF icon
Brochures/Flyers
PDF icon
Murdock Outdoor Drinking Fountains, Bottle Fillers Brochure (pdf)
Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers06 MB
JPG icon
Images
JPG icon
M-ESH175 Hydrant (hi res jpg)
M-ESH175.jpg0197 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingPost-Mounted
MaterialCast Iron
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-ResistanceYes
Inlet Size3/4"
ActivationLever
Material DetailGreen
Hydrant Inlet TypeFemale Threaded Side Inlet

Options

Accessories

Model
Description
Downloads
Accessory: Omni Flow Outlet
-OM
Accessory: Omni Flow Outlet

Miscellaneous

Model
Description
Downloads
Option: Double-Ball Check Valve, Cast Iron Hydrants
-BFH
Option: Double-Ball Check Valve, Cast Iron Hydrants
Option: Vacuum Breaker
-VB
Option: Vacuum Breaker
