SafeWater® 3/4" Non-Pollutable Compression Cast Iron Post Hydrant

Find A Representative
Model M-NP75
Installation Instructions
Install Guide M-NP75 Hydrant (pdf)
View
Submittal
Submittal M-NP75 Hydrant (pdf)
View
Model M-NP75

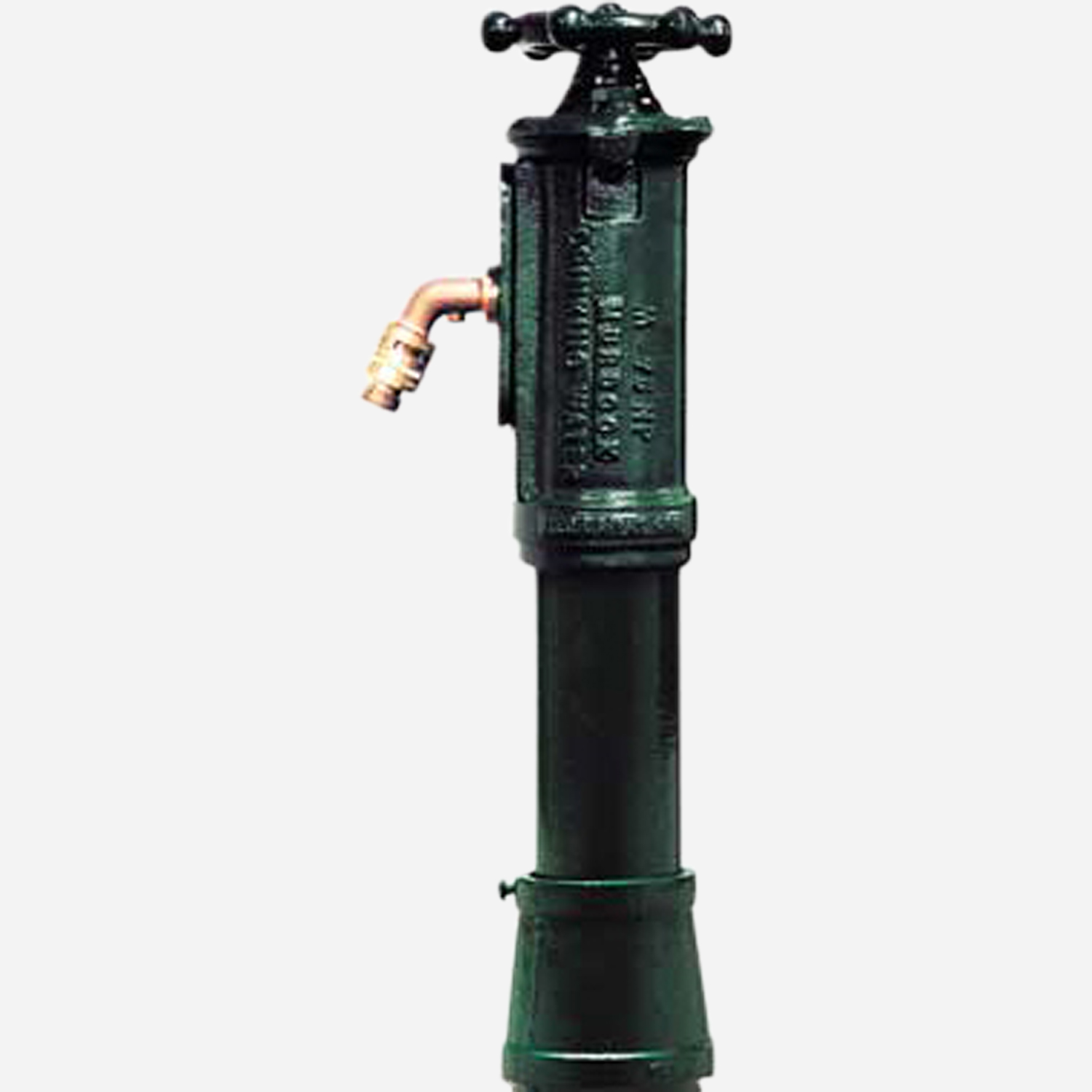

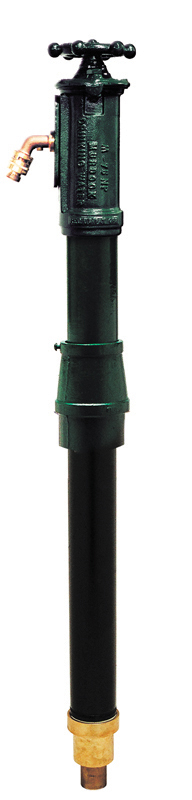

SafeWater® 3/4" Non-Pollutable Compression Cast Iron Post Hydrant

These SafeWater® hydrants have a wheeled handle and deliver year-round service outside or in unheated buildings such as in a campground or park. The control valve is located below the frost line. During shutoff, a piston shall draw water from the supply column into a reservoir. An air bypass mounted in nozzle aids in the evacuation of supply column. At the next usage, the piston expels the water in the reservoir thru the nozzle before fresh water flows. Potable hydrants add protection against surface or underground contamination when all safe water practices are enforced.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide M-NP75 Hydrant (pdf)
Murdock SafeWater® 3/4" Non-Pollutible Compression Hydrant0749 KB
PDF icon
Submittals
PDF icon
Submittal M-NP75 Hydrant (pdf)
Murdock SafeWater® 3/4" Non-Pollutible Compression Hydrant0160 KB
drawing/dwg icon
Revit/BIM/CAD Drawings
drawing/dwg icon
M-NP75 Hydrant (dwg)
Murdock SafeWater® 3/4" Non-Pollutible Compression Hydrant099 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting M-NP75 and M-NPL75 Hydrants
3/4" Non-Pollutable Cast Iron Post Hydrant M-NP75 | Wheel Handle Operation; Lever-Handle Cast Iron Post Hydrant; M-NPL75A | ADA Stay-Open Lever Handle; M-NPL75B | ADA Self-Closing Lever Handle]0143 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants024 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants028 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 221119, Domestic Water Piping Specialties (doc)
Murdock Mfg - Domestic Water Piping Specialties0251 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)
Murdock Mfg - Domestic Water Piping Specialties0291 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof05 MB
PDF icon
Brochures/Flyers
PDF icon
Safewater Hydrant Flyer (pdf)
Safewater Hydrant Flyer (pdf)0378 KB
JPG icon
Images
JPG icon
M-NP75 Hydrant (hi res jpg)
Murdock SafeWater® 3/4" Non-Pollutible Compression Hydrant077 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.0134 KB

Specifications

MountingPost-Mounted
MaterialCast Iron
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Sanitary ProductYes
Freeze-ResistanceYes
Inlet Size3/4"
ActivationWheel Handle
Material DetailGreen
Hydrant Inlet TypeFemale Threaded (Econo) Bottom Inlet
BrandSafeWater®
