Model M-75
Available and Ready to Ship! Fill out this form to start an order or get more information.

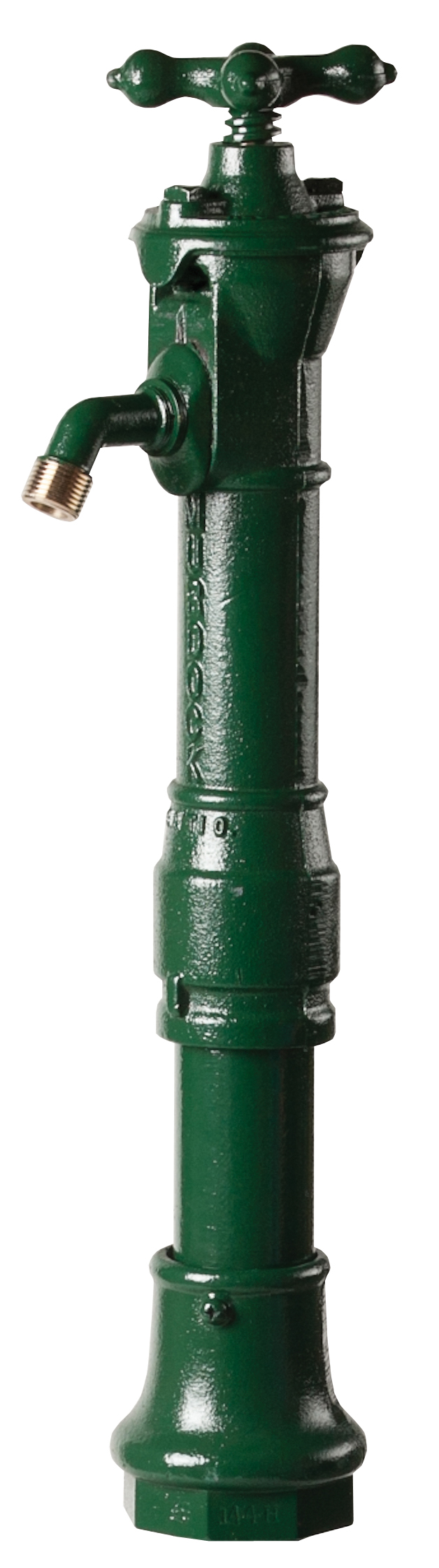

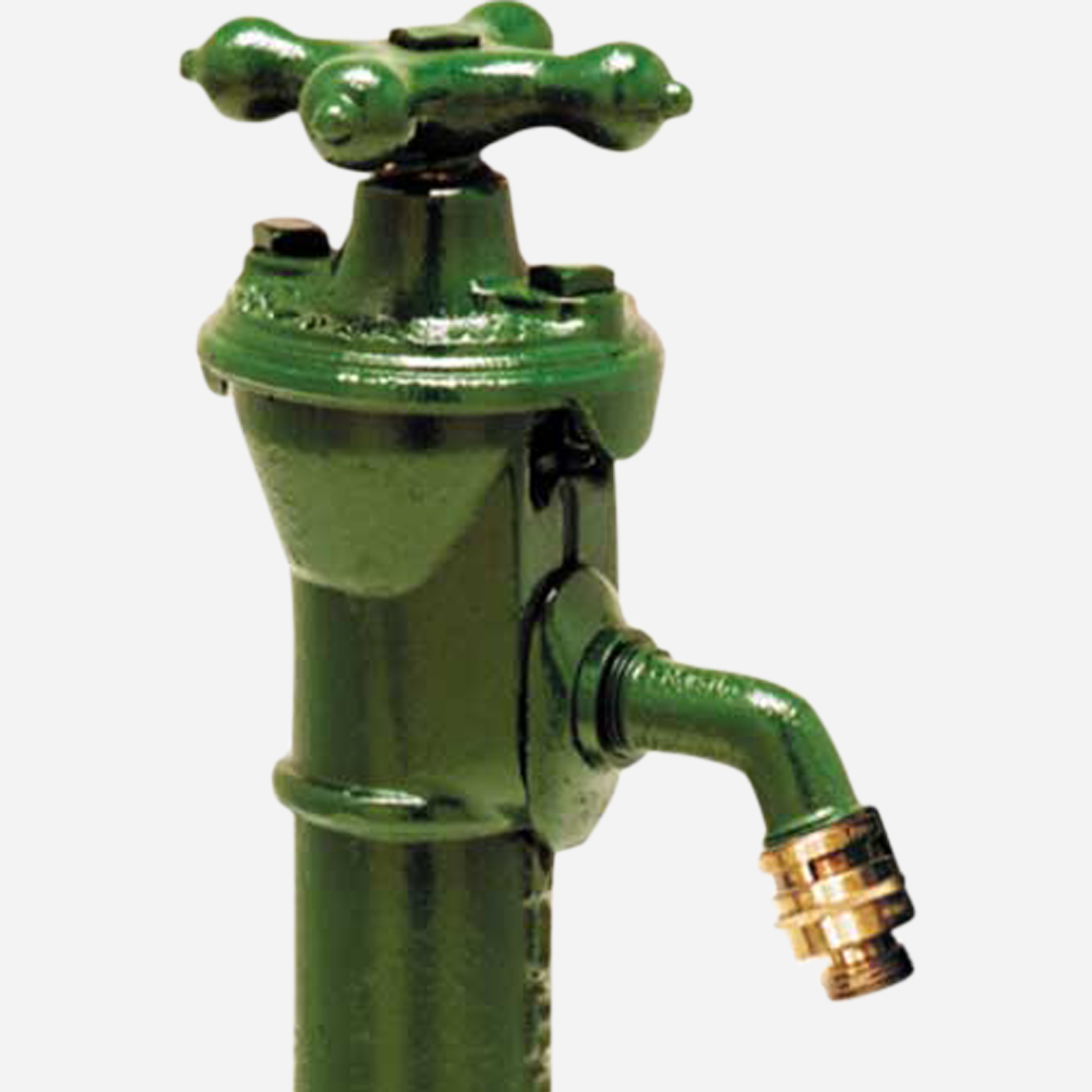

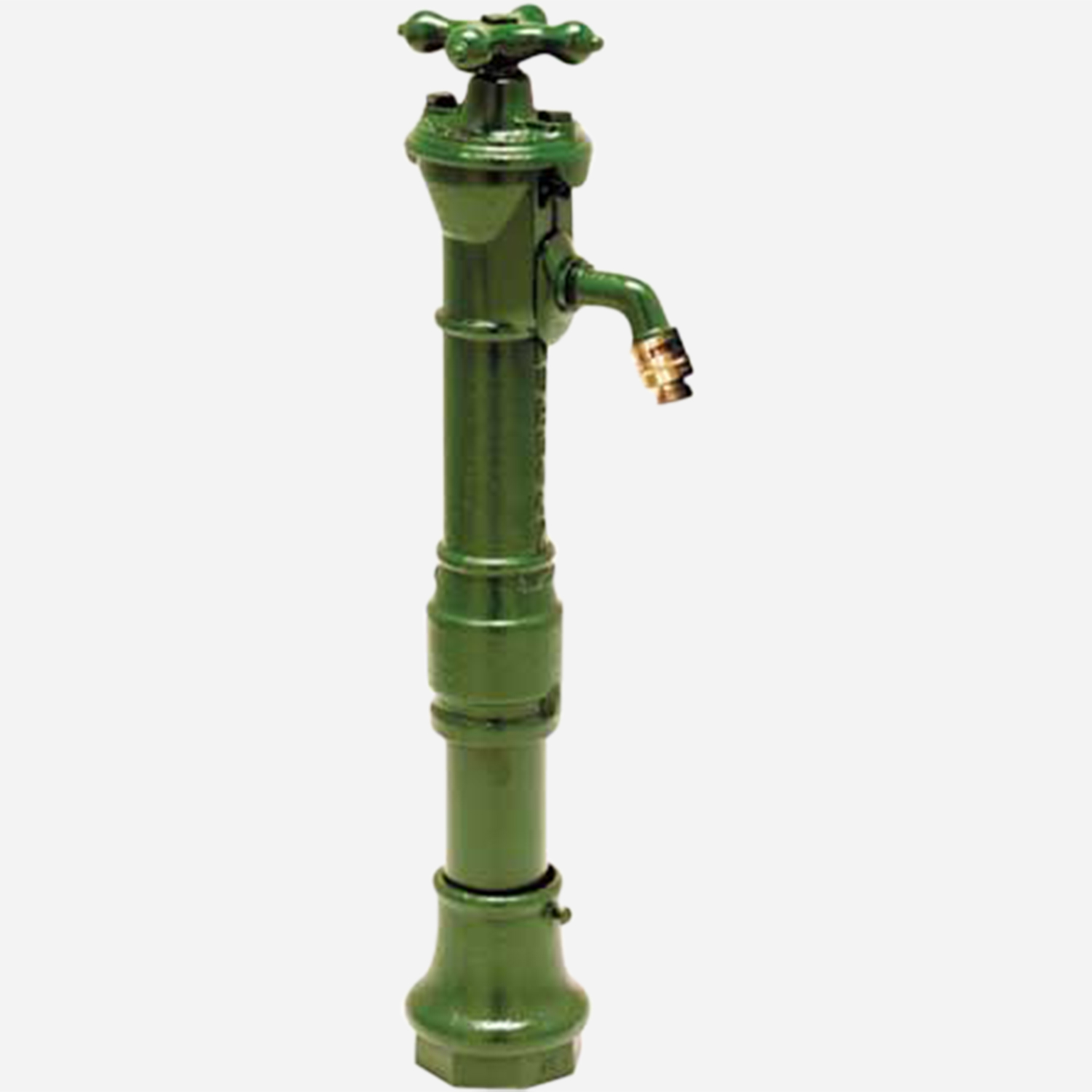

3/4" Compression Hydrant
This side inset compression hydrant delivers year-round service outside or in unheated buildings. To provide freeze resistant functionality, the control valve is located below the frost line. Turning the handle raises or lowers the internal supply-line assembly, controlling the valve. Hydrant must be operated fully "on". Constructed of heavy red brass, premium-quality gray iron and steel, the M-75 is designed for trouble-free reliability and easy maintenance.
Available and Ready to Ship! Fill out this form to start an order or get more information.Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Domestic Water Piping Specialties | 251 KB | ||
 | | 3/4", 1" Compression Hydrant | 94 KB | ||
 | | 3/4" Compression Hydrant [M-75 | Tail Assembly with 3/4" IPS Male Supply Connection; M-E75 | 3/4" Female NPT Brass Connection] | 458 KB | ||
| | 0.75 Inch (M-75) or 1 Inch (M-100) Compression Hydrant | 190 KB | ||
 | | 3/4" Compression Hydrant [M-75 | Tail Assembly with 3/4" IPS Male Supply Connection; M-E75 | 3/4" Female NPT Brass Connection] (repair parts listing provided) | 323 KB | ||
| | 3/4" Compression Hydrant | 121 KB | ||
| | Cast Iron Hydrants | 24 KB | ||
| | Discharge Rates for Murdock Cast Iron Hydrants | 28 KB | ||
| | Murdock Mfg - Domestic Water Piping Specialties | 291 KB | ||
| | Hydrants-Wall, Ground, Yard and Roof | 5 MB | ||
| | Murdock Kwik Ship® vs Elkay, MDF [Outdoor Drinking Fountain GRM45, GRM45-PF, GRJ85-PF; Outdoor Bottle Filler with Drinking Fountain GYM74, GYM75, GYQ84, GYQ85, GYE24-R; Pet Fountains GRT74-PF-RFS, GRT75-PF-RFS, M-PM35, M-PM14, M-PM15; Hydrant M-75-BD2, M-75-BD3, M-75-BD4; Accessories WF3000, 7007-007-001 (IAP), MD-LSR, RWF3000, RWF3000-20] Lit # L1001746 6/26 | 547 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Servicing a Murdock M-75 Compression Type Post Hydrant HD | 133 KB |
Specifications
| Mounting | Post-Mounted |
| Material | Cast Iron |
| Bury Depth | 2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft |
| Freeze-Resistance | Yes |
| Inlet Size | 3/4" |
| Activation | Cross-Turn Handle |
| Material Detail | Green |
| Hydrant Inlet Type | Union Tail Side Inlet |
| Usage | Outdoor |
| Compliances | ASTM B61, ASTM B62, Lead-Free Federal Law 111-380 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -LC-1 | Accessory: Locking Cap, Cast Iron Post Hydrants |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -BFH | Option: Double-Ball Check Valve, Cast Iron Hydrants | ||
 | -SWD | Option: Sewer Drain Bottom Connection on 3/4" or 1" Murdock hydrants | ||
 | -VB | Option: Vacuum Breaker |
Models

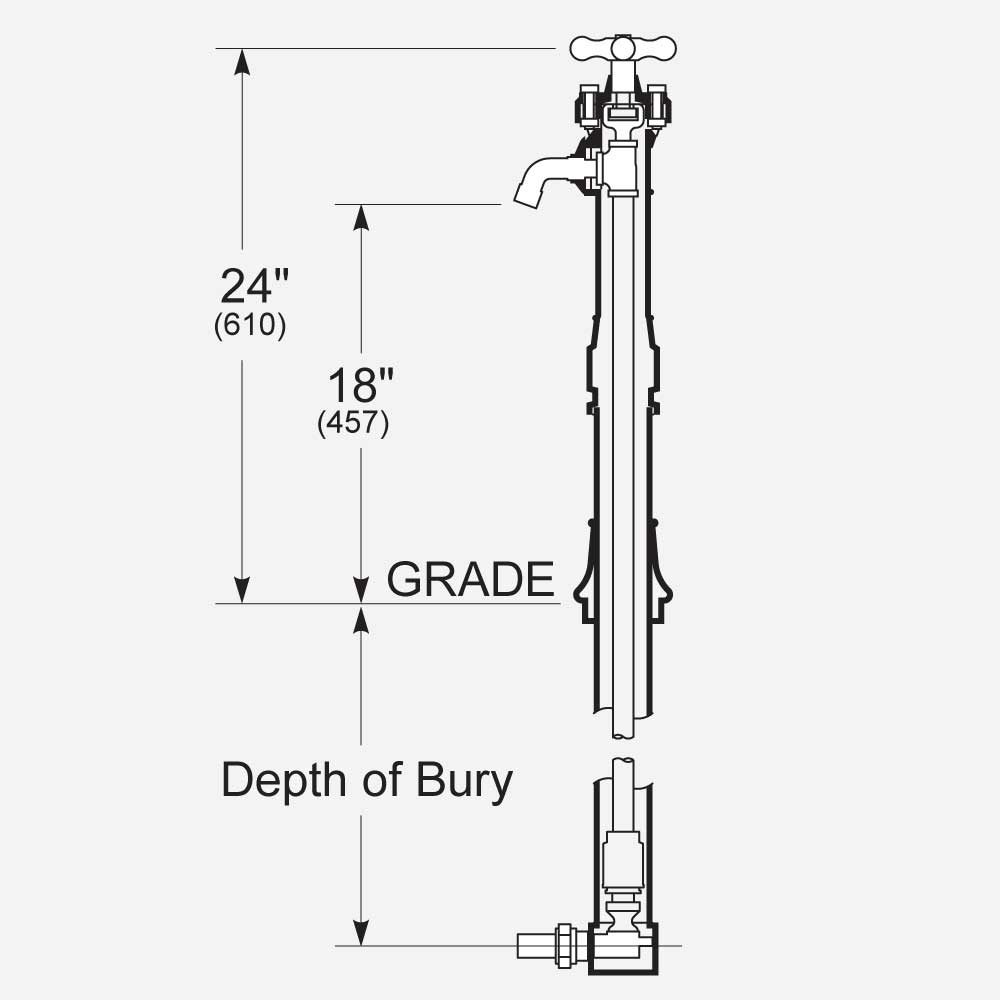

M-75-BD2 | 2 Foot (610 mm) Depth of Bury
M-75-BD3 | 3 Foot (914 mm) Depth of Bury M-75-BD4 | 4 Foot (1219 mm) Depth of Bury M-75-BD5 | 5 Foot (1524 mm) Depth of BuryM-75-BD6 | 6 Foot (1829 mm) Depth of Bury
M-75-BD3 | 3 Foot (914 mm) Depth of Bury M-75-BD4 | 4 Foot (1219 mm) Depth of Bury M-75-BD5 | 5 Foot (1524 mm) Depth of BuryM-75-BD6 | 6 Foot (1829 mm) Depth of Bury
