Name: 1" Compression Hydrant
Brand: Murdock Manufacturing
SKU: M-100

Model M-100

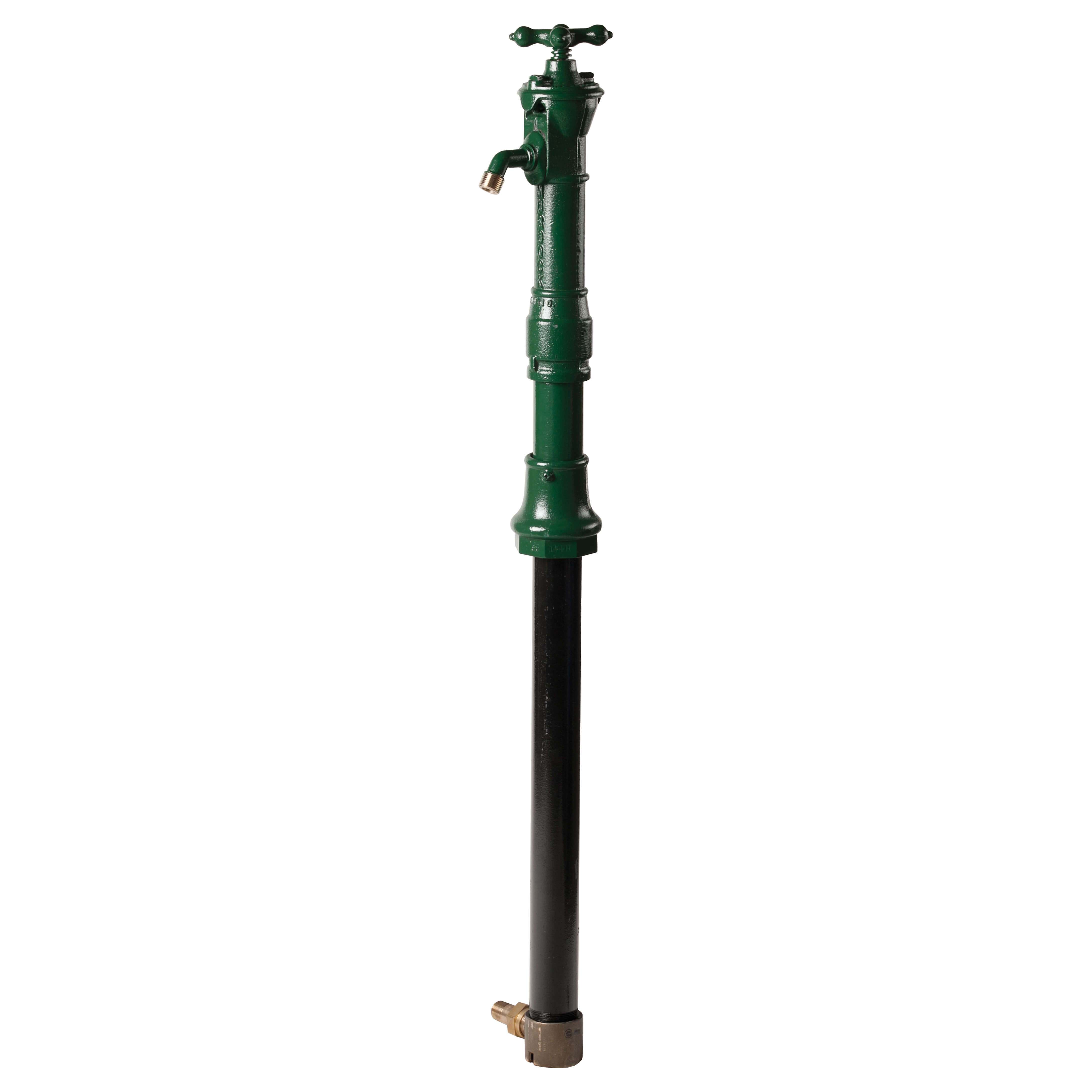

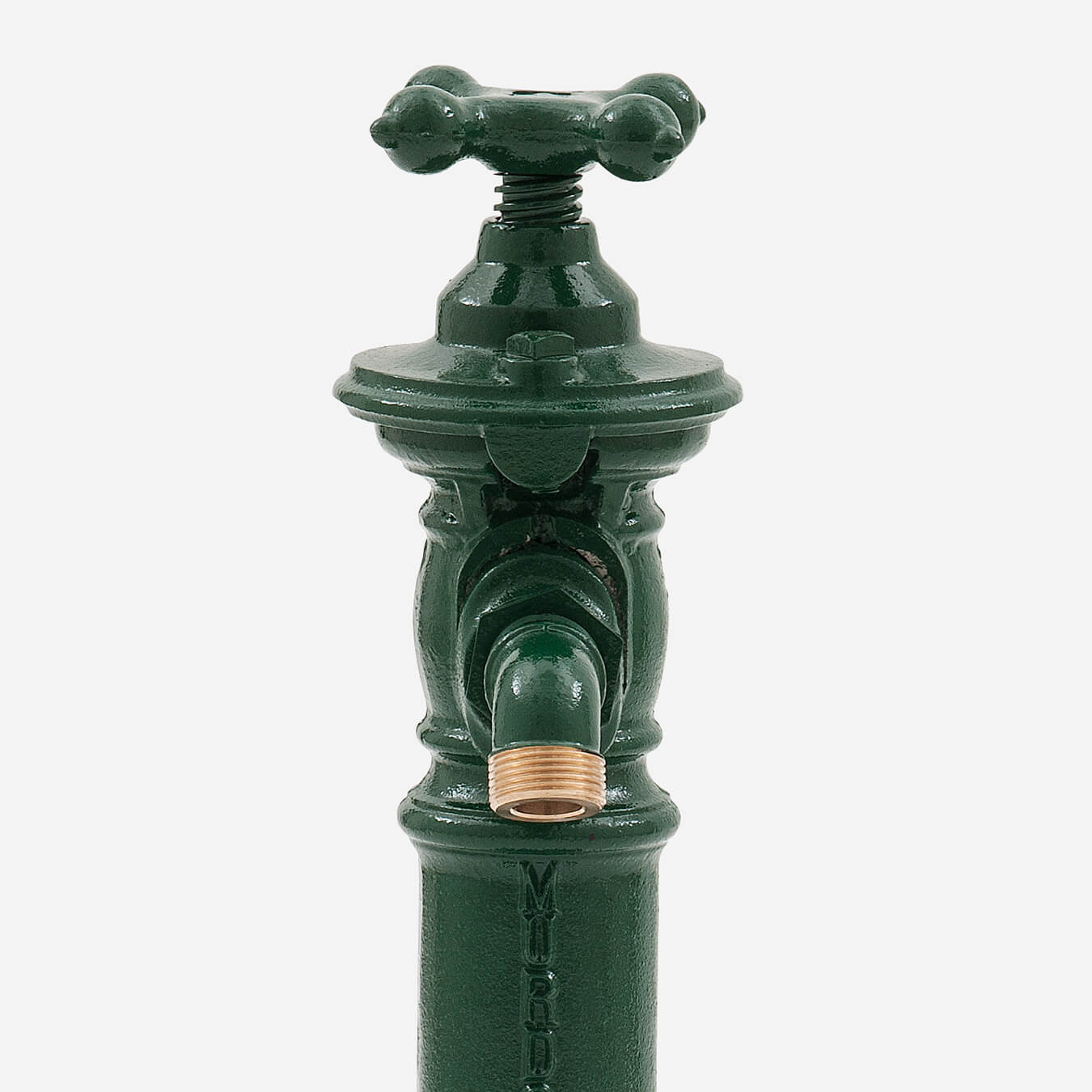

1" Compression Hydrant

This frost free water hydrant delivers year-round service outside or in unheated buildings. To provide freeze resistant functionality, the control valve is located below the frost line. Turning the handle raises or lowers the internal supply-line assembly, controlling the valve. Constructed of heavy red brass, premium-quality gray iron and steel. This 1" compression yard hydrant is ideal for parks, picnic areas and farms. It is designed for trouble-free reliability and easy maintenance.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (doc)	Murdock Mfg - Domestic Water Piping Specialties	251 KB
Revit/BIM/CAD Drawings	M-75, M-100 Hydrant (dwg)	3/4", 1" Compression Hydrant	94 KB
Images	M-75 or M-100 Hydrants (hi res jpg)	0.75 Inch (M-75) or 1 Inch (M-100) Compression Hydrant	190 KB
Installation Instructions	Manual M-100 Hydrant	1" Compression Hydrant	487 KB
Submittals	Submittal M-100 Hydrant (pdf)	1" Compression Hydrant	176 KB
Technical Data Sheets	Troubleshooting - Replacing Leather Washers	Cast Iron Hydrants	24 KB
Technical Data Sheets	Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants	Discharge Rates for Murdock Cast Iron Hydrants	28 KB
Product MasterSpec	MasterSpec: 221119, Domestic Water Piping Specialties (pdf)	Murdock Mfg - Domestic Water Piping Specialties	291 KB
Brochures/Flyers	Hydrants Brochure (pdf)	Hydrants-Wall, Ground, Yard and Roof	5 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Mounting	Post-Mounted
Material	Cast Iron
Bury Depth	2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-Resistance	Yes
Inlet Size	1"
Activation	Cross-Turn Handle
Material Detail	Green
Hydrant Inlet Type	Union Tail Side Inlet

Options

Accessories

	Image	Model	Description	Downloads
		-LC-1	Accessory: Locking Cap, Cast Iron Post Hydrants

Miscellaneous

	Image	Model	Description	Downloads
		-BFH	Option: Double-Ball Check Valve, Cast Iron Hydrants

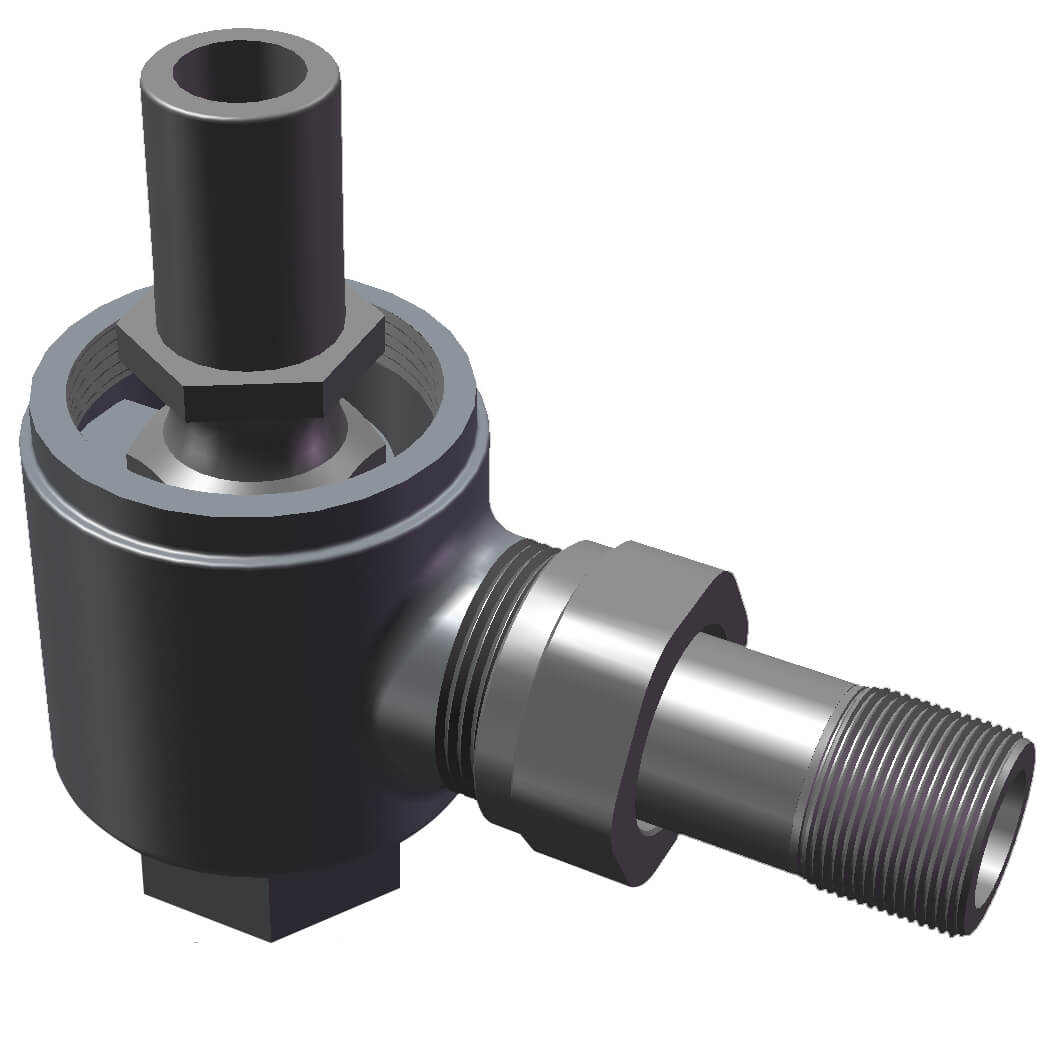

		-SWD	Option: Sewer Drain Bottom Connection on 3/4" or 1" Murdock hydrants

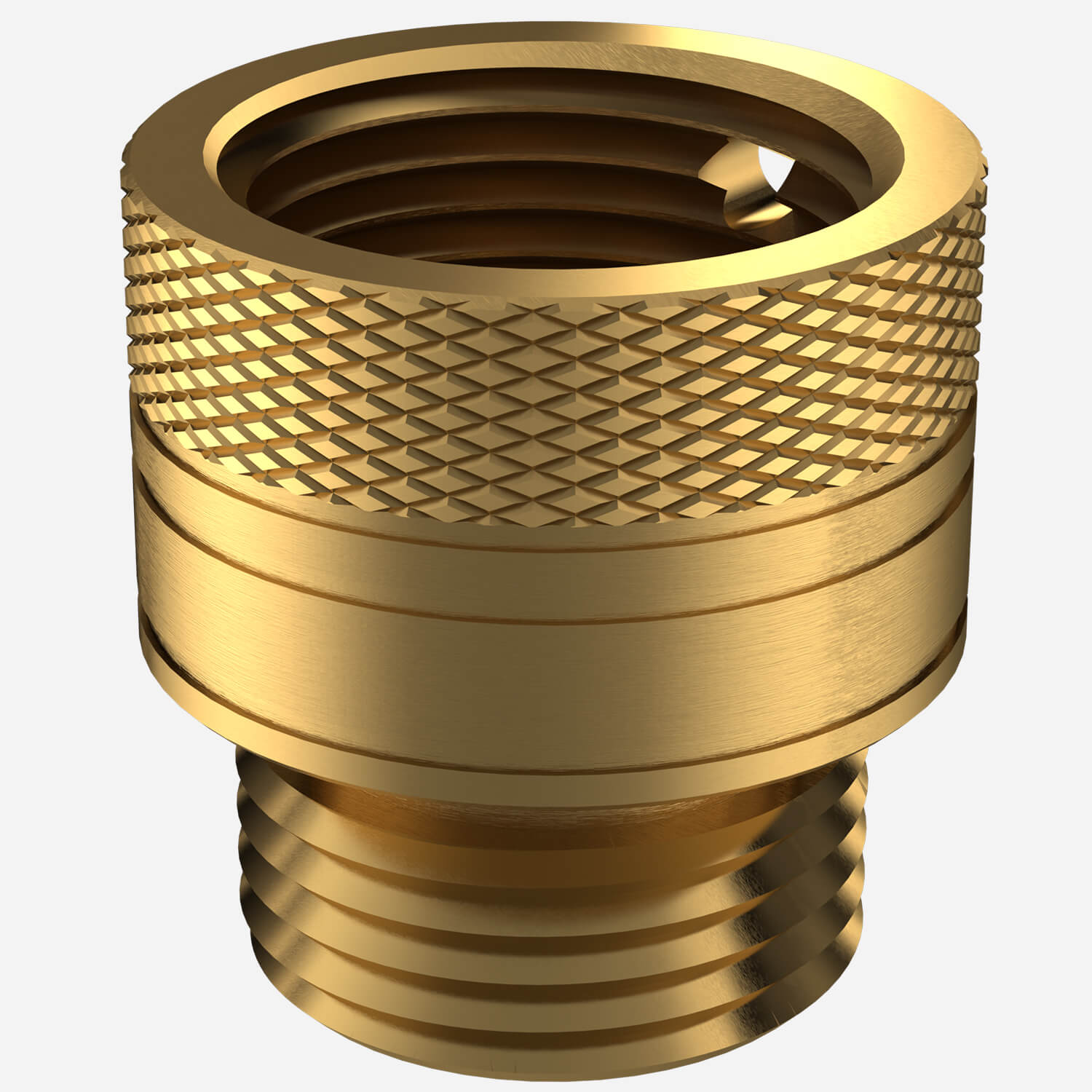

		-VB	Option: Vacuum Breaker
