3/4" Cast Iron Box Ground Hydrant

Find A Representative
Model M-475
Installation Instructions
Installing M-475 Hydrant
Submittal
Submittal M-475 Hydrant (pdf)
Model M-475

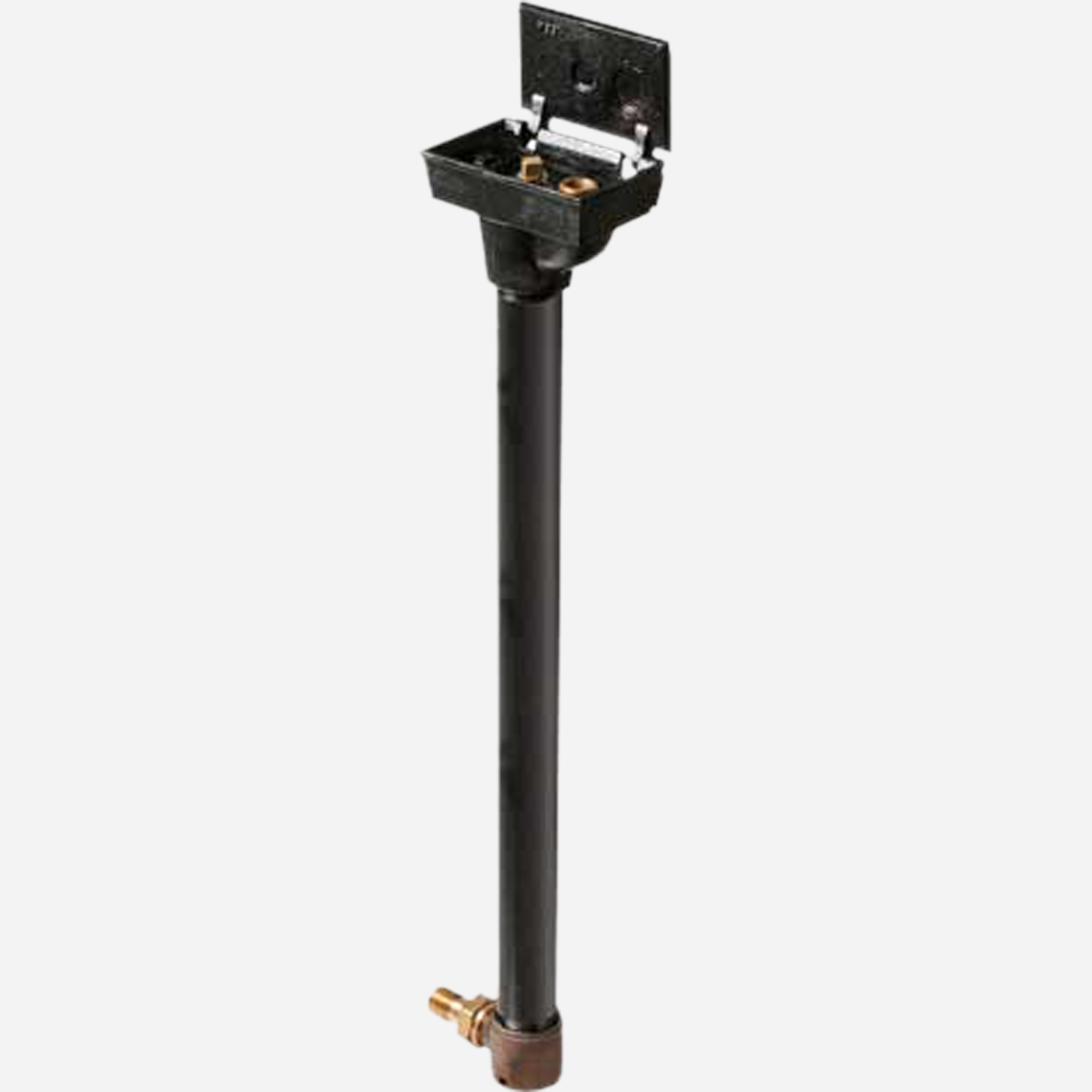

3/4" Cast Iron Box Ground Hydrant

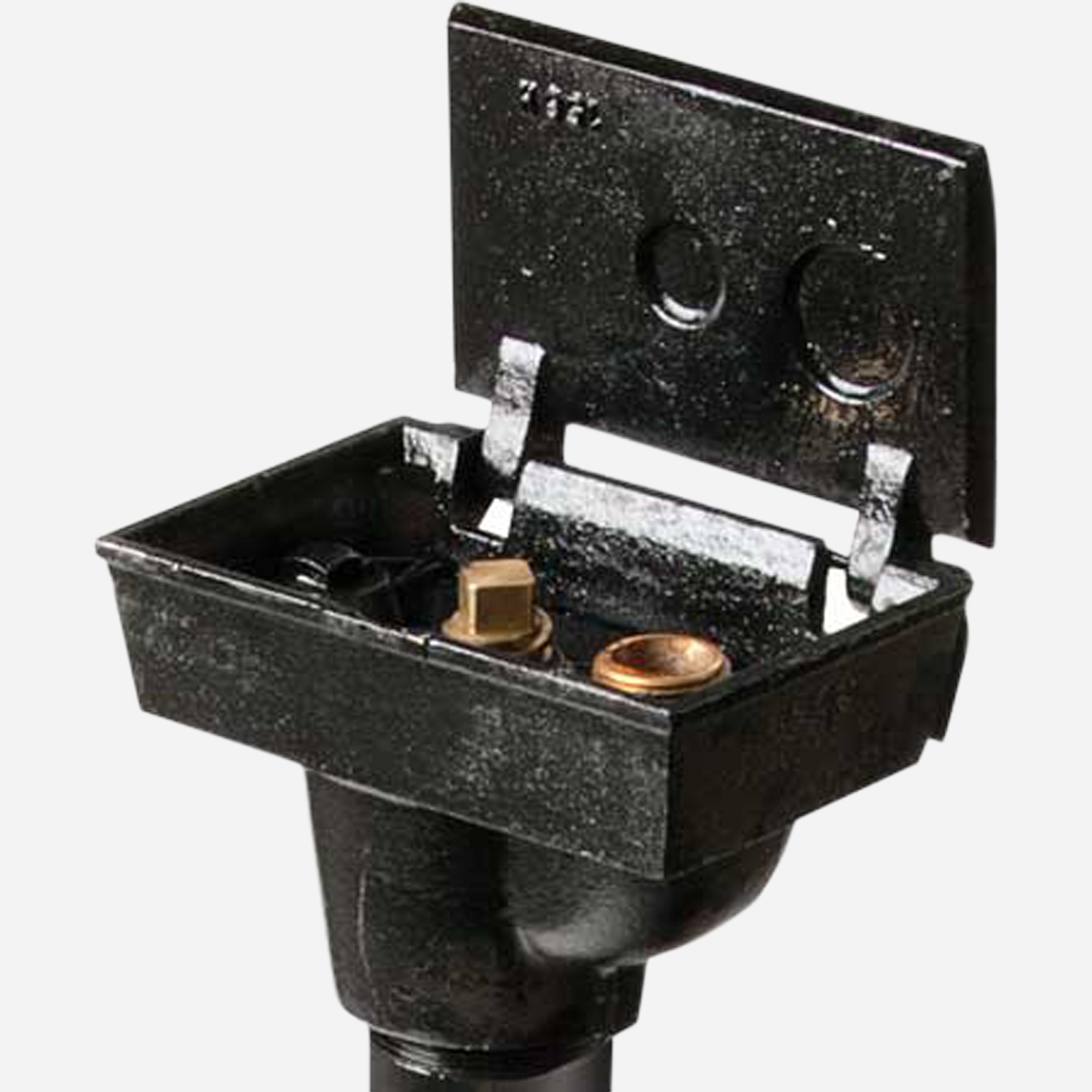

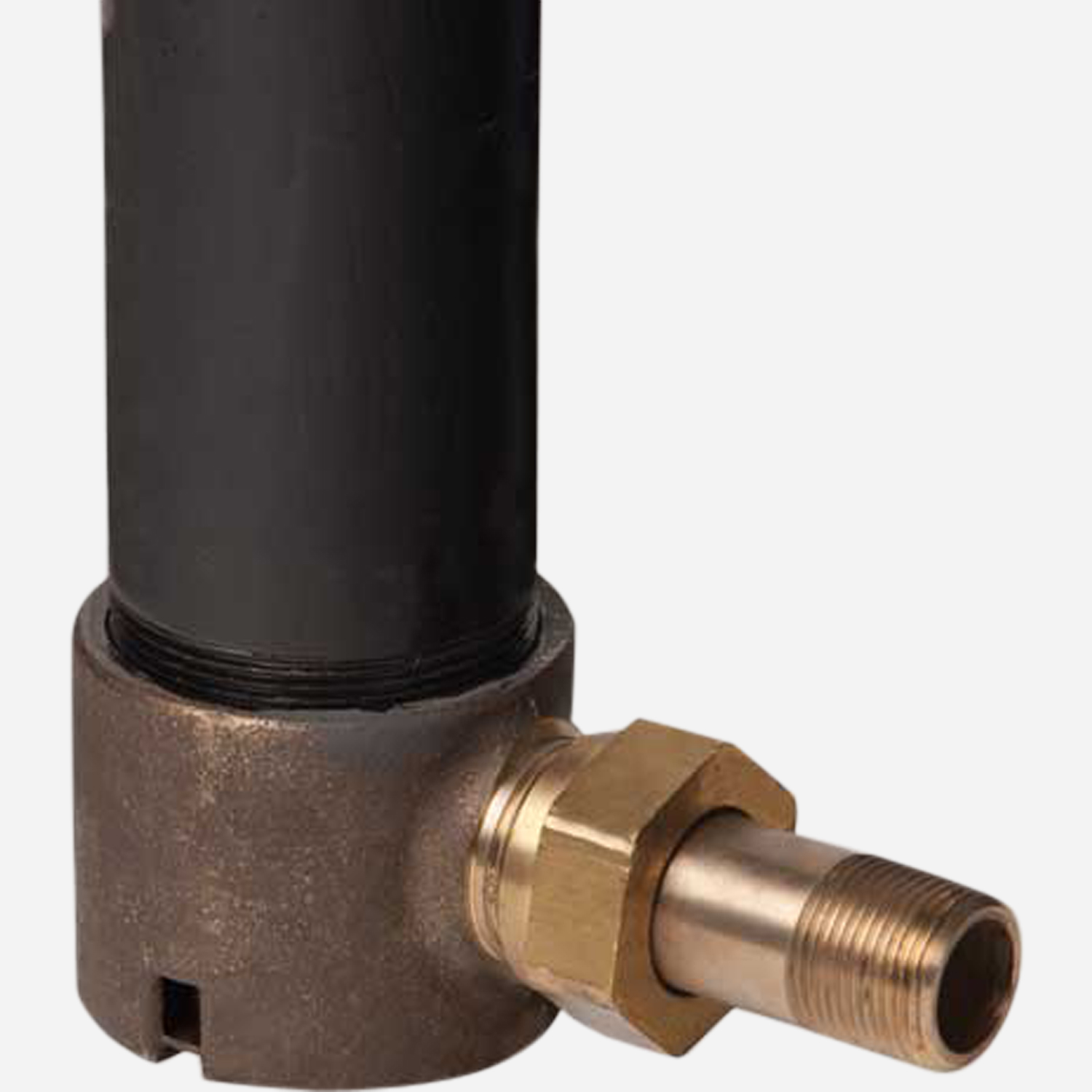

The flush box hydrants are for use where a flush type hose outlet is desired. The hydrant box can be installed in sod, pavement or concrete. The top of the unit has a plain lid and is installed flush with surrounding surface and all working parts are located below grade, perfectly concealed and out of the way when the lid is closed. When the lid is lifted and hose is connected, the water supply is turned on with a loose key. Features a one-piece brass bottom connection with inlet and outlet connection. The working parts are removable without digging. These hydrants are ideal for parks, playgrounds, city streets, recreational areas, cemeteries, railroad terminals and lawns.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing M-475 Hydrant
3/4" Boxed Ground Hydrant, with Cast Iron Box93 KB
PDF icon
Submittals
PDF icon
Submittal M-475 Hydrant (pdf)
3/4" Boxed Ground Hydrant195 KB
PDF icon
Technical Data Sheets
PDF icon
Troubleshooting - Replacing Leather Washers
Cast Iron Hydrants24 KB
PDF icon
Technical Data Sheets
PDF icon
Technical Data - Discharge Rates on Murdock Cast Iron Post Hydrants
Discharge Rates for Murdock Cast Iron Hydrants28 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 221119, Domestic Water Piping Specialties (doc)
Murdock Mfg - Domestic Water Piping Specialties251 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)
Murdock Mfg - Domestic Water Piping Specialties291 KB
PDF icon
Brochures/Flyers
PDF icon
Hydrants Brochure (pdf)
Hydrants-Wall, Ground, Yard and Roof5 MB
JPG icon
Images
JPG icon
M-475 or M-5100 Hydrant (hi res jpg)
0.75 Inch (M-475) or 1 Inch (M-5100) Cast Iron Box Ground Hydrant748 KB
JPG icon
Images
JPG icon
M-475, M-5100, M-E475 Hydrant (hi res jpg)
0.75 Inch Econo Cast Iron Box Ground Hydrant (photo may be used for M-475 and M-5100 Hydrants)78 KB
JPG icon
Images
JPG icon
0.75 Inch Cast Iron Box Ground Hydrant with Vacuum Breaker (M-V476 is economy version)154 KB
Video icon
Videos
Video icon
How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations
Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.134 KB

Specifications

MountingFlush Floor/Ground-Mounted
MaterialCast Iron
Bury Depth2 Ft, 3 Ft, 4 Ft, 5 Ft, 6 Ft
Freeze-ResistanceYes
Inlet Size3/4"
ActivationLoose Key
Hydrant Inlet TypeUnion Tail Side Inlet
