Name: Barrier-Free Outdoor Pedestal Bottle Filler
Brand: Murdock Manufacturing
SKU: GYU64 Series

Model GYU64 Series

Barrier-Free Outdoor Pedestal Bottle Filler

This stainless steel, barrier-free, pedestal outdoor bottle filler is a favorite for public and private parks, including dog parks, because of its reliability and durability. It is activated by a 9 volt sensor or a push button as standard. This unit is ADA compliant.Choose to add a pet fountain and freeze-resistant valves to ensure the needs of any park visitor are met.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual GYU64 Series Bottle Filler (pdf)	Barrier-Free Outdoor Pedestal Bottle Filler [GYU64 \| All-Stainless Steel; GYU65 \| Green; GYU66 \| Red; GYU67 \| Blue]	1011 KB
Submittals	Submittal GYU64 Series Bottle Filler (pdf)	Barrier-Free Outdoor Pedestal Bottle Filler [GYU64 \| All-Stainless Steel; GYU65 \| Textured Fairway Green; GYU66 \| Textured Firehouse Red; GYU67 \| Textured Alpine Blue]	171 KB
Technical Data Sheets	Troubleshooting Guide - FRU Valves	Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs	106 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Brochures/Flyers	Custom Colors, Logos & Graphics Brochure (pdf)	Custom Colors, Logos & Graphics Brochure (pdf)	671 KB
Brochures/Flyers	Murdock Outdoor Drinking Fountains, Bottle Fillers Brochure (pdf)	Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers	6 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Mounting	Pedestal
Material	Stainless Steel
Pet-Friendly	Available Option
Freeze-Resistance	Available Option
Activation	Bottle filler - sensor, Push Button
Material Detail	All-Stainless Steel, Green, Red, Blue
Style	Round
Variations	GYU64: Satin Stainless Steel, GYU65: Green Powder Coated Stainless Steel, GYU66: Red Powder Coated Stainless Steel, GYU67: Blue Powder Coated Stainless Steel, GYU64-PF: Satin Stainless Steel with Pet Fountain, GYU65-PF: Green Powder Coated Stainless Steel with Pet Fountain, GYU66-PF: Red Powder Coated Stainless Steel with Pet Fountain, GYU67-PF: Blue Powder Coated Stainless Steel with Pet Fountain
Product Features	Cylindrical Cantilever Bottle Filler

Options

Accessories

	Image	Model	Description	Downloads
		AP	Accessory: Auto-Purge Function Controller
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
		-FRU1	Option: Below Ground, Freeze Resistant Valve, Single Station
		-FRU2	Option: Below Ground, Freeze Resistant Valve, Two Station
		-FRU3	Option: Below Ground, Freeze Resistant Valve, Three Station
		-HB1	Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle
		-HB3	Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box
		-IAP (Drinking Fountain)	Option: In-Ground Anchor Plate for Drinking Fountain
		-IGM	Option: In-ground 14" mounting
		-JF1	Option: Jug Filler with Lever Handle
		-JF2	Option: Recessed Jug Filler with Push Button
		-JFFR1	Option: Freeze-Resistant Recessed Jug Filler with Push Button
		-MO	Bottle Filler Activated by Push Button Only
		-NP1	Option: SafeWater® Non-Pollutable, Below Grade Freeze-Resistant Valve, Single Station
		-NP2	Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station
		-NP3	Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station
		-PF	Option: Contemporary Round Pet Fountain
		CV	Option: Cartridge Valve on Drinking Fountains
		LOGO	Option: Customize Graphics

Models

Typical models are shown below

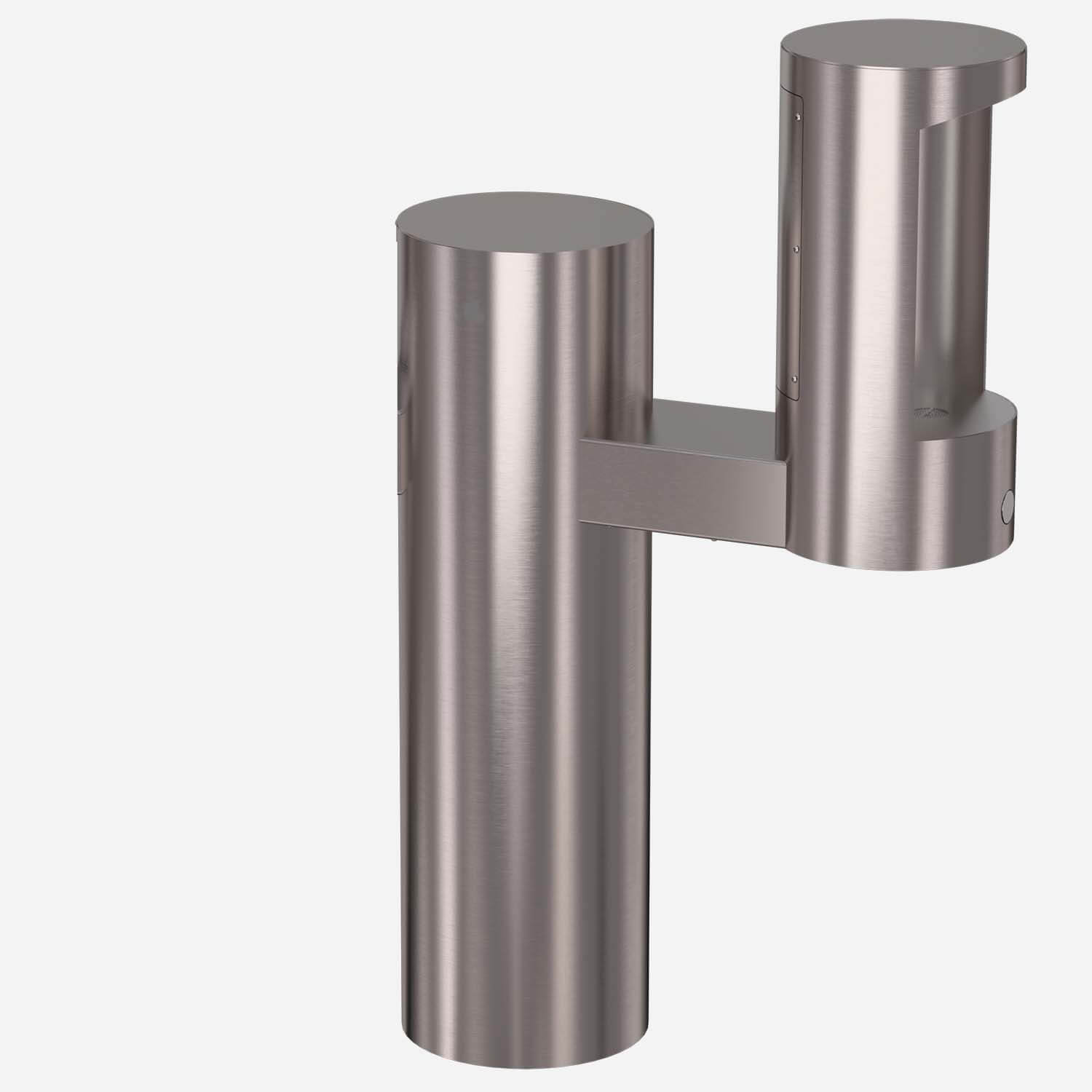

GYU54 All-Stainless Steel

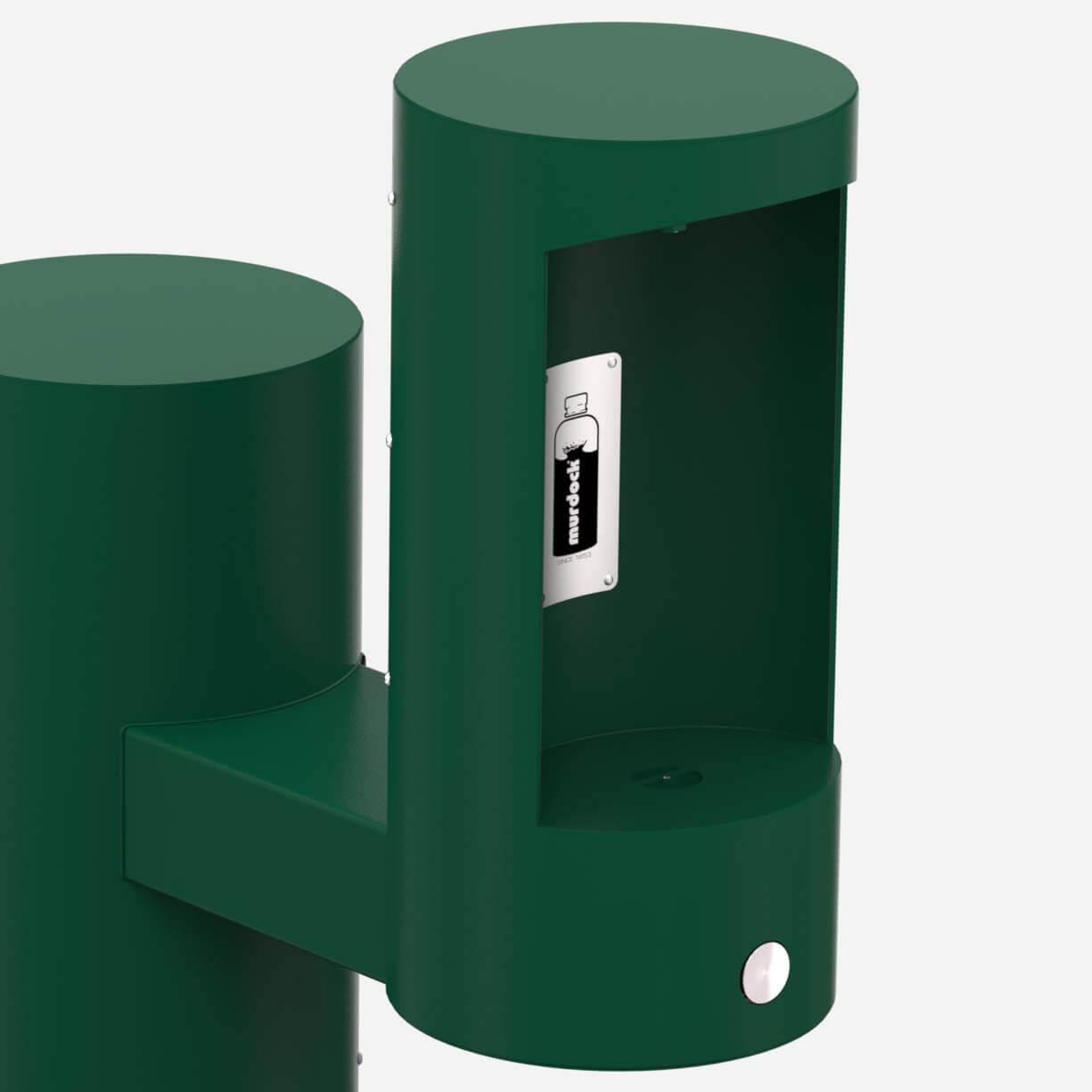

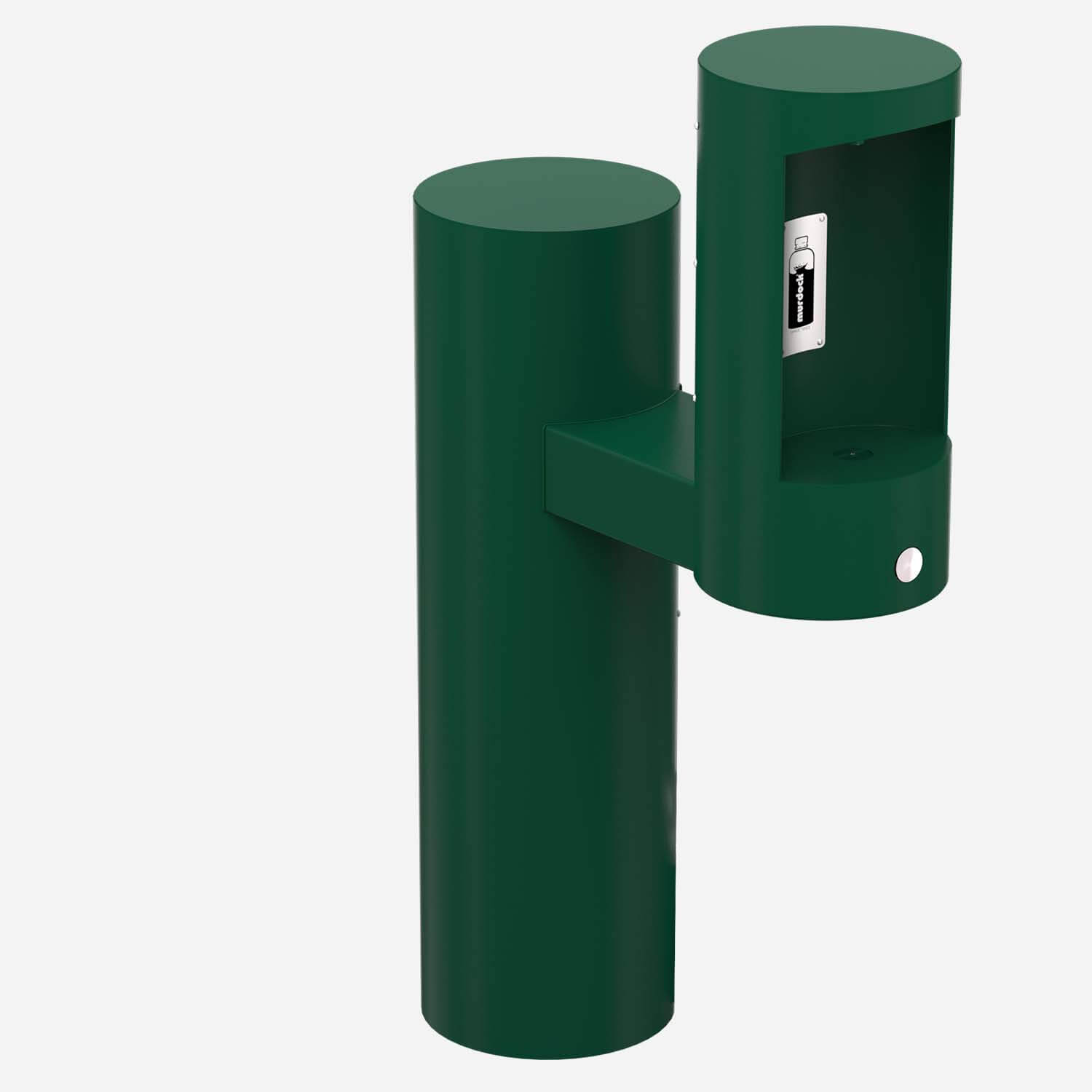

GYU55 Textured Fairway Green

GYU56 Textured Firehouse Red

GYU57 Textured Alpine Blue

Option -SLPT 10° Bottle Filler Sloped Top (shown in Stainless Steel)

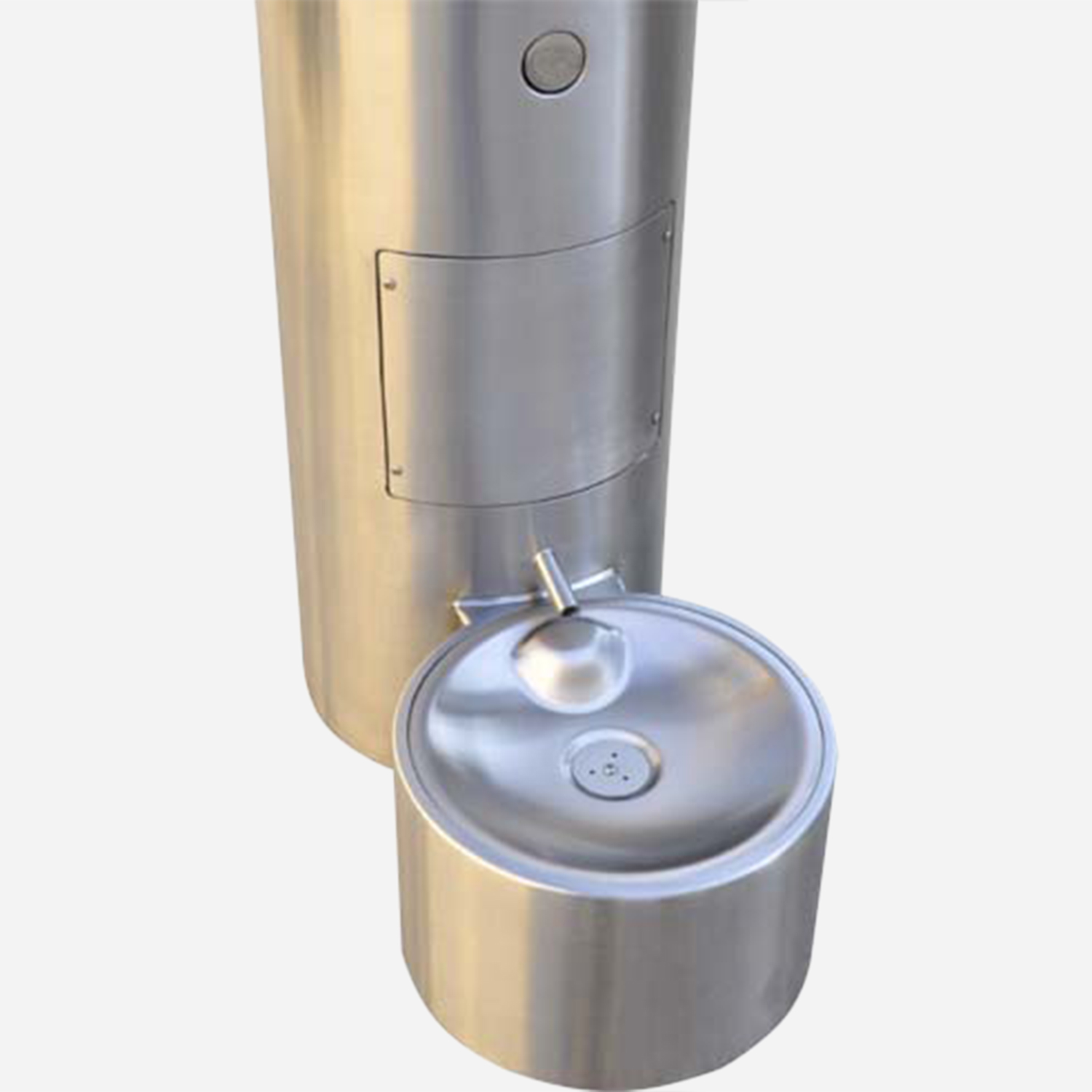

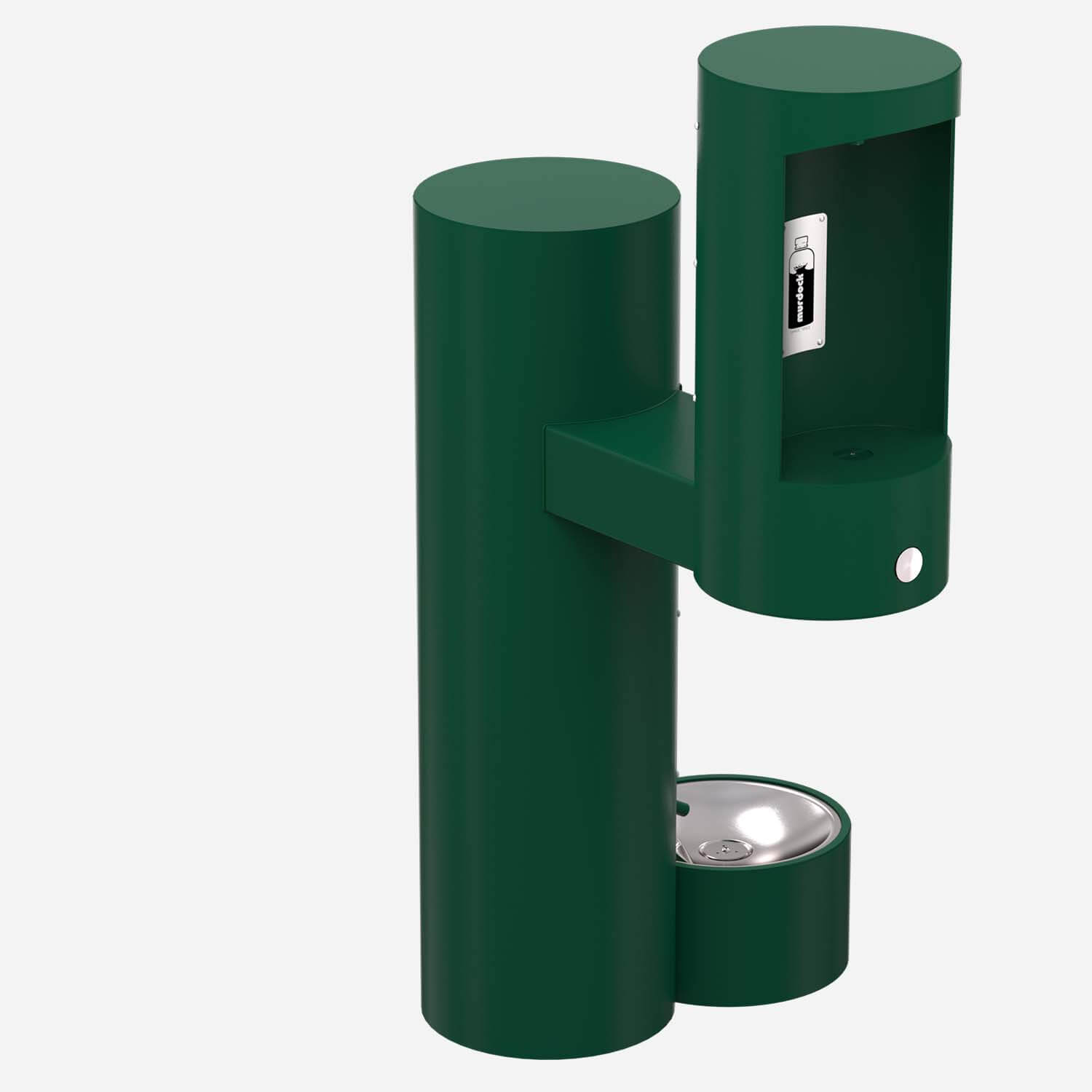

Option -PF Pet Fountain (shown in Stainless Steel)

Popular Options/Accessories include:

-AP | Auto-Purge Sensor Function Controller -FRU1, -FRU2, -FRU3 | Underground Freeze-Resistant Valve -NP1, -NP2, -NP3 | Underground Non-Polutable, Freeze-Resistant Valves -HB1, -HB | Hose Bibbs -JF1, -JF2, -JFFR1 | Jug Filler -MO | Bottle filler operated by pushbutton only -SLPT | 10º Bottle Filler Sloped Top -WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics

Other options may be available. See Options List and/or Submittal
