Member of Morris Group International
Model GYV34 Series
Barrier-Free Outdoor Pedestal Bi-Level Drinking Fountain with Bottle Filler
This outdoor drinking fountain is part of our Contemporary Drinking Fountain Series and features a clean and simple design that complements most any location from the park to a downtown street. This round, pedestal mounted stainless steel bi-level drinking fountain features a bottle filler on a second arm and a push button activated brass bubblers for the fountains. An optional dog drinking fountain and freeze resistant valves expand the applications even more.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | GYV34 Series Barrier-Free Outdoor Pedestal Bi-Level Drink Fountain with Bottle Filler; GYW44 Series Outdoor Barrier-Free Pedestal Dual Bottle Filler with Drink Fountain | 0 | 2 MB | ||
| | Outdoor Pedestal Bi-Level Drinking Fountain with Second Arm for Bottle Filler [GYV34 | All-Stainless Steel; GYV35 | Textured Fairway Green; GYV36 | Textured Firehouse Red; GYV37 | Textured Alpine Blue] | 0 | 200 KB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 0 | 106 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB | ||
| | Outdoor Hand Washing, Drinking Fountains, and Shower Stations for National Parks | 0 | 1 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 0 | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Wash-N-Go!® Hand Washing Station Flyer (pdf) | 0 | 520 KB | ||
 | | All-Stainless Steel Outdoor Bi-Level Drinking Fountain with Second Arm for Bottle Filler | 0 | 45 KB | ||
| | All-Stainless Steel Outdoor Pedestal Bi-Level Drinking Fountain with Pet Fountain and Second Arm for Bottle Filler | 0 | 47 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Pedestal |
| Material | Stainless Steel |
| Pet-Friendly | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Bottle filler - sensor, Push Button |
| Style | Round |
| Material Detail | All-Stainless Steel, Green, Red, Blue |
| Variations | GYV34: Satin Stainless Steel, GYV35: Green Powder Coated Stainless Steel, GYV36: Red Powder Coated Stainless Steel, GYV37: Blue Powder Coated Stainless Steel, GYV34-PF: Satin Stainless Steel with Pet Fountain, GYV35-PF: Green Powder Coated Stainless Steel with Pet Fountain, GYV36-PF: Red Powder Coated Stainless Steel with Pet Fountain, GYV37-PF: Green Powder Coated Stainless Steel with Pet Fountain |
| Product Features | Cylindrical Cantilever Bottle Filler |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU3 | Option: Below Ground, Freeze Resistant Valve, Three Station | ||
 | -FRU4 | Option: Below Ground, Freeze-Resistant Valve, Four-Station | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB3 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -IGM | Option: In-ground 14" mounting | ||
 | -MO | Bottle Filler Activated by Push Button Only | ||
 | -NP3 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station | ||
 | -NP4 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Four Station | ||
 | -PF | Option: Contemporary Round Pet Fountain | ||
 | CV | Option: Cartridge Valve on Drinking Fountains | ||
 | LSR | Option: Leaf and Debris Strainer for Round Outdoor Drinking Fountains | ||
 | SLPT | Option: 10° Bottle Filler Sloped Top |
Models
Typical models are shown below

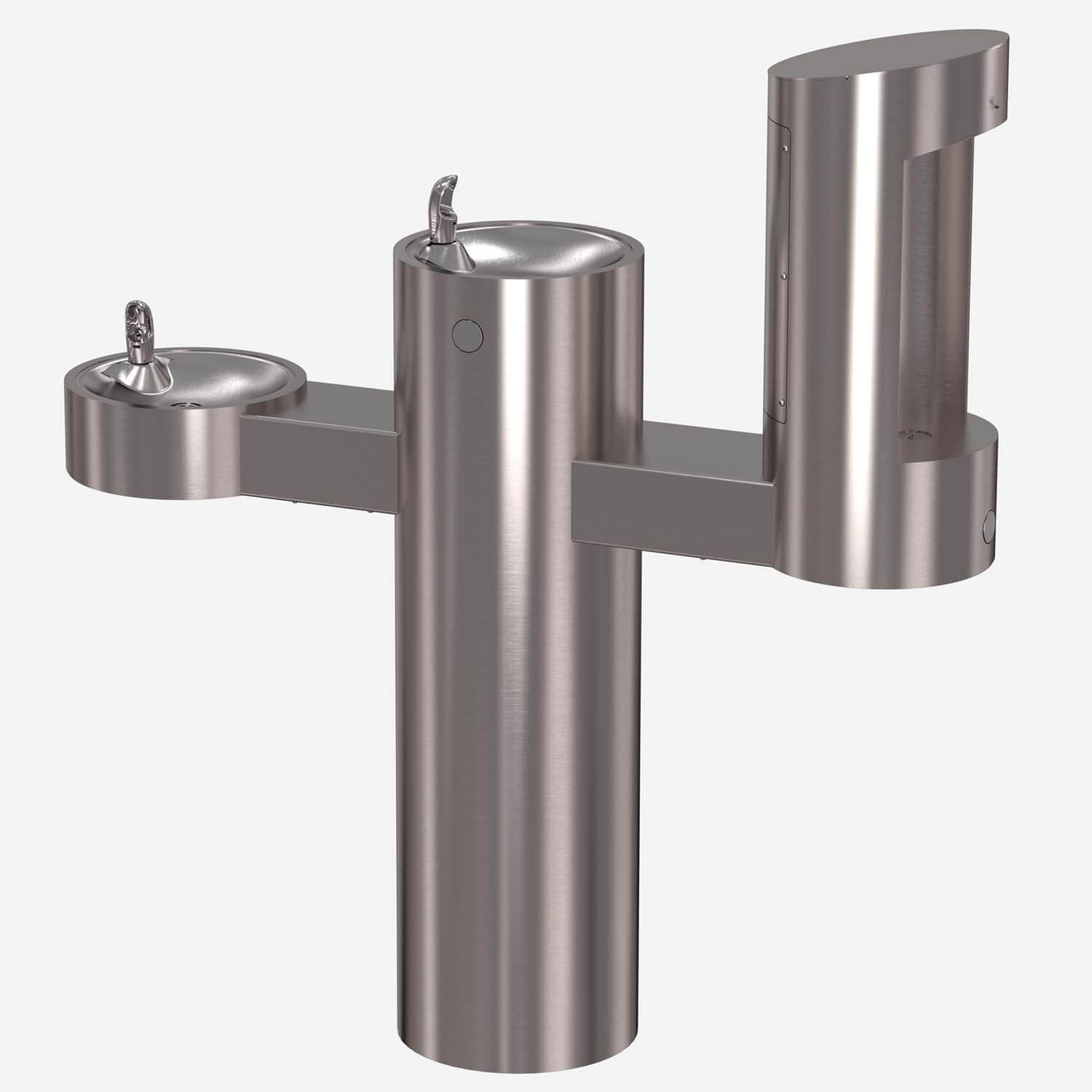

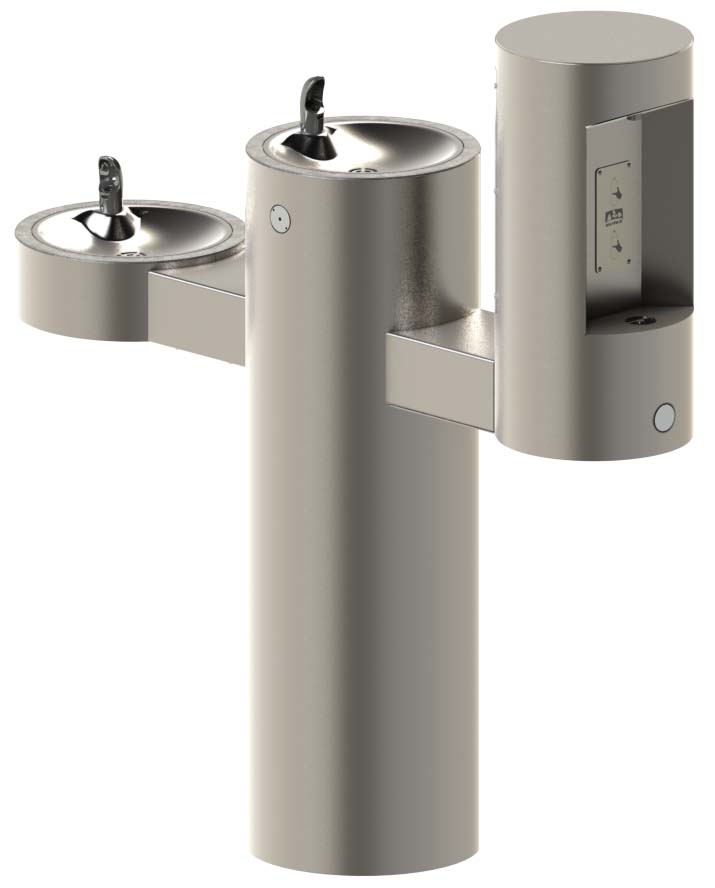

GYV34 All-Stainless Steel

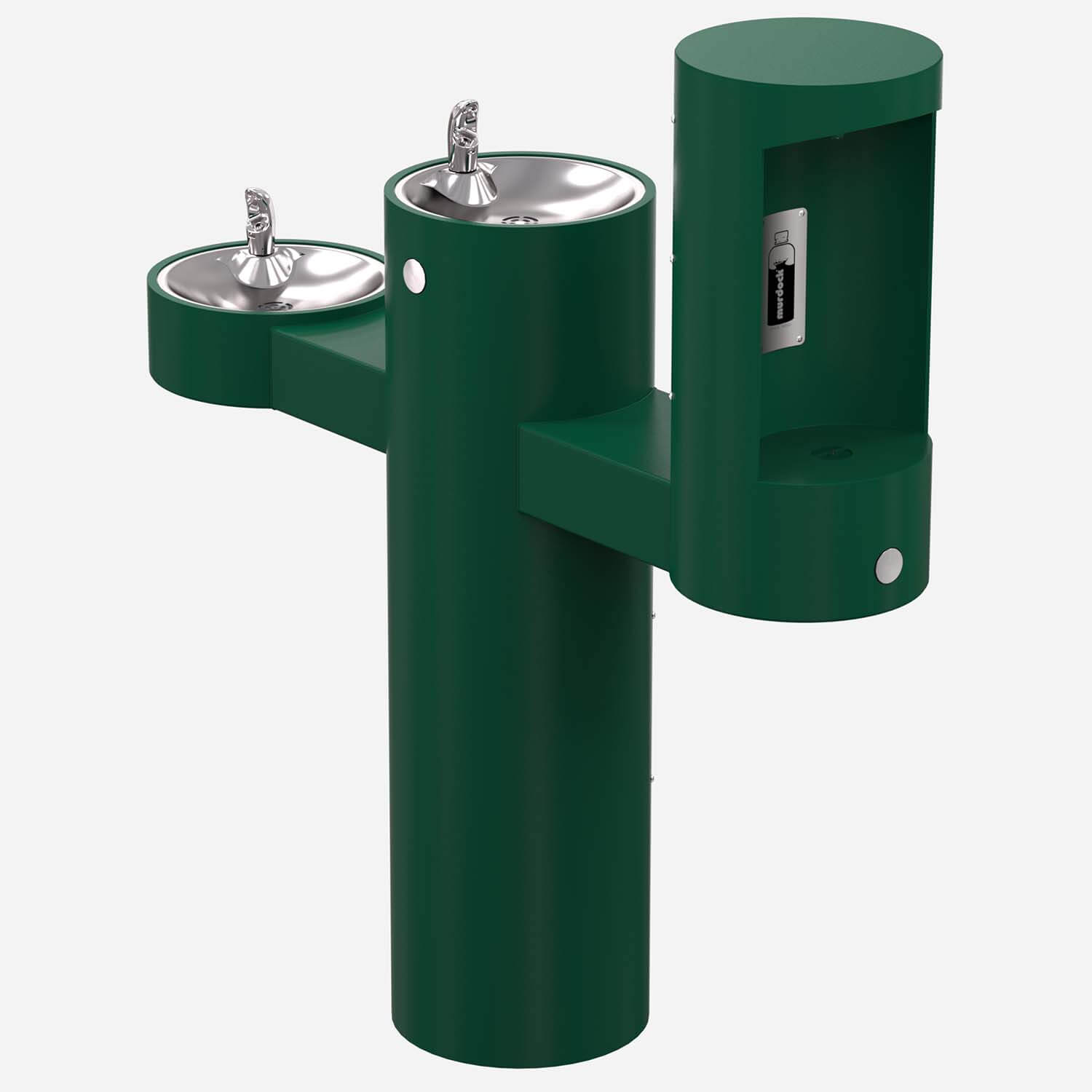

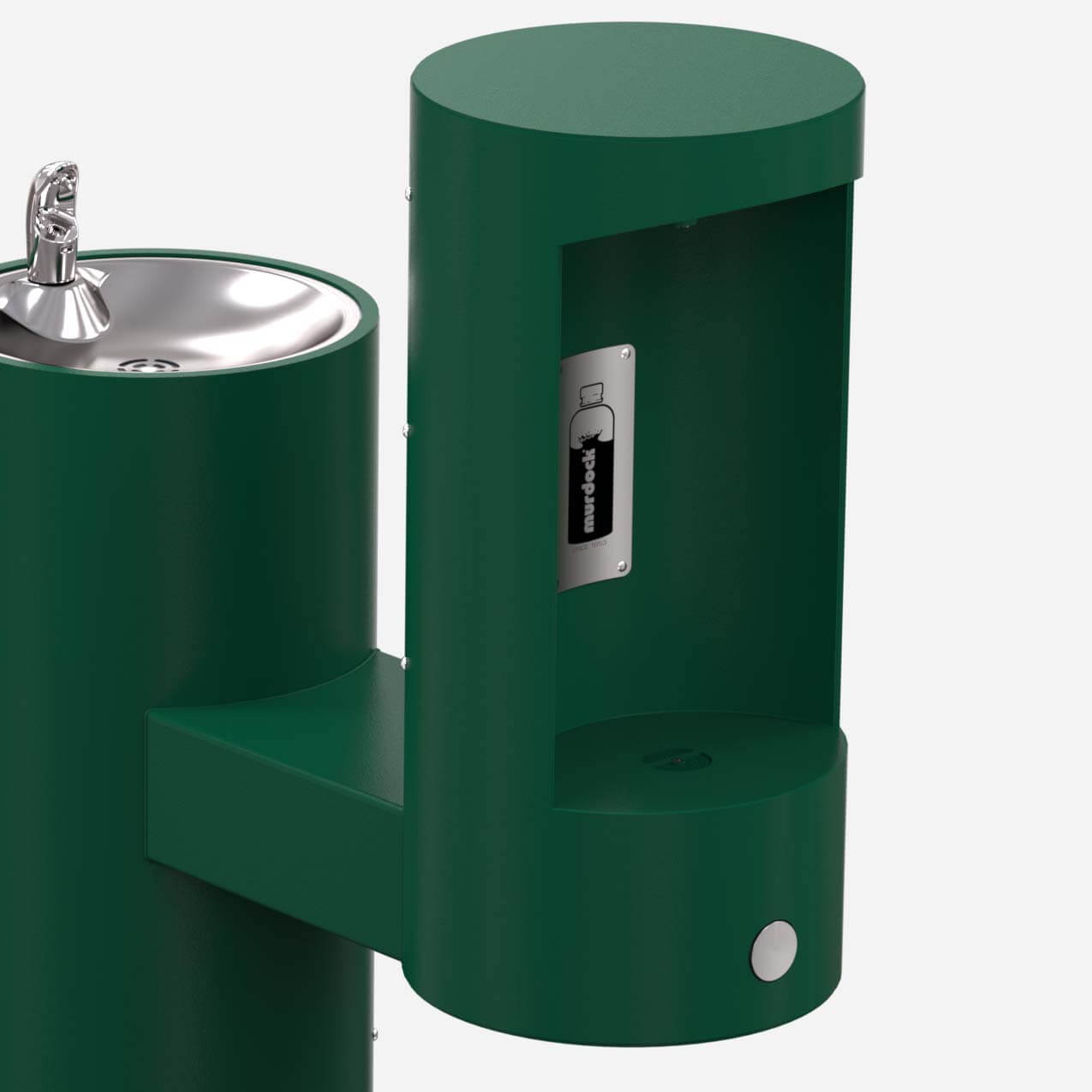

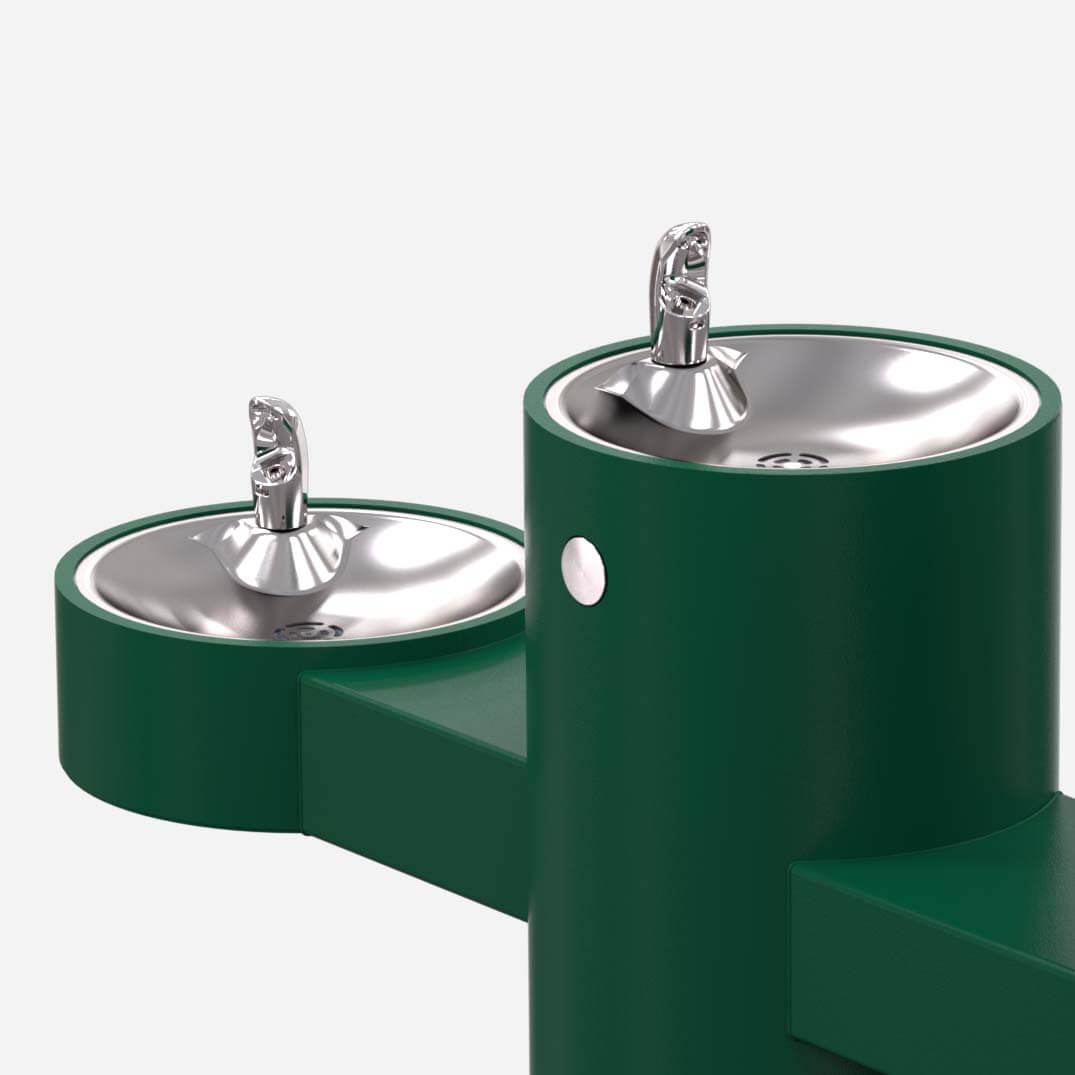

GYV35 Textured Fairway Green
GYV36 Textured Firehouse Red
GYV37 Textured Alpine Blue
Option -SLTP 10º Bottle Filler Sloped Top (shown in all-stainless steel)

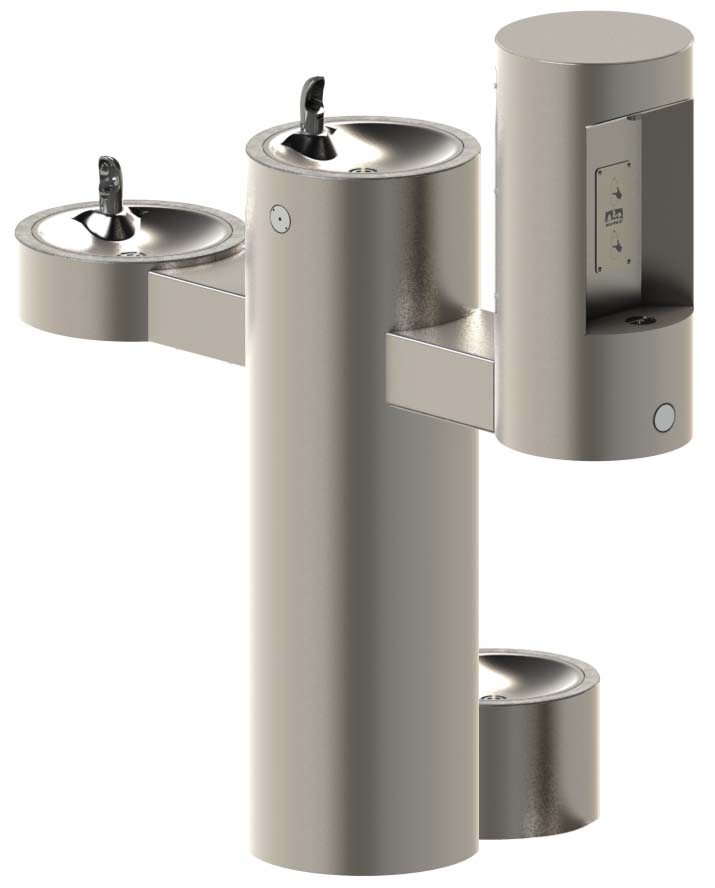

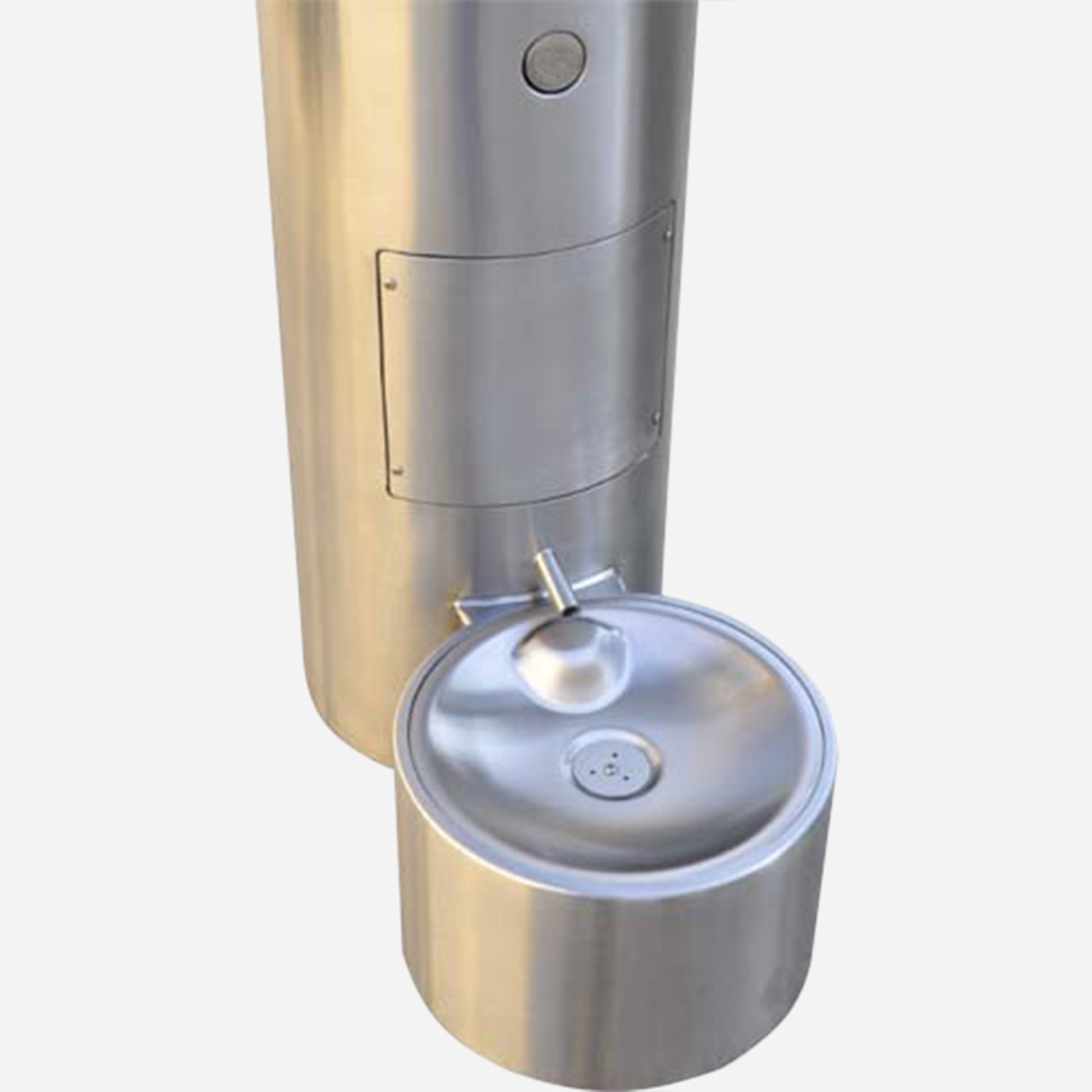

Option -PF Pet Fountain (shown in all-stainless steel)
Other Popular Options/Accessory include:
-CH30 Child Height, 30" Bubbler Height -FRU3, -FRU4 | Underground Freeze-Resistant Valves -NP3, -NP4 | Non-Polutable, Underground Freeze-Resistant Valves -HB1, -HB3 | Hose Bibb -LSR | Leaf and Debris Strainer for Round Outdoor Drinking Fountains -MO | Bottle filler operated by pushbutton only (Standard with freeze-resistant valves) -AP | Auto-Purge Sensor Function Controller -WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
Other options may be available. See Options List and/or Submittal
