Member of Morris Group International
Two Station Pet Fountain
The Dual pet fountain shall be Murdock model M-PM74. Model shall include two pet fountains. Pet fountain pushbuttons shall be self-closing requiring less than 5 pounds of force to activate the internally mounted valves. Spout water outlet shall be stainless steel tube and operate on a water pressure range of 30-100 psig.
Unit shall be constructed of 14 gauge type 304 stainless steel polished to a satin finish with 18 gauge pet fountain bowls. Bottom plate shall be 3/16” thick and include two mounting holes with four additional mounting holes for pet fountains. 1/2” expansion anchor bolts are furnished. All other exposed fasteners shall be vandal resistant stainless steel screws.

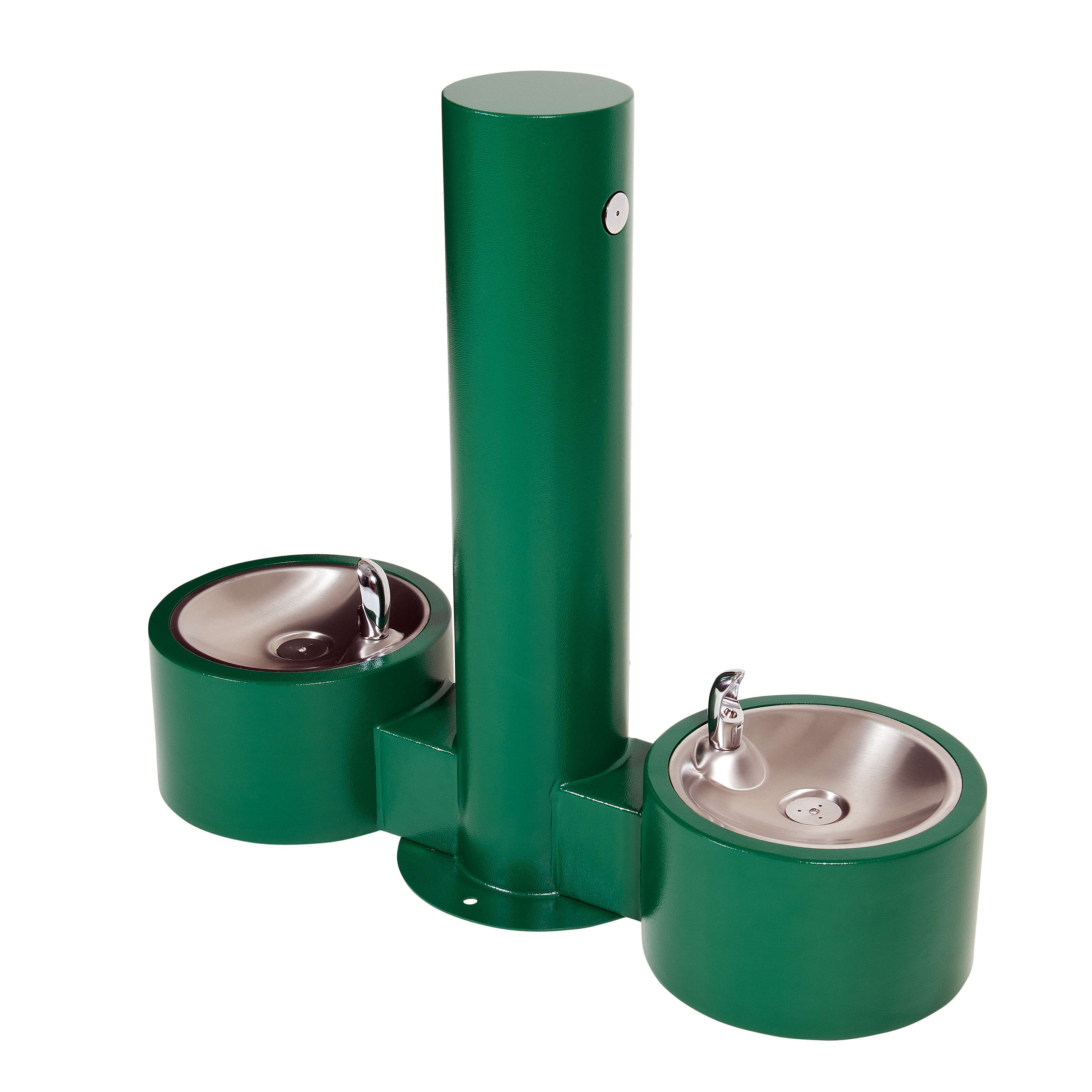

Note: New improved design as of Summer 2025 includes pet fountain bowls immediately next to pedestal and a spout from the pedestal instead of a bubbler
STANDARD FEATURES
- 100 mesh inlet strainer
- Pushbutton requiring less than 5 pounds (2.27 kg) for activation
- Stainless steel spout water outlet
- Vandal resistant stainless steel access panel
- 18 gage, 304 stainless steel basins
- Heavy duty, 304 stainless steel polished to a satin finish
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Stainless Steel Cylindrical Dual Pet Fountain [M-PM74 | All-Stainless Steel; M-PM75 | Green; M-PM76 | Red; M-PM77 | Blue] | 0 | 578 KB | ||
| | Stainless Steel Cylindrical Dual Pet Fountain [M-PM74 | All-Stainless Steel; M-PM75 | Green; M-PM76 | Red; M-PM77 | Blue] | 0 | 138 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB | ||
 | | Pushbutton Round Pedestal Dual Pet Fountain [M-PM75 | Green] | 0 | 335 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Material | Stainless Steel |
| No. of Stations | 2 |
| Mounting | Pedestal |
Options
Models
Typical models are shown below

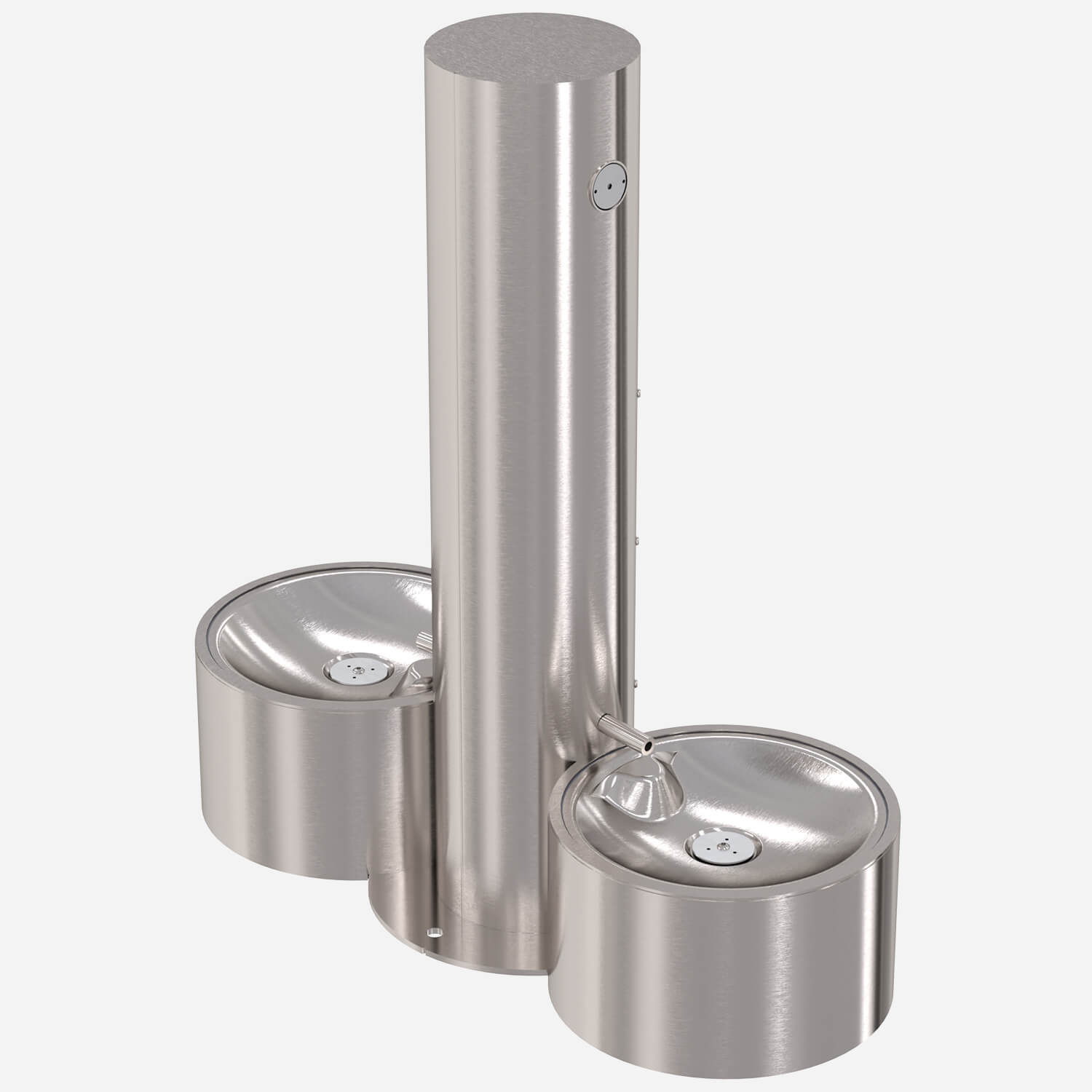

M-PM74 All-Stainless Steel

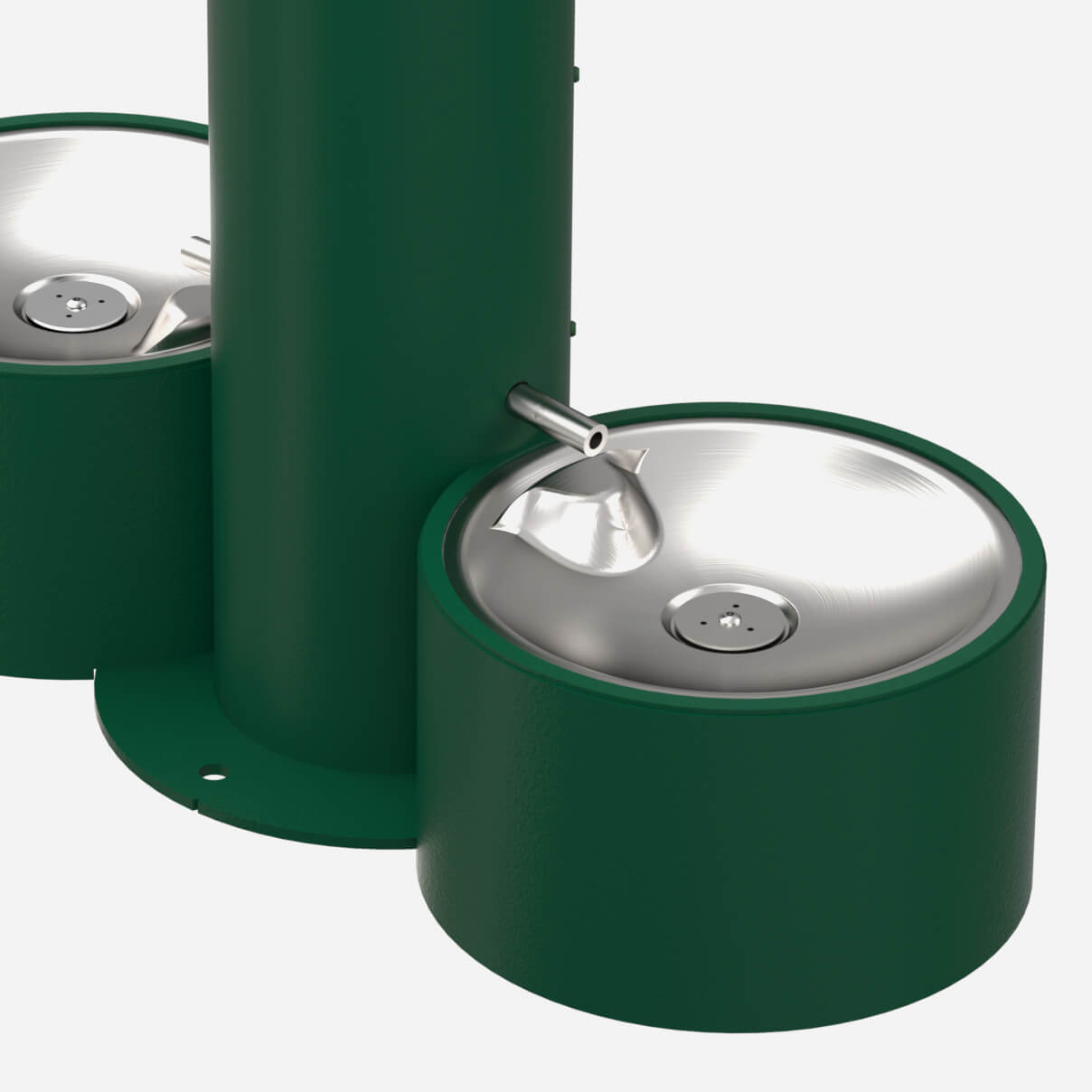

M-PM75 Textured Fairway Green powder coating

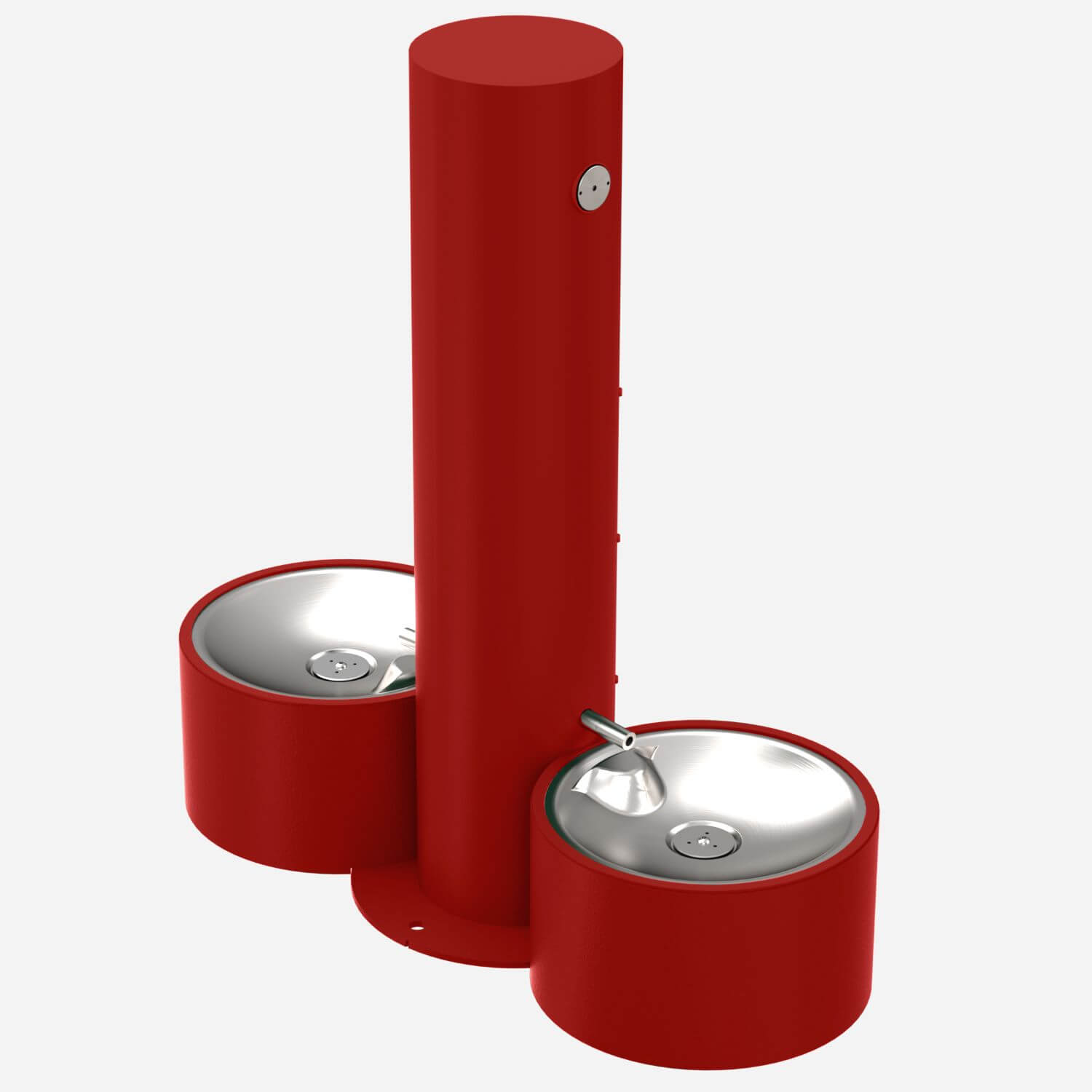

M-PM76 Textured Firehouse Red powder coating
M-PM77 Textured Alpine Blue powder coating
Popular Options include:

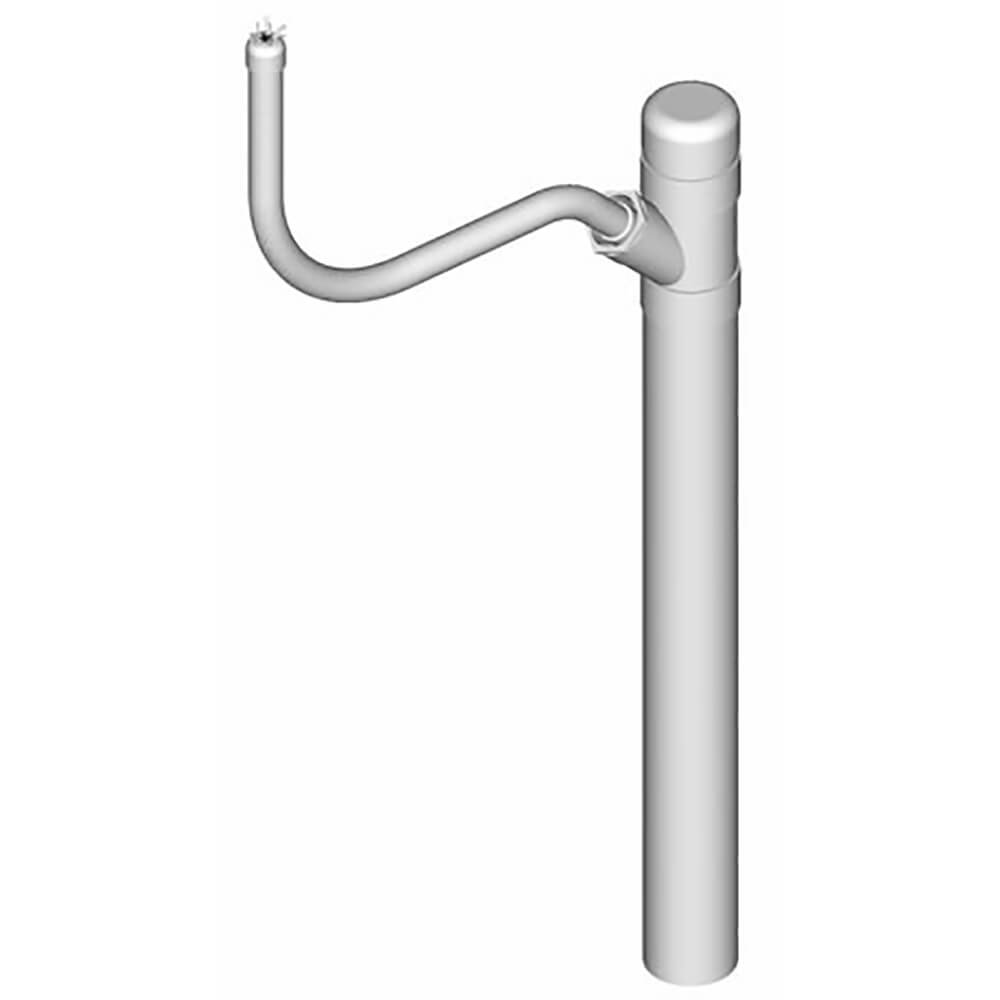

-FRU2 |Underground freeze-resistant valve -IAP | In-Ground Anchor Plate -LOGO | Customer Specified logo Other options are available. See Options List and/or Submittal
