Model M-FS64 Series
Cylindrical Pedestal Foot Shower

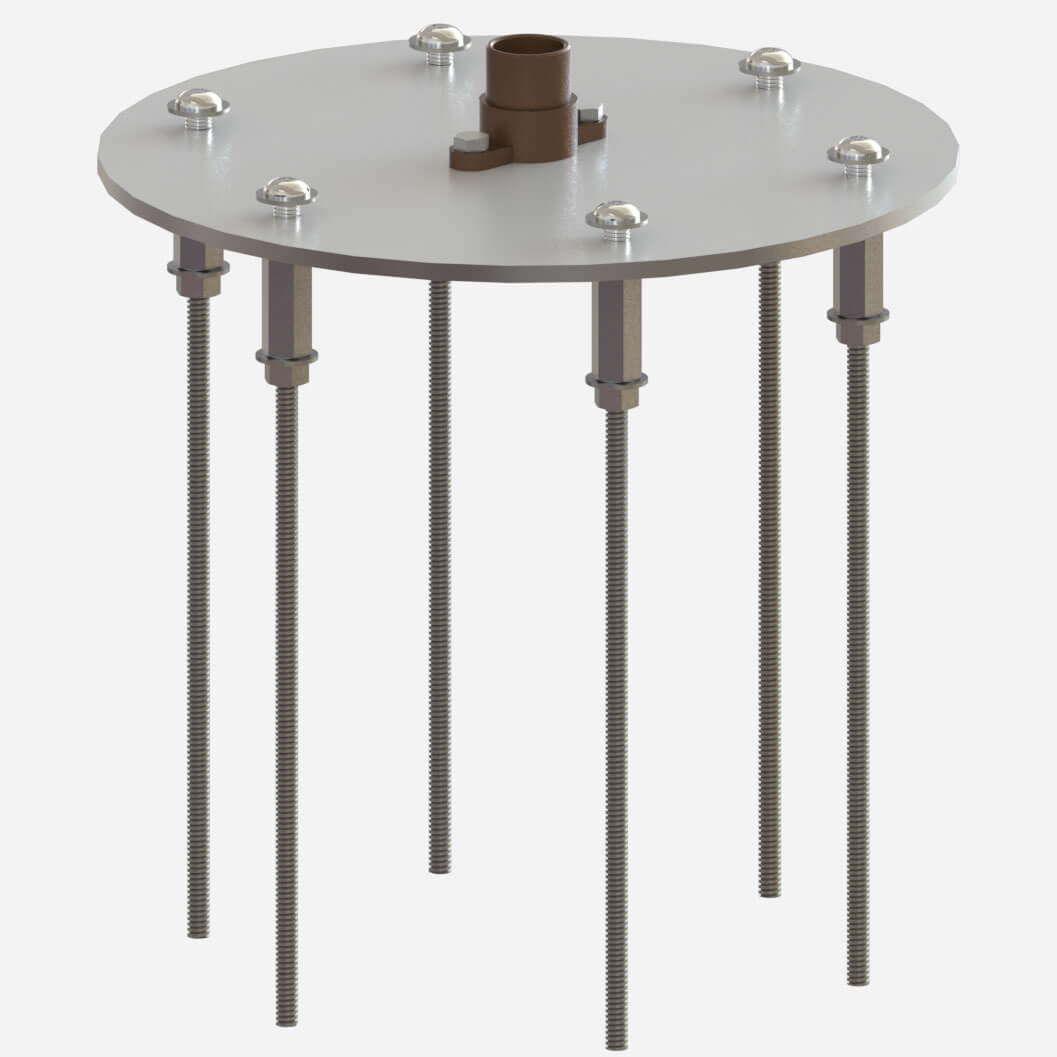

M-FS64 Series is a pedestal cylindrical foot shower. The pedestal measures 29-1/4" (742.95 mm) tall and 7" (177.8 mm) in diameter. A Logan nozzle showerhead is 17-7/8" (454 mm) above grade (orifice height). The pushbutton is approximately 5-3/8" (137 mm) above the showerhead. The fixture is mounted securely with four mounting holes on a 10-1/2" (266.7 mm) diameter base flange. The fixture is manufactured with heavy-duty stainless steel. Standard powder coating colors are available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Cylindrical Pedestal Foot Shower [M-FS64 | Stainless Steel; M-FS65 | Fairway Green; M-FS66 | Firehouse Red; M-FS67 | Alpine Blue] | 0 | 652 KB | ||
| | Cylindrical Pedestal Foot Shower [M-FS64 | Stainless Steel; M-FS65 | Fairway Green; M-FS66 | Firehouse Red; M-FS67 | Alpine Blue] | 0 | 280 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB |
Specifications
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Green, Blue, Red |
| Mounting | Pedestal |
| Activation | Push Button |
Options
Models
Typical models are shown below

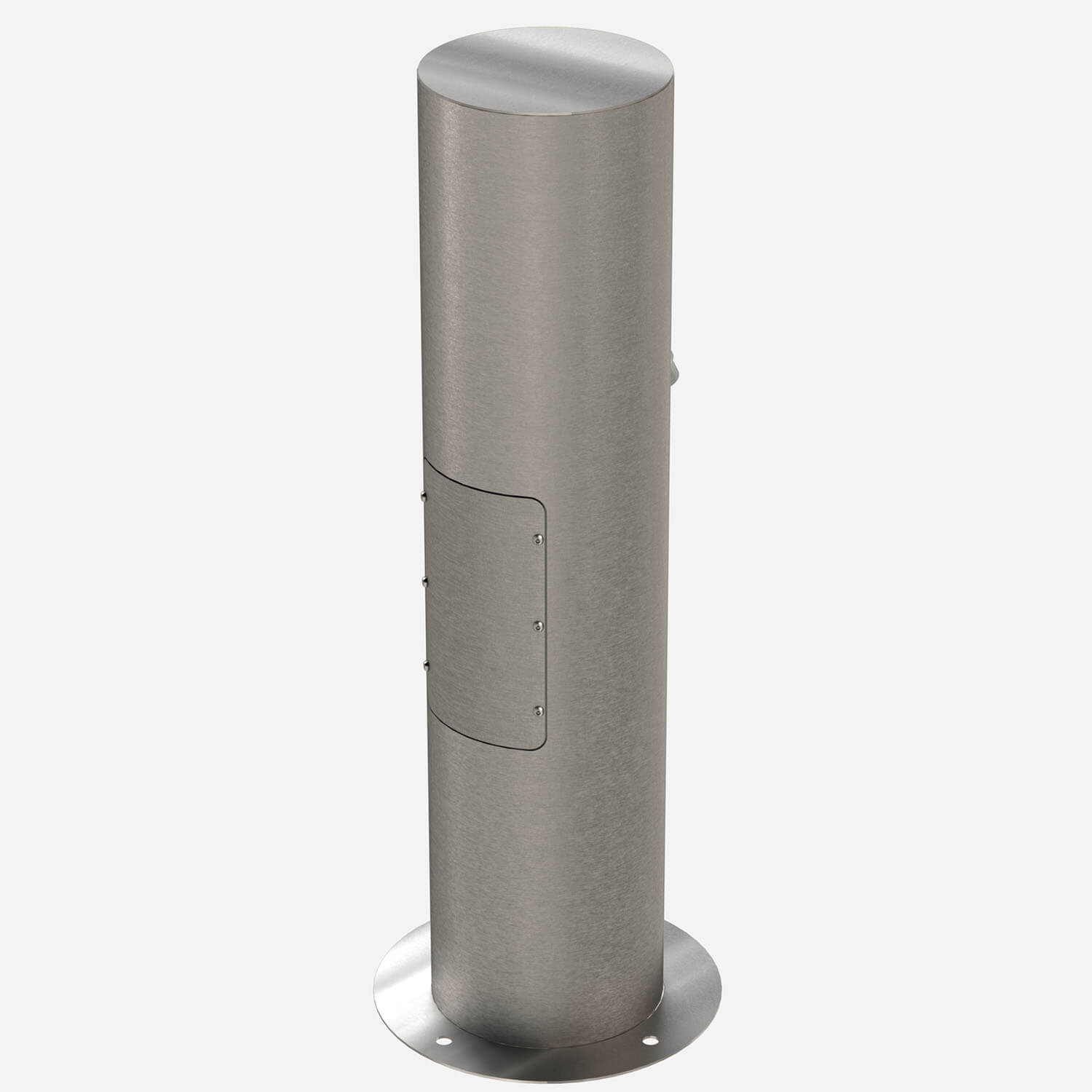

M-FS64 All-Stainless Steel

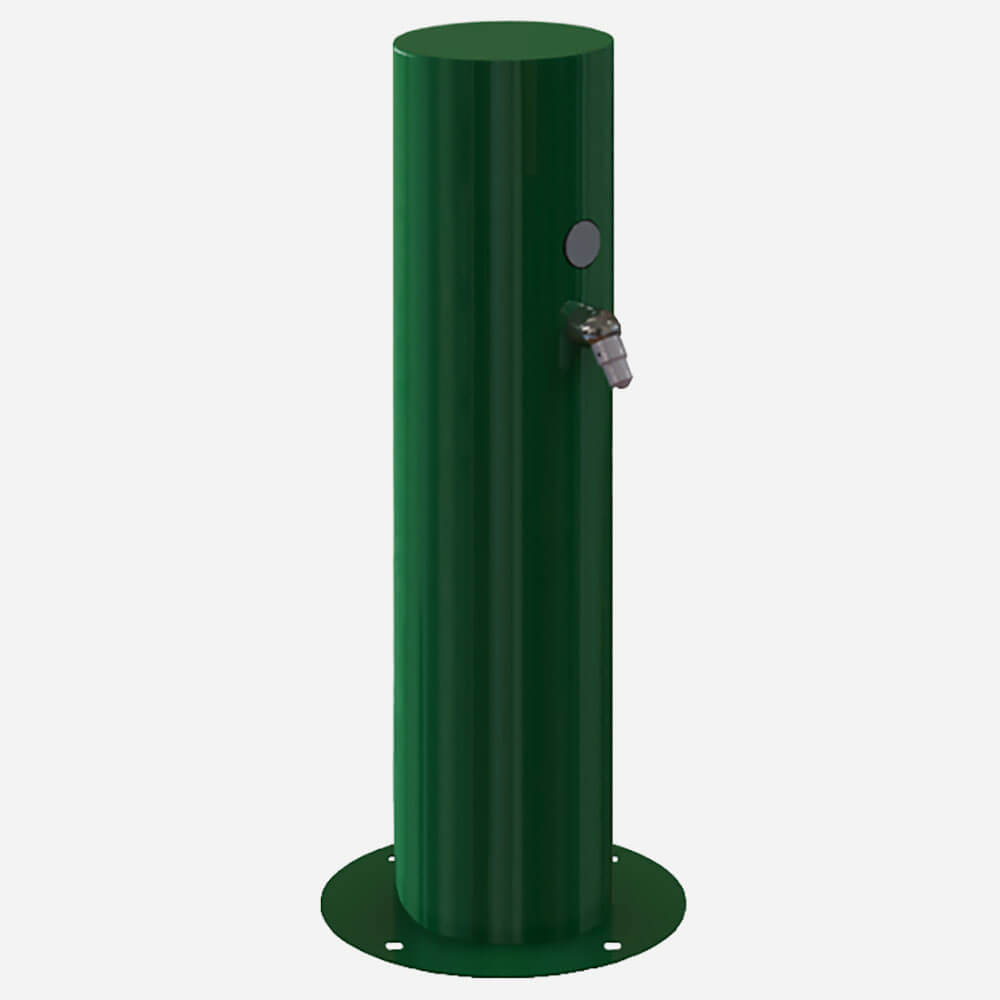

M-FS65 Fairway Green

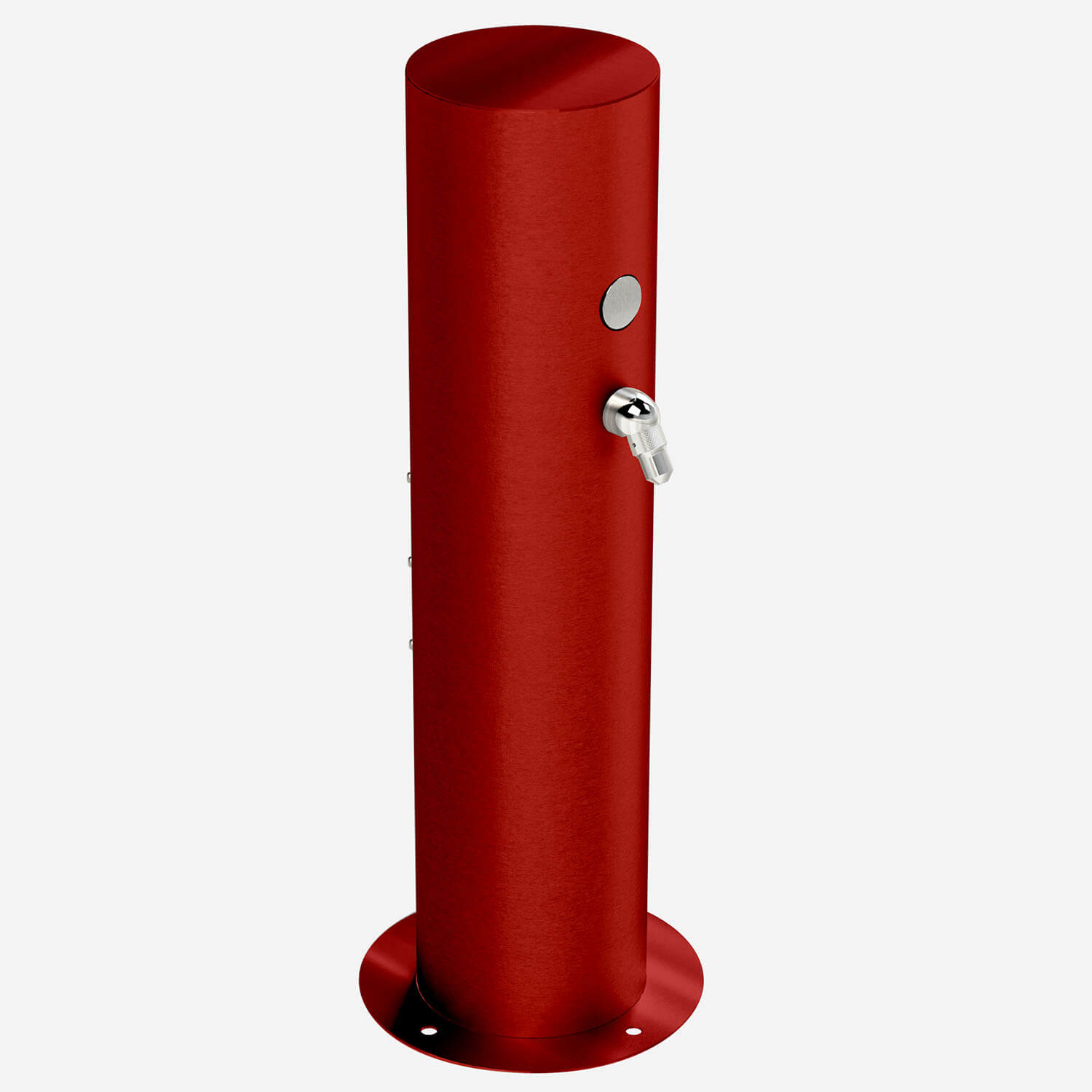

M-FS66 Firehouse Red

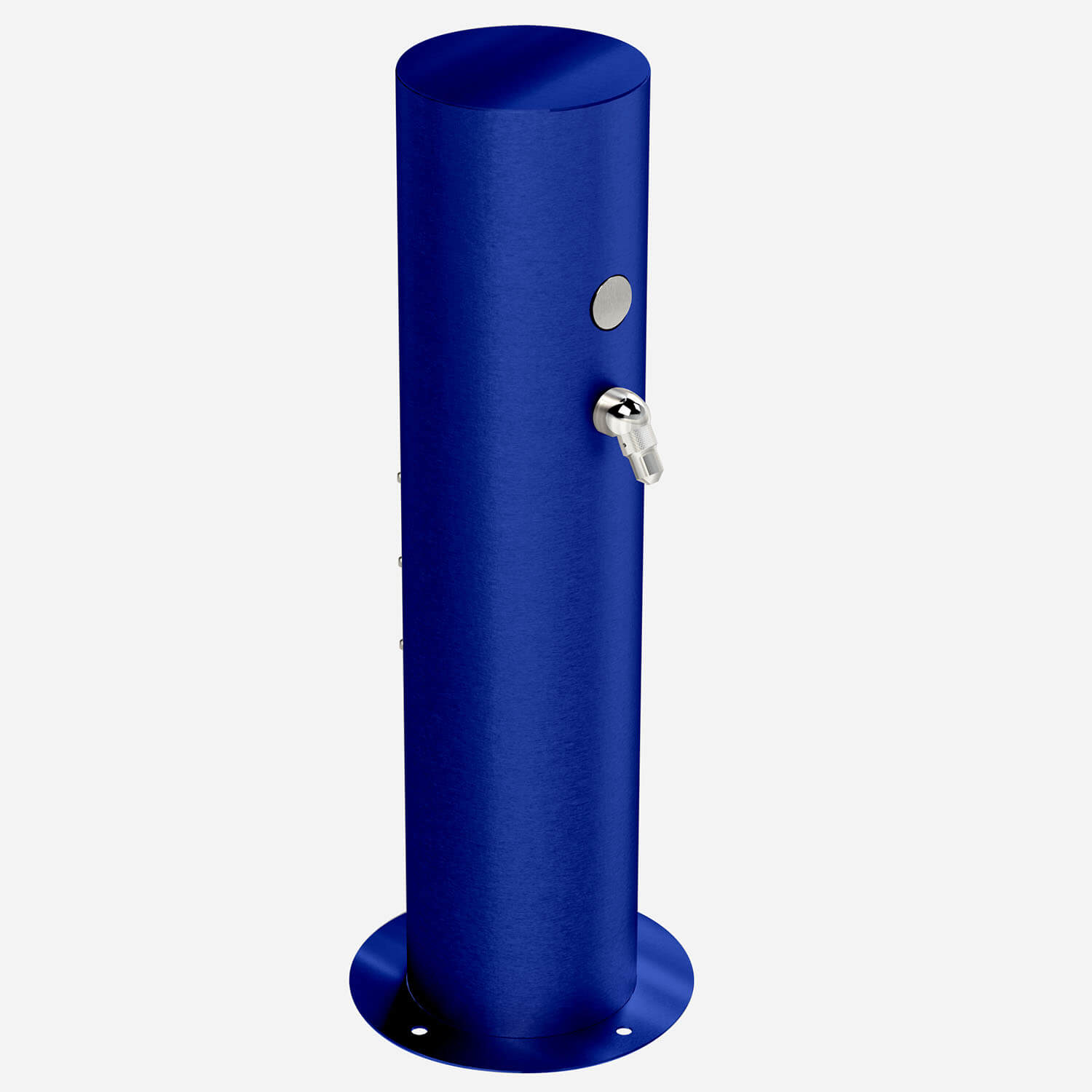

M-FS67 Alpine Blue
