Member of Morris Group International
Model GVJ19 Series

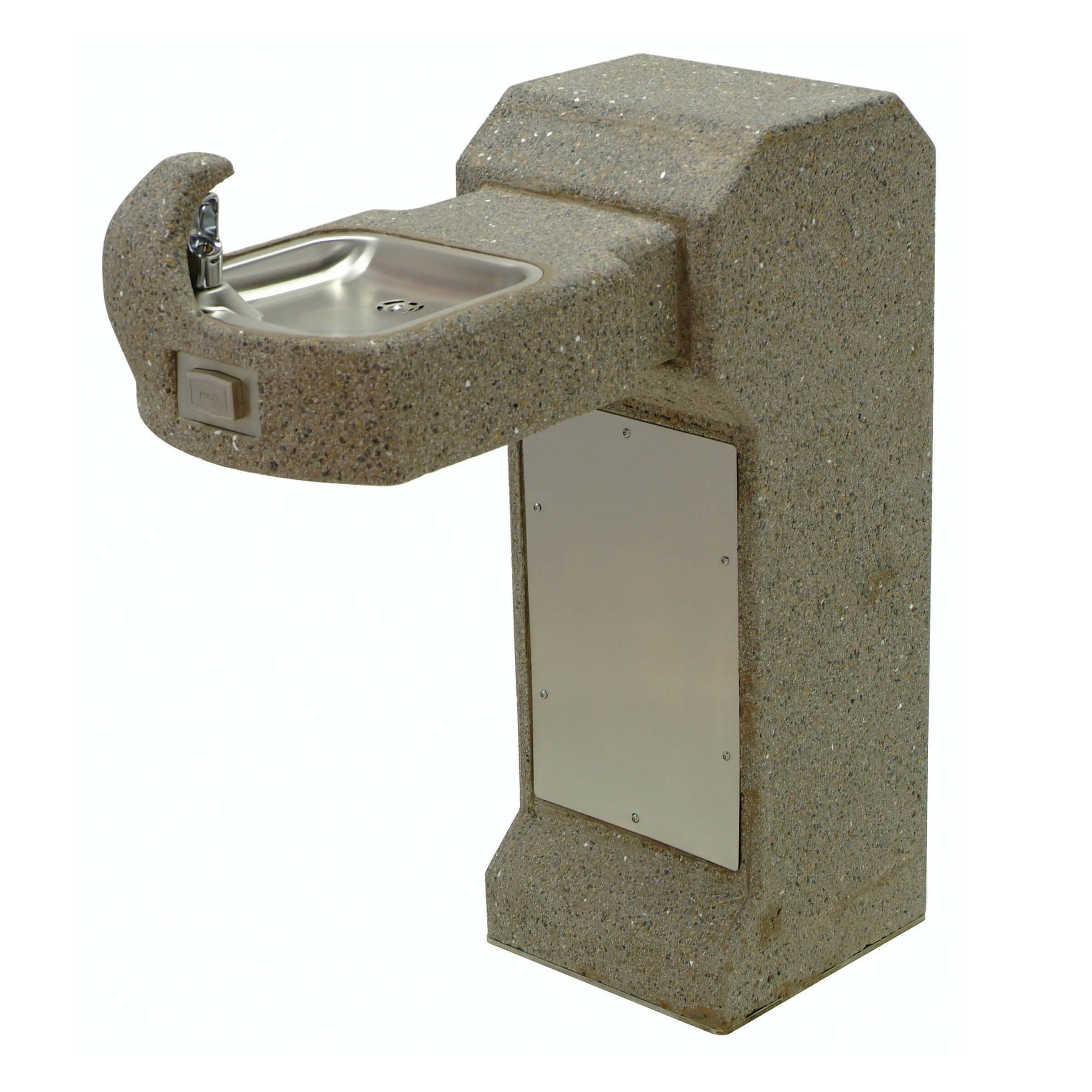

Barrier-Free Concrete Square Pedestal Outdoor Drinking Fountain
This barrier free, square, concrete, pedestal mounted drinking fountain is resistant to sunlight, heat, moisture and wear. It features a front mounted, self-closing activation button. The base unit is constructed of concrete aggregate and has a stainless steel bowl and bubbler. This unit is available in tan or brown aggregate. This water fountain is Adult ADA compliant when properly installed.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Square Stone Pedestal | 0 | 399 KB | ||
| | Barrier-Free Pedestal Mount Square Concrete | 0 | 1 MB | ||
| | Freeze Resistant ADA Pedestal Mounted Square Concrete Drinking Fountain | 0 | 1008 KB | ||
| | Installing Freeze-Resistant, Non-Pollutable Valve Option [Options -NP1 (1-station); -NP2 (2-station); -NP3 (3-station); -NP4 (4-station); Includes Repair Parts | 0 | 2 MB | ||
| | -FRU1, -FRU2, -FRU3, -FRU4 Below Ground Freeze-Resistance - Document #9938-340-0M1 | 0 | 2 MB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 0 | 106 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB | ||
 | | Barrier-Free Square Concrete Pedestal Series | 0 | 289 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB | ||
| | How to Service an Outdoor Drinking Fountain | 0 | 133 KB |
Specifications
| Mounting | Pedestal |
| Material | Concrete Fountain, Stainless Steel Bowl |
| Pet-Friendly | Available Option |
| Sanitary Product | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button |
| Style | Square |
| Material Detail | Brown Stone, Tan Stone |
| Variations | GVJ18: Tan Concrete Fountain, GVJ19: Brown Concrete Fountain |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU1 | Option: Below Ground, Freeze Resistant Valve, Single Station | ||
 | -FRU2 | Option: Below Ground, Freeze Resistant Valve, Two Station | ||
 | -FS | Option: Foot Spray, Outdoor Pedestal Drinking Fountain/Hand Wash/Shower | ||
 | -GVB | Option: Valve Cover/Box for Access to Underground Freeze-Resistant Valves | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB2 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Loose Key | ||
 | -HB4 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Recessed Steel Compartment | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -JF1 | Option: Jug Filler with Lever Handle | ||
 | -JF2 | Option: Recessed Jug Filler with Push Button | ||

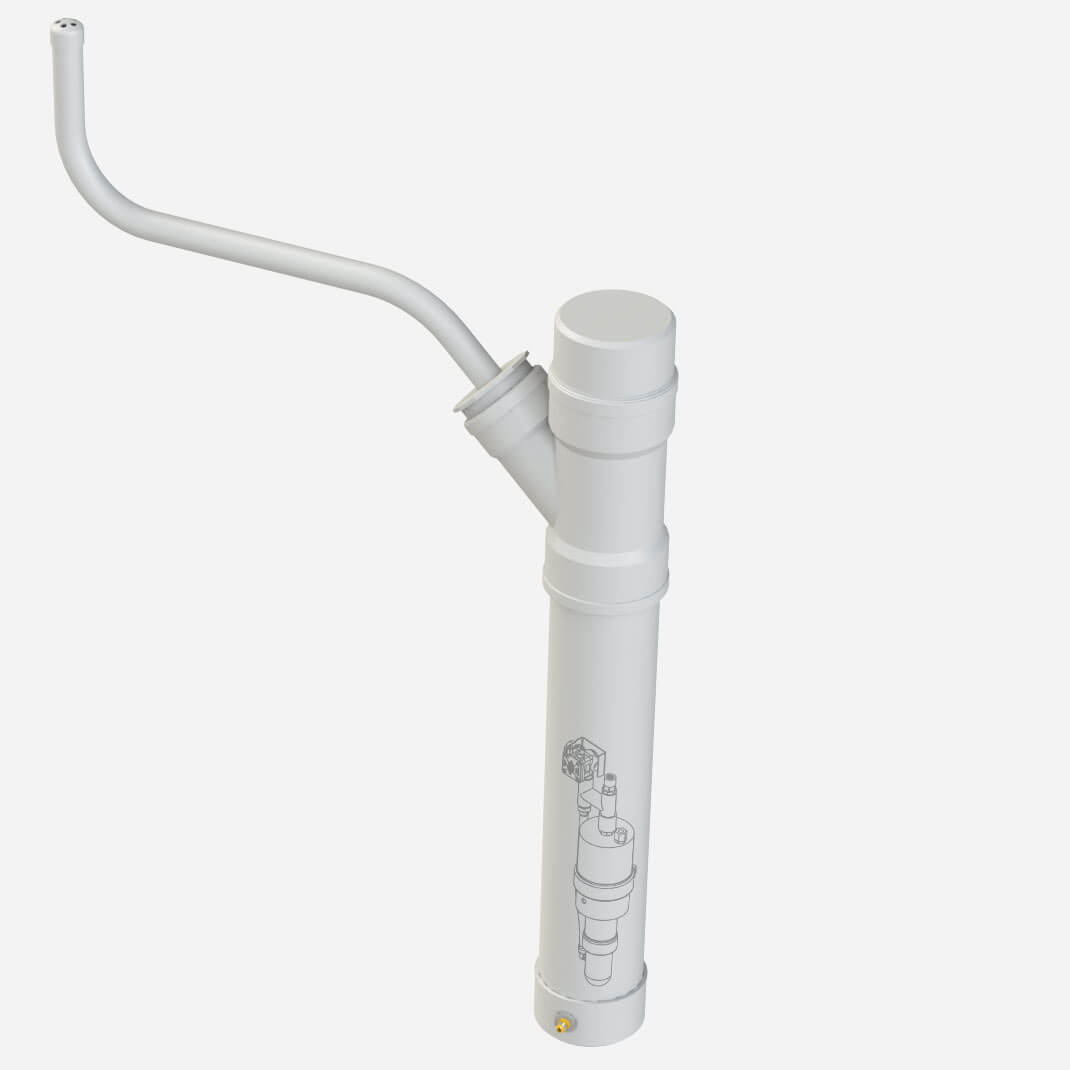

 | -NP1 | Option: SafeWater® Non-Pollutable, Below Grade Freeze-Resistant Valve, Single Station | ||

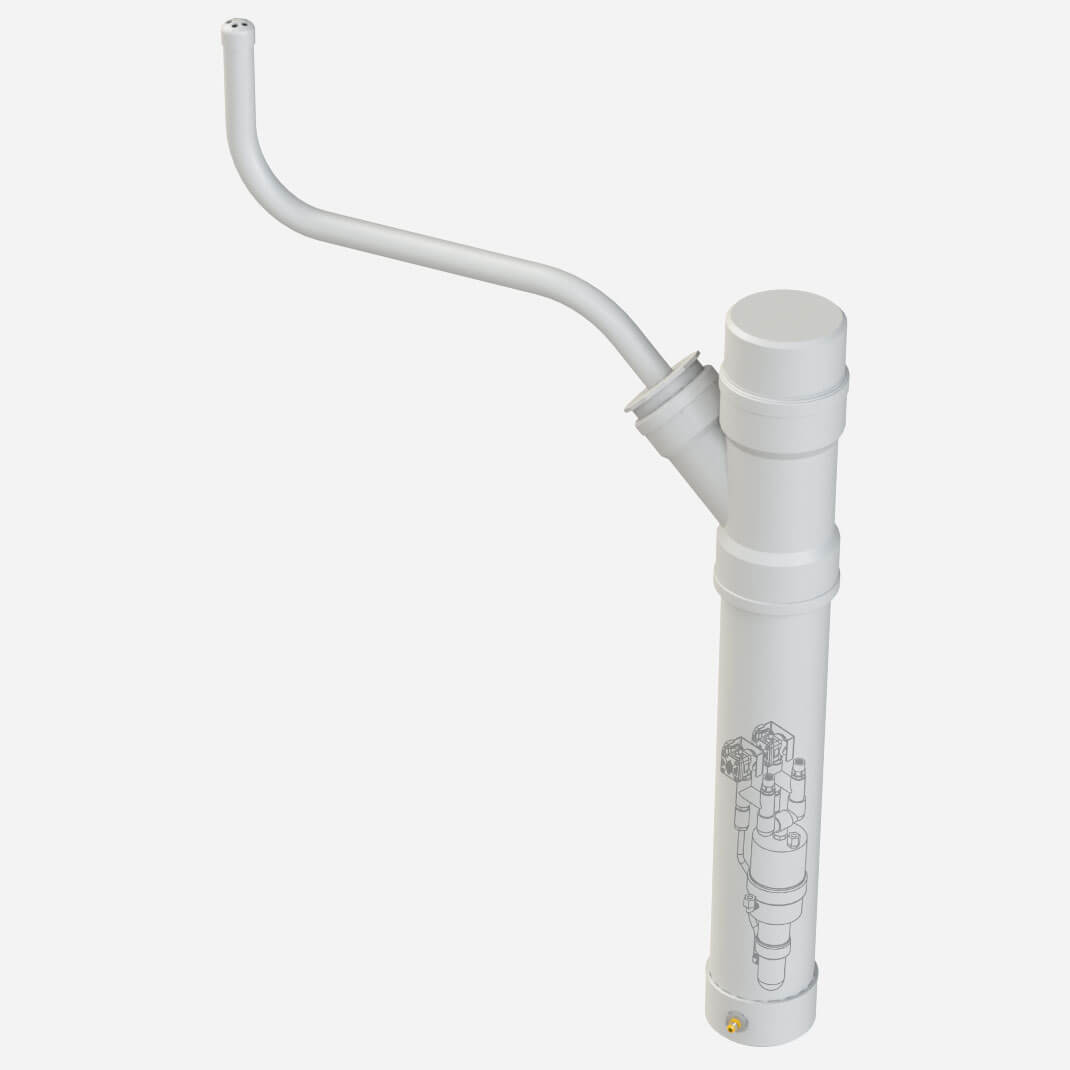

 | -NP2 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station | ||
 | -PF | Option: Contemporary Round Pet Fountain |
