Model ECO-DF Series

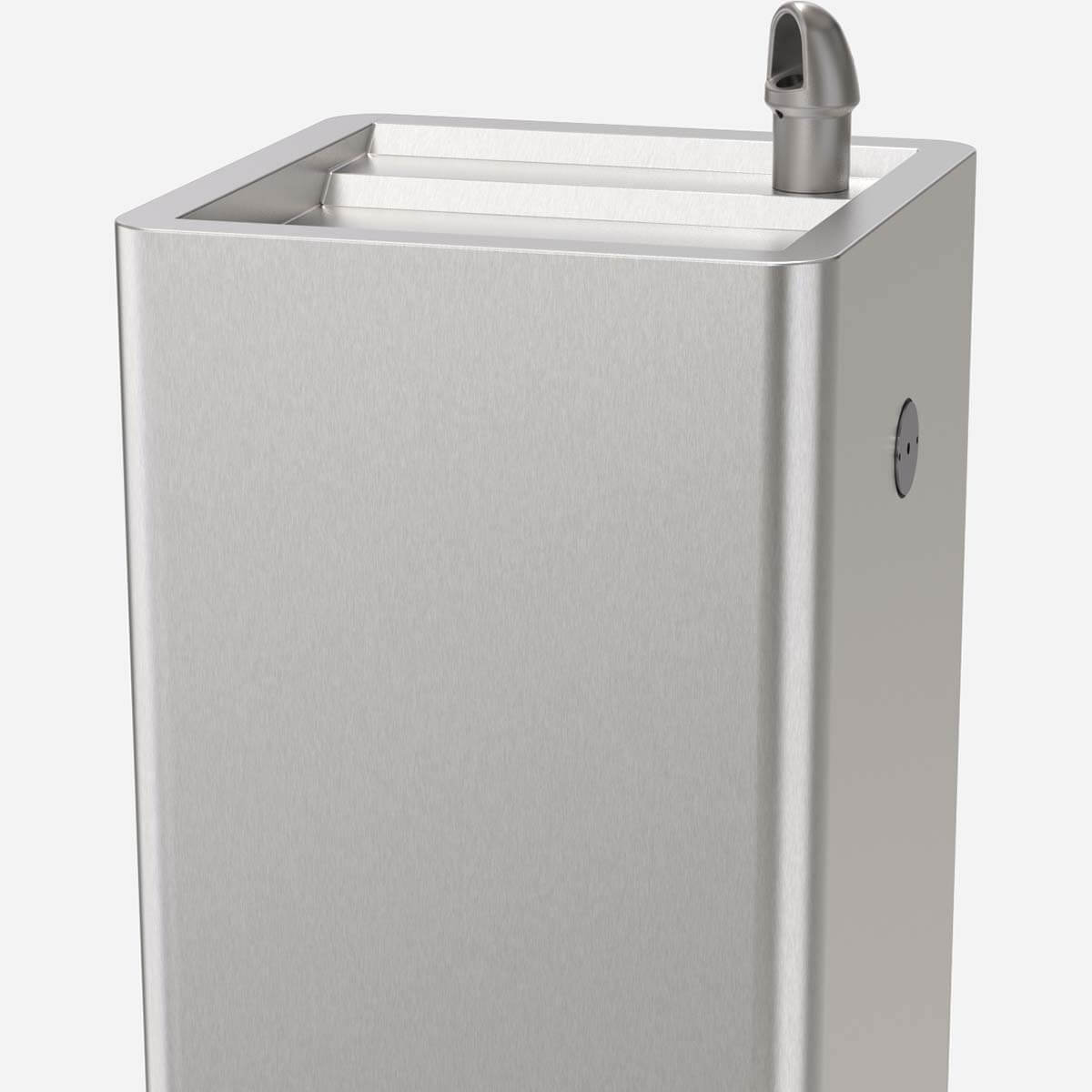

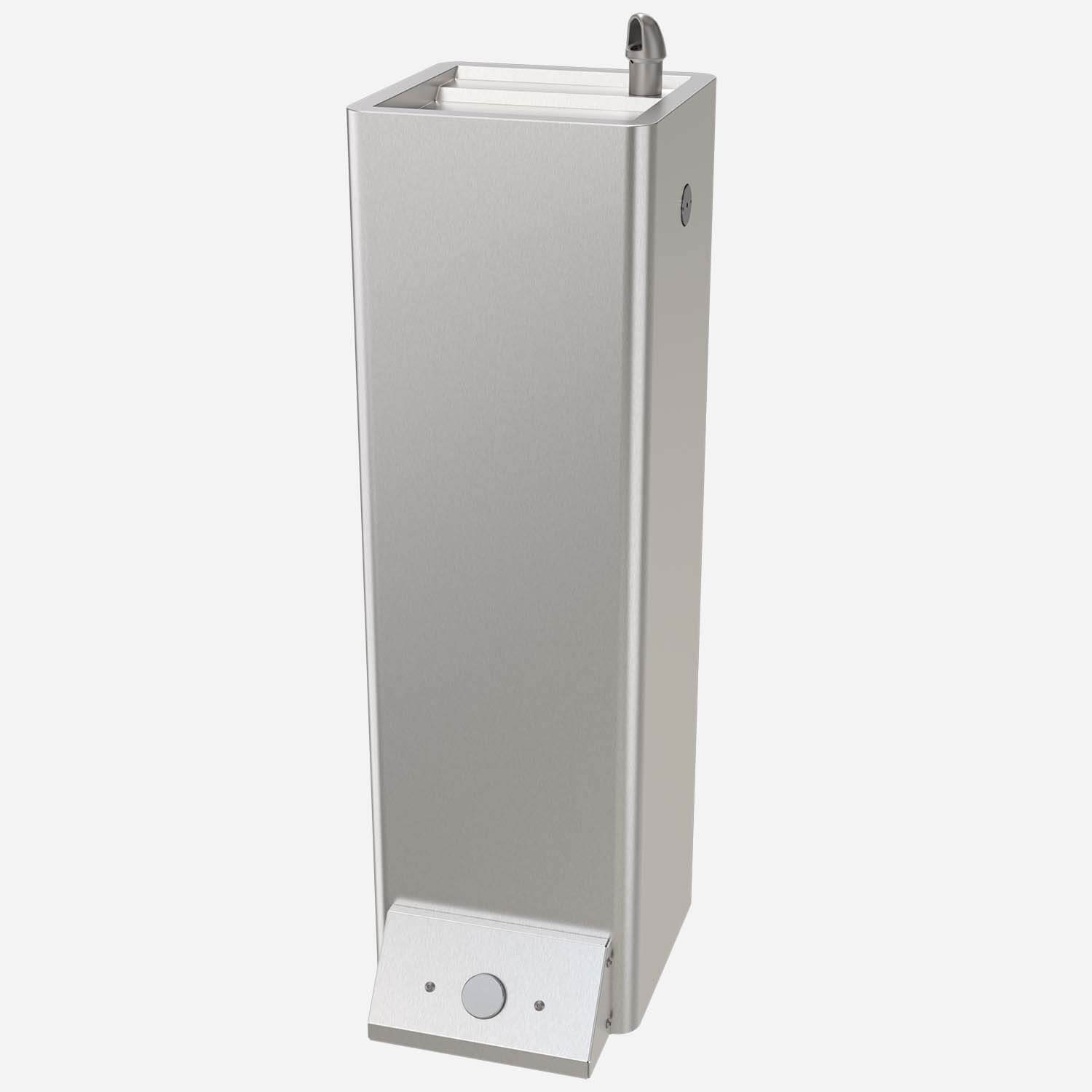

Stainless Steel Economy Outdoor Pedestal Drinking Fountain
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | ECO Series Outdoor Economy Drinking Fountain and Bottle Fillers [ECO-BF | Bottle Filler; ECO-DF | Drinking Fountain; ECO-DF-BF | Drinking Fountain with Bottle Filler] | 1 MB | ||
| | Economy Outdoor Pedestal Drinking Fountain [ECO-DF, ECO-DF-F, ECO-DF-CH33,ECO-DF-CH33-F] | 227 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | MM - Economy Outdoor DR and BFs | 350 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 6 MB |
Specifications
| Style | Economy |
| Material | Stainless Steel |
| Mounting | Pedestal |
| Usage | Outdoor |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, Lead-Free Federal Law 111-380 |
| Activation | Foot Pedal, Push Button |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
The model numbers are defined with push-button controls operating the unit
Hand push-button operation only Standard Height (39-1/2" Bubbler Orifice) Model Number ECO-DF ---------- Child Height (33-1/2" Bubbler Orifice) Model Number ECO-DF-CH33

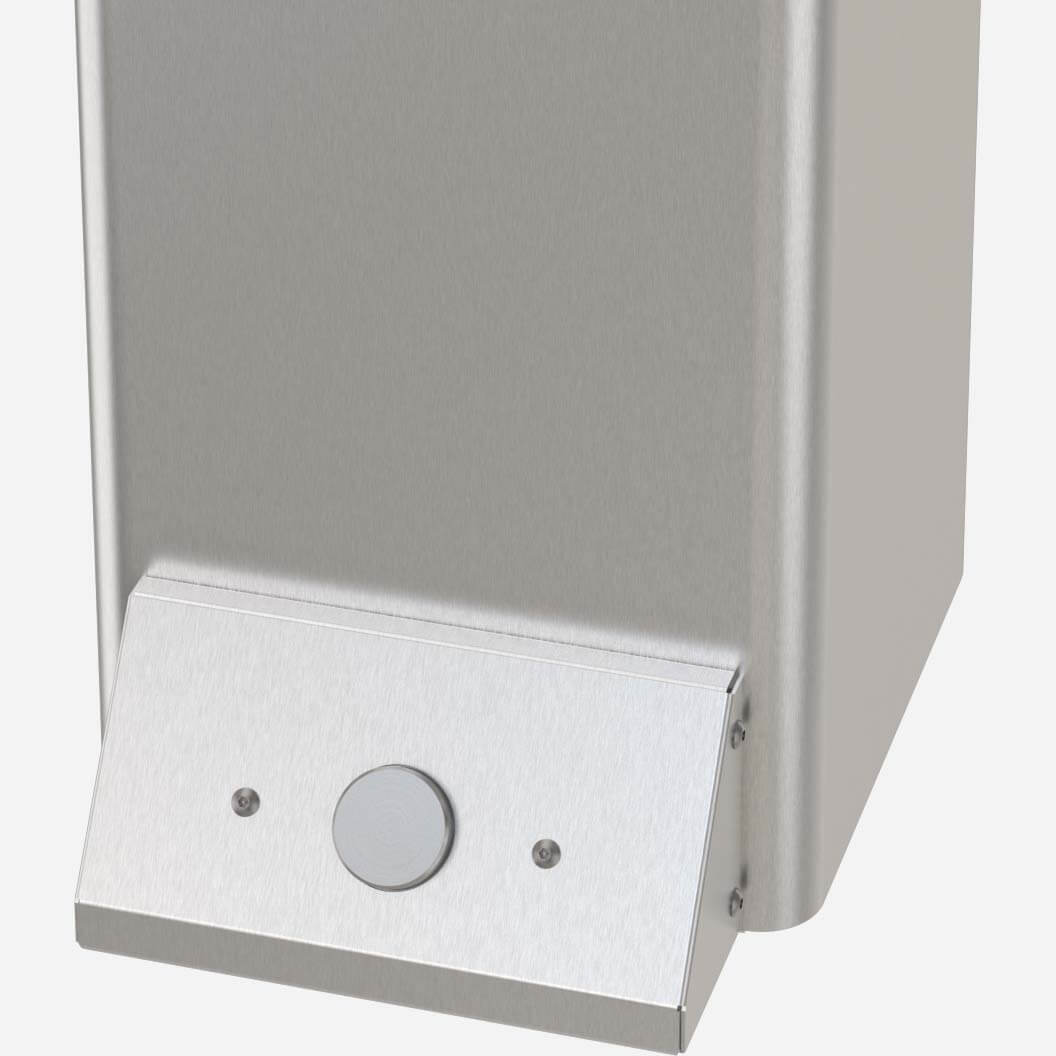

Hand/Foot Control Standard Height (39-1/2" Bubbler Orifice) Model Number ECO-DF-F ----------- Child Height (33-1/2" Bubbler Orifice) Model Number ECO-DF-CH33-F
Popular Options -EG - Enviro-Glaze® Powder Coating -WF1 - 1500-Gallon Capacity, NSF 42+53, 1-Micron Lead Reduction Filter
Other options/accessories may be available - see submittal
