Name: Stainless Steel Economy Outdoor Pedestal Drinking Fountain with Bottle Filler
Brand: Murdock Manufacturing
SKU: ECO-DF-BF Series

Model ECO-DF-BF Series

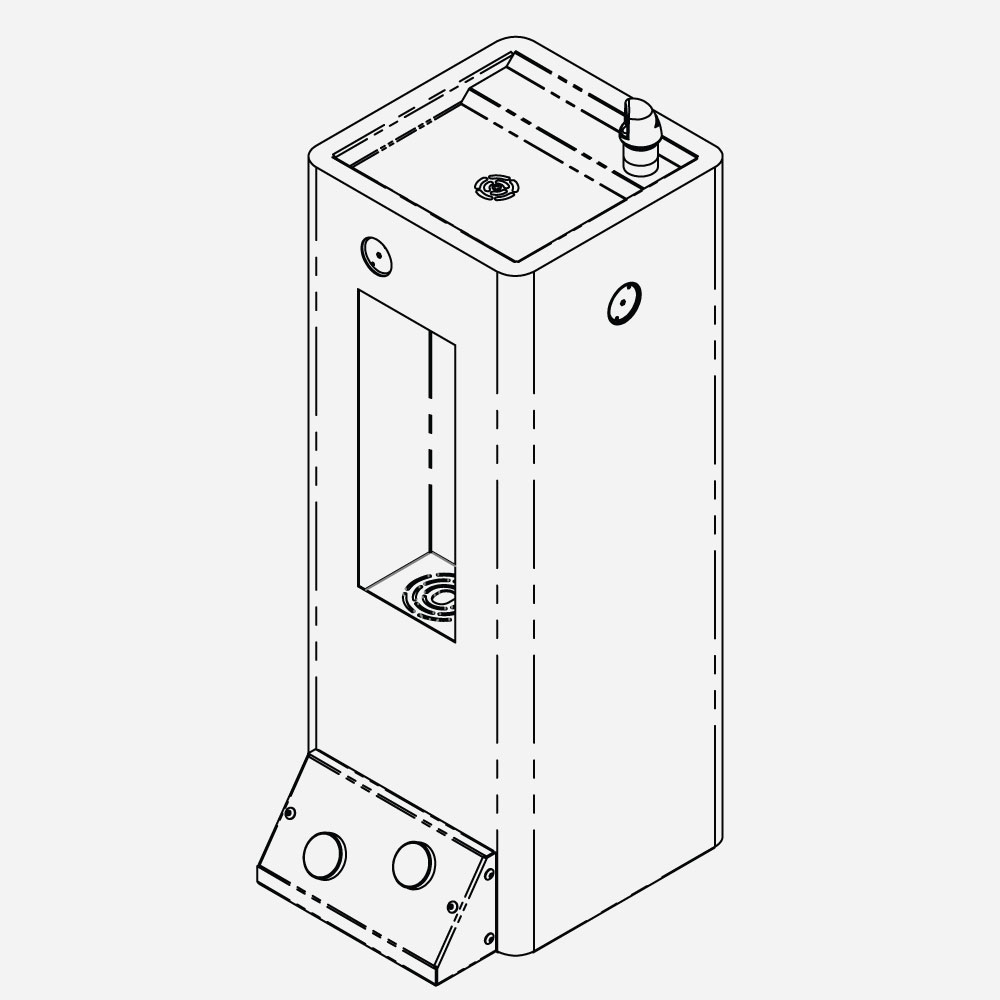

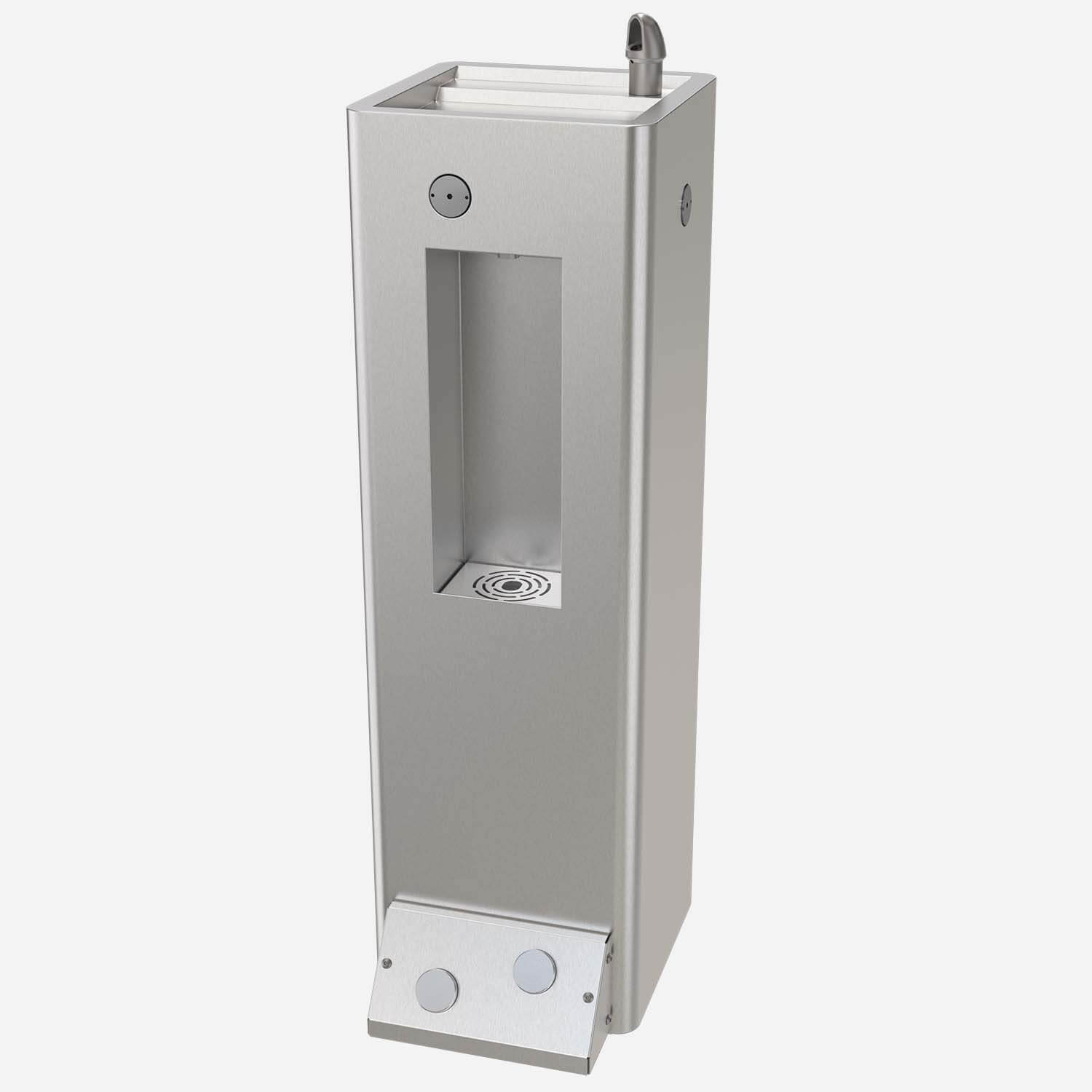

Stainless Steel Economy Outdoor Pedestal Drinking Fountain with Bottle Filler

ECO-DF-BF is an economical outdoor pedestal drinking fountain with a 13-7/8" x 5-1/4" (352 x 133 mm) bottle filler mounted 4-7/8" below the rim of the drinking fountain. The unit is 11-3/4" (298 mm) wide x 11-3/4" front-to-back.

The standard height unit has a 39-1/2" (1.003 mm) bubbler orifice height
The child height unit has a 33-1/2" (851 mm) bubbler orifice height
Hand button operation is standard

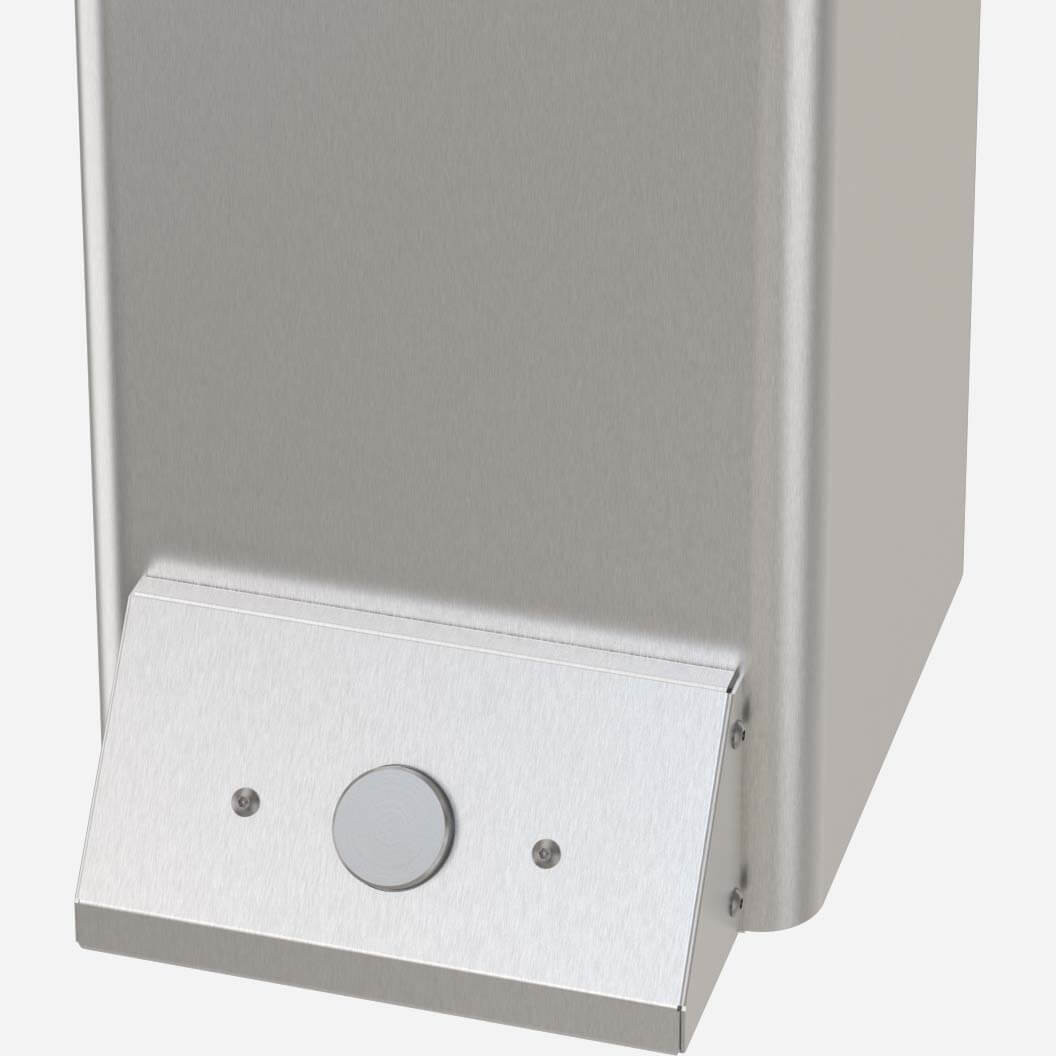

Optional foot button for hand/foot control
All-Stainless steel construction
Bottle filler meets ADA side reach requirements
Laminar flow bottle filler spout
100 mesh inlet strainer

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual ECO-BF, ECO-DF, ECO-DF-BF Drinking Fountain/Bottle Filler	ECO Series Outdoor Economy Drinking Fountain and Bottle Fillers [ECO-BF \| Bottle Filler; ECO-DF \| Drinking Fountain; ECO-DF-BF \| Drinking Fountain with Bottle Filler]	1 MB
Submittals	Submittal ECO-DF-BF Drinking Fountain-Bottle Filler	Economy Outdoor Pedestal Drinking Fountain with Bottle Filler [ECO-DF-BF, ECO-DF-BF-F,ECO-DF-BF-CH33, ECO-DF-BF-CH33-F]	257 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Brochures/Flyers	MM - Economy Outdoor DR and BFs	MM - Economy Outdoor DR and BFs	350 KB
Brochures/Flyers	Enviro-Glaze Color Chart	Enviro-Glaze Color Chart Flyer (pdf)	202 KB
Brochures/Flyers	Murdock Outdoor Drinking Fountains, Bottle Fillers Brochure (pdf)	Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Style	Economy
Material	Stainless Steel
Mounting	Pedestal
Usage	Outdoor
Compliances	IAPMO tested to NSF/ANSI 61, Section 9, Lead-Free Federal Law 111-380
Accessibility	ADA Compliant

Options

Accessories

	Image	Model	Description	Downloads
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
No available options

Models

The model numbers are defined with push-button controls operating the unit

Standard - Hand push button only Hand push-button operation only Standard Height (39-1/2" Bubbler Orifice) Model Number ECO-DF-BF ---------- Child Height (33-1/2" Bubbler Orifice) Model Number ECO-DF-BF-CH33

Dual hand-foot operation Hand/Foot Control Standard Height (39-1/2" Bubbler Orifice) Model Number ECO-DF-BF-F ----------- Child Height (33-1/2" Bubbler Orifice) Model Number ECO-DF-BF-CH33-F

Popular Options -EG - Enviro-Glaze® Powder Coating -WF1 - 1500-Gallon Capacity, NSF 42+53, 1-Micron Lead Reduction Filter

Other options/accessories may be available - see submittal
