Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Round Bowl Drinking Fountain

Name: Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Round Bowl Drinking Fountain
Brand: Murdock Manufacturing
SKU: SK8

Find A Representative

Model SK8

Installation Instructions

Install Guide Accessory SK8 Skirt (pdf)

Submittal

Spec Sheet Accessory SK8 Skirt (pdf)

Model SK8

Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Round Bowl Drinking Fountain

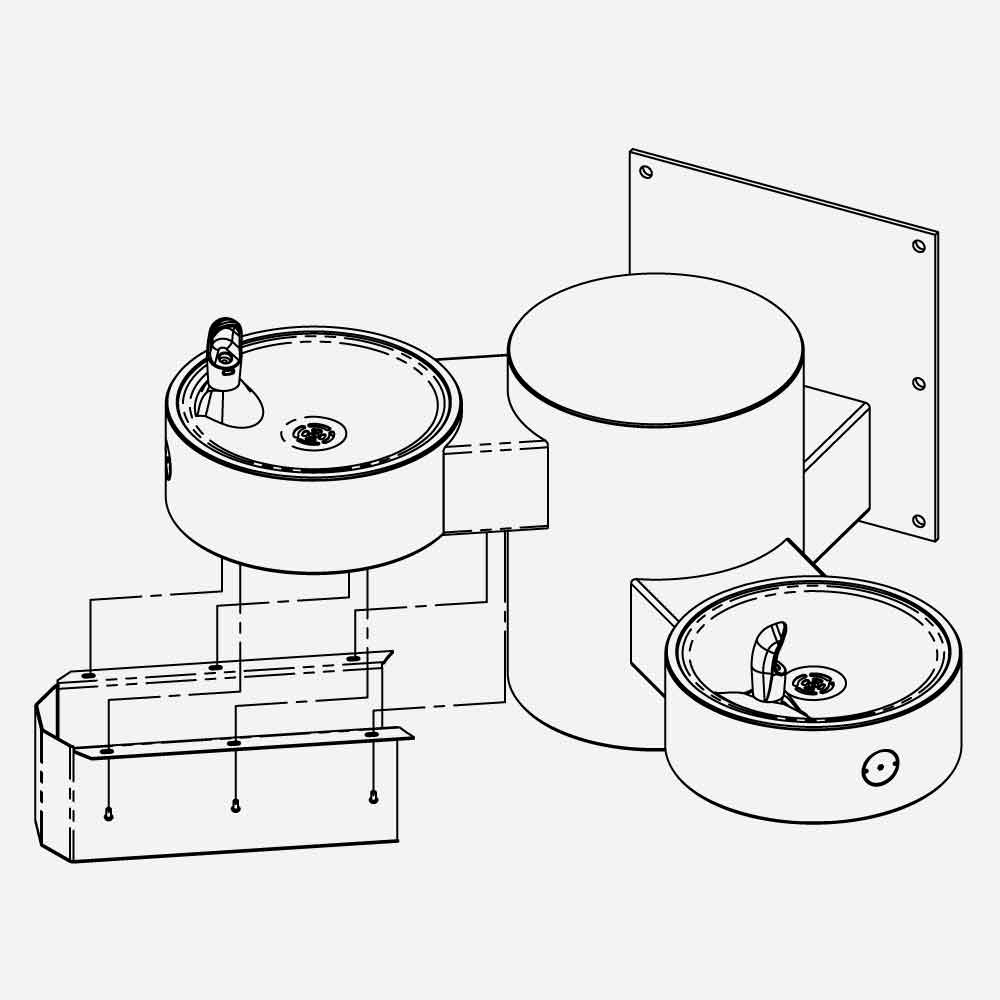

Model -SK8 Series is a stainless steel Cane detection Skirt, intended for use on angled extended arms where the anchoring cylinderical pedestal is 12 inches (305 mm) in diameter. The -SK8 is fabricated of 14 gauge type 304 stainless steel with exposed exterior surfaces polished to a #4 satin finish. The Skirt is optionally available powder coated. It is intended to meet or exceed accessibility requirements for protruding objects as indicated in ADA Standards for Accessible Design, ANSI Standards. The unit includes all mounting hardware.

Stainless Steel Skirt, available Powder Coated
Fabricated of 14 gauge Stainless Steel and Polished to a #4 Satin Finish
#10-32 UNF VR Screws provided
Designed for use with Bi-Level GRE24 Series Drinking Fountains or GYE24 Series Bottle Filler models

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide Accessory SK8 Skirt (pdf)	Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Drinking Fountains	76 KB
Submittals	Spec Sheet Accessory SK8 Skirt (pdf)	Stainless Steel Skirt Assembly – Bi-Level, Outdoor Drinking Fountains (e.g., GRE24 or GYE24) [A0004000-SK8 \| All-Stainless Steel; A0005000-SK8 \| Textured Fairway Green; A0006000-SK8 \| Textured Firehouse Red; A0007000-SK8 \| Textured Alpine Blue]	128 KB
Brochures/Flyers	Enviro-Glaze Color Chart	Enviro-Glaze Color Chart Flyer (pdf)	202 KB
Brochures/Flyers	Murdock Outdoor Drinking Fountains, Bottle Fillers Brochure (pdf)	Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Accessibility	ADA Compliant
Material	Stainless Steel
Material Detail	Green, All-Stainless Steel, Red, Blue

Models

Typical models are shown below with their color configurations. The skirt measures 5-1/2" (140 mm) tall x 14-1/2" (368) front-to-back x 5" (127 mm) with 15/16" (23.8 mm) side mounting flanges. The back end is designed to fit the contour of GRE24 mounting cylinder and GYE24 bottle filler.

A0004000-SK8 All-Stainless Steel

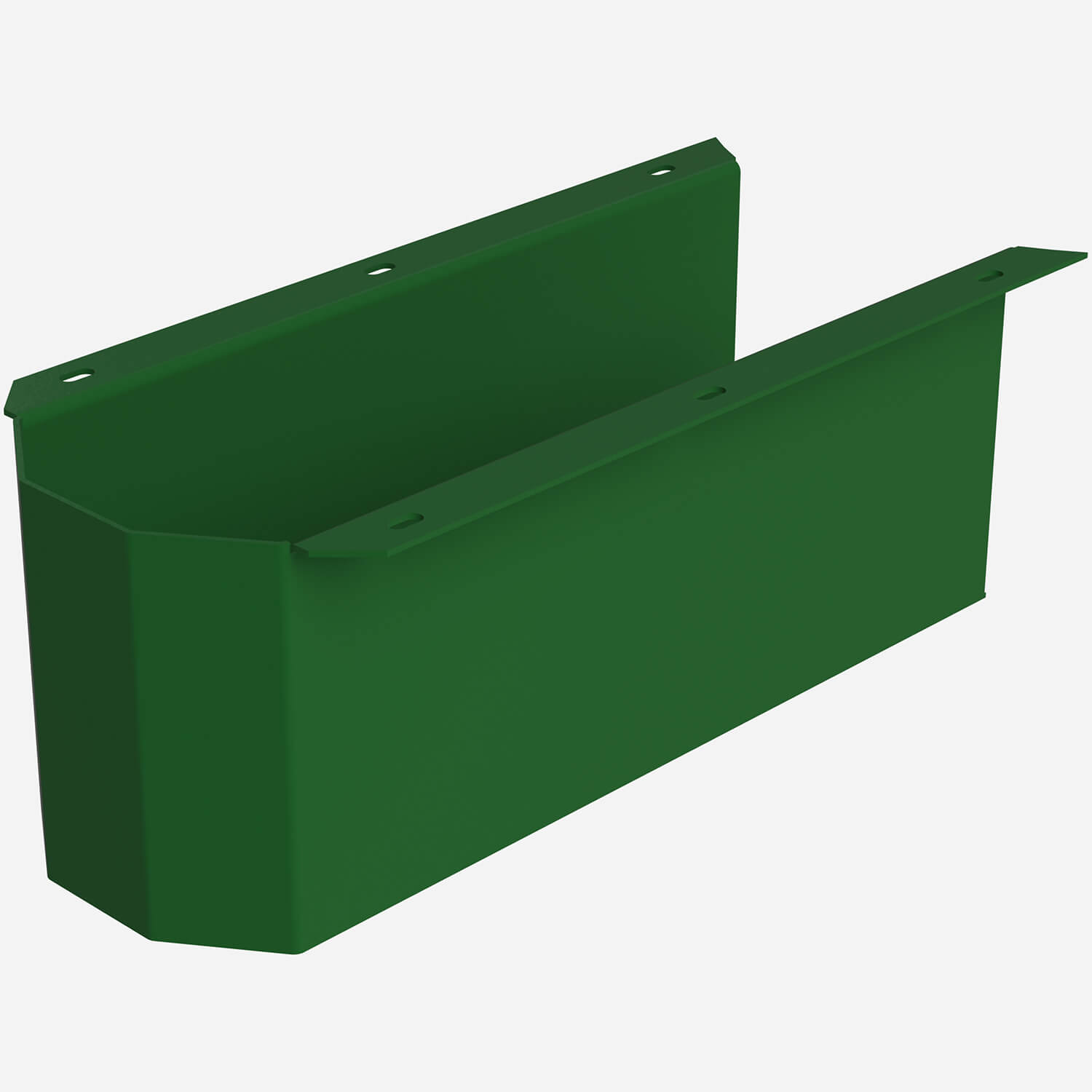

A0005000-SK8 Textured Fairway Green

A0006000-SK8 Textured Firehouse Red

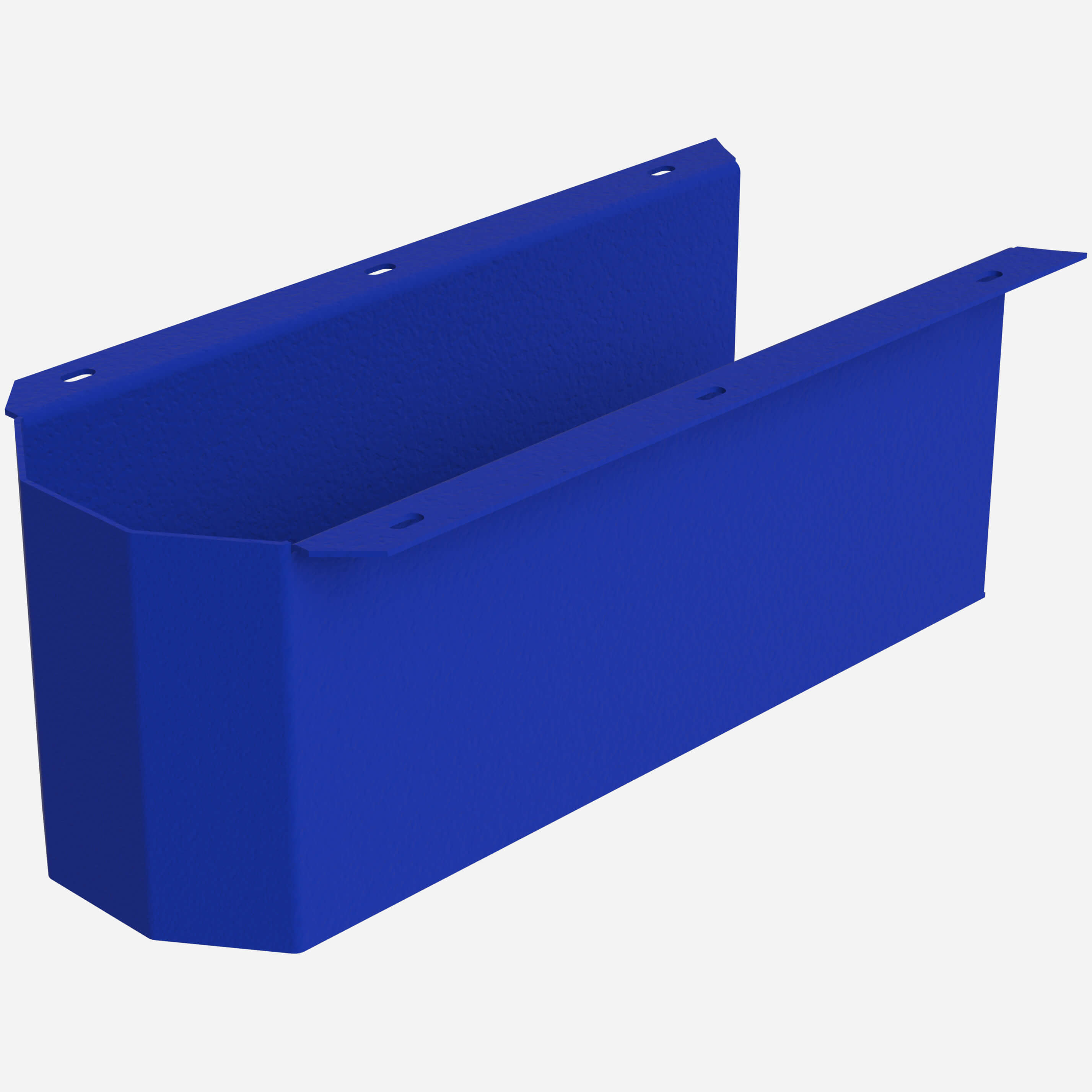

A0007000-SK8 Textured Alpine Blue
