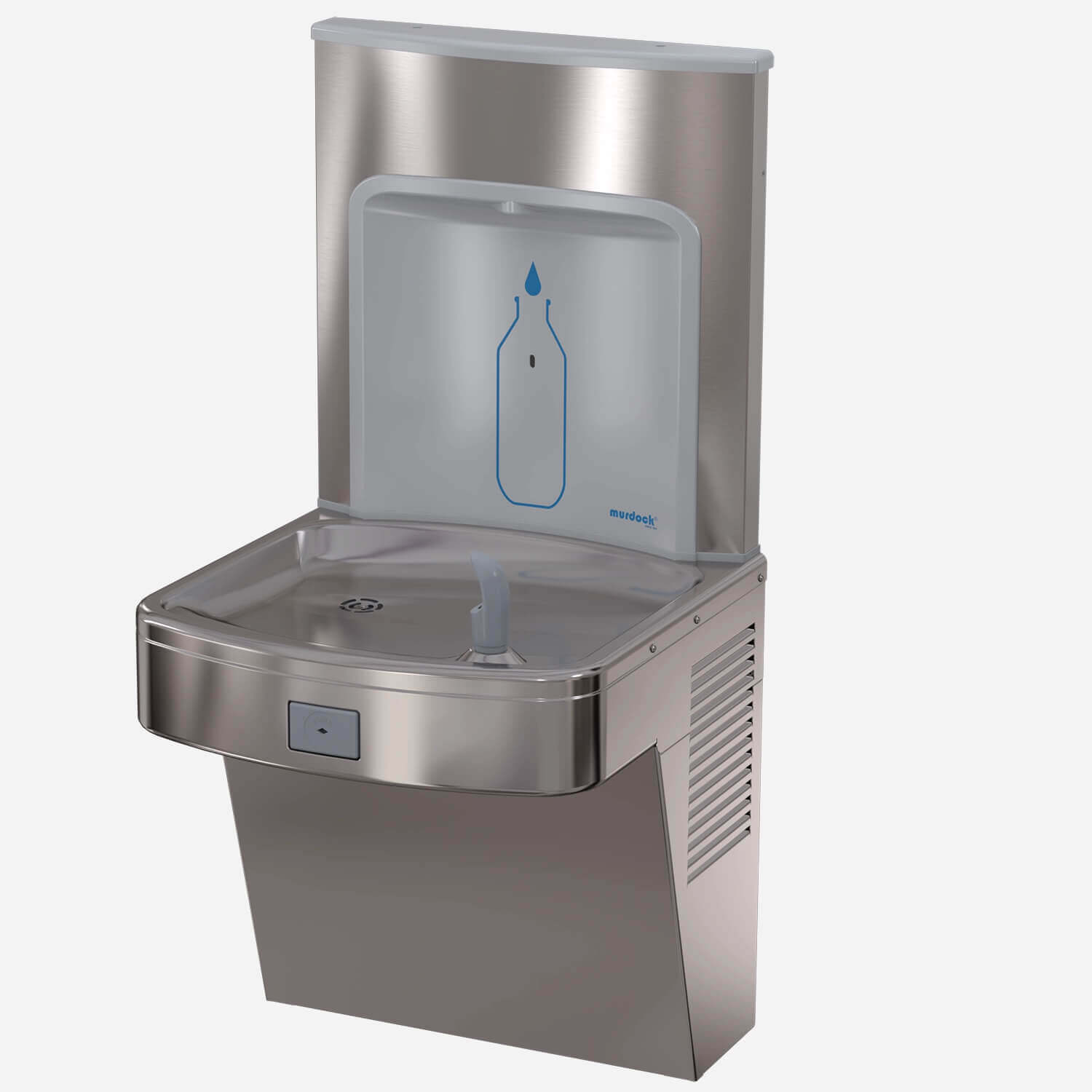

Wall-Mounted, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
In StockThis product is available for quick shipment nationwide.
Model A171-UG-BF12 Series
Installation Instructions
3 available
Submittal
Submittal A171-UG-BF Drink Fountain-Bottle Filler
Model A171-UG-BF12 Series
Wall-Mounted, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
A Design as Refreshing as the Water it Serves! Fill up. Cool down. Get going. H2O to go! ® Indoor Bottle Fillers are an eco-friendly alternative to plastic water bottles. With a slimmer body and more inviting aesthetics than traditional bottle fillers, H2O to go! ® ensures maximum style, functionality and hydration.
View H 2 O-To-Go! ® Bottle Fillers
Murdock's standard barrier-free drinking fountain has been redesigned exclusively to work both in form and function with H 2 O-To go! ® Deck Mount Sensor Activated Bottle Filler.
H2O-To-Go!® Water Bottle Filling Station Features
- 1 Gallon (3.79 Liter) per Minute fill rate
- Anti-microbial backsplash
- Pushbutton or sensor activation
- ADA compliant

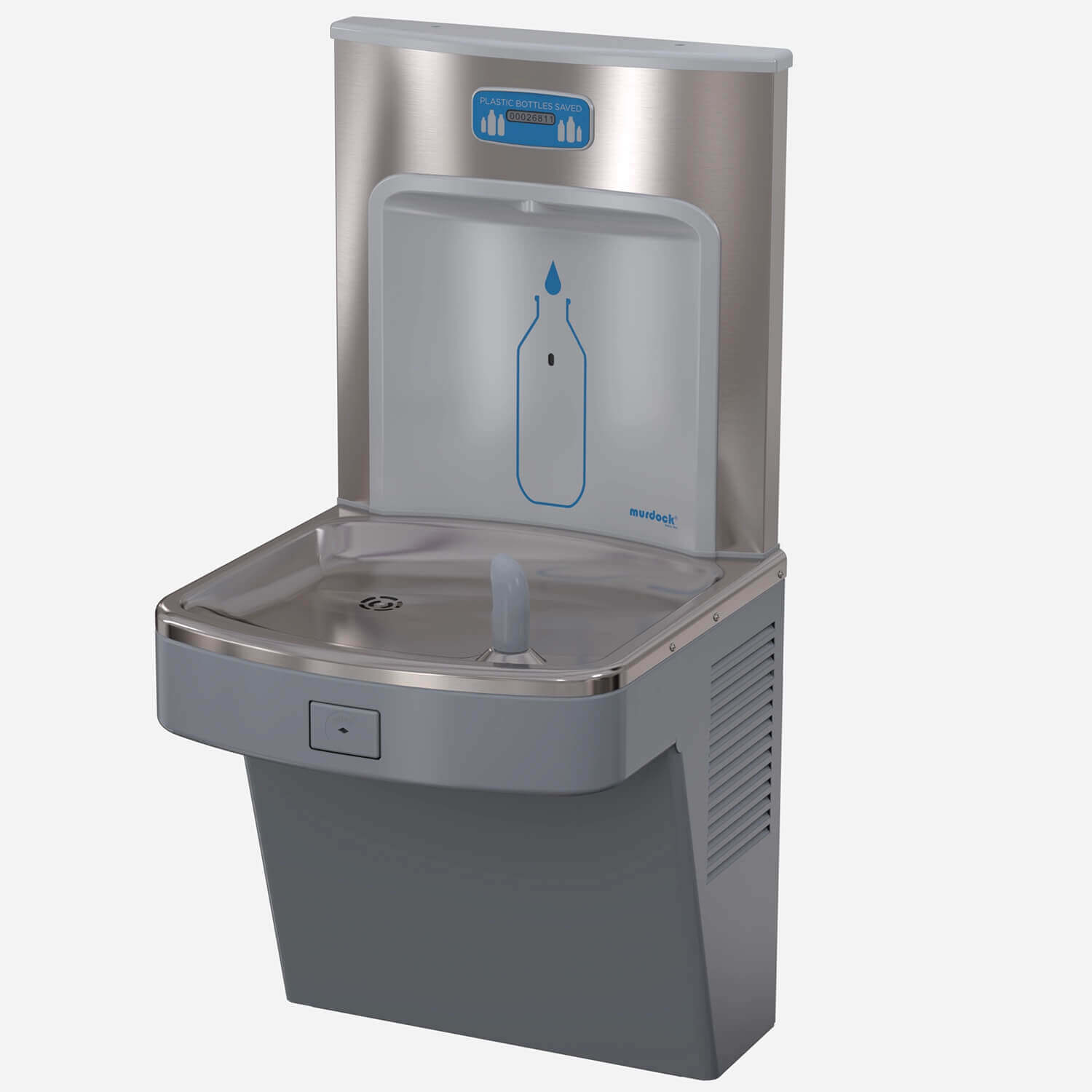

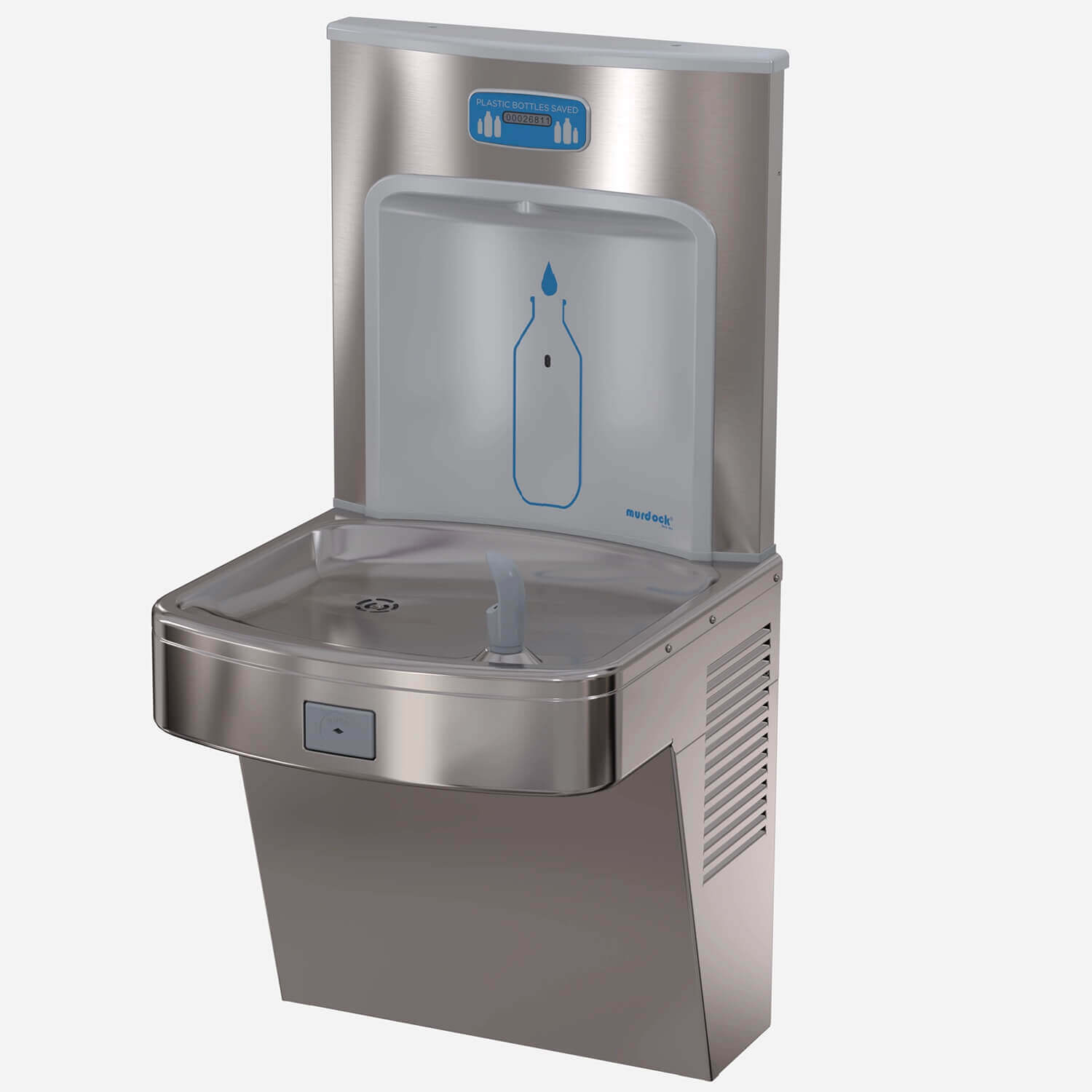

- Optional display (-BCD) for number of plastic bottles saved
Drinking Fountain Features
- Single uncomplicated round mechanical activation button
- Designed for vandal-resistance
- Flexible, antimicrobial, non-squirt bubbler or stainless steel bubbler
- Available in galvanized steel with grey textured powder coat or all-stainless steel
- Child or Adult ADA Compliant when properly installed
Water Filter
Popular option provides a water filter for A171 and A172 Series water coolers. WF3EZ provides a 3,000 gallon (11,356 liters) capacity filter. This EZ Door® Filter option features a panel assembly which allows for fast and easy water filter changes without removing the shroud.
- Chlorine Reduction greater than 97.3%, 10,000 gallons (37,854.12 liters) @ 1.67 gallon (6.32 liters) per minute
- Lead Reduction Greater than 99.7%, 2,500 gallons (9,463.53 liters) @ 1.67 gallons (6.32 liters) per minute, lead reduction to one micron
- Complies with NSF/ANSI Standard 42+53
- Complies to NSF 42 - the standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- Complies to NSF 53 - the standard regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- Cyst, Cryptosporidium, Giardia Reduction greater than 94.95%
- Total PFAS Reduction includes PFOA, PFOS, PFHpA, PFHxS, and PFNA
- Replacement filters are sold through Murdock
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | H2O to go!™ Deck Mount Sensor Operated Bottle Filler | 228 KB | ||
| | Murdock A171408F Water Cooler with BF12-BCD H20 to go!™ Deck Mounted Bottle Filler and Bottle Counter Display | 365 KB | ||
 | | ADA Wall Mount Drink Fountain [Model A171-UG - Standard, A171-UG-SO Sensor Activated, A171-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 2 MB | ||
| | ADA Wall Mount Drink Fountain with H2O-To-Go! Bottle Filler | 261 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 924 KB | ||
| | H2O-To-Go!® Deck Mount Pushbutton Activated (BF11) or Sensor Activated (BF12) Bottle Filler; includes Parts Manual | 2 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing. | 2 MB | ||
| | MM - Maintenace Advantage (pdf) | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | H2O-to-Go!® Bottle Filler Brochure (pdf) | 991 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | A water bottle filling station designed with you in mind! When combined with Murdock Water Coolers, H2O to go!® Indoor Bottle Fillers provide endless refreshing water, with or without the bottle! | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 101 KB |
Specifications
| Brand | H2O-To-Go!® |
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | Lead-Free Federal Law 111-380, UPC, NSF/ANSI/CAN 61 |
| Refrigeration | No Refrigeration |
| Product Features | Maintenance Advantage® – Easy Maintenance Design, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply |
| Activation | Bottle filler - sensor, Bottle filler - battery-powered sensor, Bottle filler - hemispherical pushbutton, Rectangular pushbutton |
| Accessibility | ADA Compliant |
| Style | A17 Series, H2O-to-Go!® |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler), US 12,410,592 B2 (Drop-down Filter) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WB1-BF | Accessory: Wall Panel for Single ADA Wall Mounted Water Cooler/Drinking Fountain with Bottle Filler |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -BAT | Option: Battery power for Sensor Operation Only | ||
 | BCD | Option: Bottle Counter Display | ||
 | BF11 | Deck-Mounted H2O-to-Go!® Push Button Water Bottle Filling Station (A17 Series Add-On) - ADA, Stainless Steel | ||
 | BF12 | Deck-Mounted H2O-to-Go!® Touchless Water Bottle Filling Station - A17 Series Add-On, ADA, Stainless Steel | ||
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
Typical water bottle filling station and water cooler configurations:
A171100F-UG Textured Grey Finish/ Flexible Bubbler
A171100S-UG Textured Grey Finish/ Stainless Steel Bubbler
A171400F-UG All-Stainless Steel/ Flexible Bubbler
A171400S-UG All-Stainless Steel/ Stainless Steel Bubbler
Installation Manual A171-UG Drinking Fountain
-BF12 Add H2O-To-Go! ® Bottle Filler, Sensor (Plug-In)
-BF12-BAT Add H2O-To-Go! ® Bottle Filler, Sensor (Battery)
-BF12-BCD Add H2O-To-Go! ® Bottle Filler, Sensor (Plug-In)/ Bottle Counter Display
-BF11 Add H2O-To-Go! ® Bottle Filler, Pushbutton (Non-Electric)
