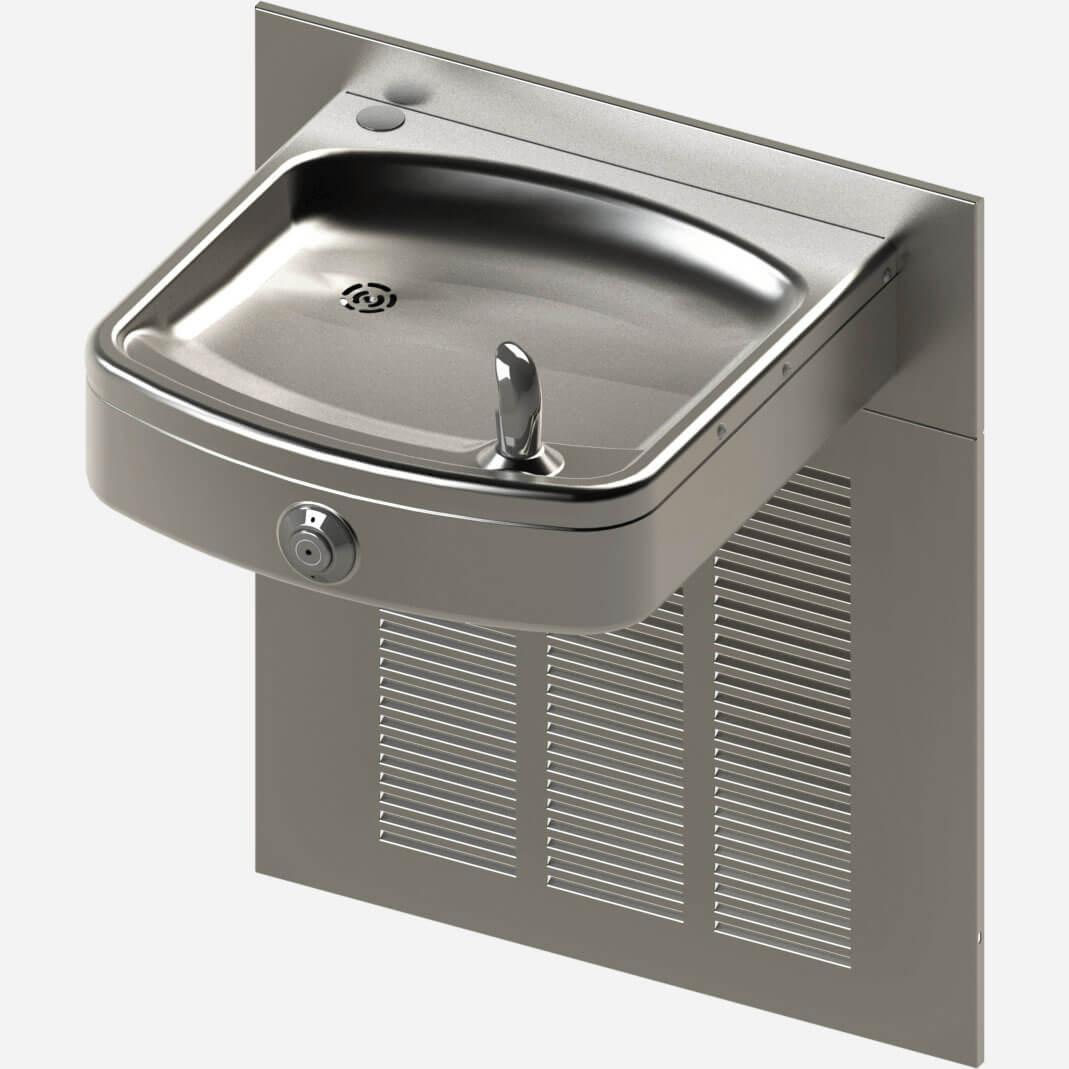

Name: Wall-Mounted, Square Drinking Fountain with Wide Basin - In-Wall Refrigeration (8GPH), ADA, Stainless Steel
Brand: Murdock Manufacturing
SKU: A191.8 Series

Model A191.8 Series

Wall-Mounted, Square Drinking Fountain with Wide Basin - In-Wall Refrigeration (8GPH), ADA, Stainless Steel

The A191.8 Series Water Cooler shall be constructed from 304 Stainless Steel. The fountain is activated with a round vandal-resistant button with a patented auto-stop feature. Mounted properly the fountain meets ADA, ADA Standing Person, and ADA Child requirements. Accessibility compliance is subject to the local code enforcement authority. The fountain is refrigerated with an in-wall chiller rated at 8 gallons (30.3 liters) per hour.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 224716, Pressure Water Coolers (doc)	Murdock Mfg - Pressure Water Coolers	146 KB
Installation Instructions	Manual A191.8 Water Cooler (pdf)	Barrier-Free Wide Water Cooler [A191400S with Stainless Steel Bubbler; A191400F with Flexible Bubbler]	1 MB
Submittals	Submittal A191.8 Water Cooler (pdf)	Barrier-Free Wide Water Cooler	227 KB
Installation Instructions	Manual A9100080-A Chiller (pdf)	8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual	886 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Product MasterSpec	MasterSpec: 224716, Pressure Water Coolers (pdf)	Murdock Mfg - Pressure Water Coolers	219 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Mounting	Wall-Mounted
Refrigeration	In-Wall 8 GPH Chiller Provided
Product Features	Wide Basin, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton, Chiller includes Water Leak Detection Auto Shut-Off Valve
Activation	Push Button
Compliances	ANSI/ASHRAE 18, CE, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada)
Patent	US 10,100,933 B2 (Auto-Stop Feature)

Options

Accessories

	Image	Model	Description	Downloads
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
		-220V	Option: Electrical 220 Volts

Models

Stainless Steel Finish; Stainless Steel Bubbler A191408 S Stainless Steel Finish Stainless Steel Bubbler

Stainless Steel Finish; Flexible Bubbler A191408 F Stainless Steel Finish Flexible Bubbler

Popular Options include:

-WF1 | 1500-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter-WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter-220V | 220 volt / 50 Hz compressor

Other options may be available. See Options List and/or Submittal
