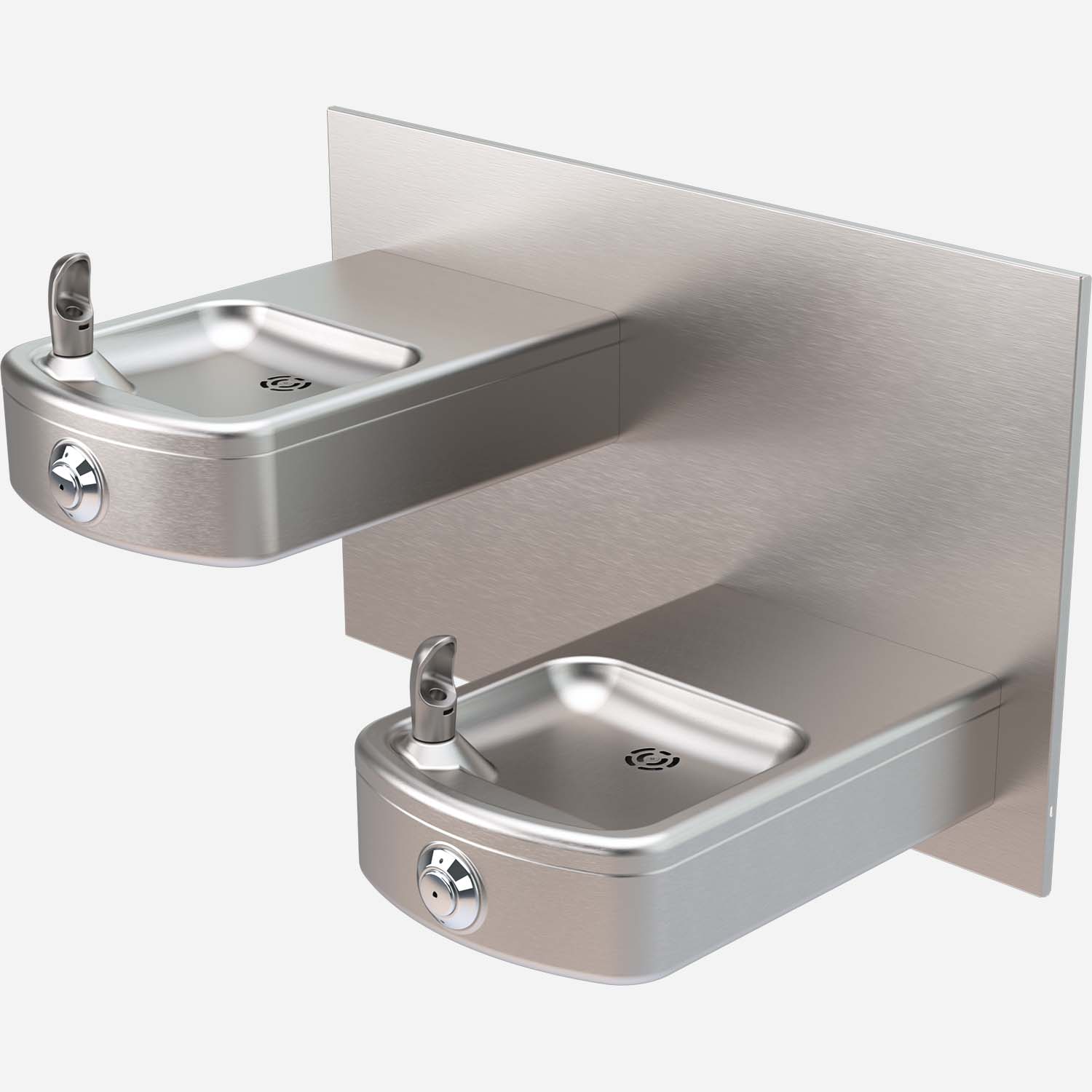

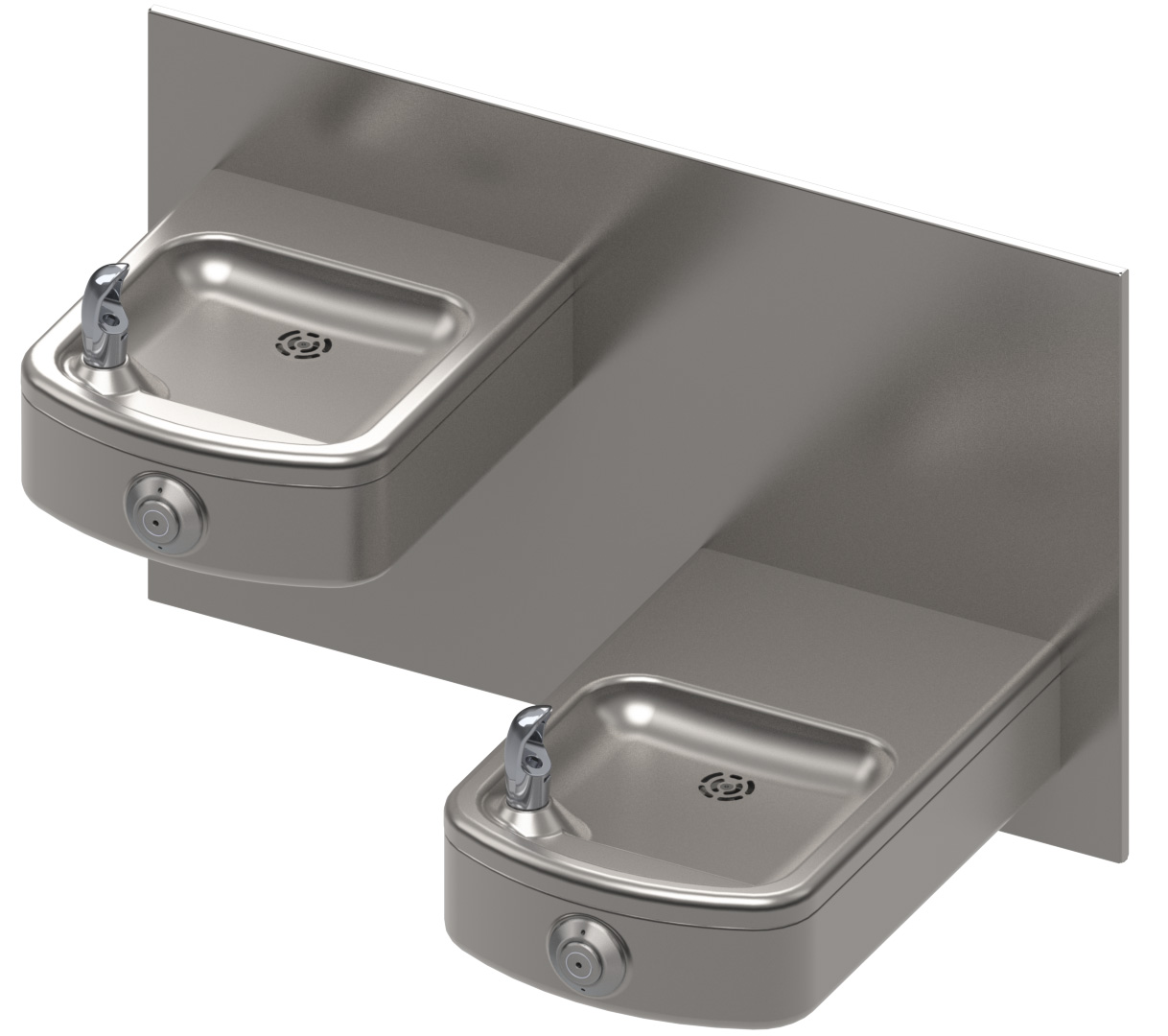

Vandal-Resistant, Wall-Mounted, Bi-Level, Square Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | Rounded Box, Barrier-Free, Wall Mount Bi-Level Drinking Fountain with Vandal Resistant Buttons | 171 KB | ||
 | | Rounded Box Barrier-Free Wall Mount Bi-Level Drinking Fountain [A152400S | Vandal-Resistant Round Pushbutton; A152400S-SO | Sensor Activated]; part manual included | 1003 KB | ||
| | Rounded Box, Barrier-Free, Wall Mount Bi-Level Drinking Fountain with Vandal Resistant Button [Standard Model A152400S-VR] | 169 KB | ||
| | Option -FRA4 In-Wall freeze-resistance for Bi-Level Wall Mount Drink Fountain | 271 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton |
| No. of Stations | 2 |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel |
| Activation | Push Button |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Style | Indoor Rounded Box |
| Legacy Model | A152W32 Series |
| Refrigeration | No Refrigeration |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -AP3 | Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains | ||
 | -MF8 | Accessory: Mounting Frame for a Bi-Level A132 or A152 Fountain | ||
 | -W32-CSC | Accessory: Concealed Support Carrier for Bi-Level A132 or A152 Drinking Fountain | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK3-18 | Accessory: Skirt Assembly for Bi-Level Rounded Box Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High |
Models
Typical models are shown below
A152400S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler
A152400F-VR All-Stainless Steel, Flexible Bubbler
A152400S-VR-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A152200S-VR Bronze Finish with matching finish bubbler
A152300S-VR High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-AP3 | Access panel for a dual fountain (Must select -Mf8) -W32-CSC | Concealed support carrier -MF8 | Mounting frame for a dual fountain -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -RBL | Reverse bi-Level - right fountain high, left fountain low -SK3-18 | Skirt kit for upper fountain
Other options are available. See Options List and/or Submittal
Note: Mounting plate A0000000-MP2-W32 may be ordered in advance for a pre-mounted rough-in.
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A15-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
