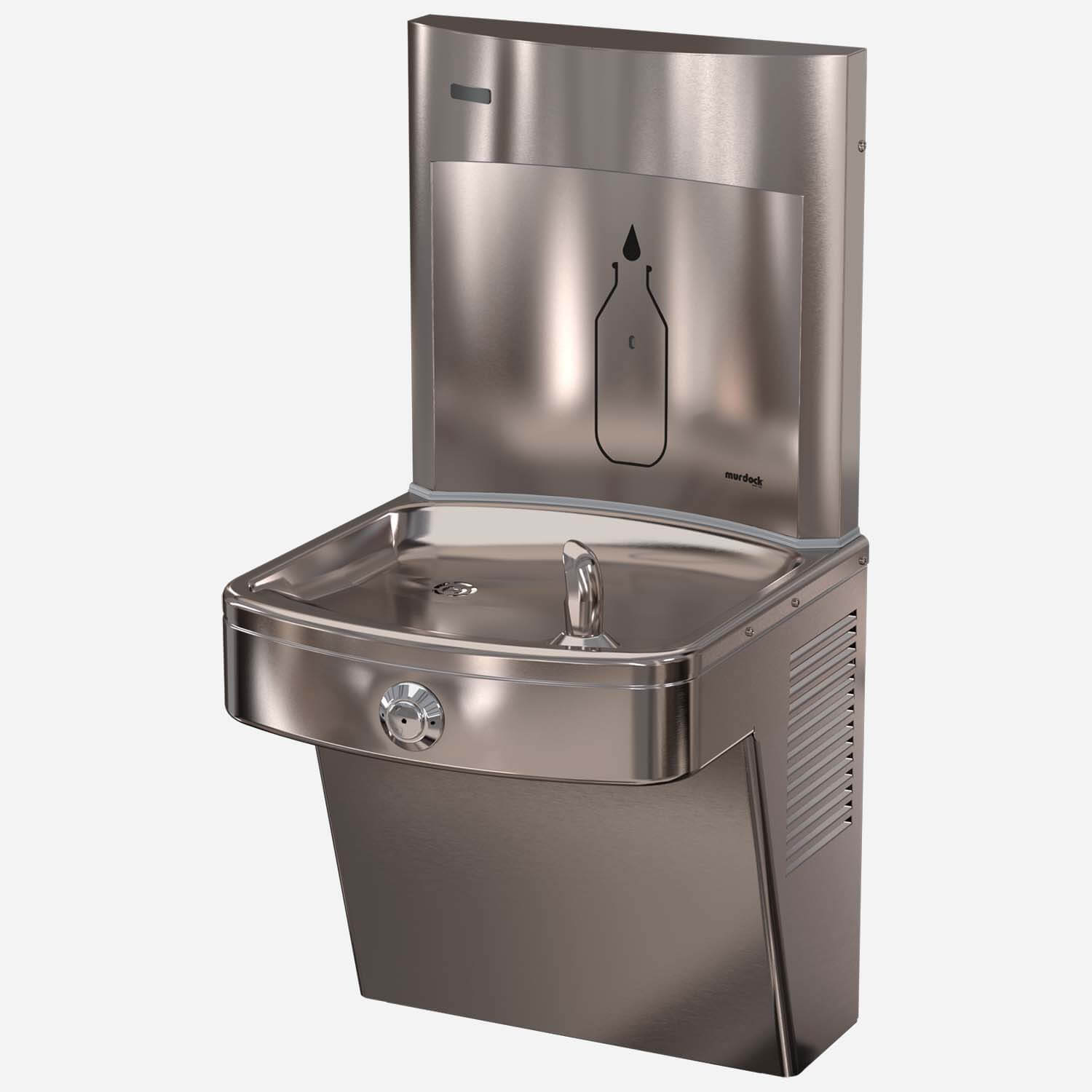

Vandal-Resistant, Wall-Mounted, Pushbutton Drinking Fountain with SpringH2O® All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA

SpringH20® indoor water bottle filling stations are an eco-friendly alternative to single-use plastic. With a slimmer body and more inviting aesthetics than a traditional bottle filler, the SpringH2O® ensures maximum style, functionality, and hydration.

The A171-UG-VR-BF12S Series is an ADA-compliant combination drinking fountain and water bottle filling station. The Drinking Fountain is designed for vandal-resistance and features a round button. Rough-ins match other manufacturers’ water coolers for easy replacement, and Maintenance Advantage ® design makes access and service a breeze.

The SpringH20® Bottle Filler is stainless steel bottle filler that can be added to enhance any Murdock® A17 series drinking fountain. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.

Standard Bottle Filler Features

• Heavy-gauge type 304 stainless steel polished to #4 satin finish
• Vandal resistant, seamless alcove
• ADA compliant
• Touchless sensor operation or (manual) pushbutton
• 120V AC/9V DC plug-in transformer (for sensor operation)
• 1.2 Gallon (4.54 liter) per minute laminar flow nozzle
• 20 second maximum run time
• Bottle counter display with LED illumination and filter status lights (available option for sensor bottle filler)
• Auto Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
• Rated for indoor and outdoor use

Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.

Non-Refrigerated Vandal-Resistant Drinking Fountain Features

• Single uncomplicated round mechanical activation button
• Designed for vandal-resistance
• Flexible, antimicrobial, non-squirt bubbler or stainless steel bubbler
• Available in galvanized steel with grey textured powder coat or all-stainless steel
• Child or Adult ADA Compliant when properly installed

Water Filters

Water filters in 3,000 gallon capacity are available for A171 and A172 Series water cooler/drinking fountains. Upgrade your water cooler/drinking fountain with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. The filter is NSF 42, 53, 401 compliant.

• NSF 42The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
• NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
• NSF 401NSF 401 addresses PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
