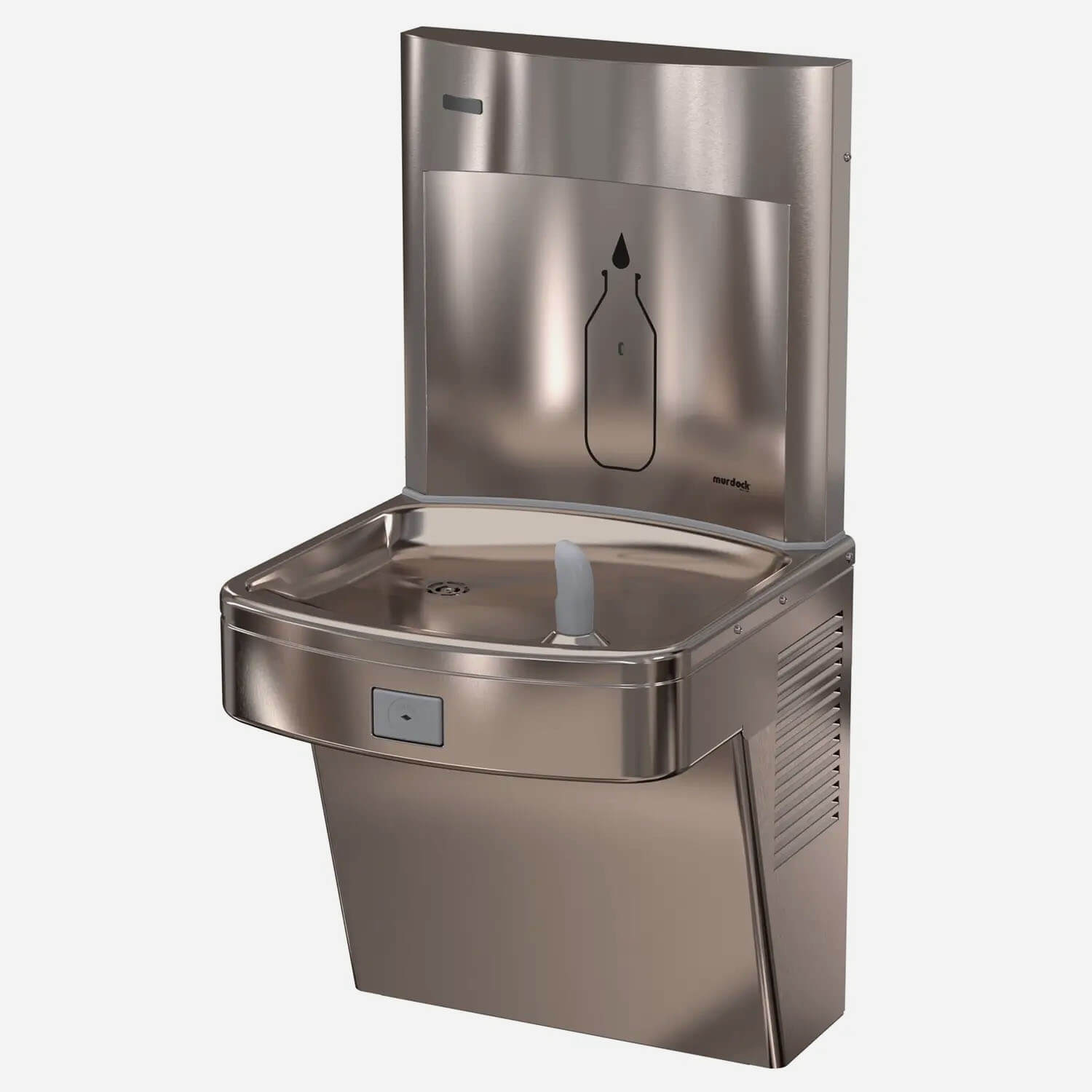

Wall-Mounted, Pushbutton Drinking Fountain with SpringH2O® All-Stainless Steel Touchless Water Bottle Filling Station - Non-Refrigerated, ADA

SpringH20® indoor water bottle filling stations are an eco-friendly alternative to single-use plastic. With a slimmer body and more inviting aesthetics than a traditional bottle filler, the SpringH2O® ensures maximum style, functionality, and hydration.

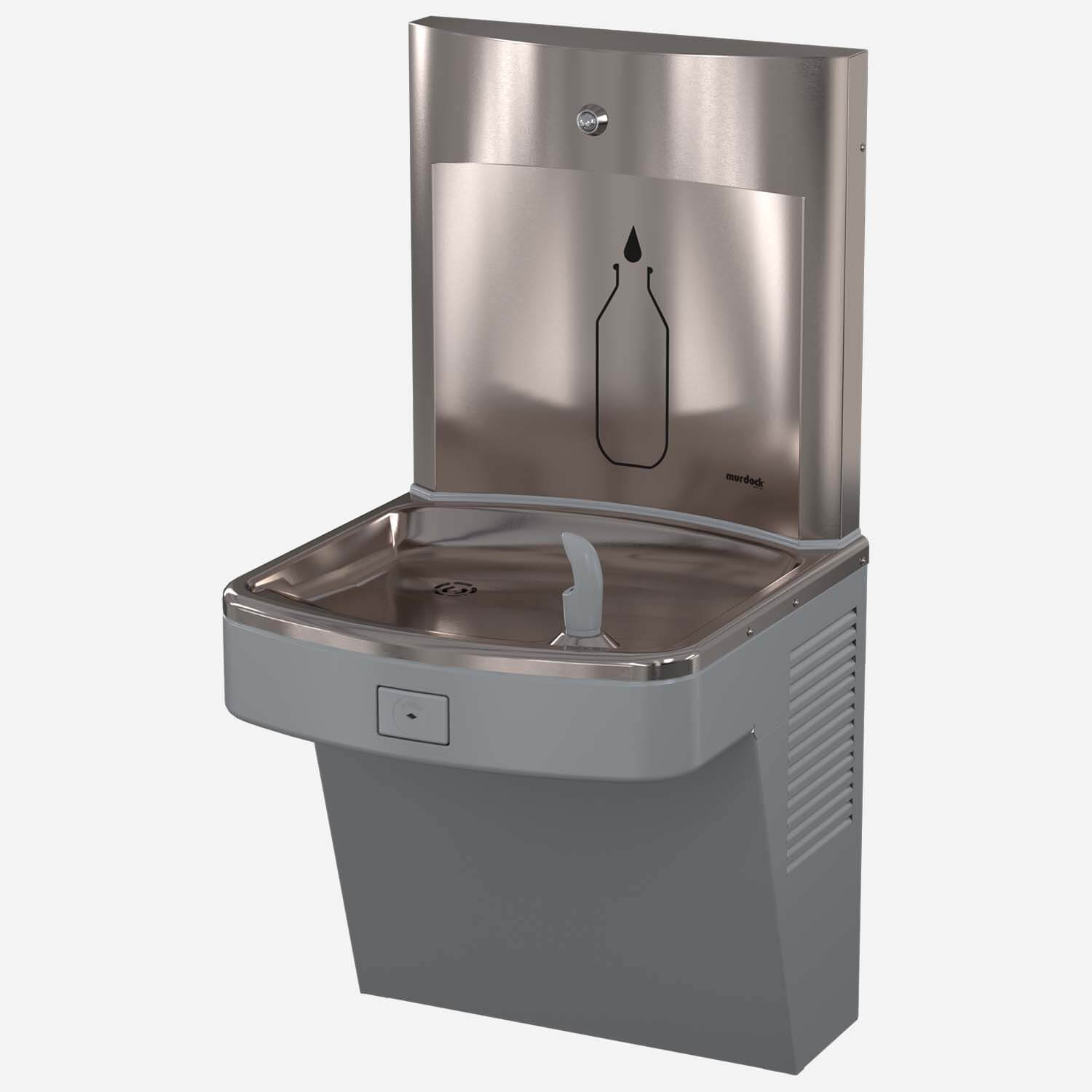

The A171-UG-BF12S Series is an ADA-compliant combination drinking fountain and water bottle filling station. Rough-ins match other manufacturers’ water coolers for easy replacement, and Maintenance Advantage ® design makes access and service a breeze.

The SpringH20® Bottle Filler is stainless steel bottle filler that can be added to enhance any Murdock® A17 series drinking fountain. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.

Standard Bottle Filler Features

• Heavy-gauge type 304 stainless steel polished to #4 satin finish
• Vandal resistant, seamless alcove
• ADA compliant
• Touchless sensor operation or (manual) pushbutton
• 120V AC/9V DC plug-in transformer (for sensor operation)
• 1.2 Gallon (4.54 liter) per minute laminar flow nozzle
• 20 second maximum run time
• Bottle counter display with LED illumination and filter status lights (available option for sensor bottle filler)
• Auto-Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
• Rated for indoor and outdoor use

Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.

Non-Refrigerated Drinking Fountain Features

• Single uncomplicated rectangular mechanical activation button
• Flexible, antimicrobial, non-squirt bubbler or stainless steel bubbler
• Available in galvanized steel with grey textured powder coat or all-stainless steel
• Child or Adult ADA Compliant when properly installed

Water Filters

Water filters in 3,000 gallon capacity are available for A171 and A172 Series water cooler/drinking fountains. Upgrade your water cooler/drinking fountain with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. The filter is NSF 42, 53, 401 compliant.

• NSF 42The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
• NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
• NSF 401NSF 401 addresses PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
