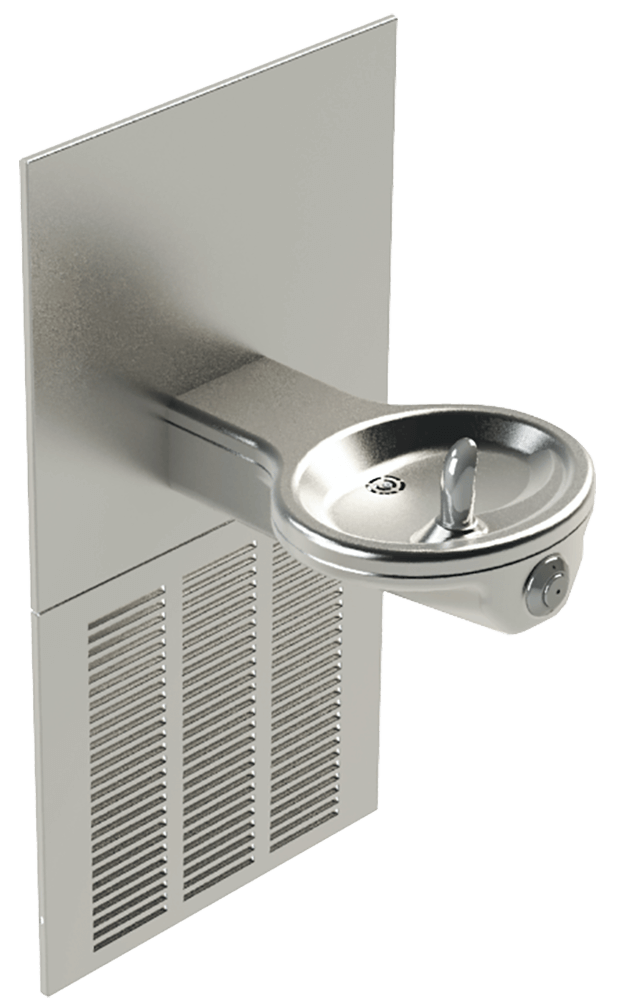

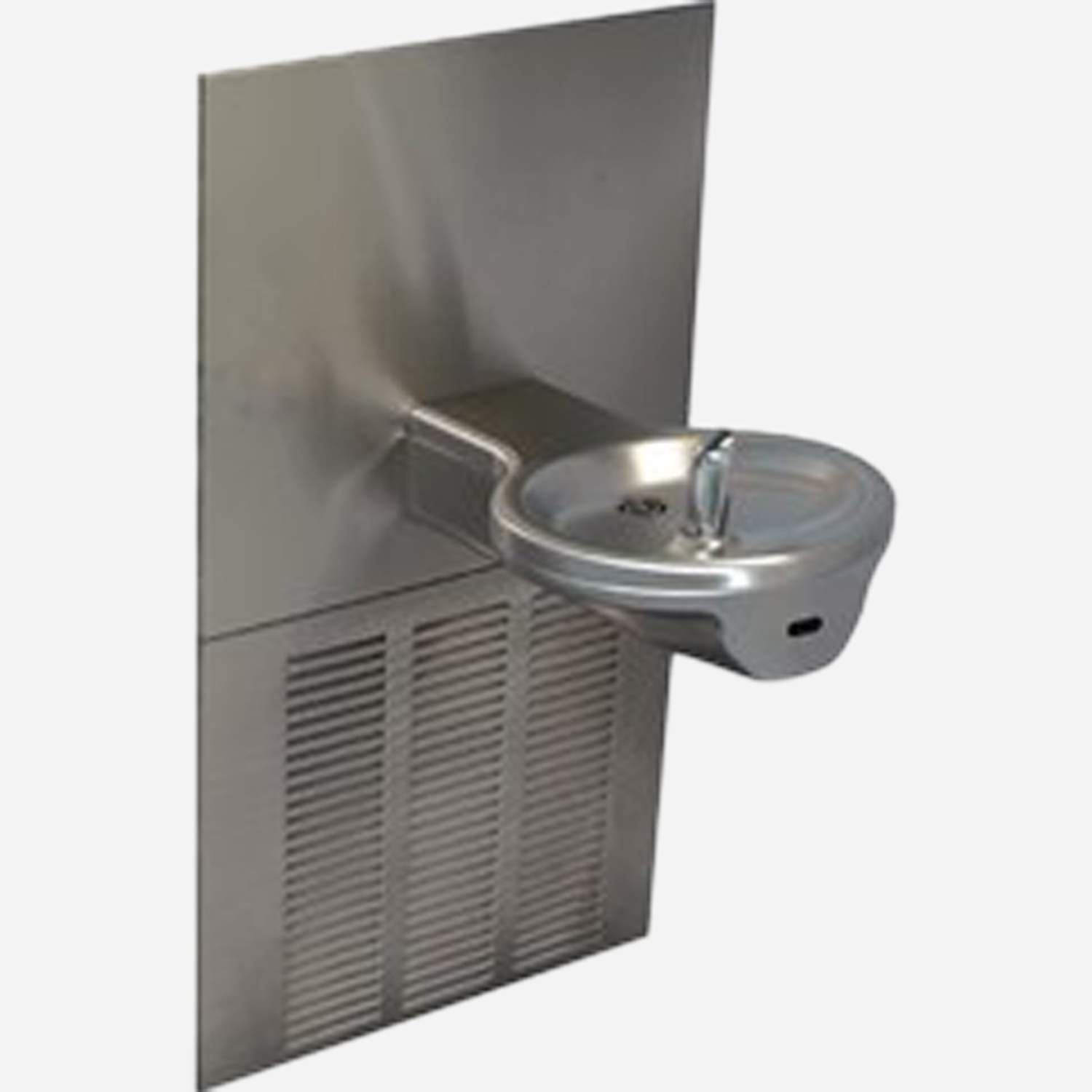

Vandal-Resistant, Wall-Mounted, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Pressure Water Coolers | 146 KB | ||
 | | Oval Bowl Chilled Barrier-Free Wall Mount Drinking Fountain [Standard Model A131408S-VR] | 633 KB | ||
| | Oval, Barrier-Free, Wall Mount Refrigerated Drinking Fountain with Vandal Resistant Button and Auto Stop | 164 KB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 886 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Vandal-Resistant, Wall-Mounted, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel [A131408S-VR, A131408F-VR, A131208S-VR, A131208F-VR, A131308S-VR, A131308F-VR] | 1 MB | ||
| | Vandal-Resistant, Wall-Mounted, Oval Drinking Fountain - In-Wall Refrigeration (8GPH), ADA, Stainless Steel [A131408S-VR, A131408F-VR, A131208S-VR, A131208F-VR, A131308S-VR, A131308F-VR] | 342 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, High-Polish Stainless Steel, High-Polish Gold, Bronze |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| Style | Indoor Oval Bowl |
| Product Features | Round Vandal-Resistant Pushbutton, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Chiller includes Water Leak Detection Auto Shut-Off Valve |
| Compliances | ANSI/ASHRAE 18, cUPC, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada) |
| Activation | Push Button |
| Patent | US D546,607 S (Ornamental Design of Oval Fountain) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts |
Models
Typical models are shown below
A131408S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler
A131408F-VR All-Stainless Steel, Flexible Bubbler
A131408S-VR-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A131208S-VR Bronze Finish with matching finish bubbler
A131308S-VR High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-WF1 | 1500 gallon capacity, NSF 42+53, 1 micron lead reduction filter -220 | 220 volt/50 Hz compressor Other options may be available. See Options List and/or Submittal
Note: Mounting Frame A0000000-MF3 may be ordered in advance for a pre-mounted rough-in.
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A13-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
