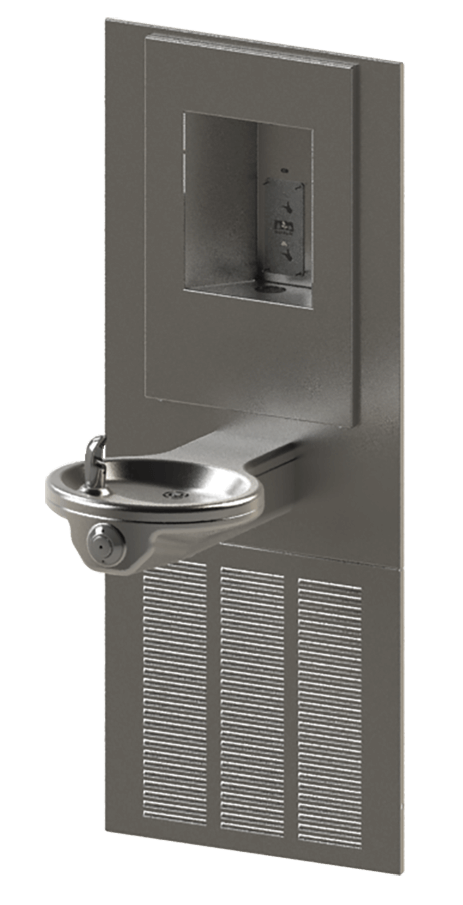

Vandal-Resistant, Wall-Mounted, Oval Drinking Fountain with Touchless Water Bottle Filling Station - In-Wall Refrigeration (8GPH), ADA, Stainless Steel
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Pressure Water Coolers | 146 KB | ||
 | | Oval Bowl Chilled Barrier-Free Wall Mount Drinking Fountain with Sensor Activated Bottle Filler [Standard Model A131408S-VR-BF4] Includes Parts Manual | 2 MB | ||
| | Oval, Barrier-Free, Wall Mount Refrigerated Drinking Fountain with Vandal Resistant Button, Auto Stop and Sensor Bottle Filler | 181 KB | ||
| | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 886 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Style | Indoor Oval Bowl |
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, High-Polish Stainless Steel, High-Polish Gold, Bronze |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Maintenance Advantage® – Easy Maintenance Design, Chiller includes Water Leak Detection Auto Shut-Off Valve |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| Compliances | ANSI/ASHRAE 18, UL Listed (US and Canada), cUPC, IAPMO tested to NSF/ANSI 61, Section 9 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
Typical models are shown below
A131408S-VR-BF4 All-Stainless Steel Lead-Free Stainless Steel Bubbler
A131408F-VR-BF4 All-Stainless Steel, Flexible Bubbler
A131408S-VR-BF4-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A131200S-VR-BF4 Bronze Finish with matching finish bubbler
A131308S-VR-BF4 High Polished Gold Finish with matching finish bubbler
-BF4 Sensor, Plug-in Powered
-BF4-BAT Sensor, Battery-Powered
-BF4-BCD Sensor, Plug-in, Bottle Counter Display
-BF3 Push Button Activated, No Electrical
Popular Options/Accessories include:-BCD | Bottle Counter Display (Bottle Filler) -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -HP | High polished stainless steel -220V | 220 volt / 50 Hz compressor
Other options are available. See Options List and/or Submittal
