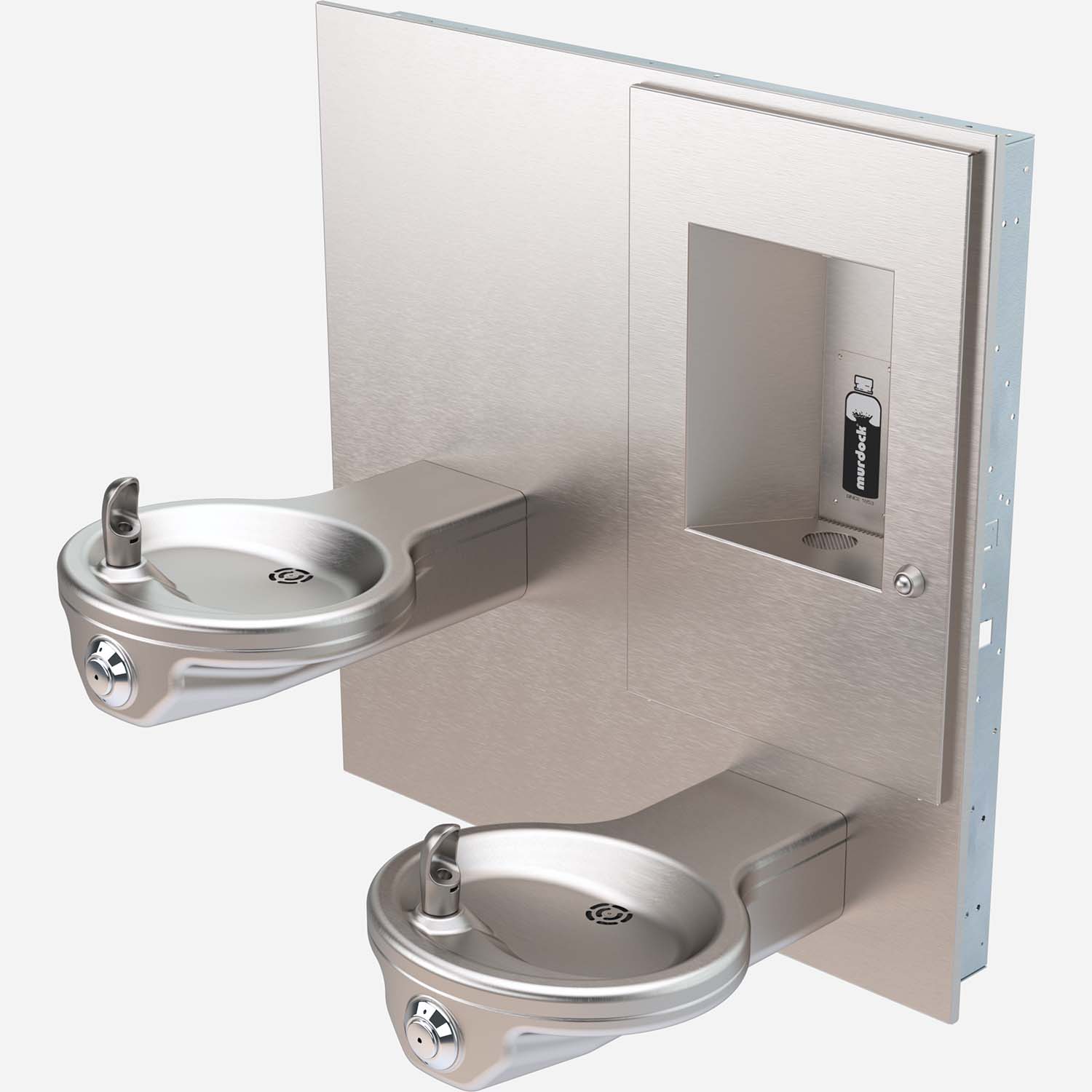

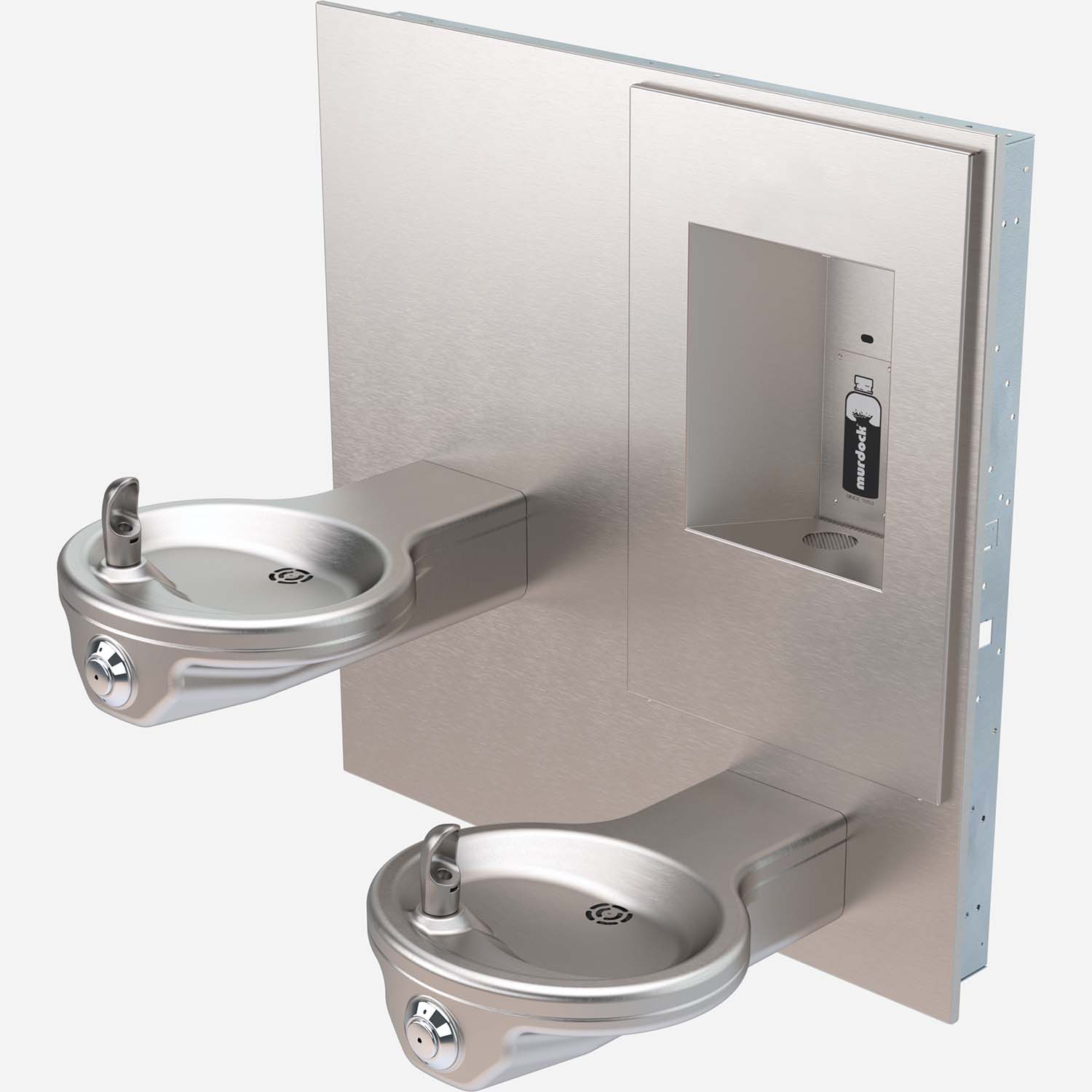

Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | Oval Bowl Barrier-Free Wall Mount Bi-Level Drinking Fountain with Bottle Filler [A132400S-VR-BF4 | Vandal-Resistant Round Pushbutton; A132400S-SO-BF4 | Sensor Activated ] Includes Parts Manual | 2 MB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Drinking Fountain with Vandal Resistant Button, Auto Stop and Sensor Bottle Filler | 196 KB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Drinking Fountain with Vandal Resistant Button, Auto Stop and Push Button Bottle Filler | 204 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
| | Kwik Ship Brands: Murdock Mfg (pdf) | 401 KB | ||
 | | Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel | 712 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
 | | Vandal-Resistant, Wall-Mounted, Bi-Level, Oval Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel | 338 KB |
Specifications
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| No. of Stations | 2 |
| Refrigeration | No Refrigeration |
| Style | Indoor Oval Bowl |
| Compliances | cUPC, NSF/ANSI/CAN 61, Lead-Free Federal Law 111-380 |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Maintenance Advantage® – Easy Maintenance Design |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
| Activation | Drinking fountain - round vandal-resistant button, Bottle filler - hemispherical pushbutton, Bottle filler - sensor |
| Usage | Indoor, Outdoor, School Campus, Corporate Campus, Train Station |
| Accessibility | ADA Compliant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK4-18 | Accessory: Skirt Assembly for Bi-Level Oval Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High | ||
 | BCD | Option: Bottle Counter Display |
Models
Typical models are shown below
A132400S-VR-BF4 All-Stainless Steel Lead-Free Stainless Steel Bubbler
A132400F-VR-BF4 All-Stainless Steel, Flexible Bubbler
A132400S-VR-BF4-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132200S-VR-BF4 Bronze Finish with matching finish bubbler
A132300S-VR-BF4 High Polished Gold Finish with matching finish bubbler
-BF4 Sensor, Plug-in Powered [ submittal]

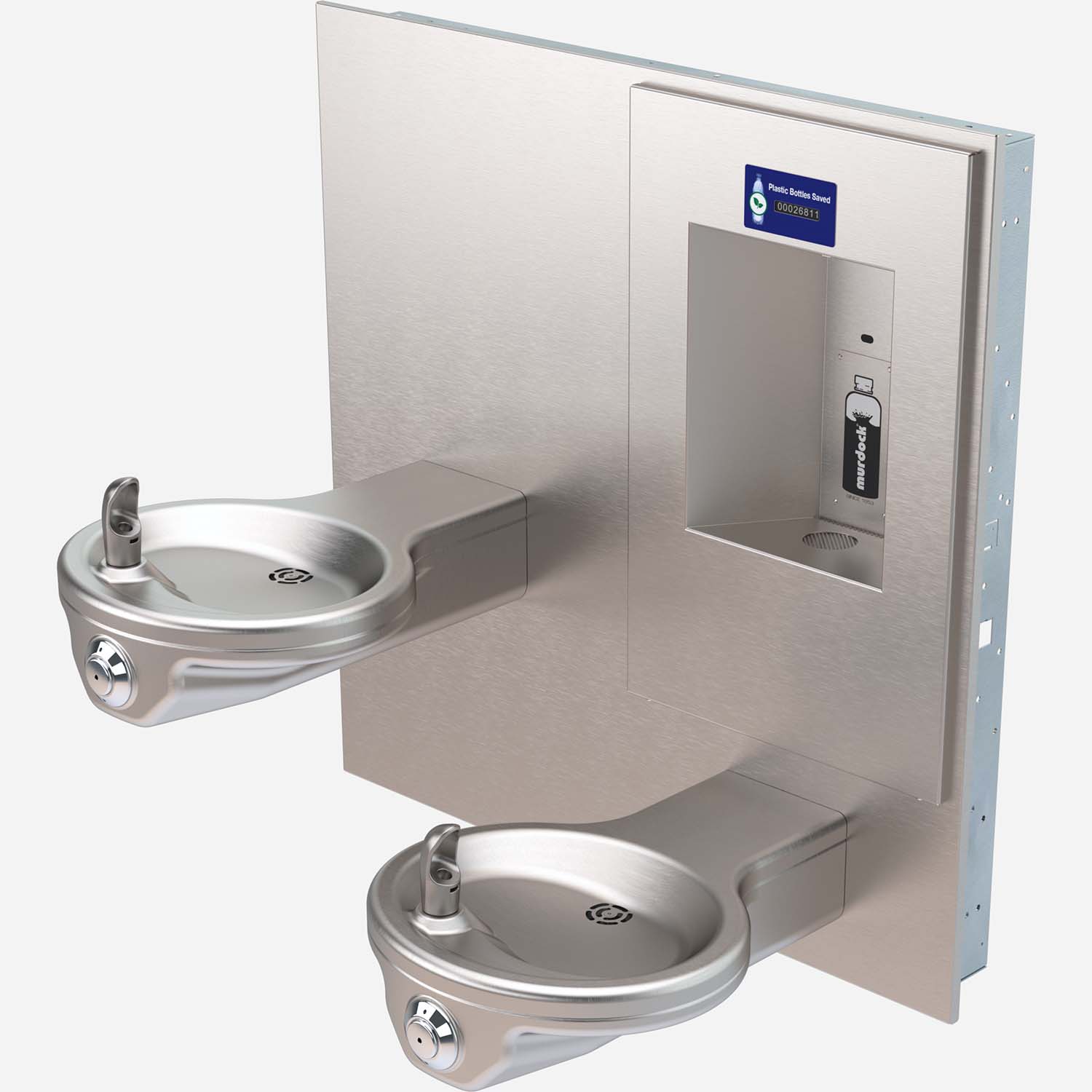

-BF4-BCD Sensor, Plug-in, Bottle Counter Display [ submittal]
-BF3 Push Button Activated, No Electrical [ submittal]
Popular Options/Accessories include:-BCD | Bottle Counter Display (Bottle Filler) -AP3 | Access Panel for a Dual Fountain -RBL | Reverse Bi-Level (Bottle Filler Opposite) -SK4-18 | Skirt Kit, Stainless Steel, for upper unit -WF3 | 3000-gallon PFAS Water Filter
Other options are available. See Options List and/or Submittal
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A13-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
