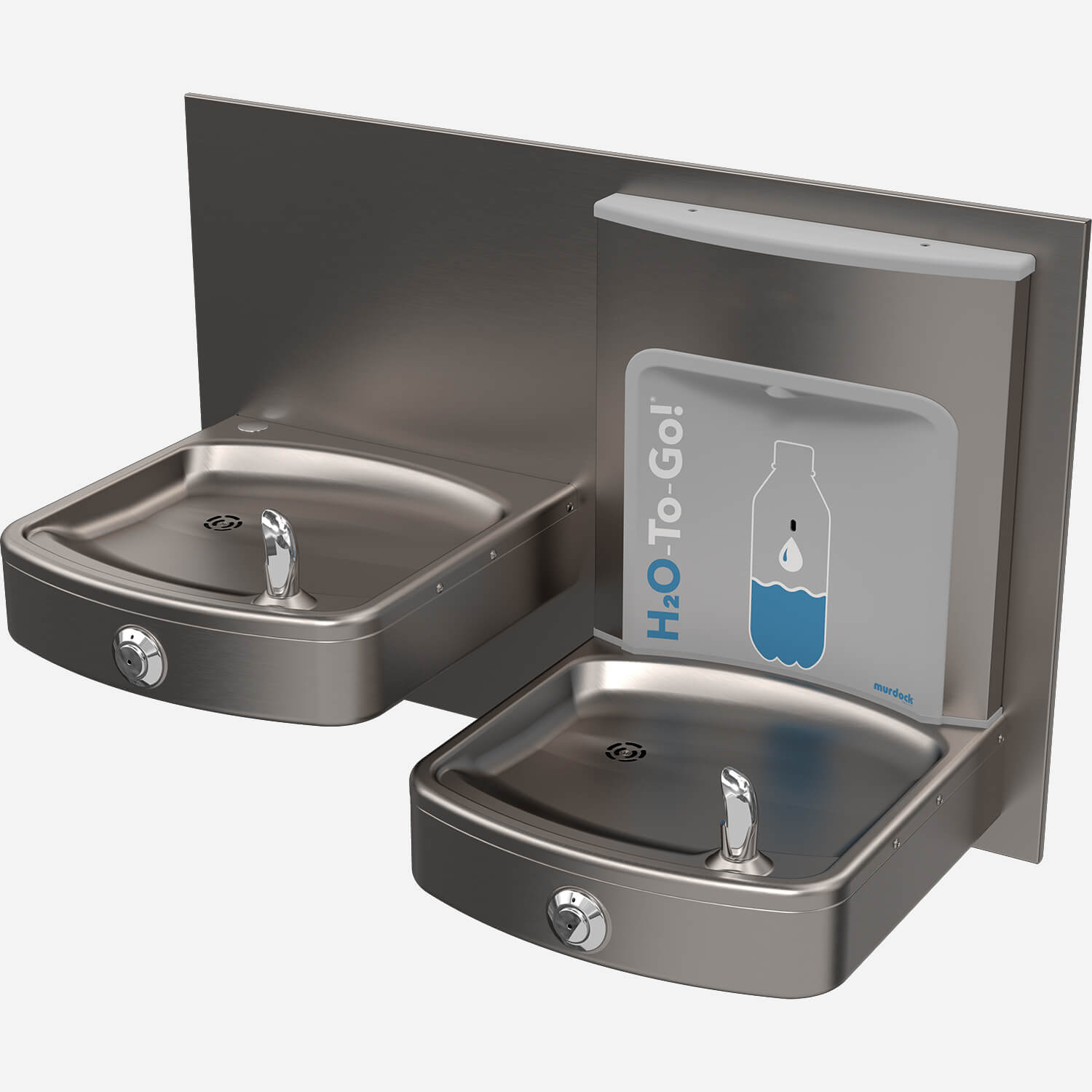

Name: Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel
Brand: Murdock Manufacturing
SKU: A192-BF12 Series

Model A192-BF12 Series

Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel

This combination unit includes two Barrier-Free drinking fountain decks similar to Murdock's A17 Series. Each drinking fountain features a round vandal-resistant push button. It also includes an H2O-To-Go! Bottle Filler that sits on the lower drinking fountain deck. A mounting frame with a trim panel is provided. This unit does not provide refrigerated water.

Electrical is necessary for sensor-operated bottle fillers. The patented push-button auto stop feature seamlessly incorporates the heavy-duty vandal-resistant button for additional security while allowing easy access to the push button for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit!

Unit is certified to ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875, and NSF/ANSI 61, Section 9. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Accessibility compliance is subject to the local code enforcement authority.

Learn about H2O-To-Go! See all bottle fillers

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (doc)	Murdock Mfg - Drinking Fountains	164 KB
Installation Instructions	Manual A192-BF Series Drinking Fountain - Bottle Filler (pdf)	Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel	2 MB
Submittals	Submittal A192-BF Drinking Fountain/Bottle Filler (pdf)	Barrier-Free, Bi-Level Wide Drinking Fountain with H2O to go!® Deck Mount Bottle Filler [A192400F \| Flexible Bubbler; A192400S \| Stainless Steel Bubbler; Add BF12, BF12-BCD, BF11]	198 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (pdf)	Murdock Mfg - Drinking Fountains	169 KB
Brochures/Flyers	Murdock Stainless Steel Hand Washing Brochure (pdf)	Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing.	2 MB
Brochures/Flyers	MM - Maintenace Advantage (pdf)	MM - Maintenace Advantage (pdf)	6 MB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Brochures/Flyers	H2O-to-Go!® Bi-Level Drinking Fountain & Bottle Filler Flyer (pdf)	Flyer - Barrier-Free, Bi-Level Drinking Fountain with Vandal Resistant Buttons and H2O-to-Go!® Deck Mount Sensor Bottle Filler	436 KB
Revit/BIM/CAD Drawings	A192-BF Drinking Fountain - Bottle Filler (rfa)	Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel	2 MB
Revit/BIM/CAD Drawings	A192-BF Drinking Fountain - Bottle Filler (dwg/zip)	Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel	534 KB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	H2O-To-Go!®
Material	Stainless Steel
Mounting	Wall-Mounted
Product Features	Wide Basin, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton
Activation	Push Button, Bottle filler - sensor
Refrigeration	No Refrigeration
No. of Stations	2
Patent	US 10,100,933 B2 (Auto-Stop Feature), US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler)

Options

Accessories

	Image	Model	Description	Downloads
		A9100080-A	Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains

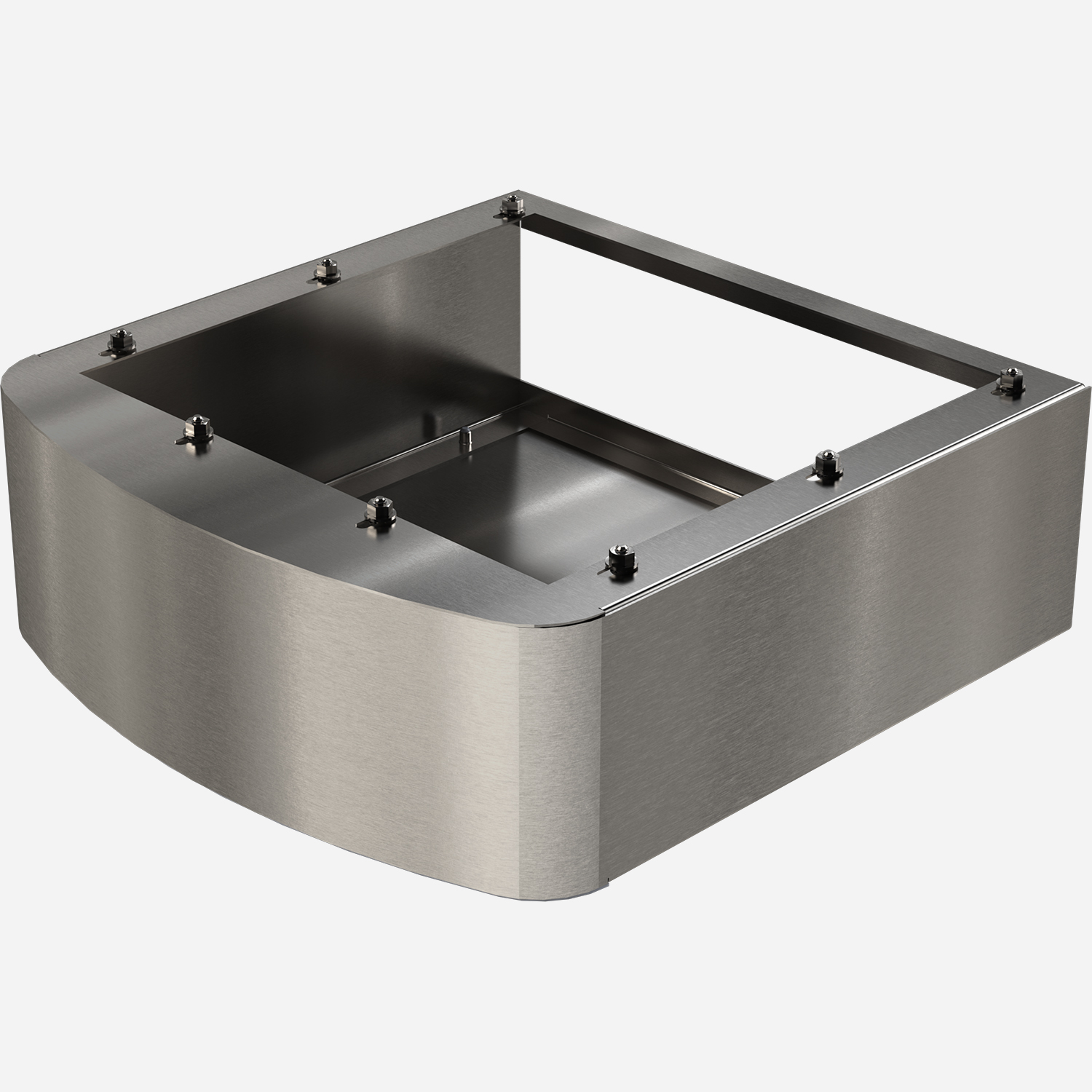

		SK11	Accessory: Skirt Assembly for Wide Bi-Level Drinking Fountain
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
		-BAT	Option: Battery power for Sensor Operation Only
		-RBL	Option: Reverse Bi-Level - Left Low/Right High
		BCD	Option: Bottle Counter Display

Models

A192400 -

Drinking Fountain Configuration

A192400 S All-Stainless Steel Lead-Free Stainless Steel Bubbler Round Vandal-Resistant Pushbutton

A192400 F All-Stainless Steel Flexible Bubbler Round Vandal-Resistant Pushbutton

Bottle Filler Configuration

-BF12 Plug-in Sensor Activated

-BF12-BAT Battery Powered Sernser Activated

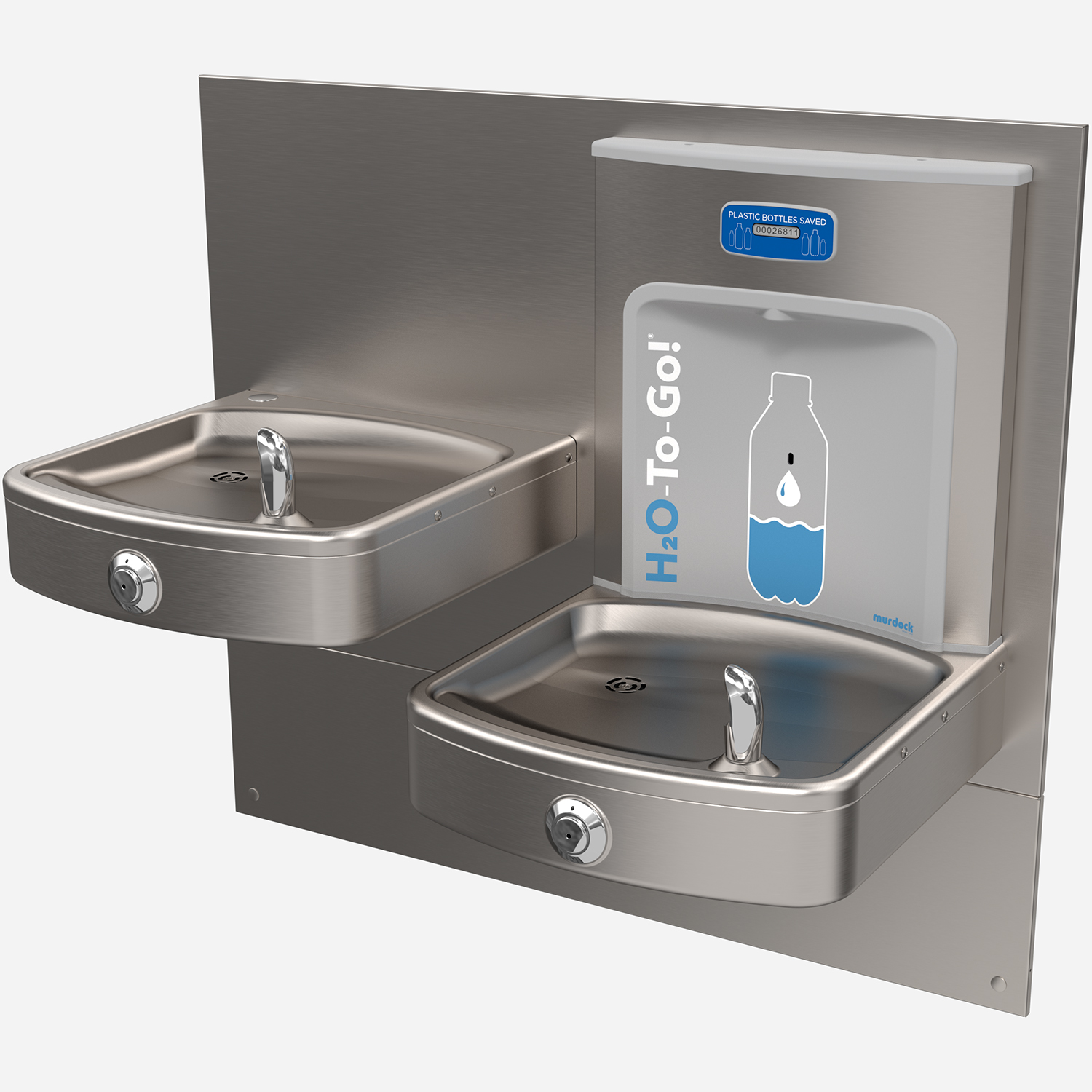

-BF12-BCD Plug-in Sensor Activated Bottle Counter Display

-BF11 Pushbutton Activated (no electrical)

Popular Options include:

-WF1 | 1500-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter -WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter -SK11 | Cane Detection Skirt Kit for Upper Unit -RBL | Reverse Bi-Level (Bottle Filler Opposite) Mounting Plate

Other options may be available. See Options List and/or Submittal
