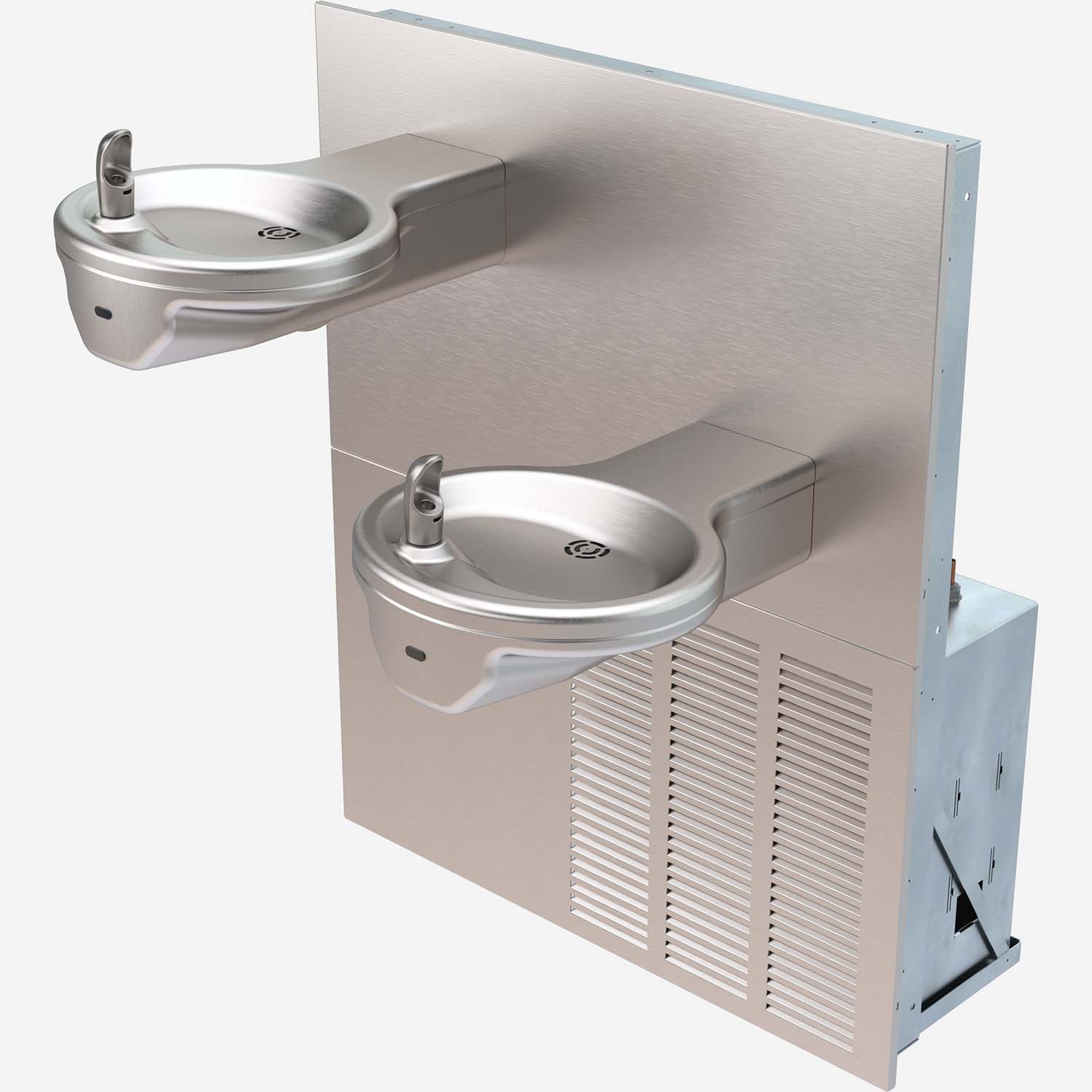

Oval, Chilled Barrier-Free, Bi-Level Wall Mount Drinking Fountain - Sensor Activated
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual | 886 KB | ||
| | Oval, Barrier-Free, Bi-Level Wall Mount Refrigerated Drinking Fountain - Sensor Activated | 193 KB | ||
| | Oval Bowl Chilled Barrier-Free Wall Mount Bi-Level Drinking Fountain [Standard Model A132408S-VR]; also includes Sensor Activated [A132408S-SO] | 1 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Material | Stainless Steel |
| Material Detail | High-Polish Gold, All-Stainless Steel, Bronze |
| Mounting | Wall-Mounted |
| Style | Indoor Oval Bowl |
| Refrigeration | In-Wall 8 GPH Chiller Provided |
| No. of Stations | 2 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D546,607 S (Ornamental Design of Oval Fountain) |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton, Hands-Free Operation, Chiller includes Water Leak Detection Auto Shut-Off Valve |
| Activation | Sensor |
| Usage | Train Station, Indoor, Corporate Campus, School Campus |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SK4-18 | Accessory: Skirt Assembly for Bi-Level Oval Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts | ||
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High |
Models
Typical models are shown below
A132408S-SO All-Stainless Steel Lead-Free Stainless Steel Bubbler
A132408F-SO All-Stainless Steel, Flexible Bubbler
A132408S-HP-SO High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132208S-SO Bronze Finish with matching finish bubbler
A132308S-SO High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-HP | High polished stainless steel -RBL | Reverse bi-level - right fountain high, left fountain low -SK4-18 | Skirt kit, stainless steel, for upper unit -WF1 1500 gallon capacity, NSF 42+53, 1 micron lead reduction filter -WF3 3000 gallon capacity, NSF 42+53, 1 micron lead reduction filter-220V 220 volt / 50 Hz compressor
Other options are available. See Options List and/or Submittal
Note: Mounting frame A0000000-MF5 may be ordered in advance for a pre-mounted rough-in.
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A13-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
