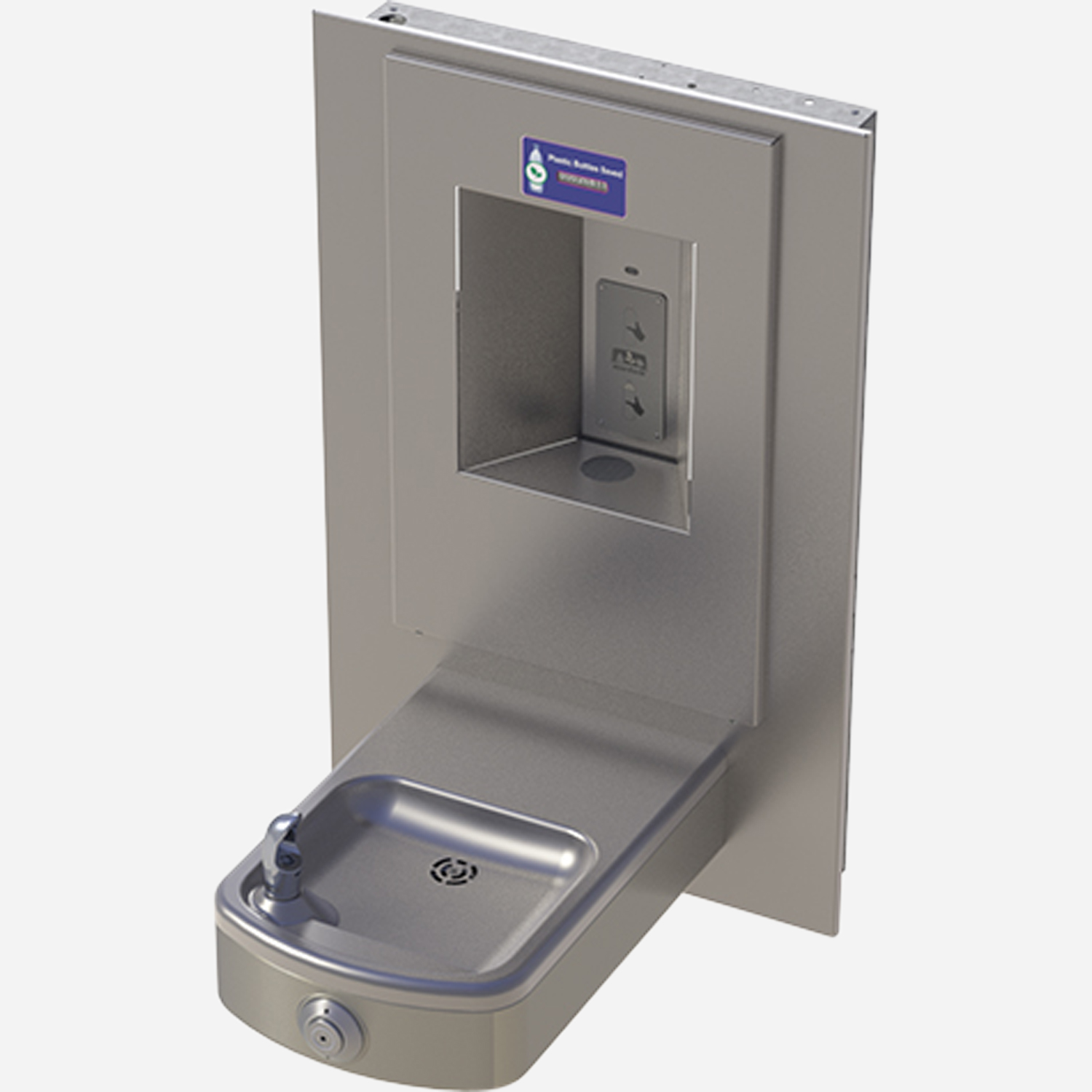

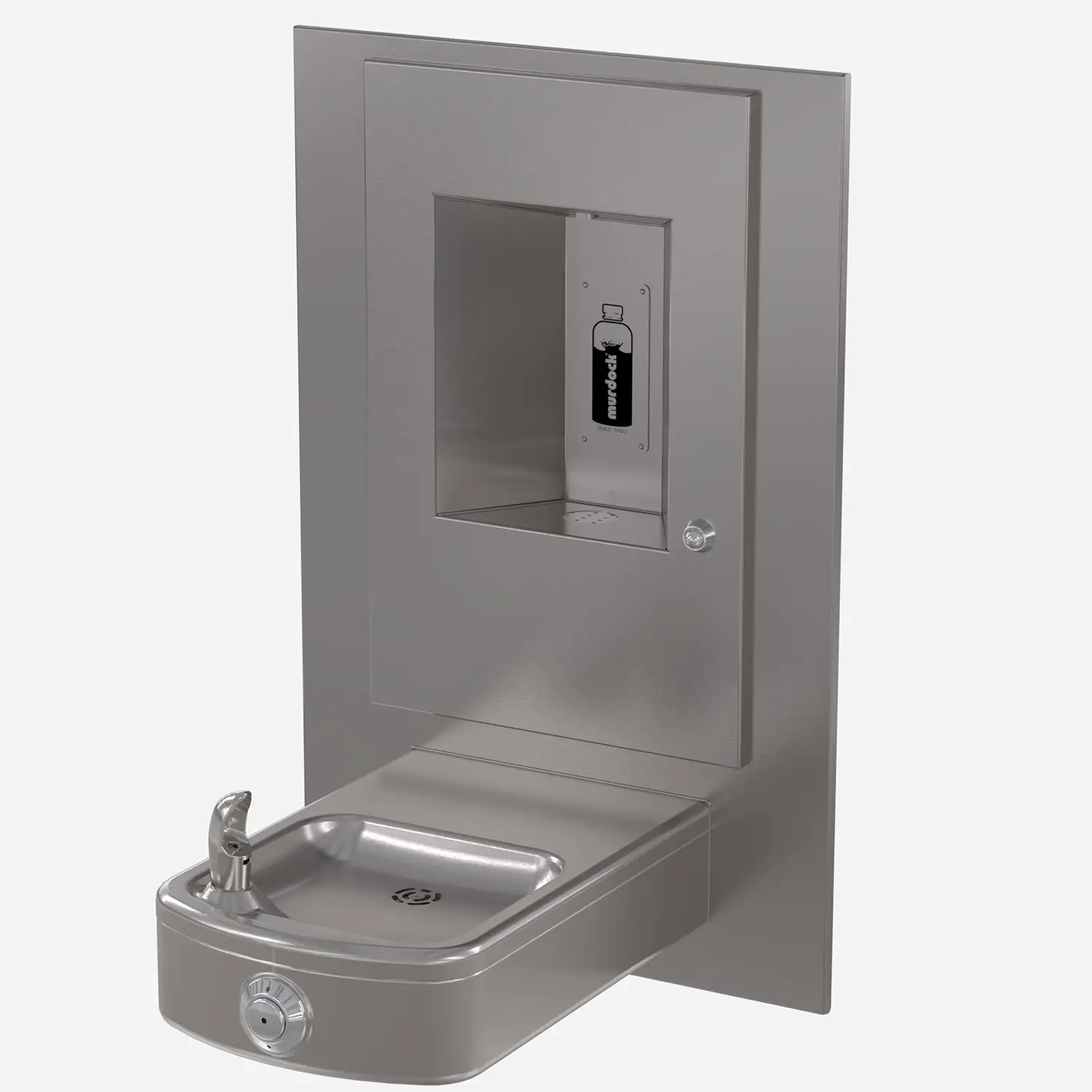

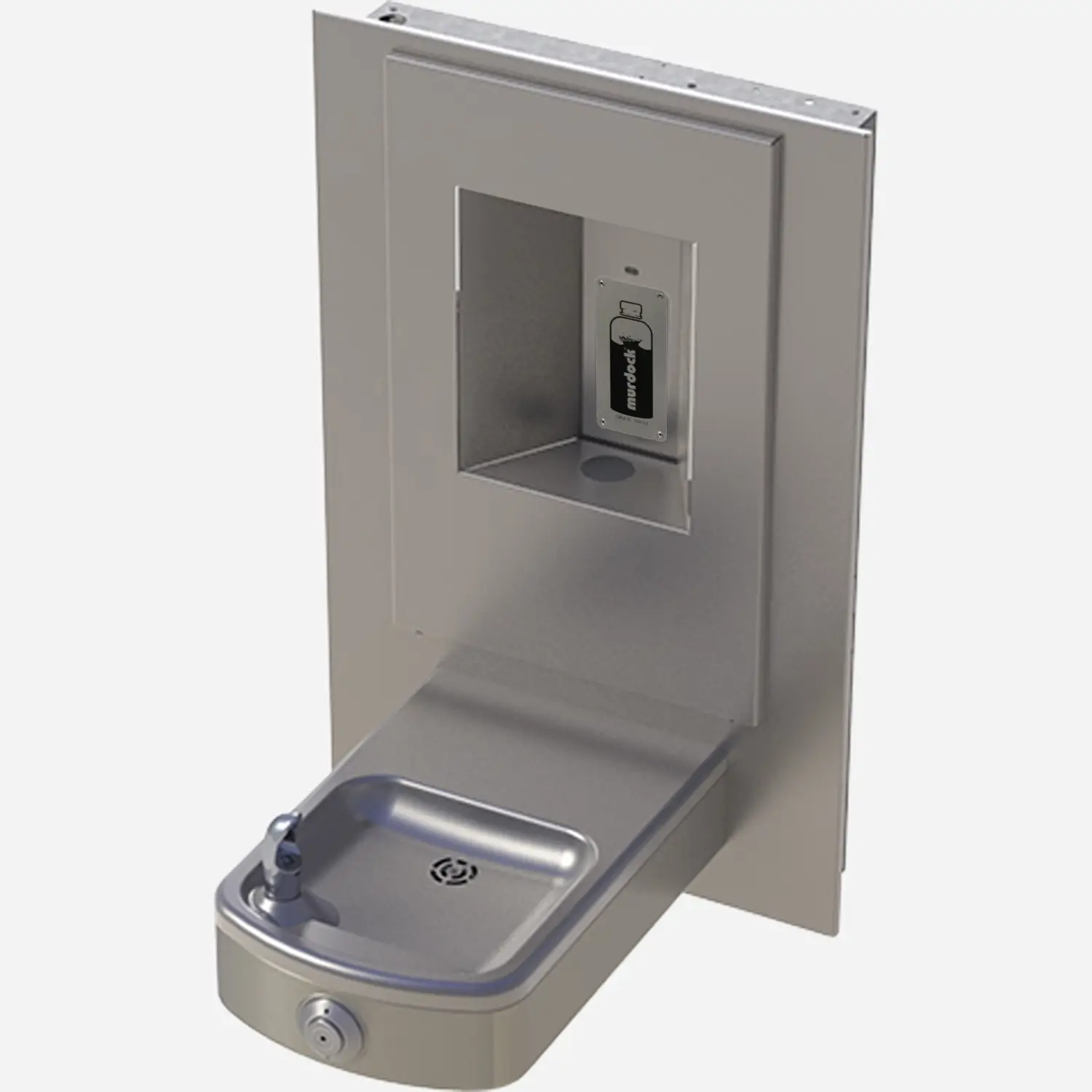

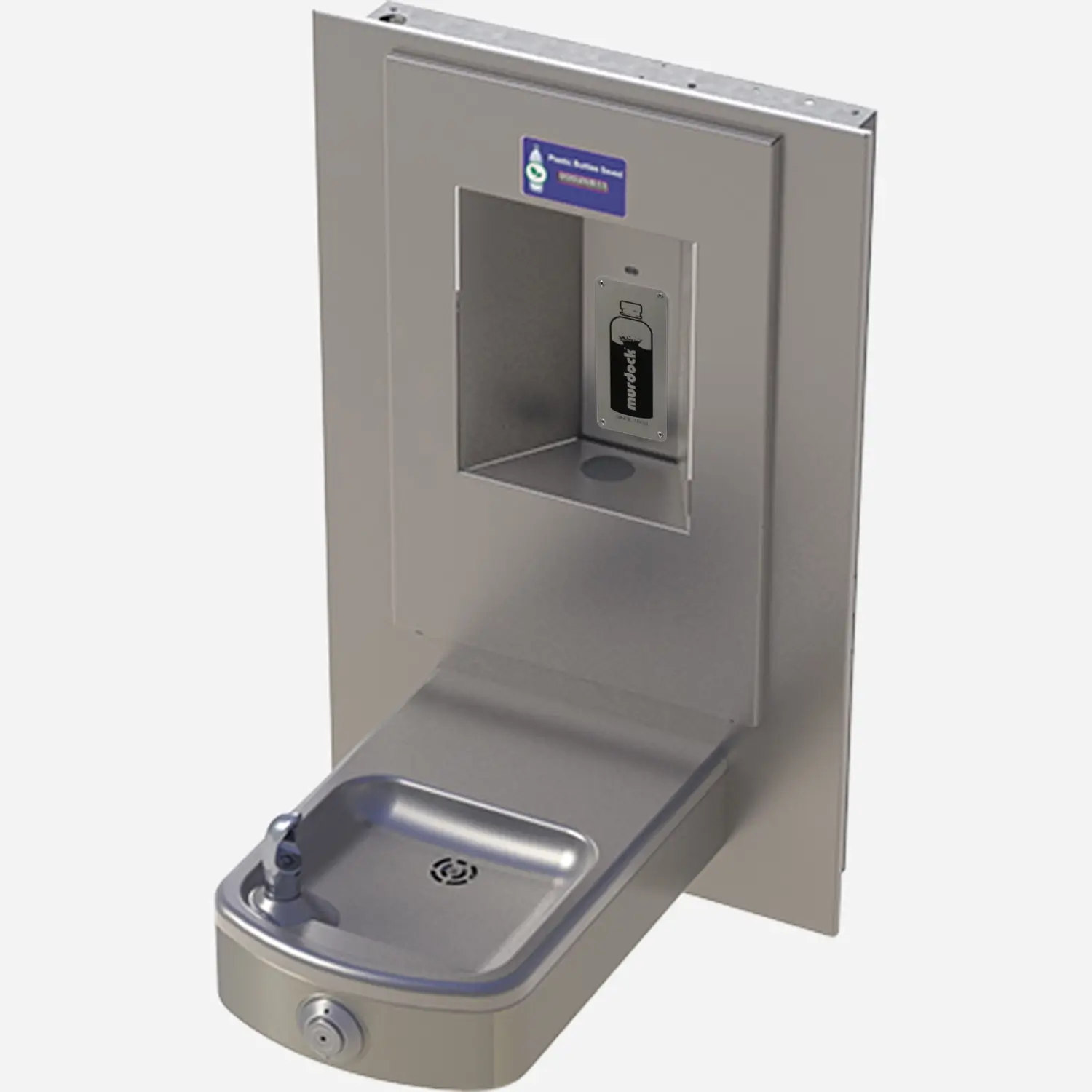

Vandal-Resistant, Wall-Mounted, Square Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
Vandal-Resistant, Wall-Mounted, Square Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
This durable, stainless steel, semi-recessed, rounded box drinking fountain includes a bottle filler and features a round vandal-resistant push button with auto stop. This unit does not provide refrigerated water. The patented pushbutton auto stop feature seamlessly incorporates the heavy-duty vandal-resistant button for additional security while allowing easy access to the push button for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit! Fixture meets ADA, ADA Standing Person, and ADA Child requirements when installed properly.
The unit is available with Sensor-Activated Bottle Filler - A151-VR-BF4, whereas a Hemispherical Pushbutton-Activated Bottle Filler - A151-VR-BF3 (see specific submittal below) is also available.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Rounded Box Barrier-Free Wall Mount Drink Fountain with Recessed Bottle Filler [Standard Models A151400S-VR-BF4 | Sensor Bottle Filler; A151400S-VR-BF3 | Pushbutton Bottle Filler] | 2 MB | ||
| | Rounded Box, Barrier-Free Wall Mount Drinking Fountain with Vandal Resistant Button and Sensor Bottle Filler [Standard Model A151400S-VR-BF4] | 193 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Rounded Box, Barrier-Free Wall Mount Drinking Fountain with Vandal Resistant Button and Sensor Bottle Filler | 271 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Rounded Box, Barrier-Free Wall Mount Drinking Fountain with Vandal Resistant Button and Pushbutton Bottle Filler [Standard Model A151400S-VR-BF3] | 162 KB |
Specifications
| Style | Indoor Rounded Box |
| Mounting | Wall-Mounted |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Maintenance Advantage® – Easy Maintenance Design |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold, Polished Chrome Plated |
| Refrigeration | No Refrigeration |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, Lead-Free Federal Law 111-380 |
| Accessibility | ADA Compliant |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
 |
 |
 |
||
| Bottle Filler Sensor |
Bottle Filler Sensor with Bottle Counter |
Bottle Filler Hemispherical Pushbutton No Electrical [ exclusive submittal A151-VR-BF3 ] |
||
 |
All-Stainless Steel; Lead-Free Stainless Steel Bubbler |
A151400S-VR-BF4 | A151400S-VR-BF4-BCD | A151400S-VR-BF3 |
 |
All-Stainless Steel; |
A151400F-VR-BF4 | A151400F-VR-BF4-BCD | A151400F-VR-BF3 |
 |
All-High Polish Stainless Steel; |
A151400S-VR-BF4-HP A151400F-VR-BF4-HP |
A151400S-VR-BF4-BCD-HP A151400F-VR-BF4-BCD-HP |
A151400S-VR-BF3-HP A151400F-VR-BF3-HP |
 |
All-Bronze Unit; Matching Bubbler |
A151200S-VR-BF4 A151200F-VR-BF4 |
A151200S-VR-BF4-BCD A151200F-VR-BF4-BCD |
A151200S-VR-BF3 A151200S-VR-BF3 |
 |
All-High Polish Gold Unit; Matching Bubbler |
A151300S-VR-BF4 A151300F-VR-BF4 |
A151300S-VR-BF4-BCD A151300F-VR-BF4-BCD |
A151300S-VR-BF3 A151300F-VR-BF3 |
Popular Options/Accessories include:
-BCD | Bottle Counter Display (Bottle Filler)
-WF3000 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter
Other options are available. See Options List and/or Submittal
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A15-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
