Name: Rounded Box, Chilled Barrier-Free, Bi-Level Wall Mounted Drinking Fountain - Sensor Activated
Brand: Murdock Manufacturing
SKU: A152.8-SO Series

Model A152.8-SO Series

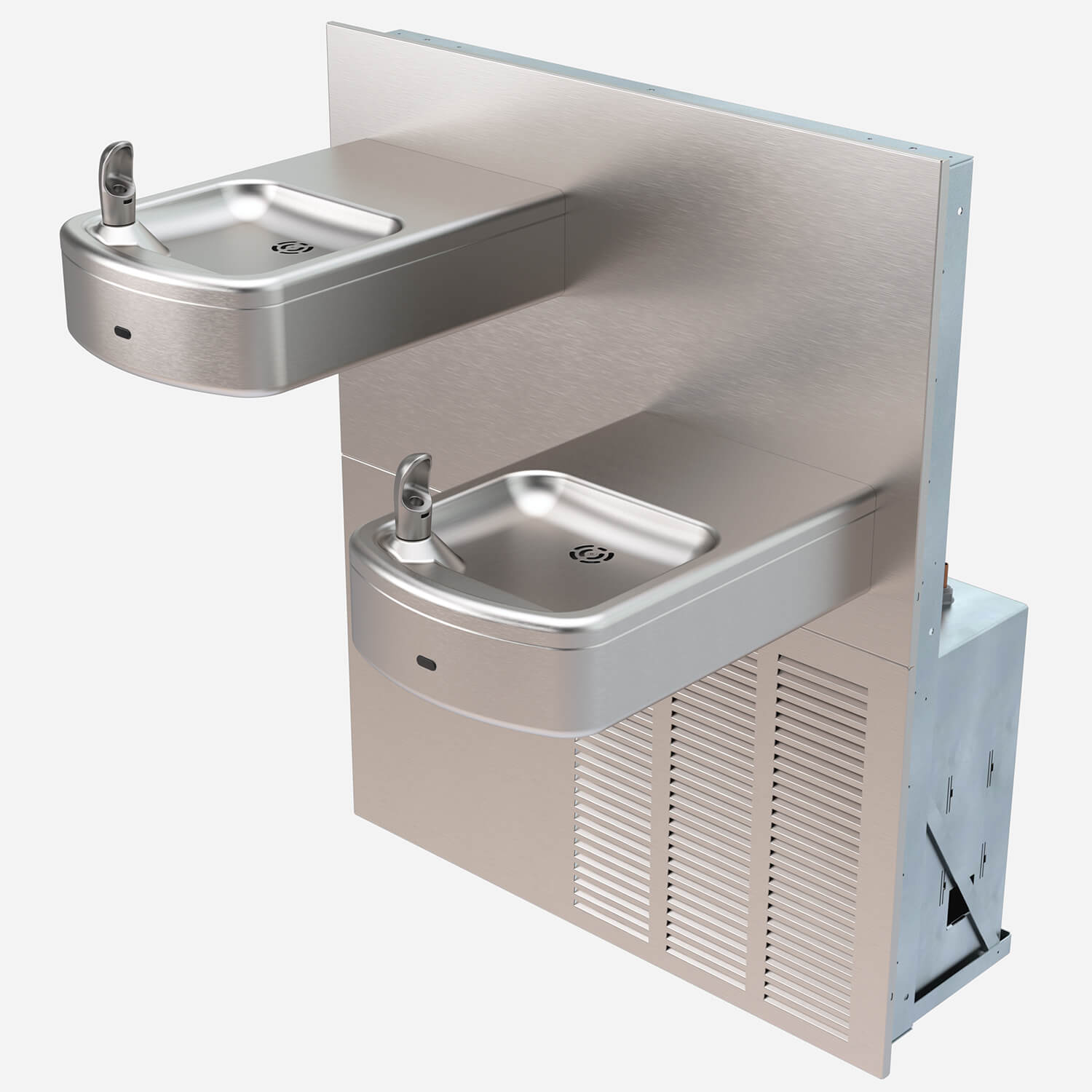

Rounded Box, Chilled Barrier-Free, Bi-Level Wall Mounted Drinking Fountain - Sensor Activated

A152.8-SO Series includes a bi-level rounded box bowl drinking fountain mounted on 32 inches (8,128 mm) panel. The drinking fountain shall deliver a minimum of 8.0 gallons (30.3 liters) per hour of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. The fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Both drinking fountains feature sensor activation.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Manual A9100080-A Chiller (pdf)	8 GPH Remote Chiller for Refrigerated Drinking Fountain A9100080-A; includes parts manual	886 KB
Submittals	Submittal A152.8-SO Series Drink Fountain	Rounded Box Barrier-Free, Wall Mount Bi-Level Refrigerated Drink Fountain Sensor [Standard Model A152408S-SO]	200 KB
Installation Instructions	Manual A152.8-VR Series Water Cooler	Rounded Box Chilled Barrier-Free Wall Mount Bi-Level Drinking Fountain [Standard Model A152408S-VR]; Sensor Activation [A152408S-SO]	1 MB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Material Detail	All-Stainless Steel, Bronze, High-Polish Gold
Mounting	Wall-Mounted
Refrigeration	In-Wall 8 GPH Chiller Provided
No. of Stations	2
Product Features	Hands-Free Operation, Chiller includes Water Leak Detection Auto Shut-Off Valve
Compliances	IAPMO tested to NSF/ANSI 61, Section 9, ANSI/ASHRAE 18, CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, cUPC
Style	Indoor Rounded Box
Patent	US 10,100,933 B2 (Auto-Stop Feature)
Activation	Sensor
Usage	Corporate Campus, Indoor, School Campus, Train Station
Accessibility	ADA Compliant

Options

Accessories

	Image	Model	Description	Downloads
		SK3-18	Accessory: Skirt Assembly for Bi-Level Rounded Box Drinking Fountain

Miscellaneous

	Image	Model	Description	Downloads
		-220V	Option: Electrical 220 Volts
		-RBL	Option: Reverse Bi-Level - Left Low/Right High

Models

Typical models are shown below

A152408S-SO All-Stainless Steel Lead-Free Stainless Steel Bubbler

A152408F-SO All-Stainless Steel, Flexible Bubbler

A152408S-HP-SO High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler

A152208S-SO Bronze Finish with matching finish bubbler

A152308S-SO High Polished Gold Finish with matching finish bubbler

Popular Options/Accessories include:

-220V | 220 volt / 50 Hz compressor -HP | High polished stainless steel -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -RBL | Reverse bi-Level - right fountain high, left fountain low -SK3-18 | Skirt kit, stainless steel, for upper unit

Other options are available. See Options List and/or Submittal

Note: Mounting frame A0000000-MF5 may be ordered in advance for a pre-mounted rough-in.
