Name: 14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain - Non-Refrigerated, ADA
Brand: Murdock Manufacturing
SKU: A152-FG Series

Model A152-FG Series

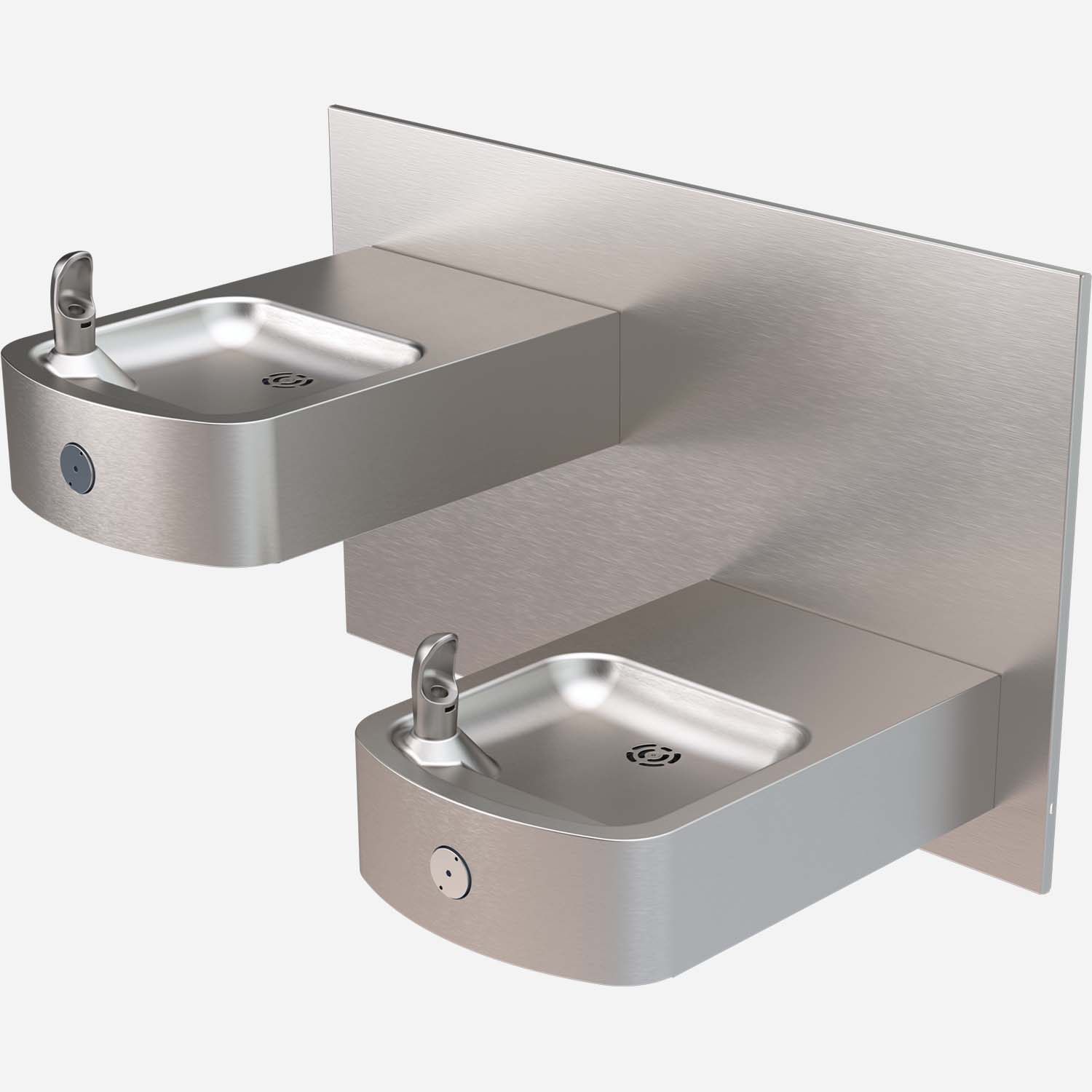

14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain - Non-Refrigerated, ADA

This series includes a 14-gauge stainless steel box style bi-level drinking fountain mounted on a 32 inch (812.8 mm) trim panel. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. The standard bi-level has the lower ADA fountain on the right side. Option -RBL provides the lower ADA unit on the left side.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (doc)	Murdock Mfg - Drinking Fountains	164 KB
Installation Instructions	Manual A152-FG Series Drinking Fountain	14GA Stainless Steel, Wall-Mounted, Bi-Level Drinking Fountain - Non-Refrigerated, ADA	772 KB
Submittals	Submittal A152-FG Series Drinking Fountain	14-Gauge Stainless Steel Box Barrier-Free Wall Mount Bi-Level Drinking Fountain [Standard Model A152400S-FG]	163 KB
Installation Instructions	Install Guide Option -FRA4	Option -FRA4 In-Wall freeze-resistance for Bi-Level Wall Mount Drink Fountain	271 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Product MasterSpec	MasterSpec: 224713, Drinking Fountains (pdf)	Murdock Mfg - Drinking Fountains	169 KB
Brochures/Flyers	Custom Colors, Logos & Graphics Brochure (pdf)	Custom Colors, Logos & Graphics Brochure (pdf)	671 KB
Brochures/Flyers	Enviro-Glaze Color Chart	Enviro-Glaze Color Chart Flyer (pdf)	202 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Material Detail	14 Gauge, High-Polish Stainless Steel
Mounting	Wall-Mounted
No. of Stations	2
Refrigeration	No Refrigeration
Style	14-Gauge Stainless Steel Drinking Fountain
Product Features	Heavy-Duty 14 Gauge Stainless Steel Construction
Usage	Outdoor, Indoor, Corporate Campus, School Campus, Train Station

Options

Accessories

	Image	Model	Description	Downloads

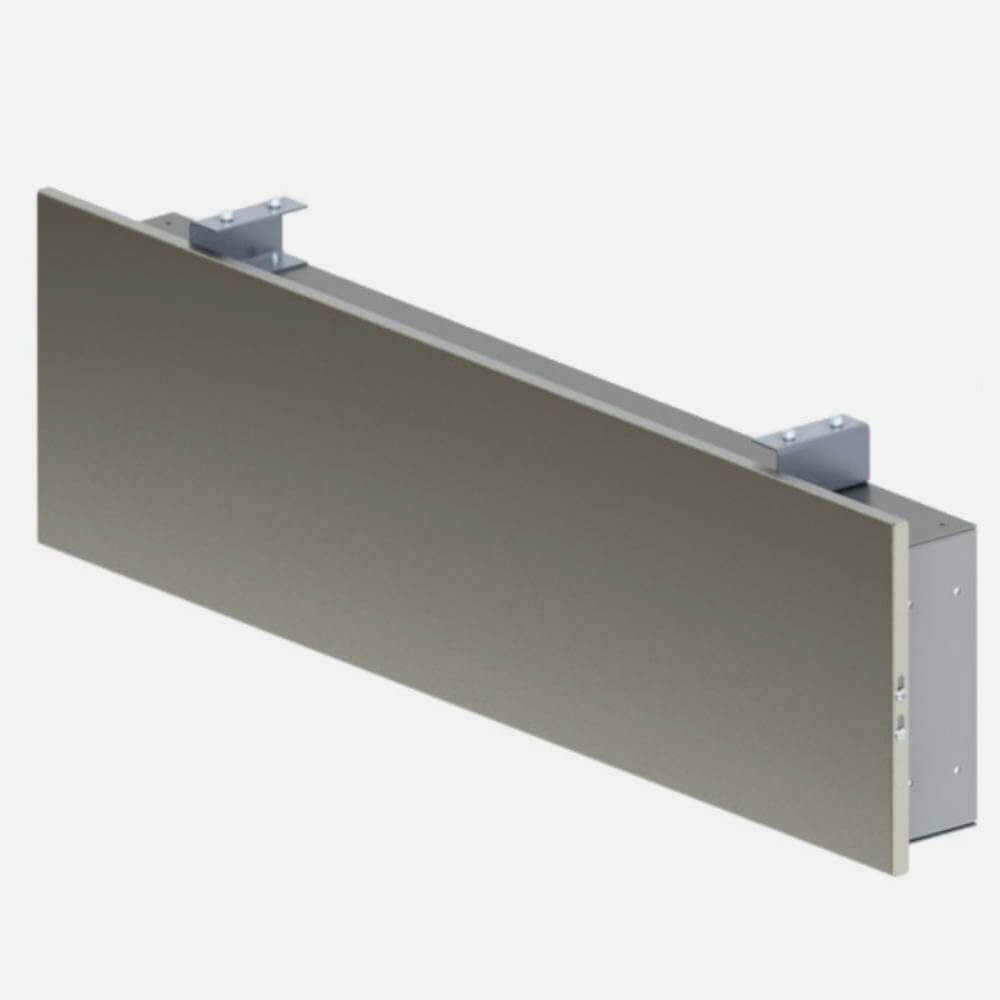

		-AP3	Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains

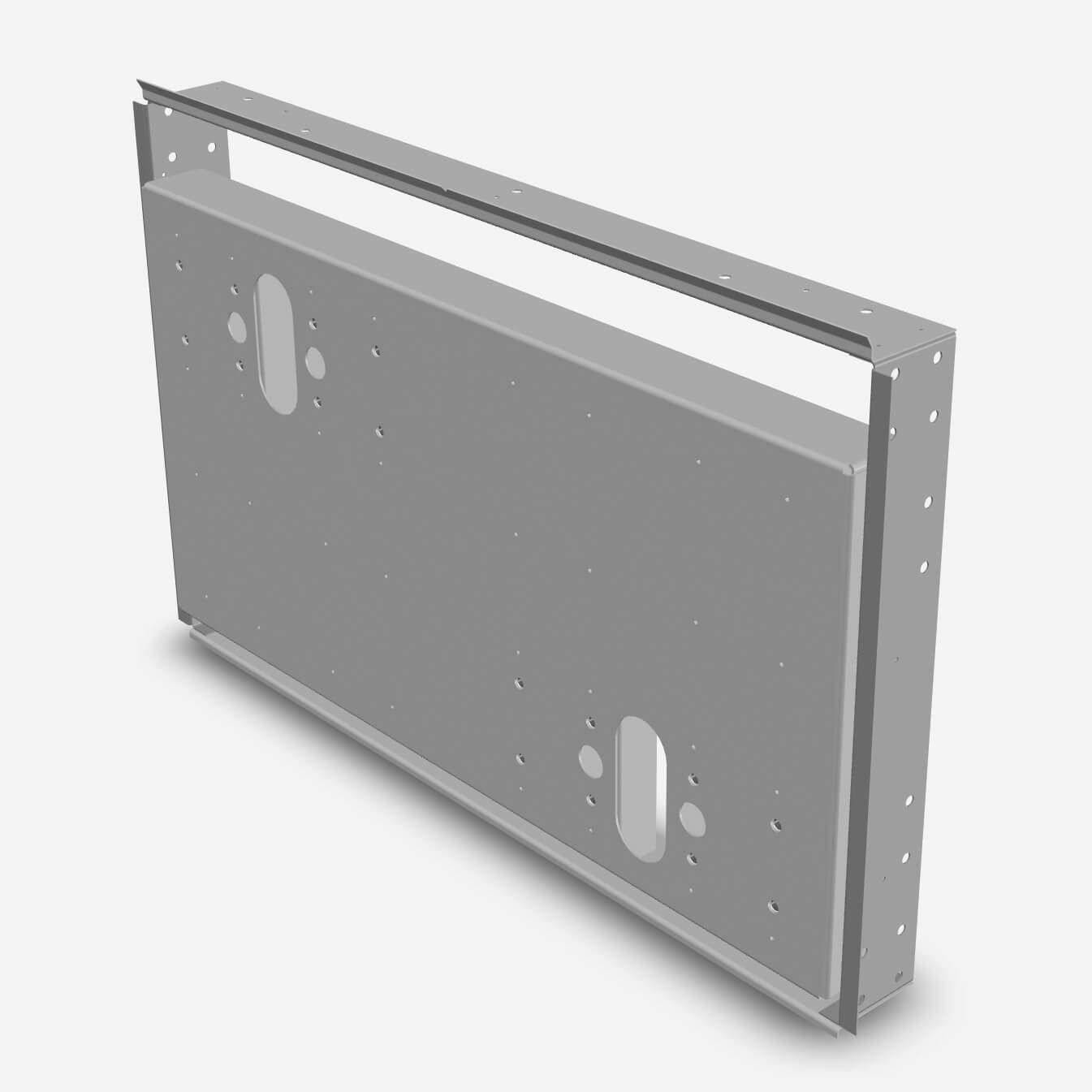

		-MF8	Accessory: Mounting Frame for a Bi-Level A132 or A152 Fountain

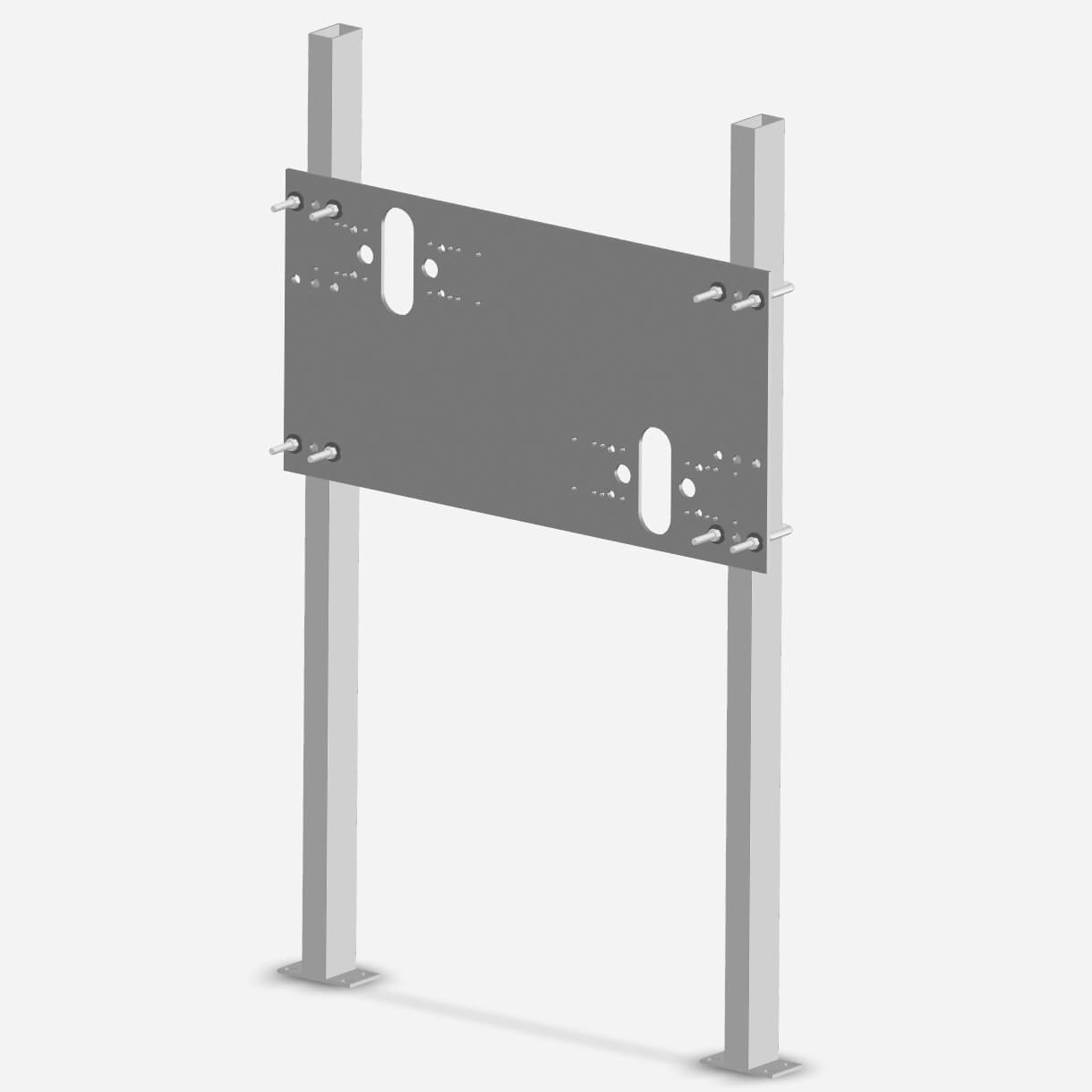

		-W32-CSC	Accessory: Concealed Support Carrier for Bi-Level A132 or A152 Drinking Fountain
		A9100080-A	Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains
		SK2-18	Accessory: Skirt Assembly for Bi-Level 14 Gauge Stainless Steel Box Fountain
		WF3000	Accessory: 3,000 Gallon PFAS Water Filter

Miscellaneous

	Image	Model	Description	Downloads
		-RBL	Option: Reverse Bi-Level - Left Low/Right High

Models

A152400S-FG | All-Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers A152408S-FG-HP | High Polish Stainless Steel; Lead-Free, Polished Stainless Steel Bubblers --------------------

Popular Options-RBL | Reverse Bi-Level (Lower ADA fountain and bottle filler is on the right side) -WF1 | 1500 gallon capacity, NSF 42+53, 1 micron lead reduction filter -SK2-18 | Cane Skirt Other options may be available see submittal
