Member of Morris Group International

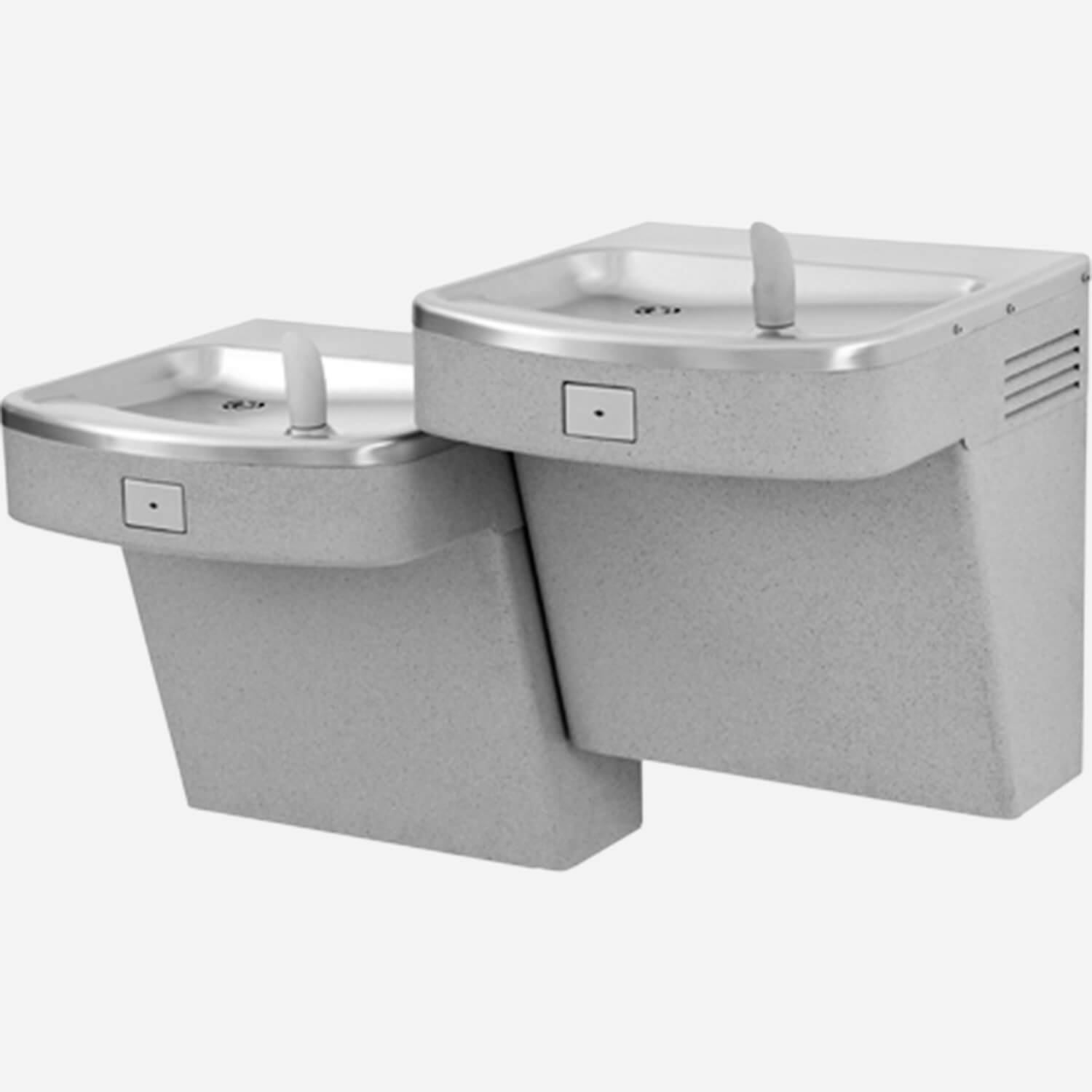

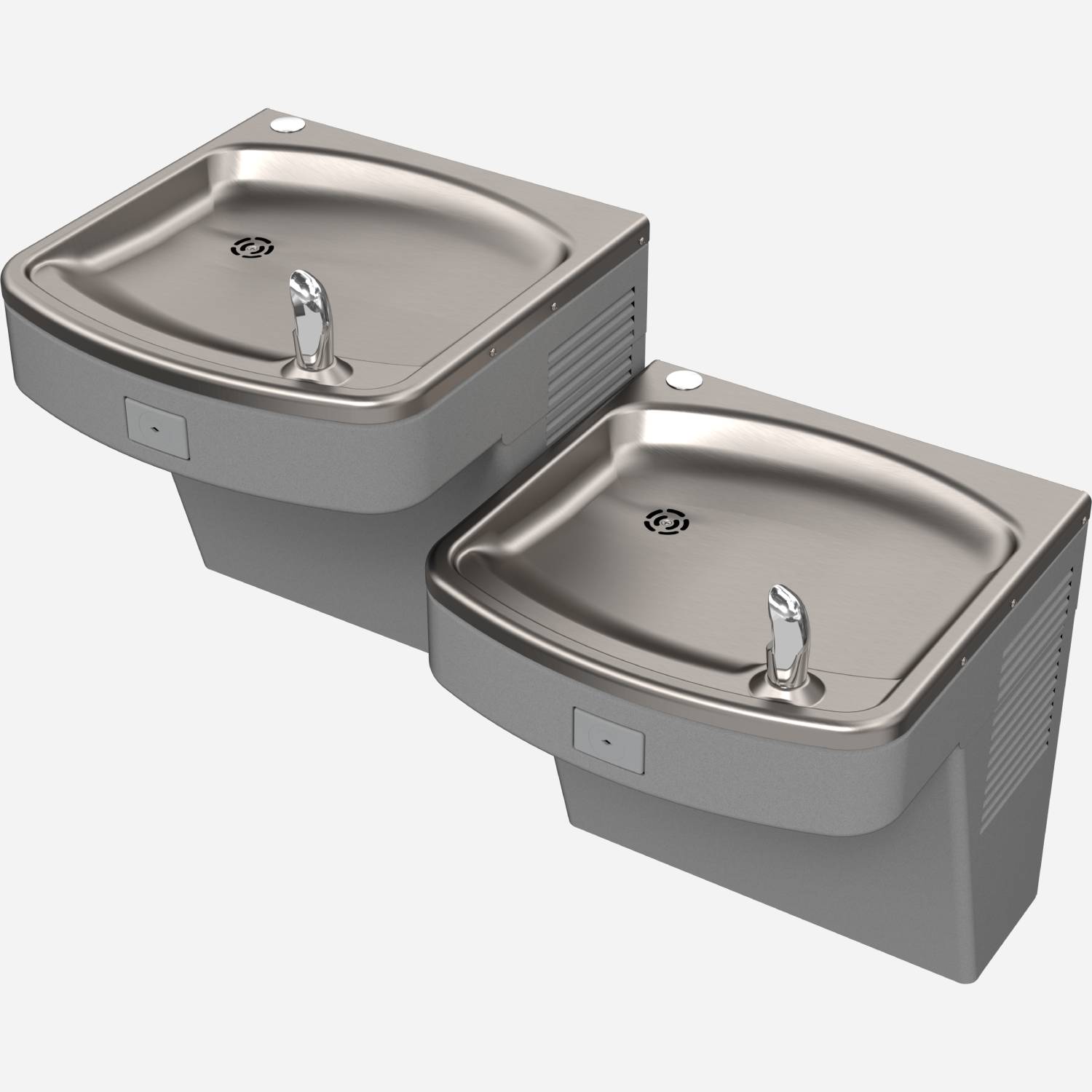

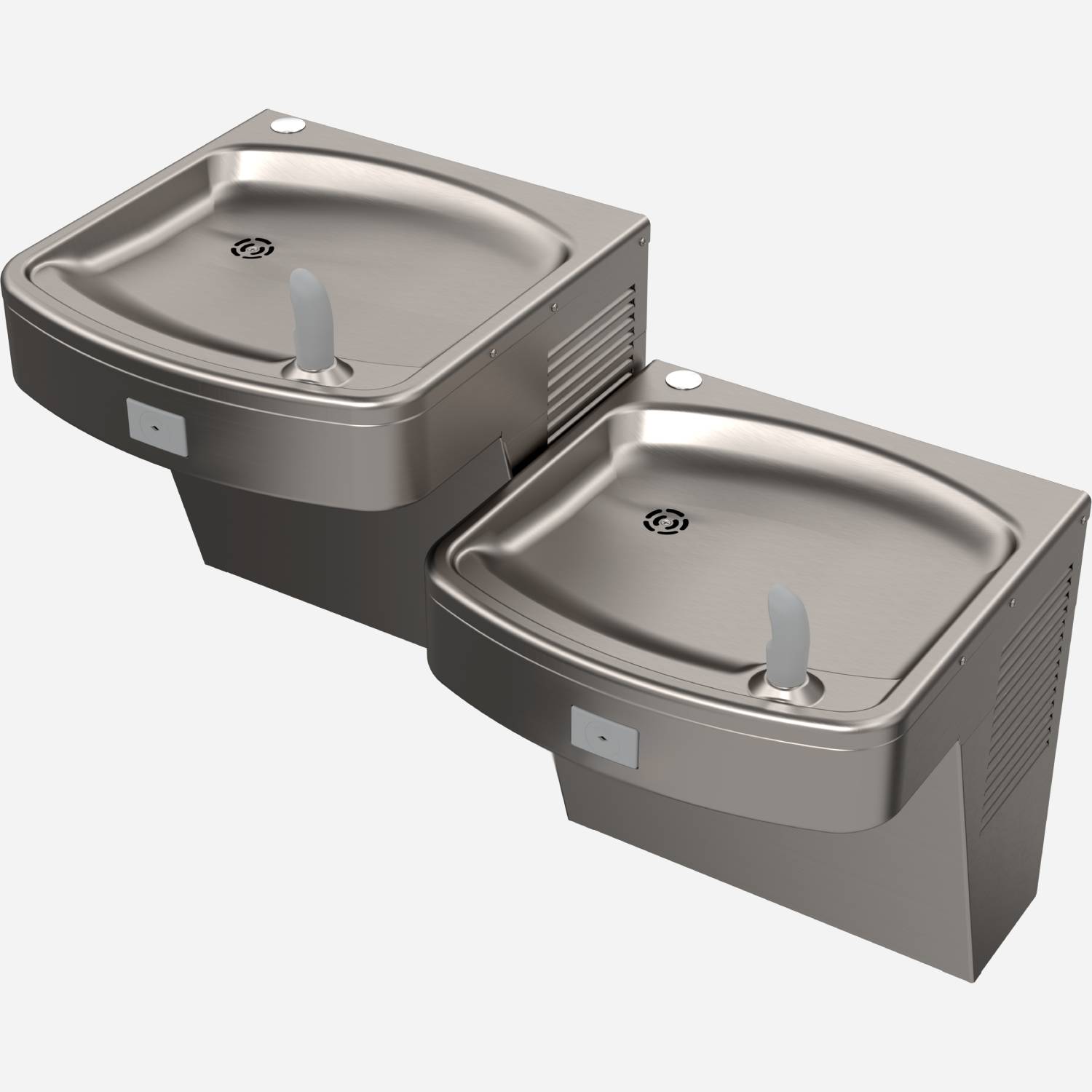

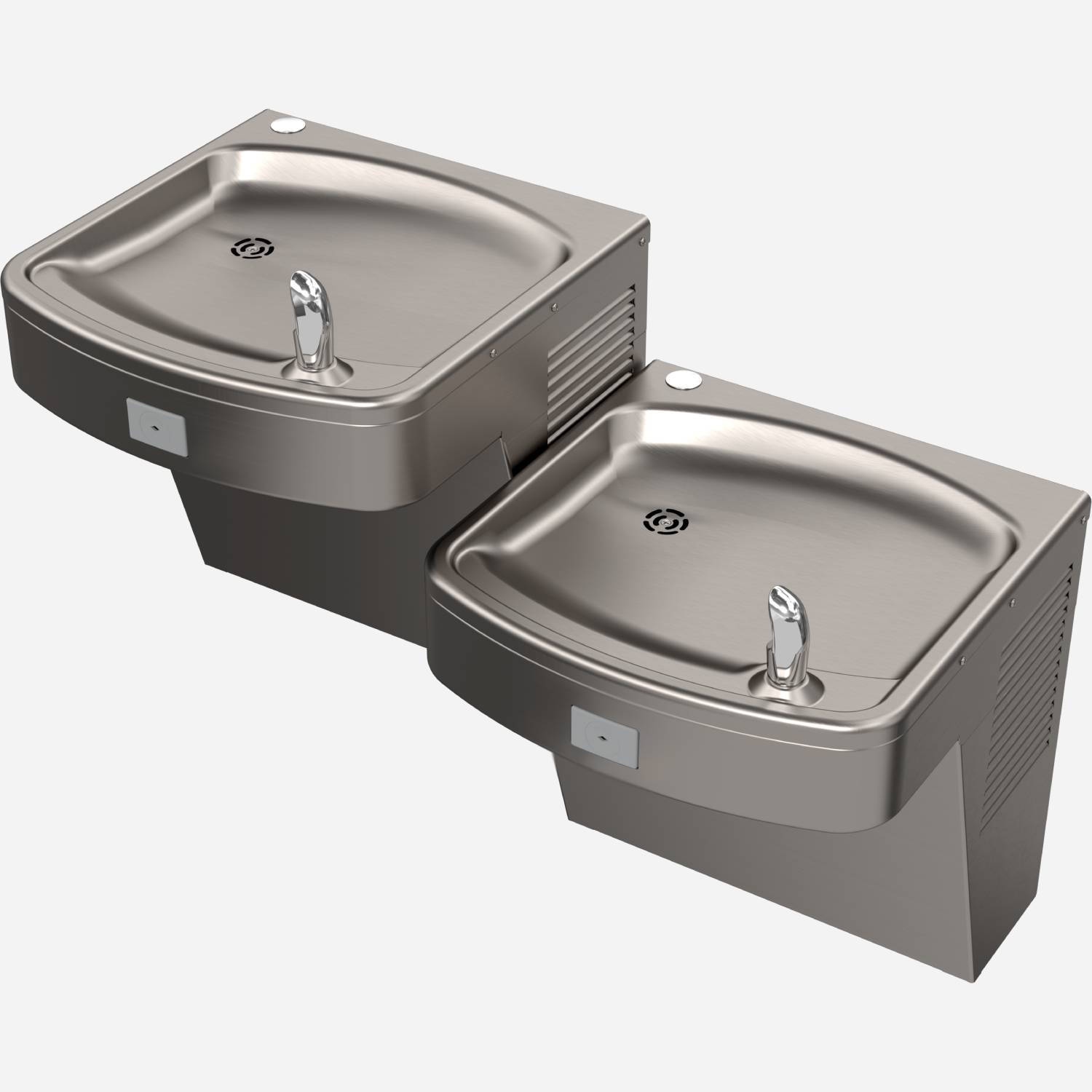

Barrier-Free Universal Bi-Level Wall Mount Drinking Fountain - No Refrigeration
Model A172-UG Series is a pressurized universal bi-level drinking fountain. Basin shall be constructed from 304 stainless steel and have an integral drain. Cabinet shall be either galvanized steel with Texture Grey powder coat or stainless steel. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Murdock's Maintenance Advantage design allows for easy maintenance and installation.
The unit does not have components for refrigerating the water, if refrigeration is desired see A172.8-UG Series Water Cooler shown below.
Drinking Fountain Features
- Universal Bi-Level allows for left-side or right-side high on drinking fountain
- Each drinking fountain station features an single, uncomplicated rectangular mechanical activation button
- Flexible, antimicrobial, non-squirt bubbler or stainless steel bubbler
- Available in galvanized steel with grey textured powder coat or all-stainless steel
- Child or Adult ADA Compliant when properly installed
Model Variations
- A172100F-UG | Textured Grey Finish Bottom, Flexible Bubbler
- A172100S-UG | Textured Grey Finish Bottom, Lead-Free Stainless Steel Bubbler
- A172400F-UG | All-Stainless Steel, Flexible Bubbler
- A172400S-UG | All-Stainless Steel, Lead-Free Stainless Steel Bubbler
Water Filters
Water filters in 3,000 gallon capacity are available for A171 and A172 Series water cooler/drinking fountains. Upgrade your water cooler/drinking fountain with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. The filter is NSF 42, 53, 401 compliant.
- NSF 42The NSF 42 standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- NSF 401NSF 401 addresses PFAS Reduction including PFOA, PFOS, PFHpA, PFHxS, and PFNA.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | ADA Universal Bi-Level Wall Mount Drink Fountain [Model A172-UG - Standard, A172-UG-SO Sensor Activated, A172-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 2 MB | ||
| | ADA Universal Bi-Level Wall Mount Drink Fountain - No Refrigeration | 282 KB | ||
| | Option: 3,000-Gallon Capacity EZ Door® Filter | 924 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | Morris Group International Brands Flyer (pdf) | 718 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series) | 101 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Refrigeration | No Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Universal bi-level - can be installed left high or right high |
| Activation | Drinking fountain - rectangular button |
| No. of Stations | 2 |
| Style | A17 Series |
| Compliances | Lead-Free Federal Law 111-380, cUPC, NSF/ANSI/CAN 61 |
| Accessibility | ADA Compliant |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US 12,410,592 B2 (Drop-down Filter) |
| Brand | Maintenance Advantage®, EZ Door™ |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|

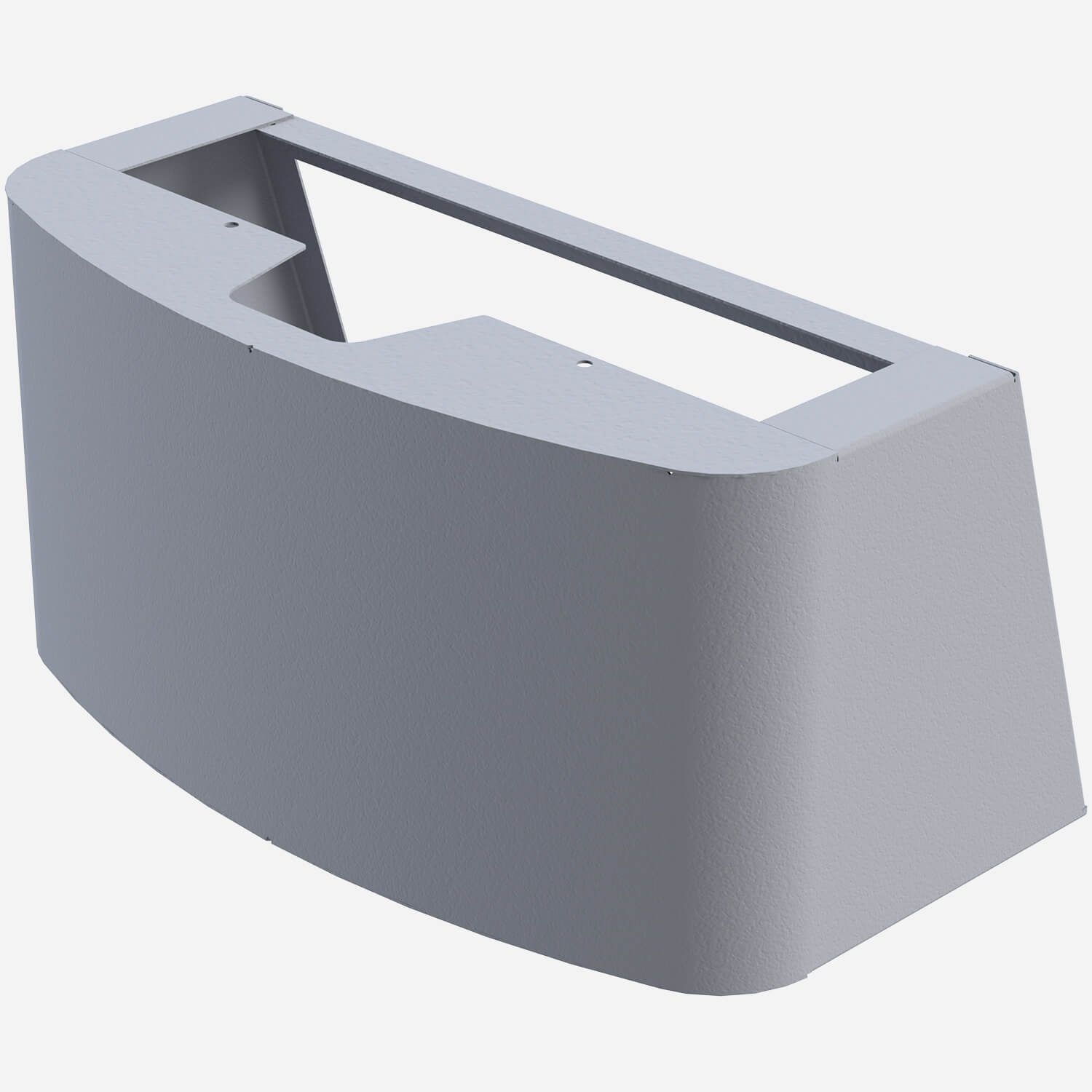

 | SK5 | Accessory: Skirt Assembly for ADA Bi-Level Water Cooler | ||

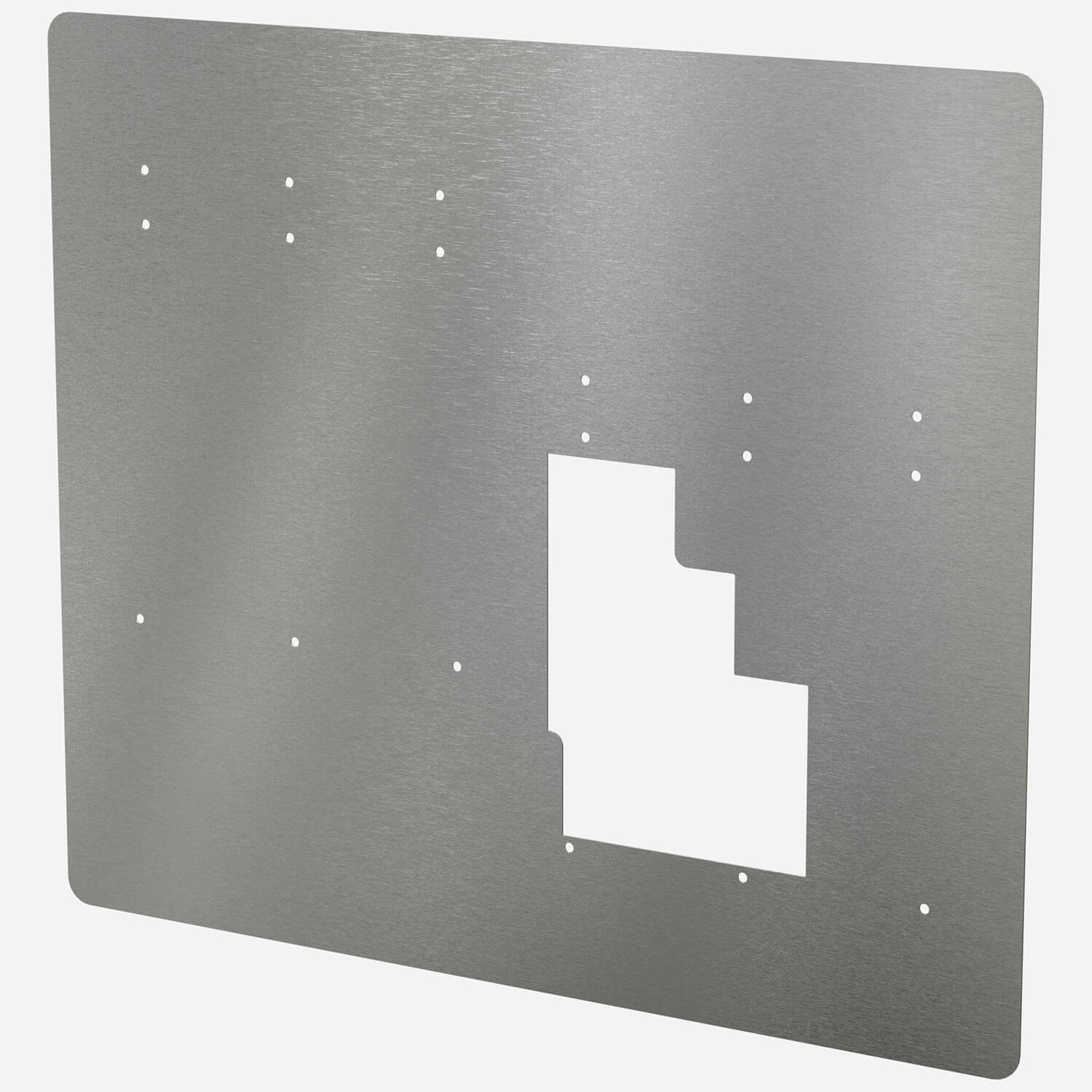

 | WB2 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Right Unit Low | ||
 | WB3 | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler - Orientation Left Unit Low |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
A172100F-UG Textured Grey Finish/ Flexible Bubblers
A172100S-UG Textured Grey Finish/ Stainless Steel Bubblers
A172400F-UG All-Stainless Steel/ Flexible Bubblers
A172400S-UG All-Stainless Steel/ Stainless Steel Bubblers
Popular Options
-SK5 | Cane Detection Skirt for Upper Unit -WF3EZ | 3000-Gallon EZ Door® PFAS Filter
See the submittal or options list
