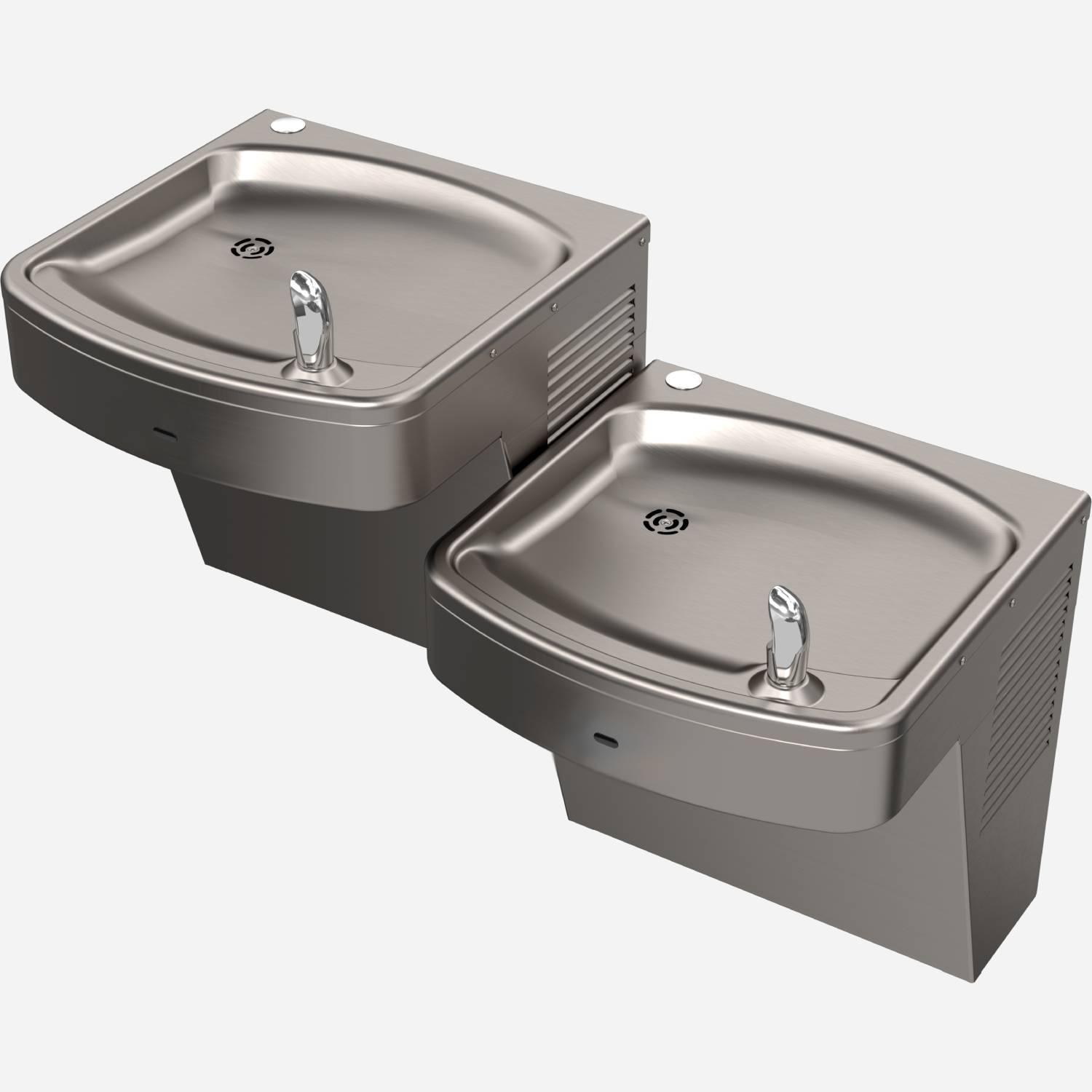

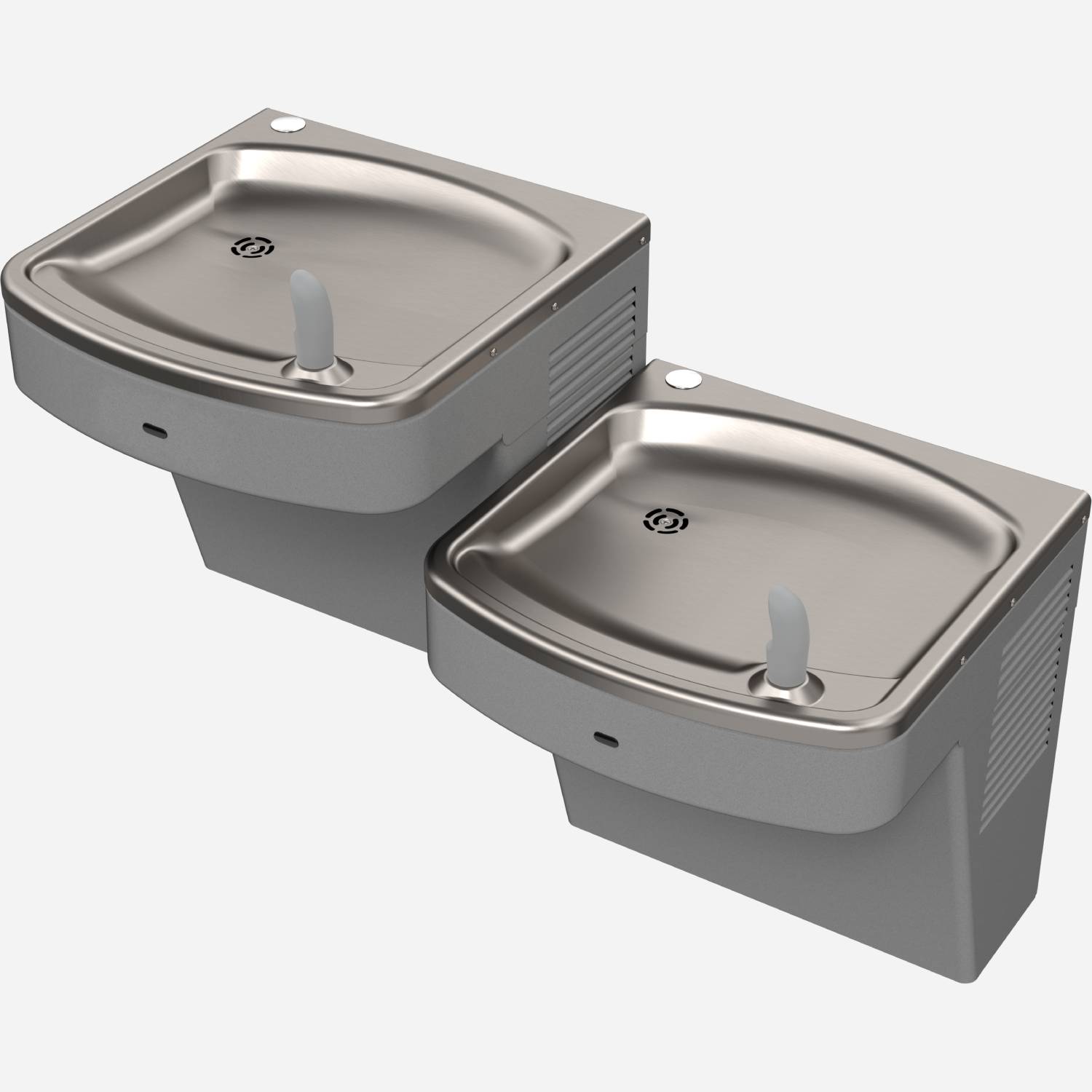

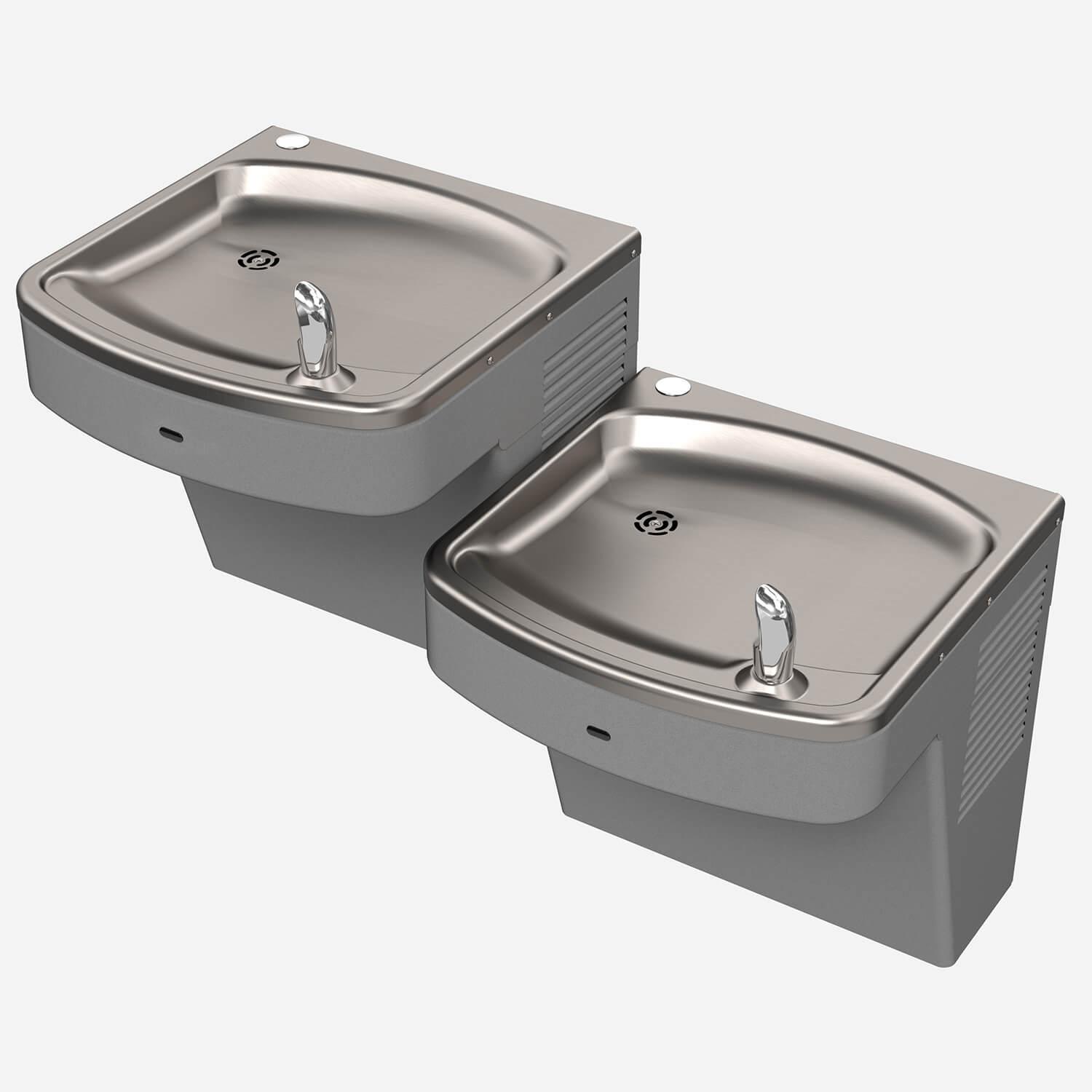

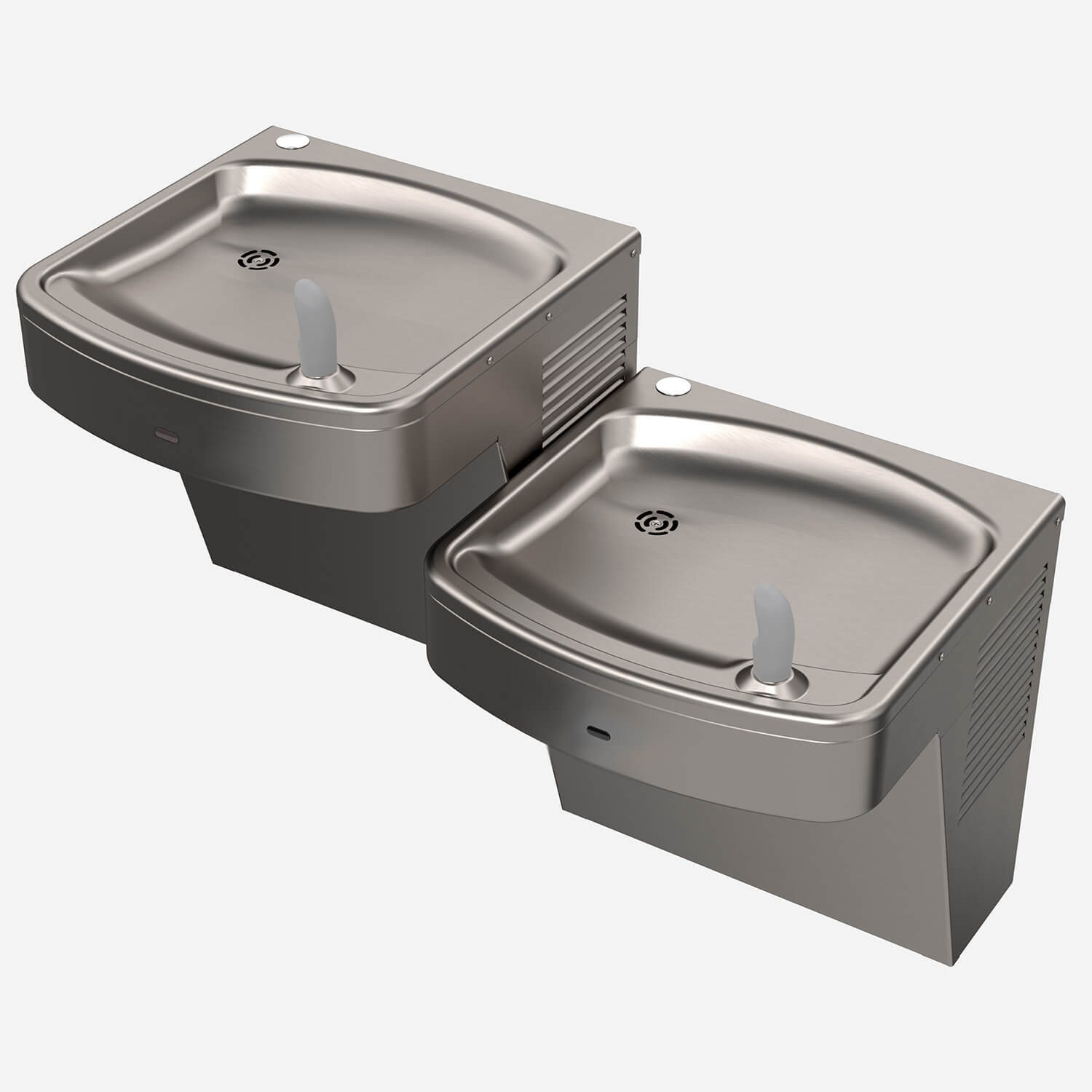

Wall-Mounted, Universal Bi-Level Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel

Model A172-UG-SO Series is a self-contained, Bi-Level, Sensor Operated Drinking Fountain. A front-mounted 9 Volt Infrared Sensor shall activate units. Bubblers shall deliver 0.3 Gallon (1.14 Liter) per Minute flow, have a Flexible Guard with an integrally designed non-squirt feature, and operate on a 20-105 PSIG water pressure range. Basins shall be constructed from 304 Stainless Steel and have an Integral Drain. Cabinets shall be either Galvanized or Galvannealed Steel with Gray Powder Coat Finish or Stainless Steel with Satin Finish. Unit shall be certified to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61. When mounted appropriately, the fixture meets ADA, ADA Standing Person, and ADA Child requirements.

Standard Features

• Rough-Ins Match Other Manufacturer’s for Easy Replacement
• Child or Adult ADA Compliant (When Properly Installed)
• Universal Bi-Level - Can Be Installed Left High or Right High with No Additional Parts Required

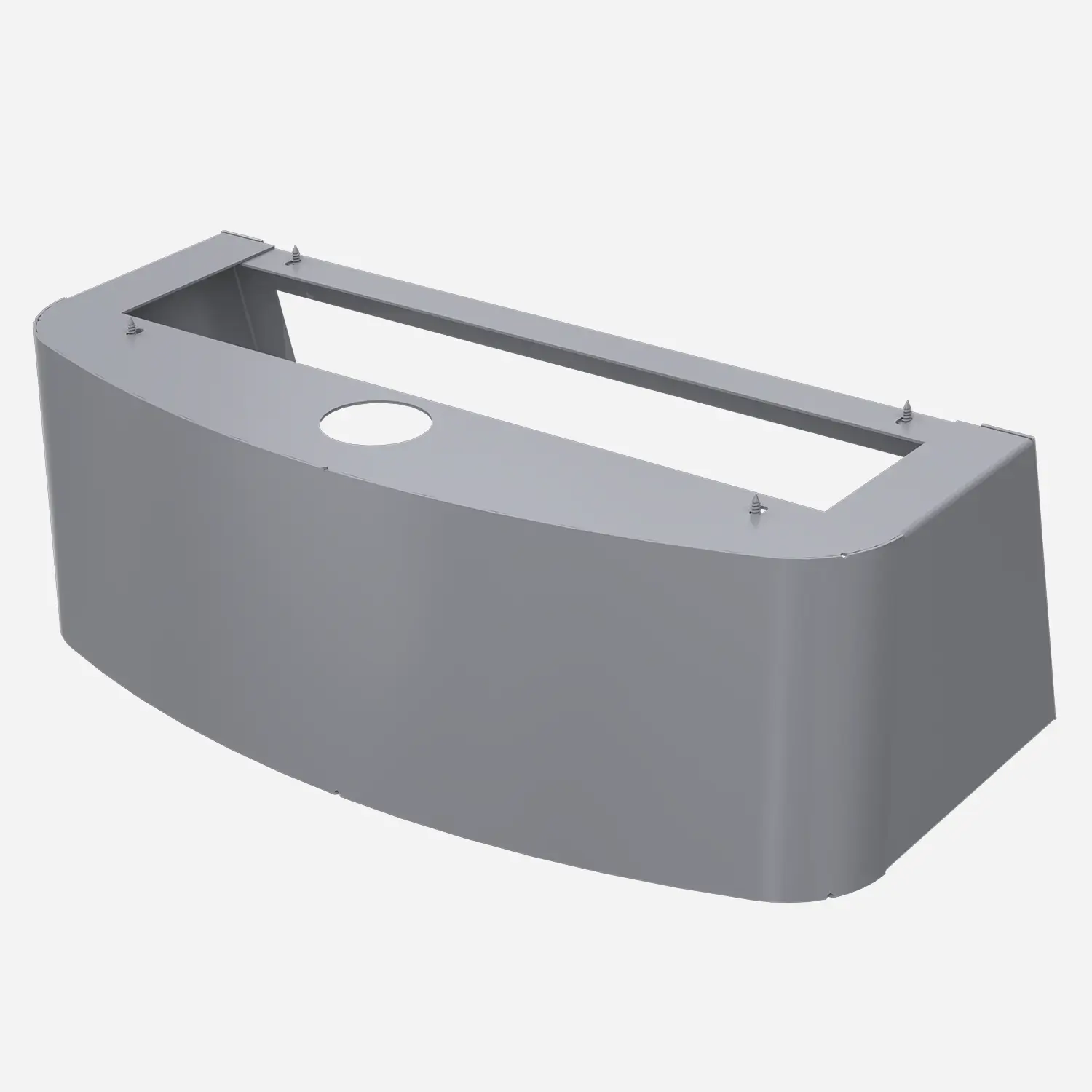

• Apron and One-Piece Bottom Wrapper is Satin Finish or Gray Powder Coat Finish
• Flexible, Low Flow, Anti-Rotation, Non-Squirt Bubbler
• 100-Mesh Inlet Strainer
• Hanging Bracket Provided
• 9-Volt Sensor Operation
