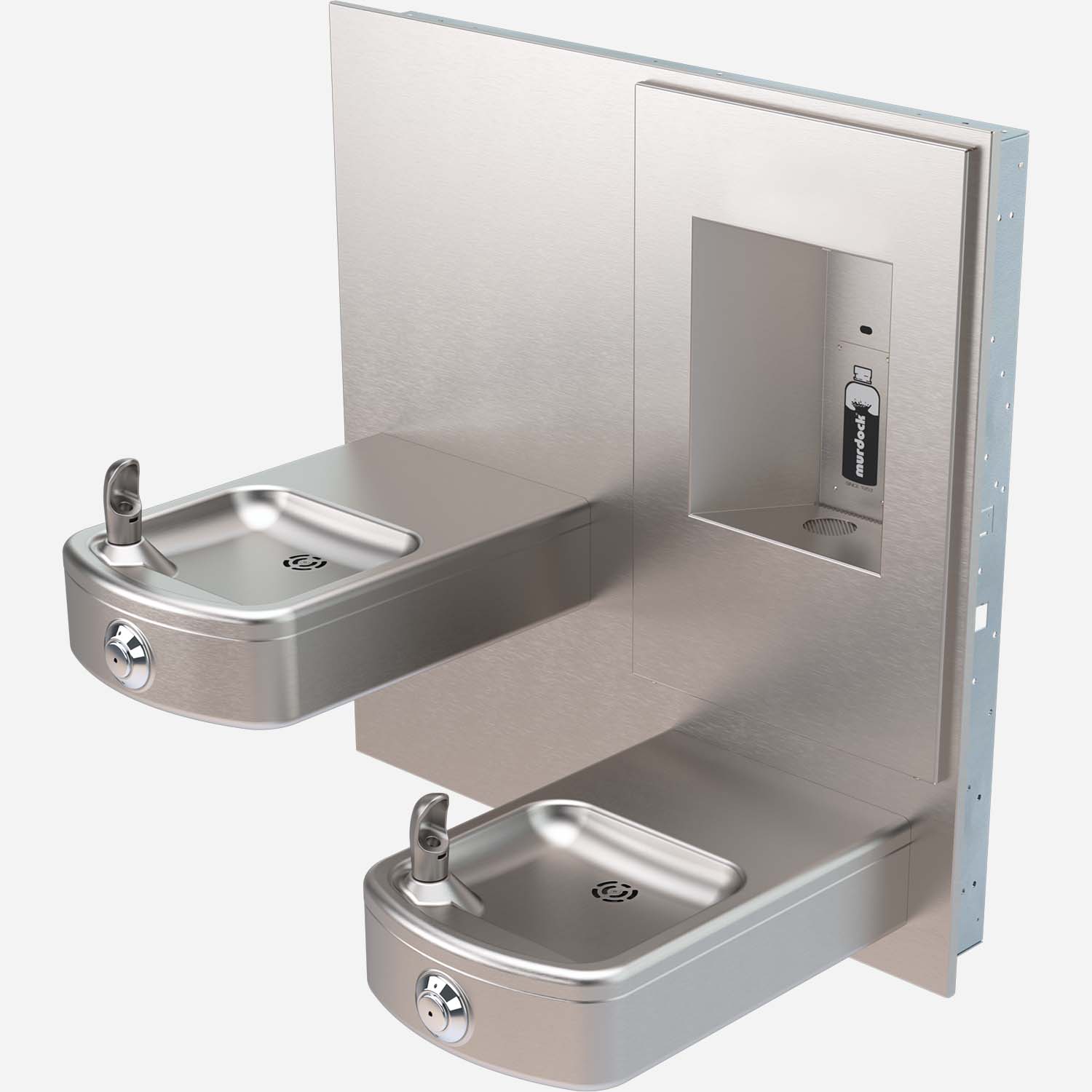

Vandal-Resistant, Wall-Mounted, Bi-Level, Square Drinking Fountain with Touchless Water Bottle Filling Station - Non-Refrigerated, ADA, Stainless Steel
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
 | | Barrier-Free Wall Mount Bi-Level Box Drinking Fountain with Bottle Filler [A152400S-VR-BF4 | Vandal-Resistant Pushbutton Drinking Fountain Activation; A152400S-SO-BF4 | Sensor Activated Drinking Fountain] includes Parts Manual | 2 MB | ||
| | Rounded Box Barrier-Free Wall Mount Bi-Level Drinking Fountain with Vandal Resistant Button and Sensor Bottle Filler [Standard Model A152400S-VR-BF4] | 176 KB | ||
| | Rounded Box Barrier-Free Wall Mount Bi-Level Drinking Fountain with Vandal Resistant Button and Push Button Bottle Filler [Standard Model A152400S-VR-BF3] | 180 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Style | Indoor Rounded Box |
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel |
| Product Features | Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Round Vandal-Resistant Pushbutton, Auto-Stop (Servicing Strainer Shuts Off Water Supply) |
| No. of Stations | 2 |
| Refrigeration | No Refrigeration |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
| Activation | Sensor |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -AP3 | Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK3-18 | Accessory: Skirt Assembly for Bi-Level Rounded Box Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High | ||
 | BCD | Option: Bottle Counter Display |
Models
Typical models are shown below
A152400S-VR All-Stainless Steel Lead-Free Stainless Steel Bubbler
A152400F-VR All-Stainless Steel, Flexible Bubbler
A152400S-VR-HP High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A132200S-VR Bronze Finish with matching finish bubbler
A132300S-VR High Polished Gold Finish with matching finish bubbler
-BF4 Sensor, Plug-in Powered submittal
-BF4-BAT Sensor, Battery-Powered submittal

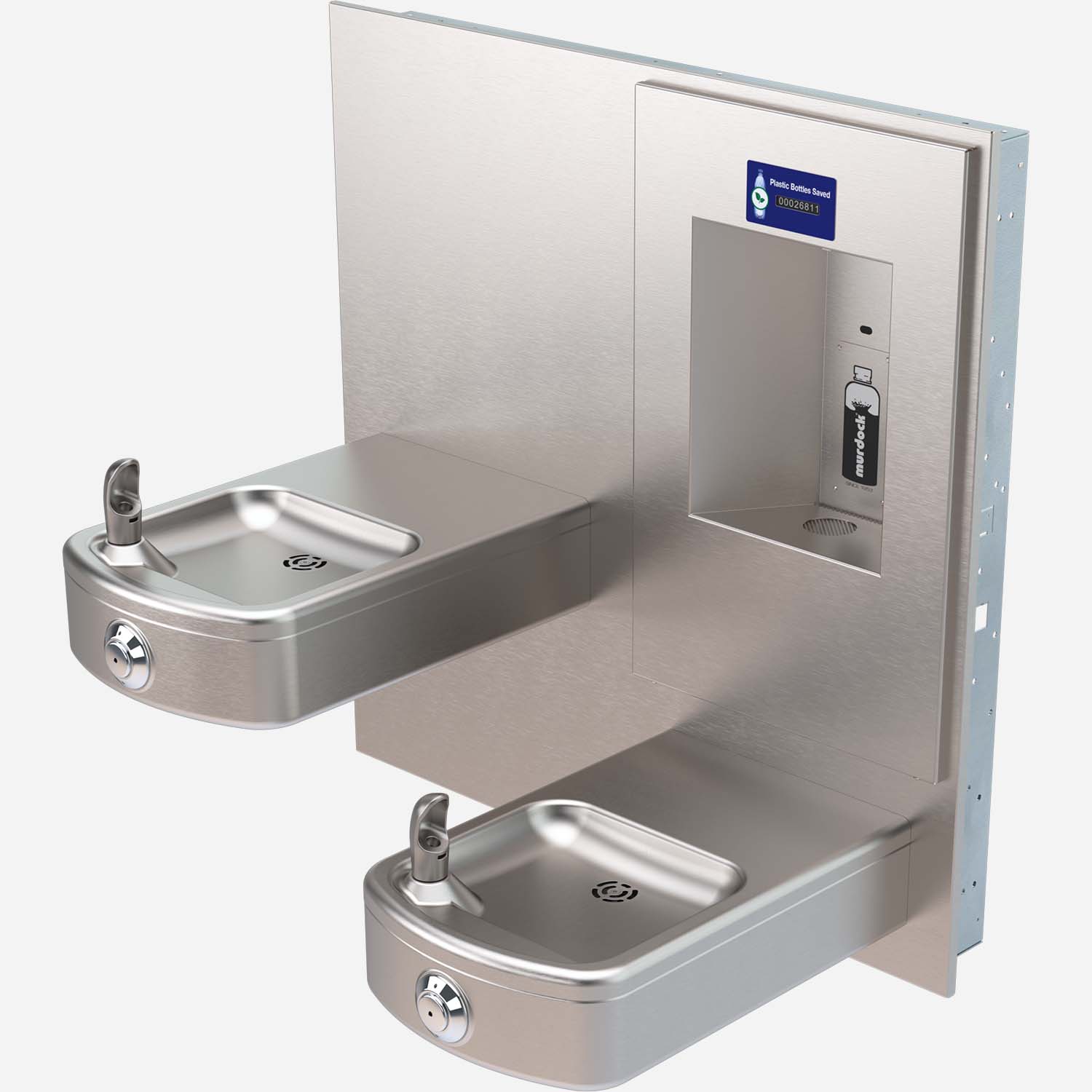

-BF4-BCD Sensor, Plug-in, Bottle Counter Display submittal
-BF3 Push Button Activated, No Electrical submittal
Popular Options/Accessories include:-RBL | Reverse Bi-Level - right fountain high, bottle filler on left side -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -SK4-18 | Skirt kit for upper fountain
Other options are available. See Options List and/or Submittal
Details
This fountain features a round vandal-resistant push button with an auto-stop.
The patented Push Button Auto Stop feature is part of Murdock's A15-VR units. It seamlessly incorporates the heavy-duty Vandal Resistant button for additional security while allowing easy access to the push button for routine maintenance.
How does Murdock do this? An integral fine screen strainer, an extra feature, captures any small debris in the supply line, preventing it from entering the push-button cartridge. When the strainer is removed, the water flow to the cartridge is stopped, allowing easy front access for its removal and replacement. Once the retaining ring is snugged down after cartridge replacement and the strainer is returned to its position, the stream height exiting the bubbler is easily adjusted right from the front of the button. Remember, this is ALL done without the time-consuming disassembly of the unit for routine maintenance!
