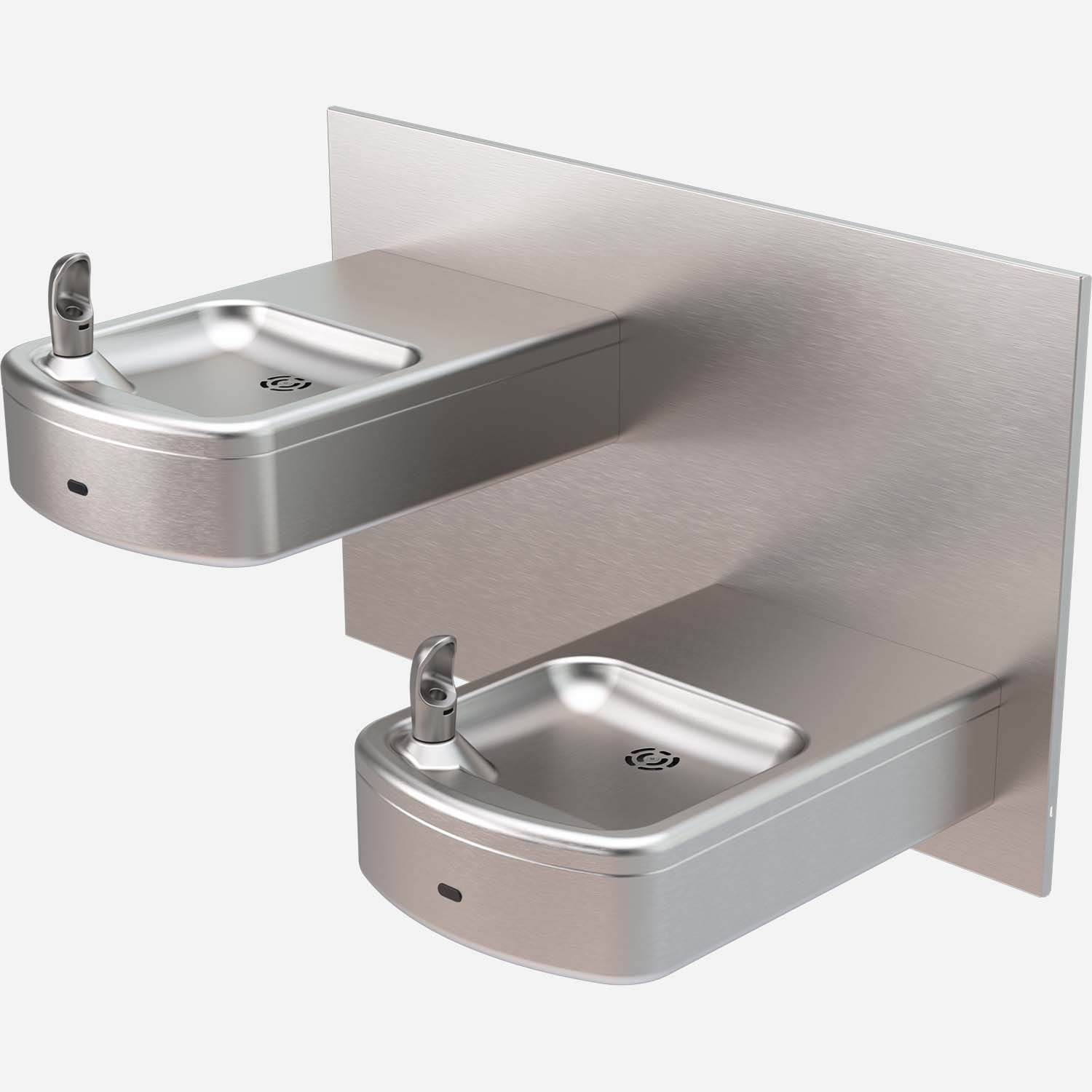

Rounded Box, Barrier-Free, Bi-Level Wall Mounted Drinking Fountain - Sensor Activated
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Rounded Box Barrier-Free Wall Mount Bi-Level Drinking Fountain [A152400S | Vandal-Resistant Round Pushbutton; A152400S-SO | Sensor Activated]; part manual included | 1003 KB | ||
| | Rounded Box, Barrier-Free, Wall Mount Bi-Level Drink Fountain with Sensor Activation [Standard Model A152400S-SO] | 162 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Bronze, High-Polish Gold, High-Polish Stainless Steel |
| Mounting | Wall-Mounted |
| No. of Stations | 2 |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada), Lead-Free Federal Law 111-380, cUPC |
| Refrigeration | No Refrigeration |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
| Product Features | Hands-Free Operation |
| Usage | Indoor |
| Style | Indoor Rounded Box |
| Accessibility | ADA Compliant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -AP3 | Accessory: Wall Mount Bi-Level Access Panel for A13 and A15 Fountains | ||
 | -MF8 | Accessory: Mounting Frame for a Bi-Level A132 or A152 Fountain | ||
 | -W32-CSC | Accessory: Concealed Support Carrier for Bi-Level A132 or A152 Drinking Fountain | ||
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | SK3-18 | Accessory: Skirt Assembly for Bi-Level Rounded Box Drinking Fountain | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -RBL | Option: Reverse Bi-Level - Left Low/Right High |
Models
Typical models are shown below
A152400S-SO All-Stainless Steel Lead-Free Stainless Steel Bubbler
A152400F-SO All-Stainless Steel, Flexible Bubbler
A152400S-HP-SO High Polished Stainless Steel, Lead-Free Stainless Steel Bubbler
A152200S-SO Bronze Finish with matching finish bubbler
A152300S-SO High Polished Gold Finish with matching finish bubbler
Popular Options/Accessories include:
-AP3 | Access panel for a dual fountain (Must select -Mf8) -W32-CSC | Concealed support carrier -HP | High-polished stainless steel -MF8 | Mounting frame for a dual fountain -WF1 | 1500 gallon capacity, NSF 42+53, 1-micron lead reduction filter -WF3 | 3000 gallon capacity, NSF 42+53, 1-micron lead reduction filter -RBL | Reverse bi-Level - right fountain high, left fountain low -SK4-18 | Skirt kit for upper fountain
Other options are available. See Options List and/or Submittal
Note: Mounting plate A0000000-MP2-W32 may be ordered in advance for a pre-mounted rough-in.
