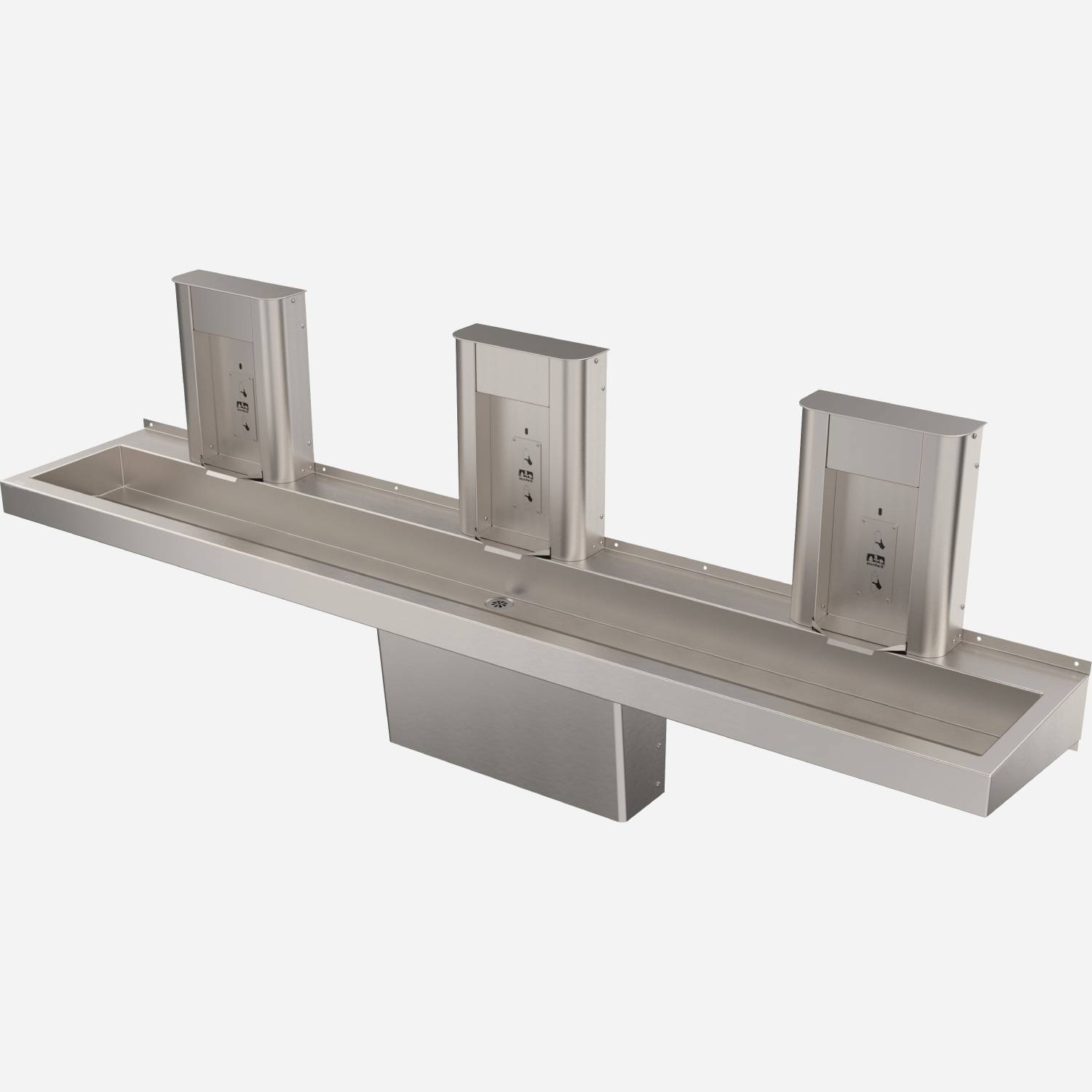

Wall-Mounted, 3-Station, Stainless Steel Trough Sink & Water Bottle Filler - ADA
The MD-DSW390 wall-mounted deluxe troughs with water bottle filling stations are a compact, convenient alternative to single-use plastic and also provide the option of adding hand-washing capability. This model is 90" (2,286 mm) wide and features three barrier-free, ADA-compliant stations. Water refill stations are available with either push button or sensor activation, and the stainless steel trough is designed to catch and drain any excess water to help avoid slippery floors.
Faucets can be specified in place of a water bottle filler to create hand-washing stations. Additional options include a soap dispenser, trap enclosure, and splash guards.
Features
- Three stations, 90" (2,286 mm) wide
- 16-gauge, type 304 stainless steel with an easy-to-clean satin finish

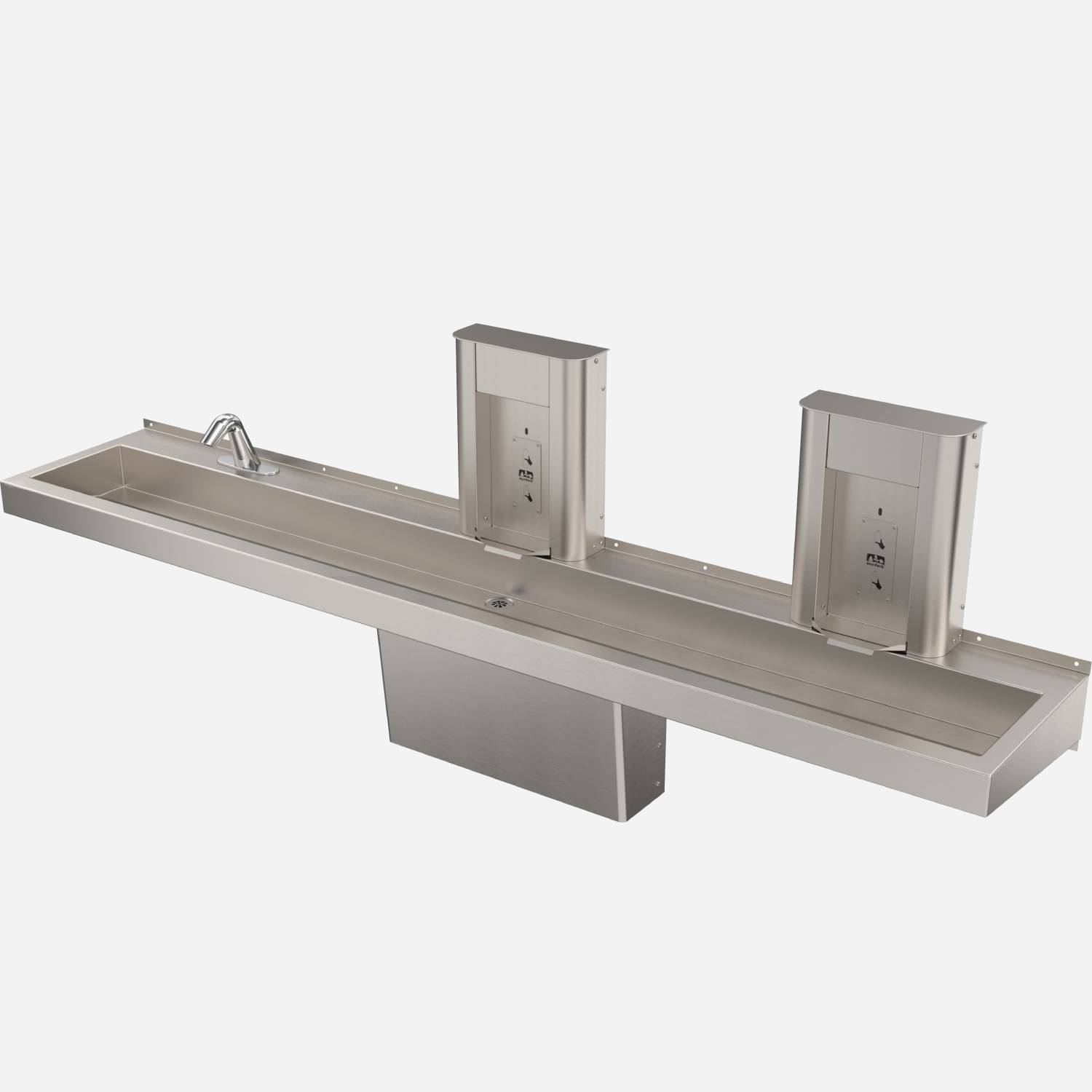

- Choice of water bottle filler or faucet at each station; manual and touchless sensor operation available for both
- Pre-drilled for a 4" (102 mm) centerset faucet, when specified; multiple faucet styles available
- Pre-drilled backsplash return provided for mounting the unit to a reinforced wall
- Basin is punched to accept a 1-1/2" drain assembly
- Complies with UPC/cUPC and ASME A112.19.3
- ADA compliant
- Options: Soap dispenser, splash guards, stainless steel trap enclosure (24" or 54" wide), Enviro-Glaze® powder coated color
Interested? Let’s talk.
For more information or to place an order, call (800) 453-7465, email [email protected], or use the form below!
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Three-Station Deluxe Stainless Steel Trough & Water Refill Station - 90" wide | 0 | 437 KB | ||
| | Deluxe Stainless Steel Trough Refill and Hand Wash Station [MD-DSW130 one-station 30"; MD-DSW260 two-station 60"; MD-DSW390 three-station 90"; MD-DSW4120 four-station 120"] | 0 | 305 KB | ||
 | | Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"] | 0 | 2 MB | ||
| | Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"] | 0 | 1 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
| | Deluxe Trough with Bottle Filler (pdf) | 0 | 406 KB |
Specifications
| Style | Trough |
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Usage | Indoor, Outdoor |
| No. of Stations | 3 |
| Compliances | cUPC, ASME A112.19.3 |
| Patent | US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler), Patent Pending |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -DSW000-SG | Accessory: Splash Guard for Mult-Station Deluxe Bottle Filler Trough | ||
 | DSW000-TC1 | Accessory: Single 24" Wide Trap Enclosure for Deluxe Trough Sink | ||
 | SW000-PT | Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap | ||
 | SW000-PTC | Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap | ||
 | WH-DECAL | Accessory: 10" Round Decal with "Wash Your Hands" Reminder |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -PS | Option: Pump Liquid Soap Dispenser | ||
 | -SSO | Option: Sensor Operated Soap Dispenser | ||
 | BF1SC | Heavy-Duty, Deck-Mounted, Push Button, Universal, Compact Water Bottle Filling Station - Stainless Steel | ||
 | BF2SC | Heavy-Duty, Deck-Mounted, Touchless, Universal, Compact Water Bottle Filling Station - Stainless Steel | ||
 | EG | Option: Enviro-Glaze® Powder Coating |
