Name: Wall-Mounted, 4-Station, Stainless Steel Trough Sink & Water Bottle Filler - ADA
Brand: Murdock Manufacturing
SKU: MD-DSW4120

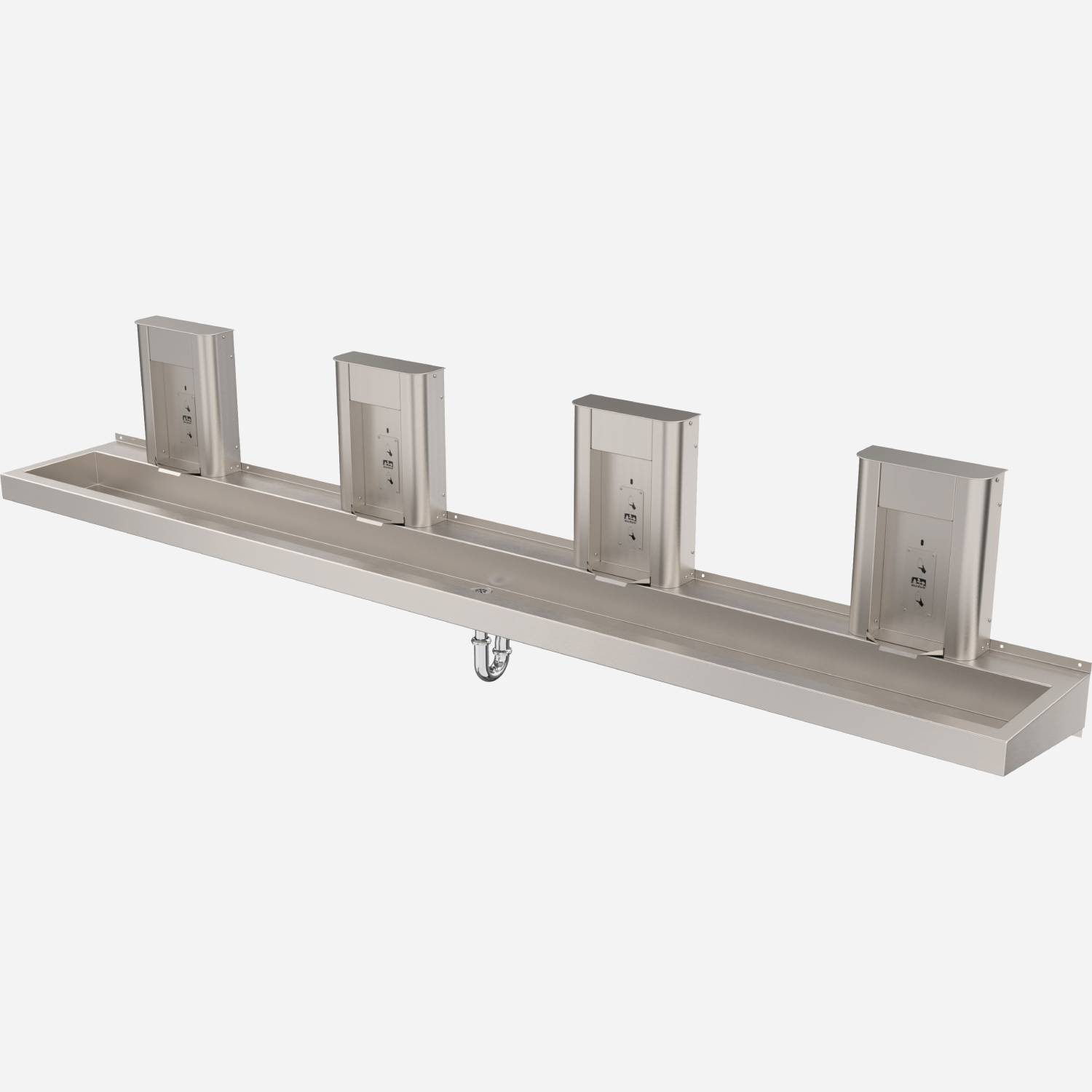

Model MD-DSW4120

Wall-Mounted, 4-Station, Stainless Steel Trough Sink & Water Bottle Filler - ADA

The MD-DSW4120 wall-mounted deluxe troughs with water bottle filling stations are a compact, convenient alternative to single use plastic and also provide the option of adding hand washing capability. This model is 120" (3,048 mm) wide and features four barrier-free, ADA-compliant stations. Water refill stations are available with either push button or sensor activation, and the stainless steel trough is designed to catch and drain any excess water to help avoid slippery floors.

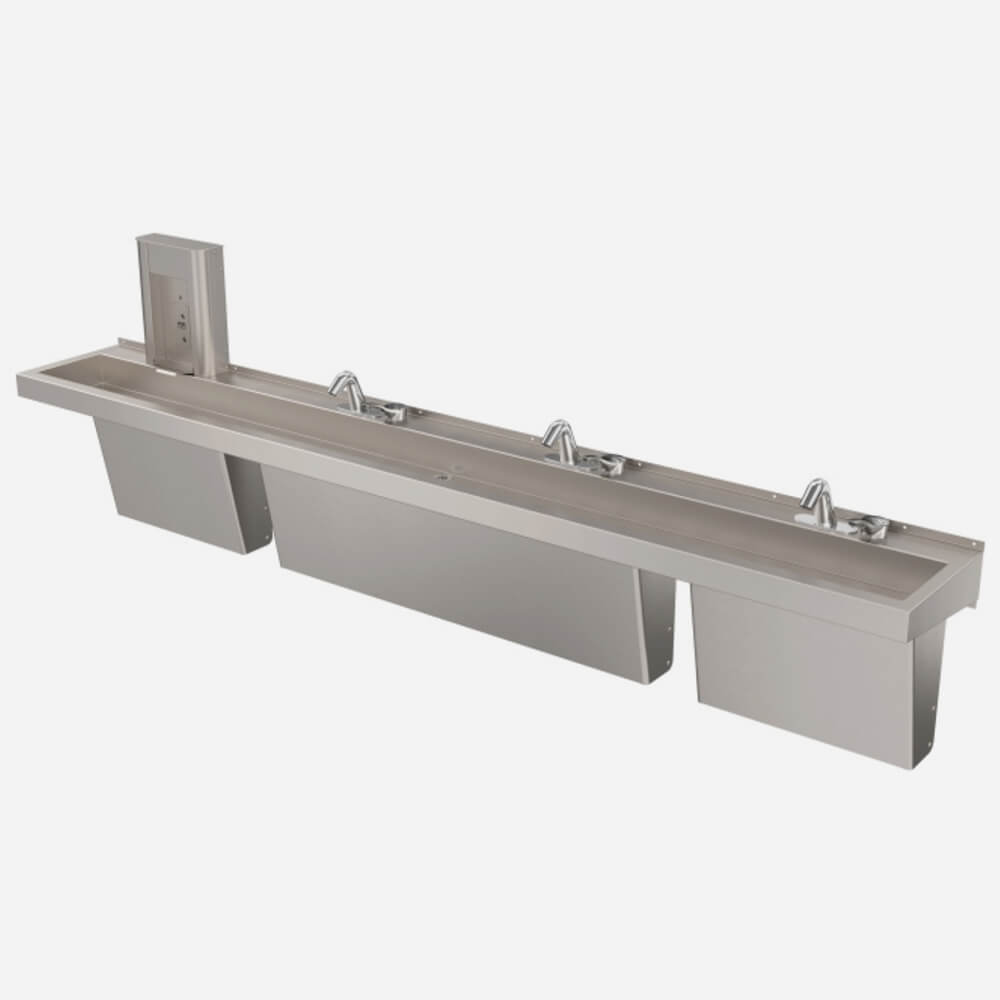

Faucets can be specified in place of a water bottle filler to create hand washing stations. Additional options include a soap dispenser, trap enclosure, and splash guards.

Features

Four stations, 120" (3,048 mm) wide
16-gauge, type 304 stainless steel with an easy-to-clean satin finish
Choice of water bottle filler or faucet at each station; manual and touchless sensor operation available for both
Pre-drilled for a 4" (102 mm) centerset faucet, when specified; multiple faucet styles available
Pre-drilled backsplash return provided for mounting the unit to a reinforced wall
Basin is punched to accept a 1-1/2" drain assembly
Complies with UPC/cUPC and ASME A112.19.3
ADA compliant
Options: Soap dispenser, splash guards, stainless steel trap enclosure (24" or 54" wide), Enviro-Glaze® powder coated color

Interested? Let’s talk.

For more information or to place an order, call (800) 453-7465, email [email protected], or use the form below!

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide MD-DSW4120 Trough Sink	Four-Station Deluxe Stainless Steel Trough & Water Refill Station - 120" wide	665 KB
Submittals	Submittal MD-DSW130 MD-DSW260 MD-DSW390 MD-DSW4120 Trough Refill Station and Hand Wash	Deluxe Stainless Steel Trough Refill and Hand Wash Station [MD-DSW130 one-station 30"; MD-DSW260 two-station 60"; MD-DSW390 three-station 90"; MD-DSW4120 four-station 120"]	305 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Brochures/Flyers	Deluxe Trough with Bottle Filler (pdf)	Deluxe Trough with Bottle Filler (pdf)	406 KB
Revit/BIM/CAD Drawings	MD-DSW130 MD-DSW260 MD-DSW390 MD-DSW4120 Sink (rfa/zip)	Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"]	2 MB
Revit/BIM/CAD Drawings	MD-DSW130, MD-DSW260, MD-DSW390, MD-DSW4120 Trough Sink (dwg/zip)	Deluxe Stainless Steel Trough & Water Refill Station [MD-DSW130 One-Station 30"; MD-DSW260 Two-Station 60"; MD-DSW390 Three Station 90"; MD-DSW4120 Four-Station 120"]	1 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Style	Trough
Material	Stainless Steel
Mounting	Wall-Mounted
Usage	Indoor, Outdoor
No. of Stations	4
Compliances	ASME A112.19.3, cUPC
Patent	US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler), Patent Pending

Options

Accessories

	Image	Model	Description	Downloads

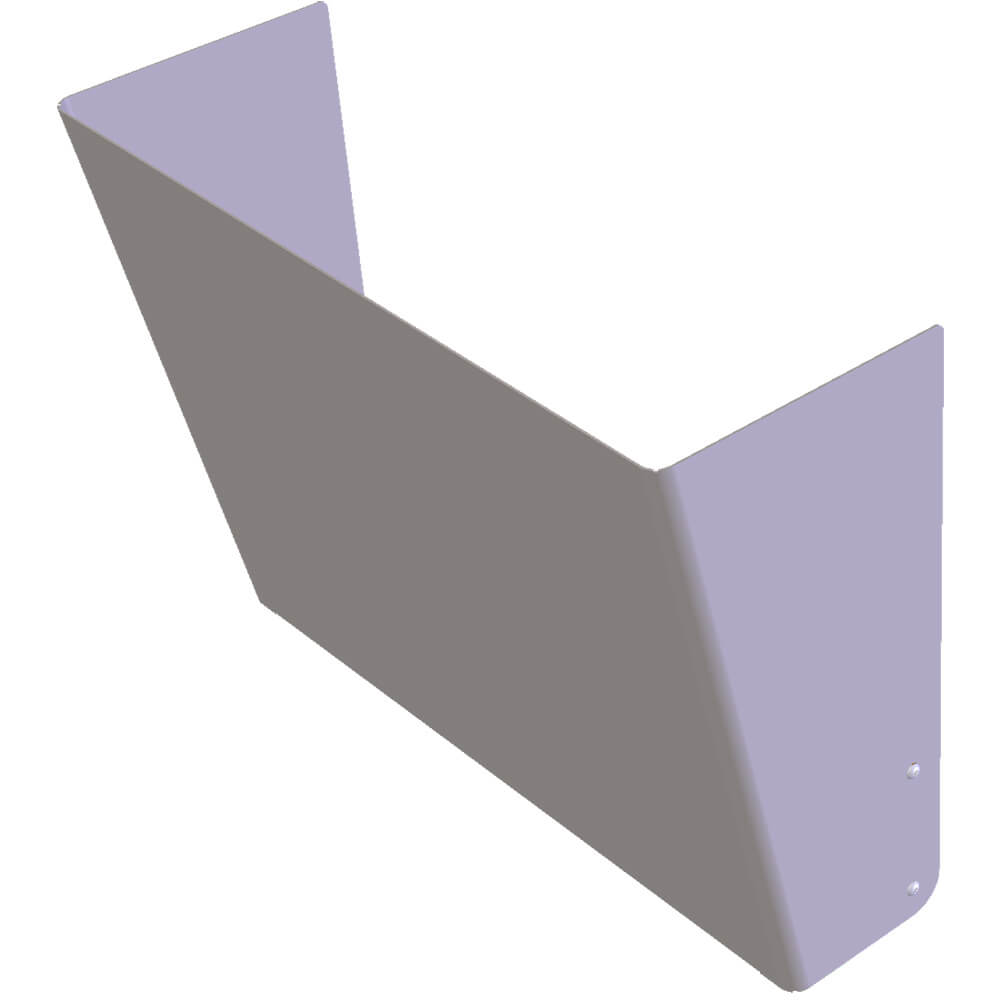

		DSW000-TC1	Accessory: Single 24" Wide Trap Enclosure for Deluxe Trough Sink

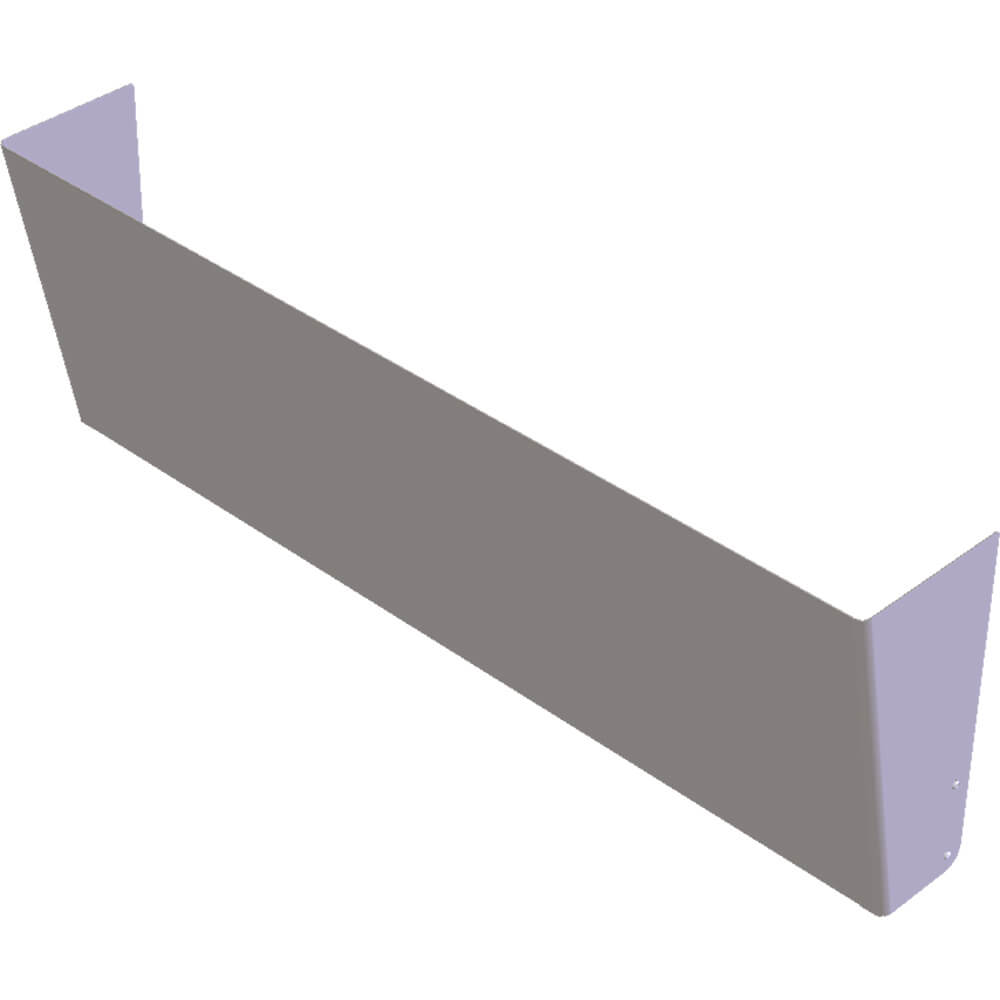

		DSW000-TC2	Accessory: Single 54" Wide Trap Enclosure for Deluxe Trough Sink

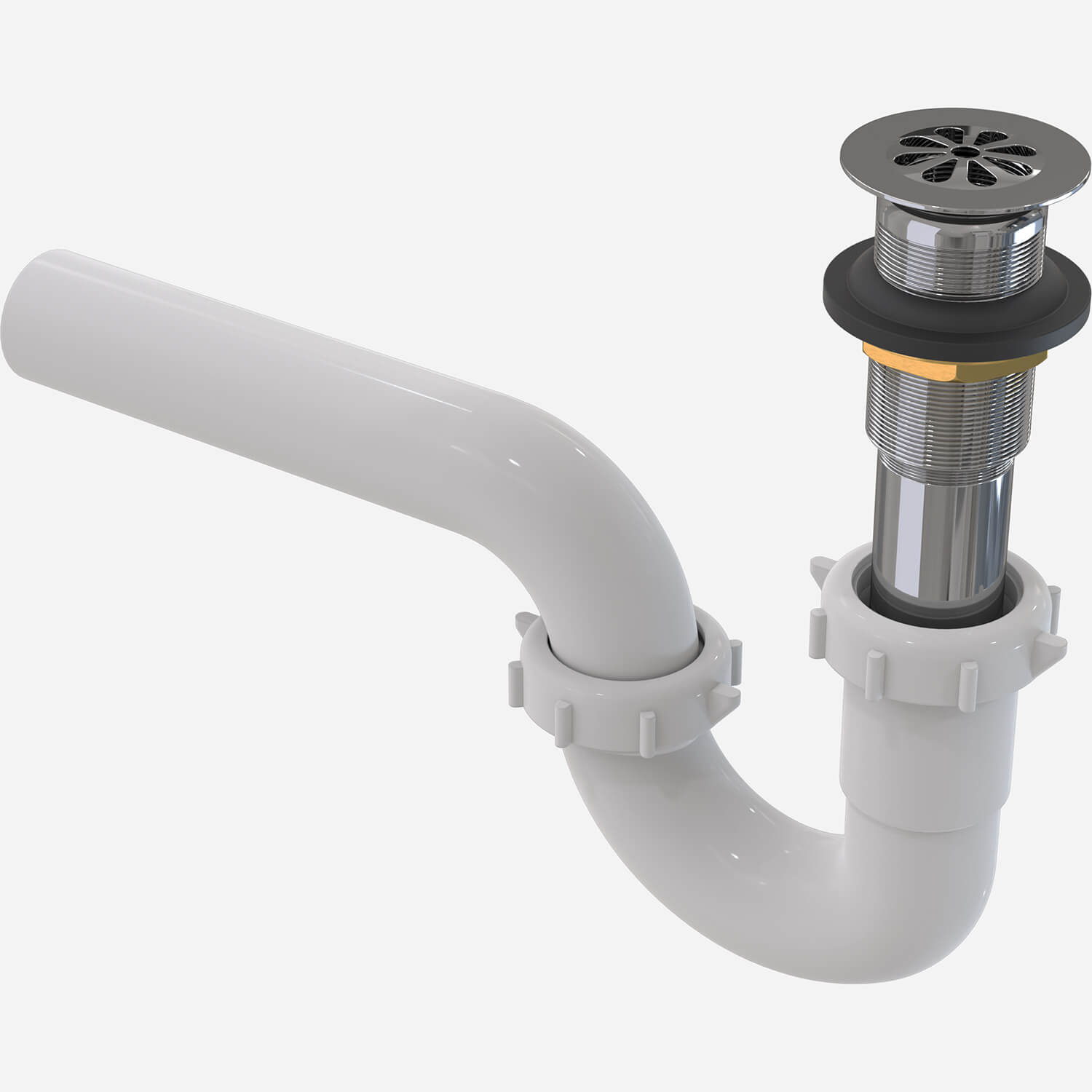

		SW000-PT	Accessory: Daisy Strainer with Tailpiece and 1-1/2” P-Trap

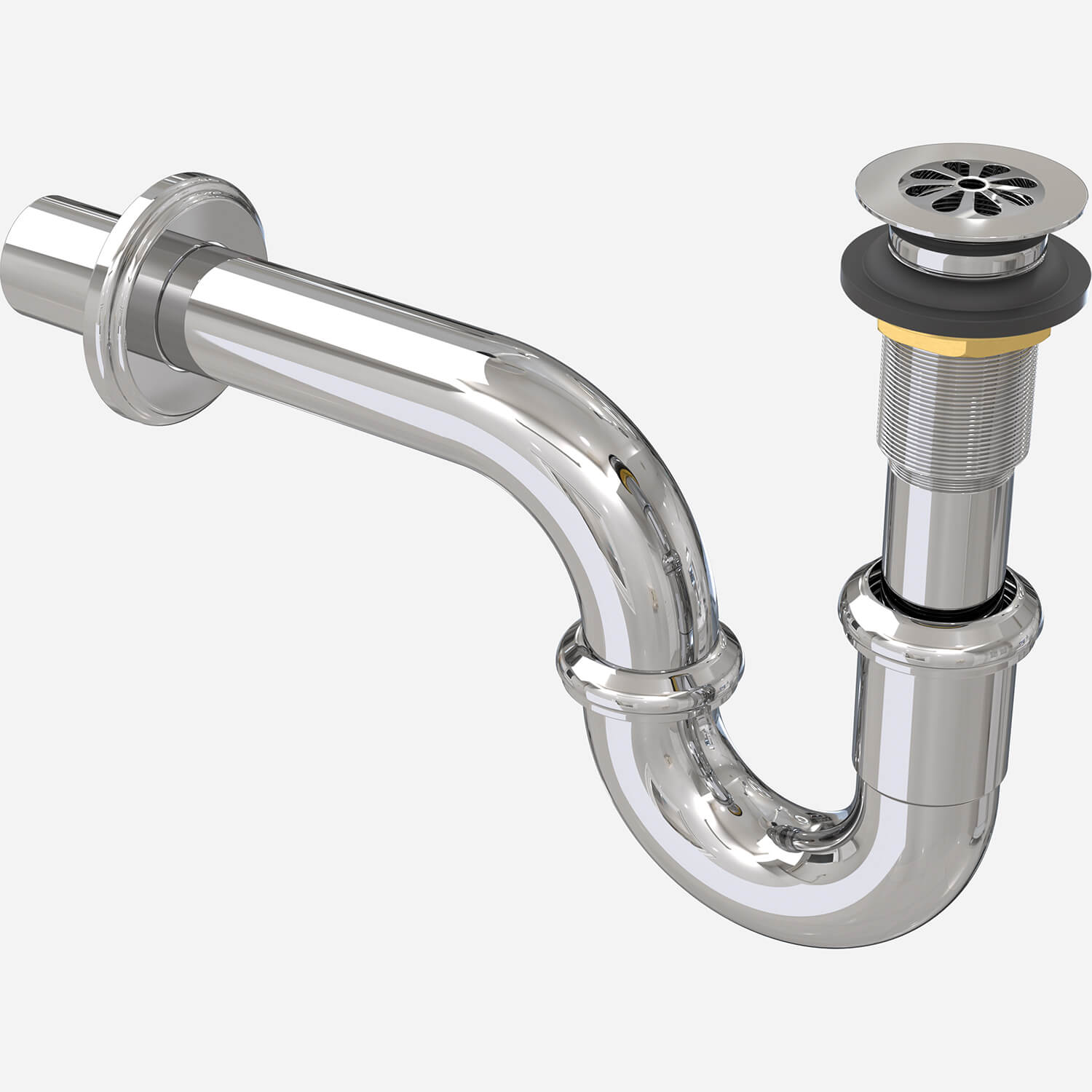

		SW000-PTC	Accessory: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap
		WH-DECAL	Accessory: 10" Round Decal with "Wash Your Hands" Reminder

Miscellaneous

	Image	Model	Description	Downloads

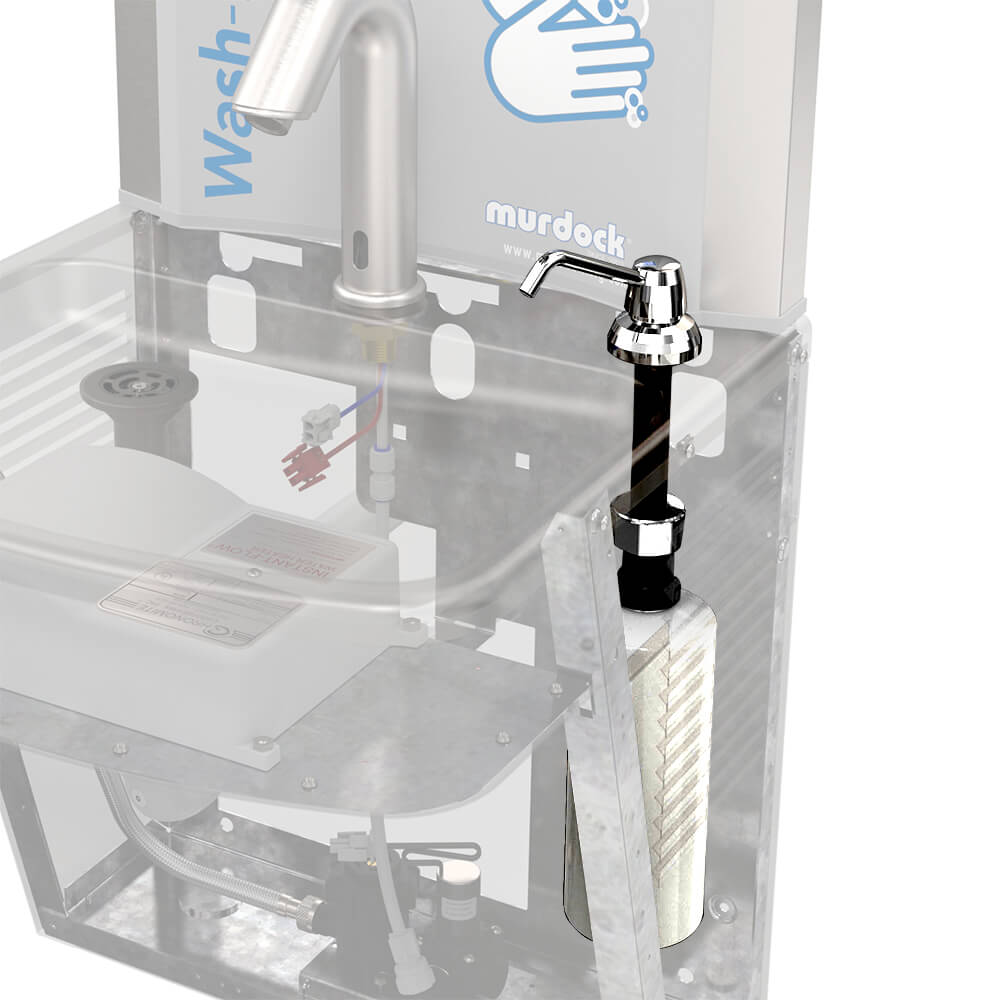

		-PS	Option: Pump Liquid Soap Dispenser

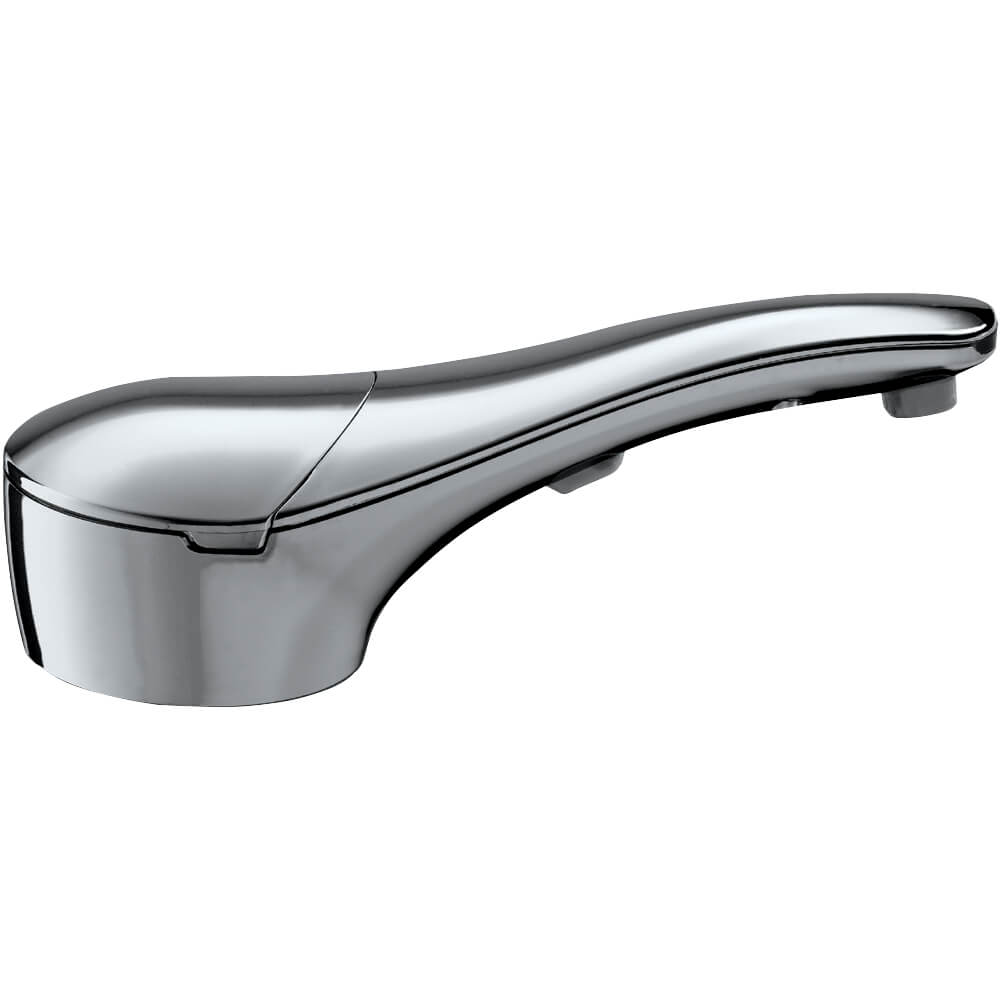

		-SSO	Option: Sensor Operated Soap Dispenser
		BF1SC	Heavy-Duty, Deck-Mounted, Push Button, Universal, Compact Water Bottle Filling Station - Stainless Steel

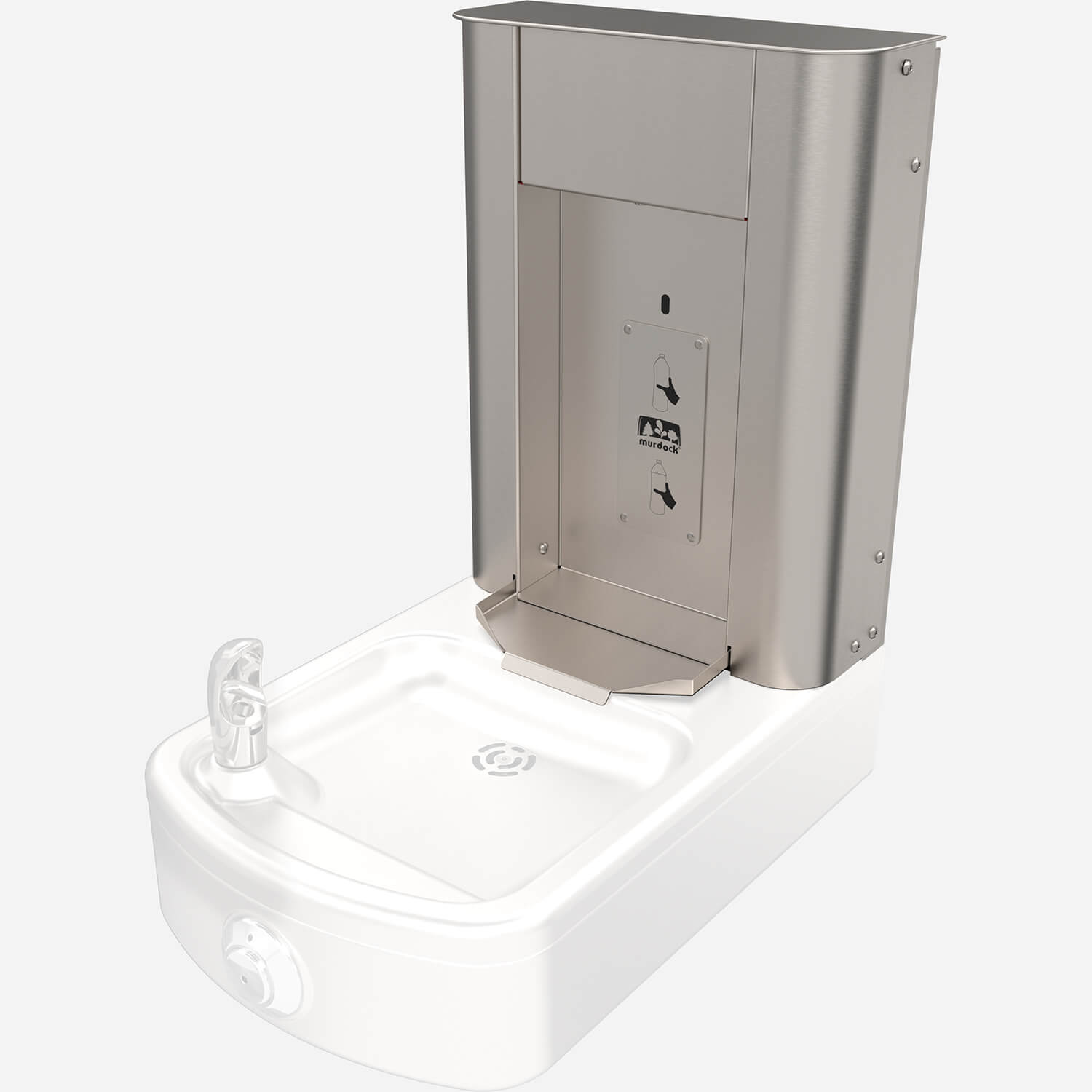

		BF2SC	Heavy-Duty, Deck-Mounted, Touchless, Universal, Compact Water Bottle Filling Station - Stainless Steel
		EG	Option: Enviro-Glaze® Powder Coating
