Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA, Standalone
The SpringH20™ BF168S Bottle Filler is a standalone sensor-operated stainless steel bottle filler. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance
Standard Features
- Heavy-gauge type 304 stainless steel polished to #4 satin finish
- Vandal resistant, seamless alcove
- ADA compliant
- Touchless sensor operation
- 120V AC/9V DC plug-in transformer
- 1.2 gallon (4.54 liters) per minute laminar flow nozzle
- 20 second maximum run time
- Bottle counter display with LED illumination and filter status lights (optional)
- Standalone unit
- Auto-Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
- Rated for indoor and outdoor use
Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA, Standalone [BF16 | Plug-in; BF16-BAT | Plug-in; BF16-BCD | Plug-in, Bottle Counter Display] | 2 MB | ||
| | Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA, Standalone [BF16 | Plug-in; BF16-BAT | Plug-in; BF16-BCD | Plug-in, Bottle Counter Display] | 252 KB | ||
| | Option Auto-Purge Flyer (pdf) | 371 KB | ||
| | SpringH2O® bottle fillers are stainless steel, providing upscale aesthetics with the vandal-resistant durability Murdock is known for. They feature an industry-leading 1.2 GPM laminar water flow. | 5 MB | ||
| | Murdock Kwik Ship® vs Elkay, Oasis [A171108F-UG, A172108F-UG, A171408F-UG, A171408S-UG, A172408F-UG, A172408S-UG, BF11, BF12, BF12-BCD, BF11S, BF12S, BF12S-BCD, BFEZS168, BFEZS168-BCD, BF15, BF16, BF16-BCD, BF15S, BF16S, BF16S-BCD, A0004000-SK5, A000G000-SK5, WF3EZ, WF3000, RWF3000, RWF3000-20] Lit# L1001747 6/26 | 665 KB | ||
 | | Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA, Standalone | 628 KB | ||
| | Wall-Mounted, SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - Non-Refrigerated, ADA, Standalone | 241 KB |
Specifications
| Brand | SpringH2O® |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel |
| Mounting | Wall-Mounted |
| Activation | Bottle filler - sensor, Bottle filler - battery-powered sensor |
| Style | BF16/BF15, Stand-Alone |
| Refrigeration | No Refrigeration |
| Product Features | Bottle Filler - Heavy Duty All-Stainless Steel |
| Accessibility | ADA Compliant |
| Compliances | NSF/ANSI/CAN 61, Lead-Free Federal Law 111-380, cUPC |
| Usage | Corporate Campus, School Campus, Train Station, Indoor, Outdoor |
| Patent | US D1,062,348 S (Ornamental Design of Standalone SpringH2O Wall-Mounted Bottle Filler) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | A9100080-A | Accessory: 8 GPH Remote Chiller for Refrigerated Drinking Fountains | ||
 | AP | Accessory: Auto-Purge Function Controller | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EG | Option: Enviro-Glaze® Powder Coating |
Models
Typical models are shown below

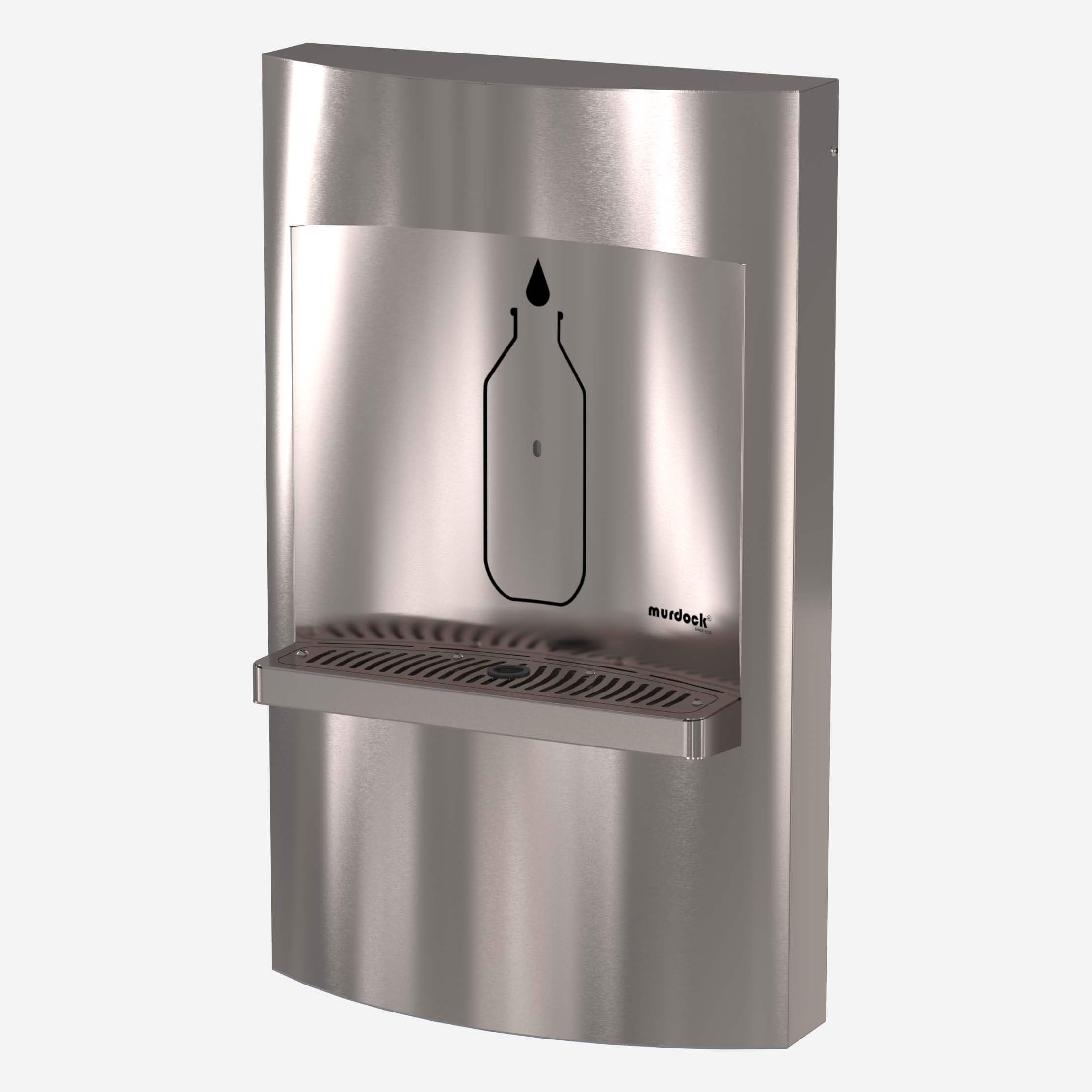

BF16S Powered with 120 VAC/9 VDC Plug-in Transformer BF16S-BAT Powered with battery
BF16S-BCD Powered with 120 VAC/9 VDC Plug-in Transformer, Display for Bottle Count of Saved Bottles and Filter Status
Popular Accessories/Options

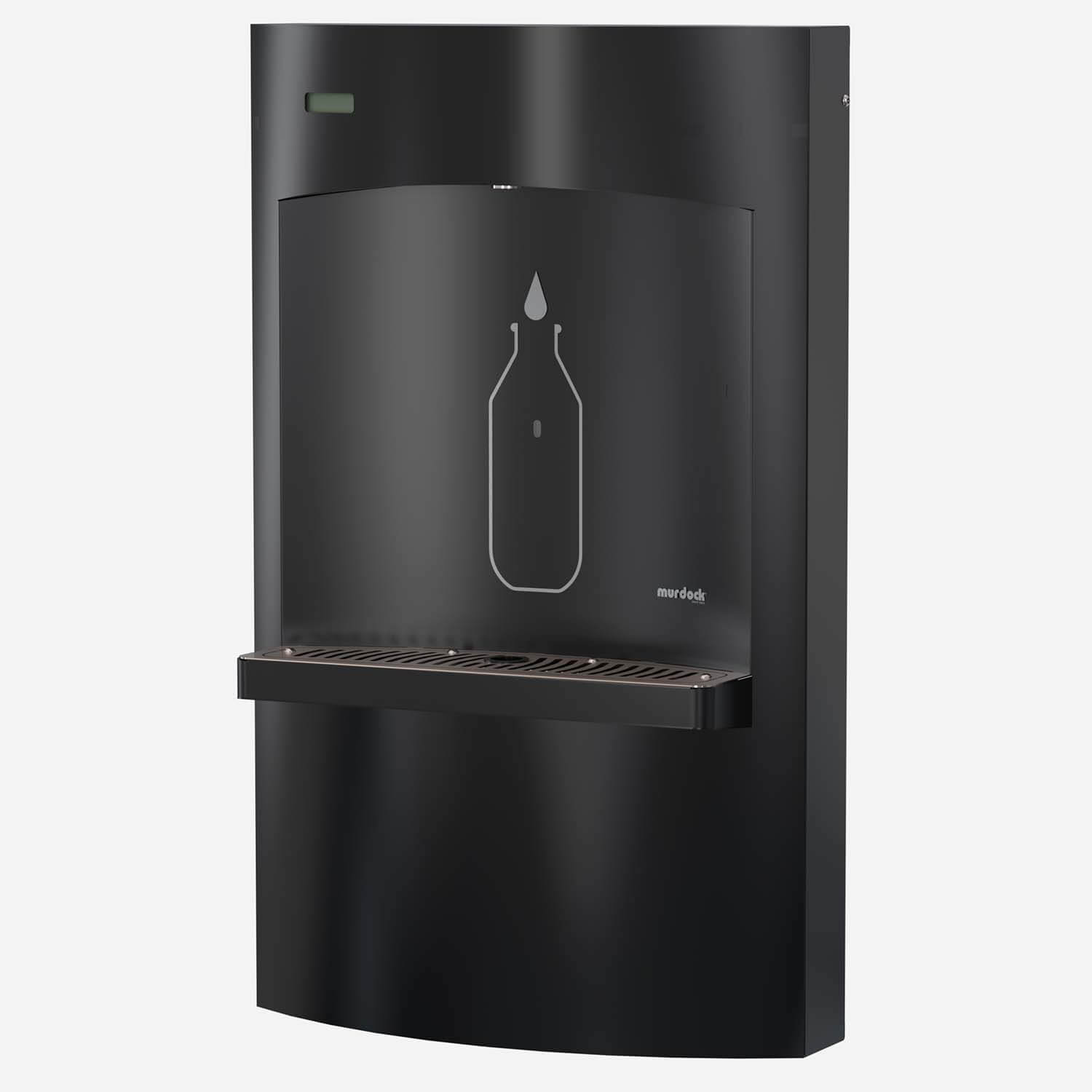

Option -EG22 Matte Black Powder Coating
