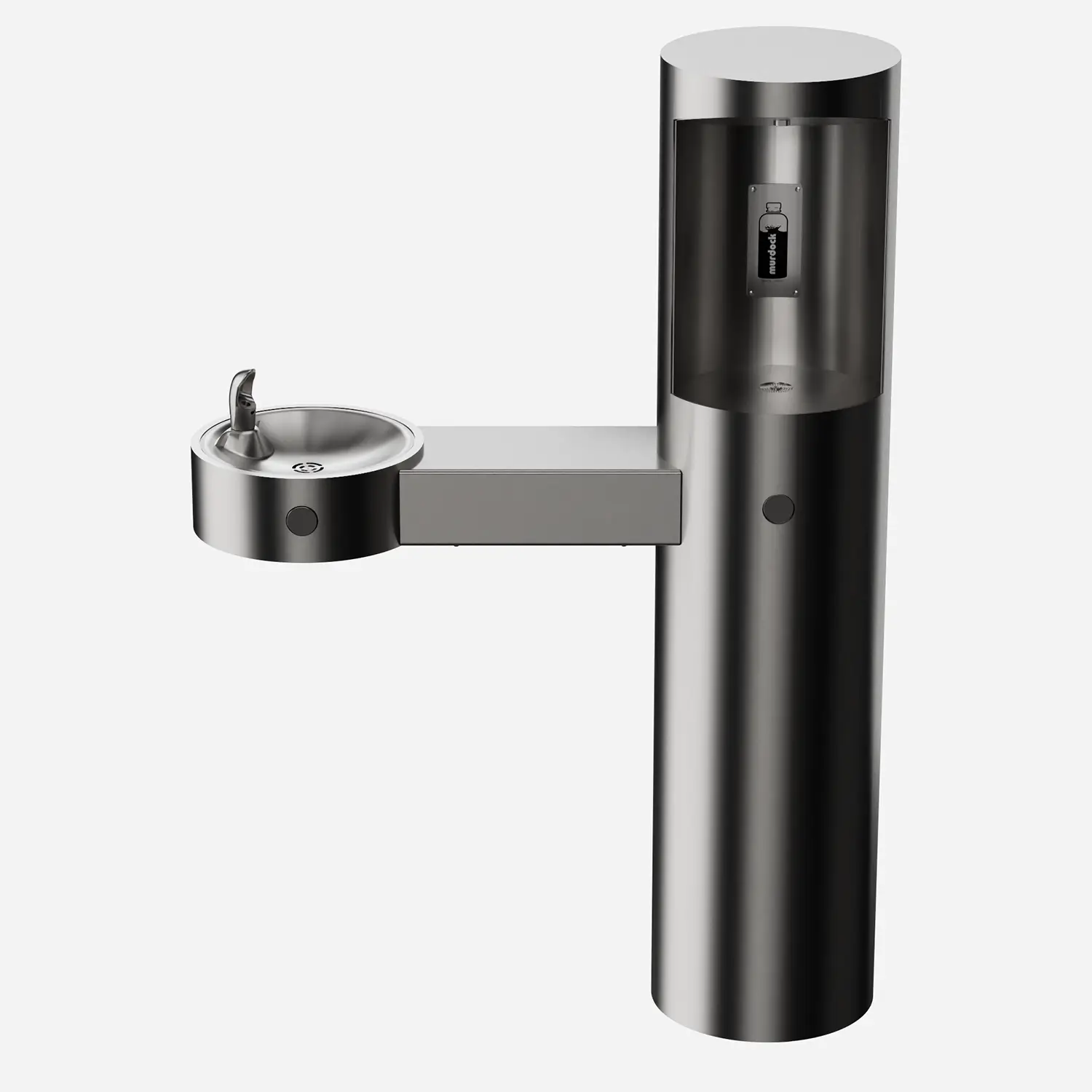

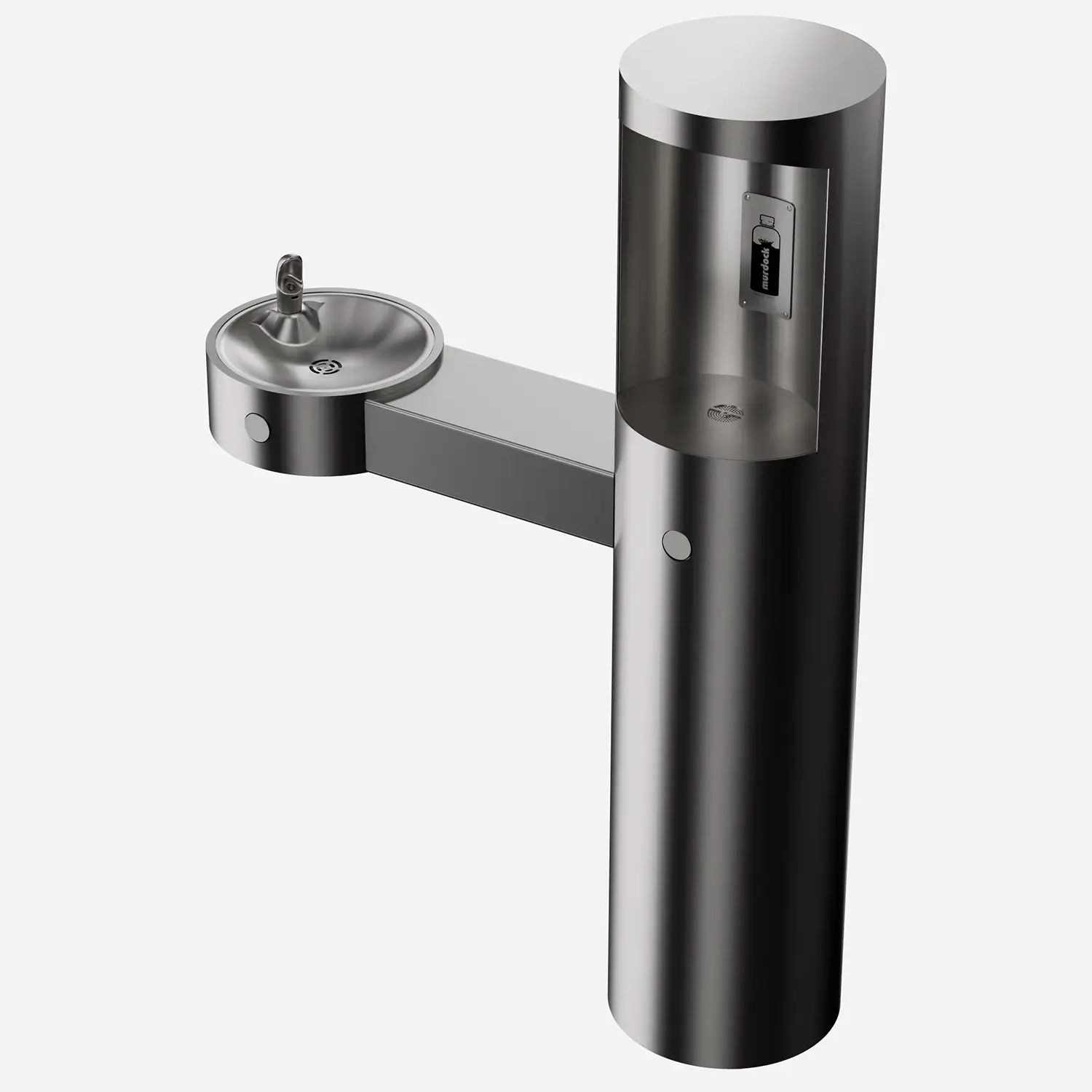

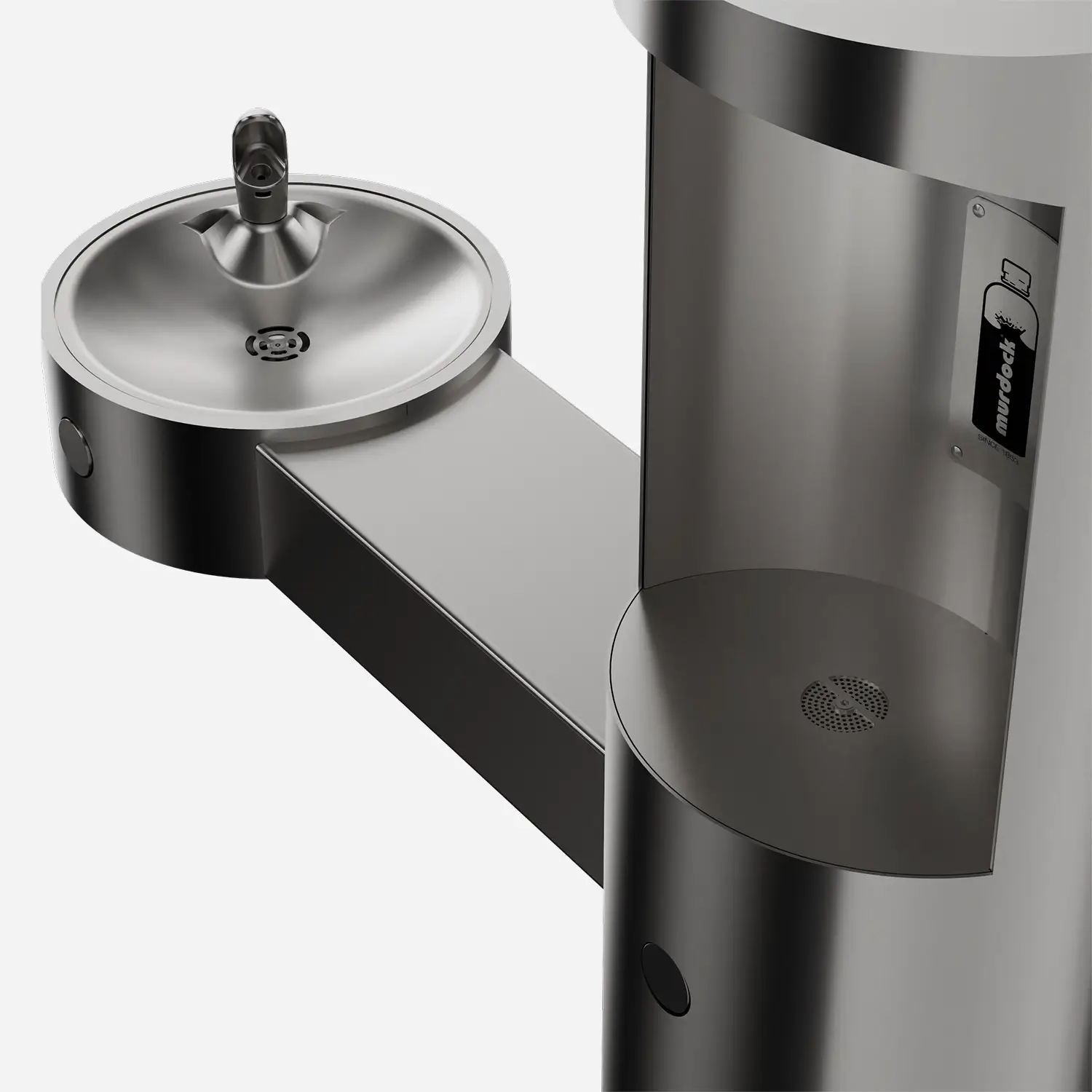

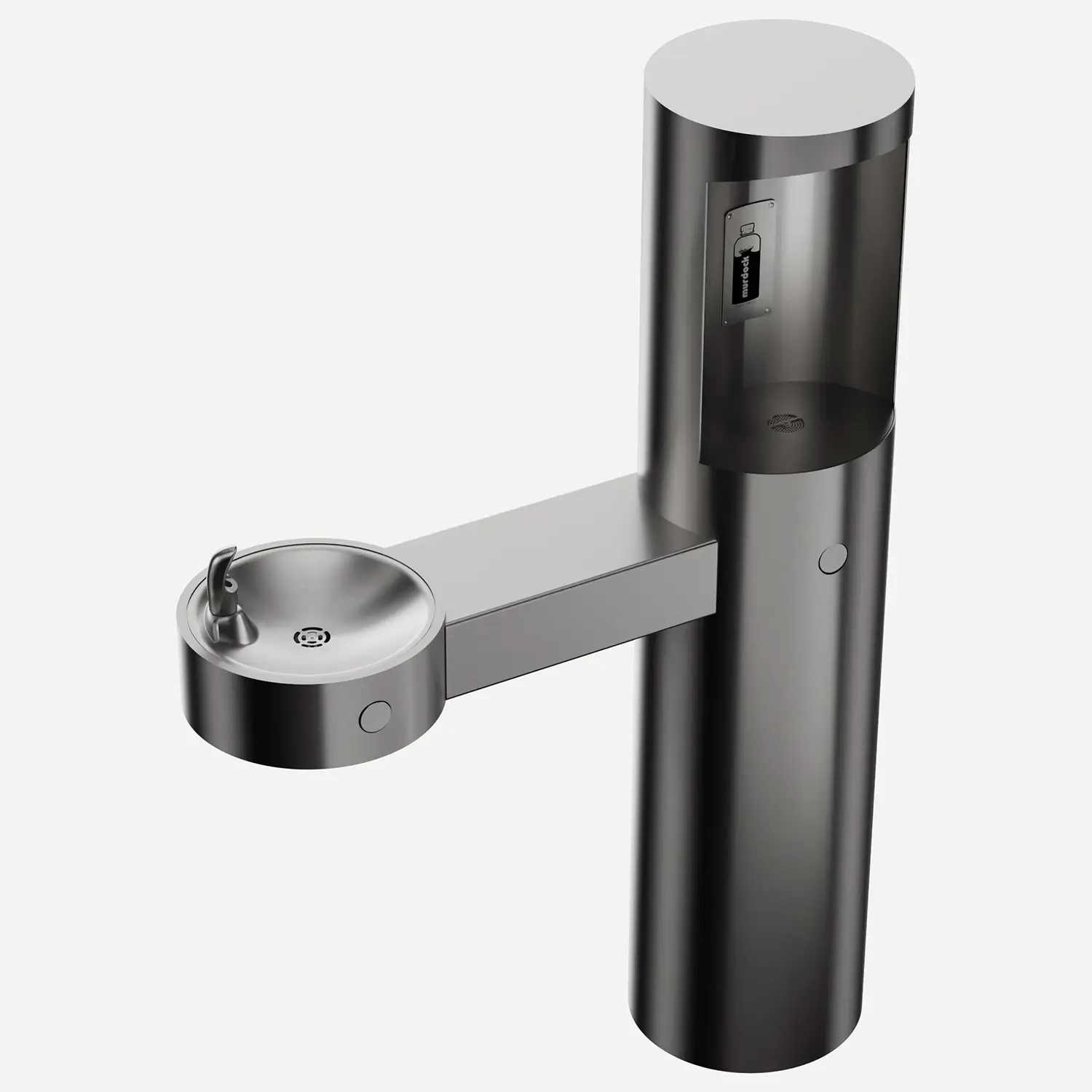

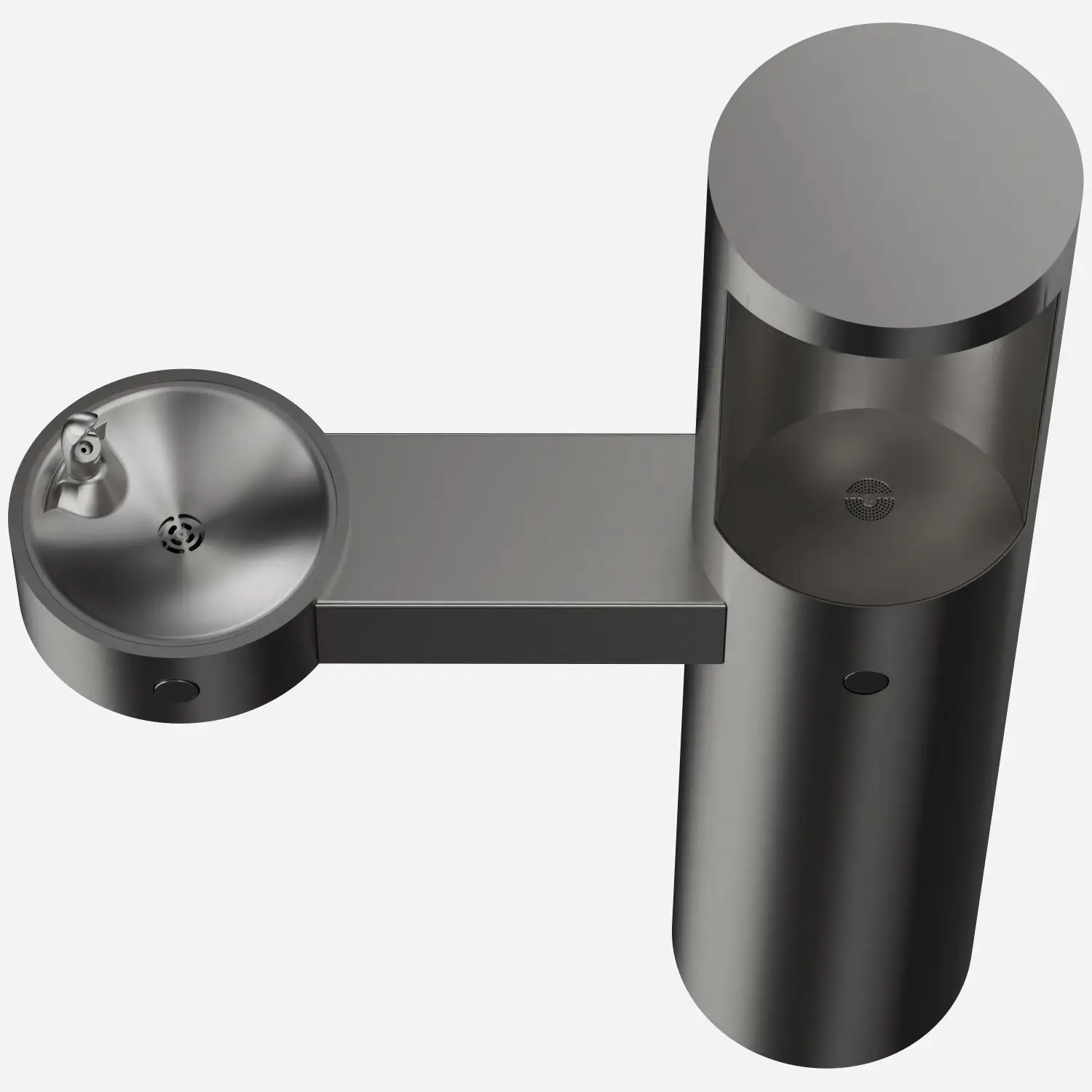

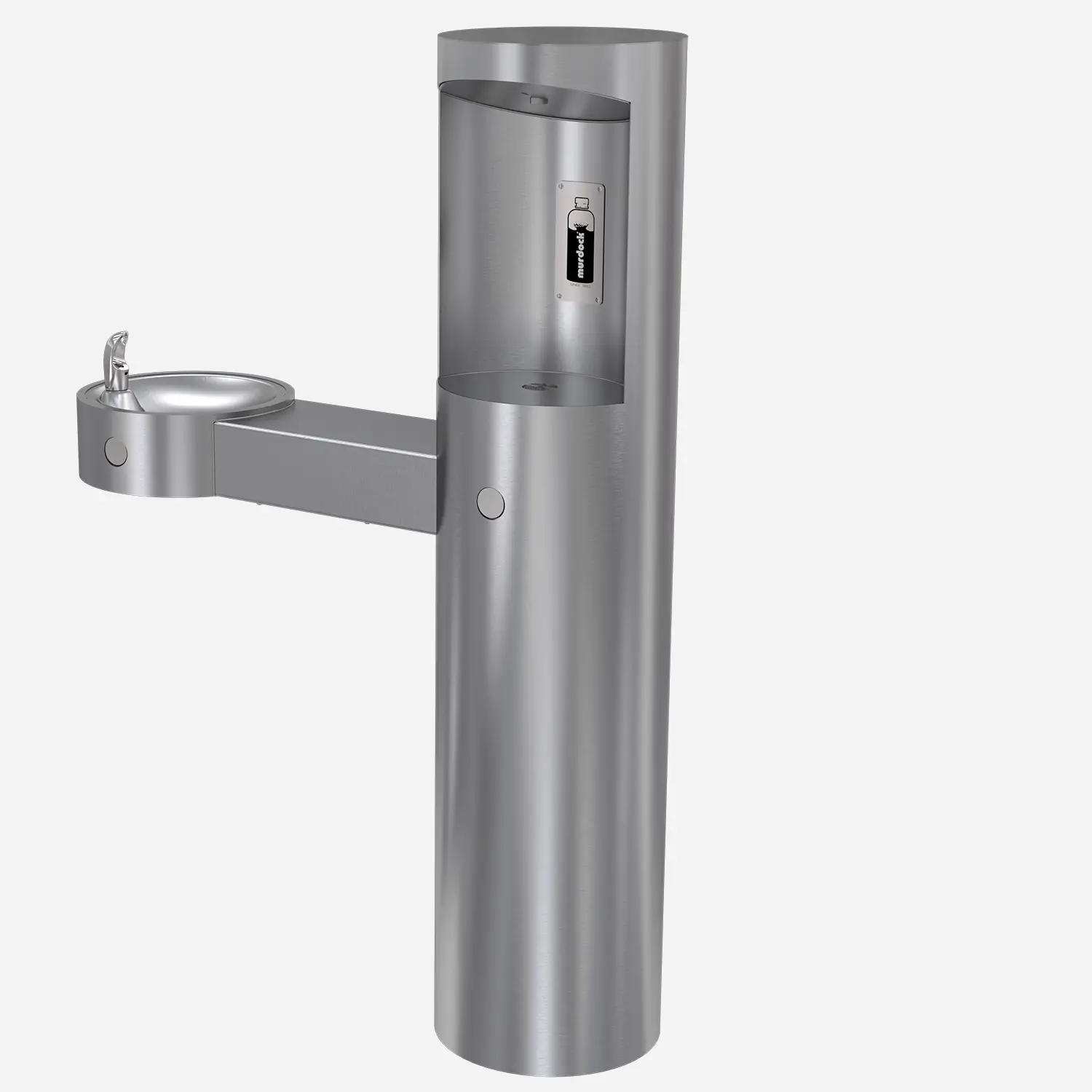

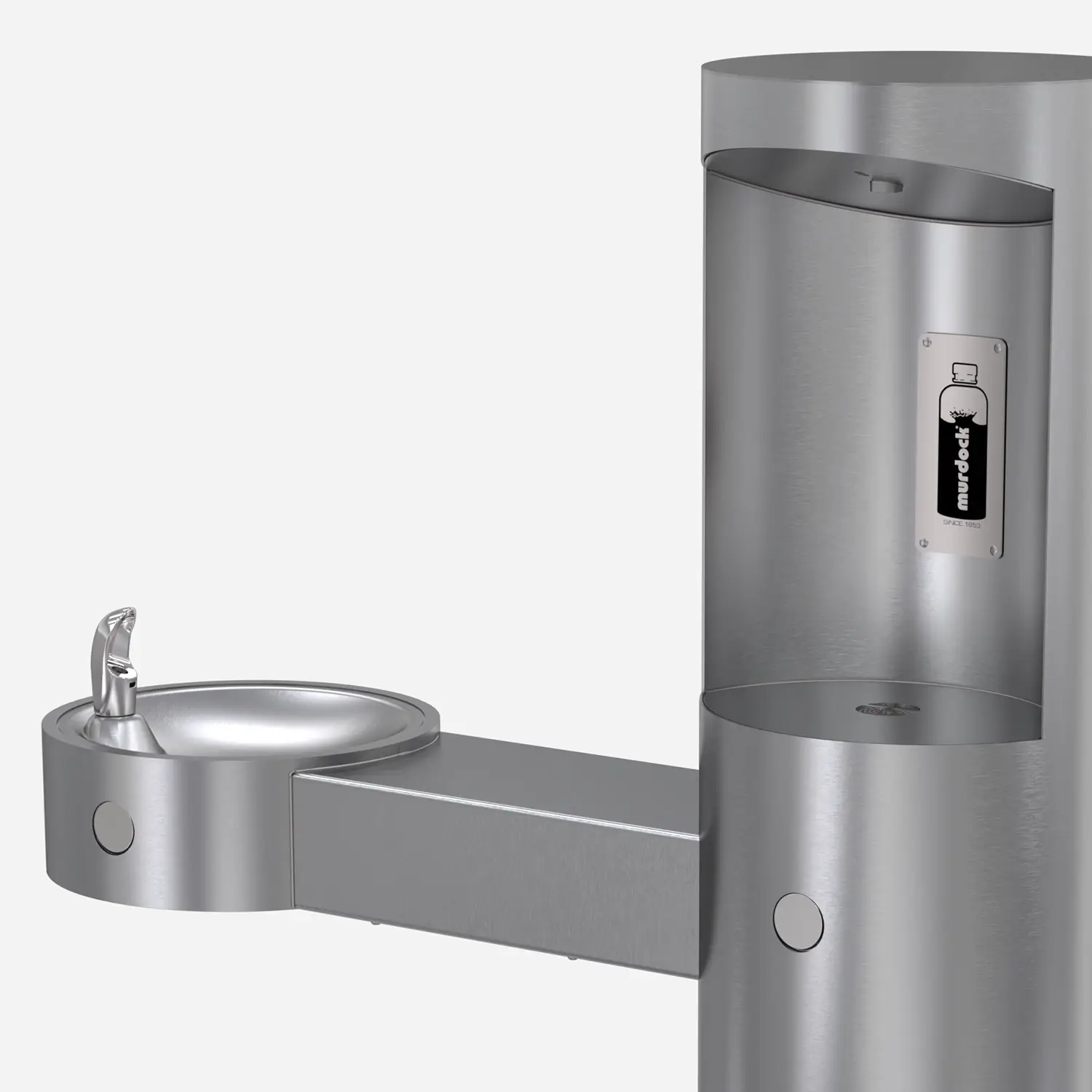

Outdoor Pedestal Bottle Filler with Front-Approach, Barrier-Free Drinking Fountain
Pedestal Bottle Filler with Drinking Fountain shall be Murdock model GYM74-FW for Frontal Wheelchair Approach. Construction shall be heavy-gauge, all-stainless steel, with an 18-gauge stainless steel fountain bowl. Pedestal base shall have four mounting holes. Access covers shall be secured with vandal-resistant stainless steel screws. The bottle filler shall be activated by a 9-volt sensor or a pushbutton as standard and provide a 1.5-gallon (5.7-liter) per minute flow rate.
The Auto-Purge Sensor function shall activate the Bottle Filler for 10 seconds 24 hours after the last activation as standard and allow for purge cycle adjustment. The unit shall contain a 100-mesh inlet strainer, a 6-AA battery pack, and a laminar-flow spout.
A self-closing pushbutton needing less than 5 pounds of force shall activate an internally mounted valve with adjustable stream regulator. Bubbler shall be stainless steel with a non-squirt feature and operate on a water pressure range of 20-105 psig.
Fountain is certified to ANSI A117.1. Unit shall be certified to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61. Fixture meets ADA requirements when mounted appropriately (Conformance is subject to the interpretation and requirements of the Code Authority).
Standard Features
- Frontal Approach Drinking Fountain, Adult ADA Compliant
- Pushbutton and Hands-Free Sensor-Operated Bottle Filler
- Auto-Purge Sensor Function to Assure Fresh Water Supply
- Large Capacity Bottle Filler with Laminar Flow Spout
- Accommodates Extra Large Bottles Up to 7" Dia x 13" Tall
- Resistant To Sunlight, Heat, Moisture, and Wear
- 18 Gauge, Type 304 Stainless Steel Drinking Fountain Bowls
- Heavy Gauge, Type 304 Stainless Steel Construction with Corrosion and Scratch-Resistant Finish
- Stainless Steel, Anti-Rotation Non-squirt Bubbler
- 100-Mesh Inlet Strainer
- Access Cover, Heavy Duty Stainless Steel, & Vandal Resistant
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Barrier-Free Round Pedestal Bottle Filler with One Arm Drinking Fountain Arm Side Approach (GYM74 Series) or Front Approach (GYM74-FW Series); Bi-Level Arm Drink Fountains Side Approach (GYQ84 Series) or Front Approach (GYQ84-FW Series) | 2 MB | ||
| | Pedestal Bottle Filler with Front Approach Barrier-Free Drink Fountain [GYM74-FW | All-Stainless Steel; GYM75-FW | Textured Fairway Green; GYM76-FW | Textured Fire House Red; GYM77-FW | Textured Alpine Blue)] includes Options -PF, -FRU, NP | 282 KB | ||
| | Installing Freeze-Resistant, Non-Pollutable Valve Option [Options -NP1 (1-station); -NP2 (2-station); -NP3 (3-station); -NP4 (4-station); Includes Repair Parts | 2 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Troubleshooting Air-Control Valves on Option -FRU Pedestal Drinking Fountains and Bottle Fillrs | 106 KB | ||
 | | Murdock Mfg - Drinking Fountains | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 169 KB | ||
| | Wash-N-Go!® Hand Washing Station Flyer (pdf) | 520 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 6 MB | ||
| | Outdoor Hand Washing, Drinking Fountains, and Shower Stations for National Parks | 1 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
 | | How to Service an Outdoor Drinking Fountain | 133 KB | ||
| | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB |
Specifications
| Mounting | Pedestal |
| Material | Stainless Steel |
| Pet-Friendly | Available Option |
| Sanitary Product | Available Option |
| Freeze-Resistance | Available Option |
| Activation | Push Button, Bottle filler - sensor |
| Material Detail | Green, All-Stainless Steel, Blue, Red |

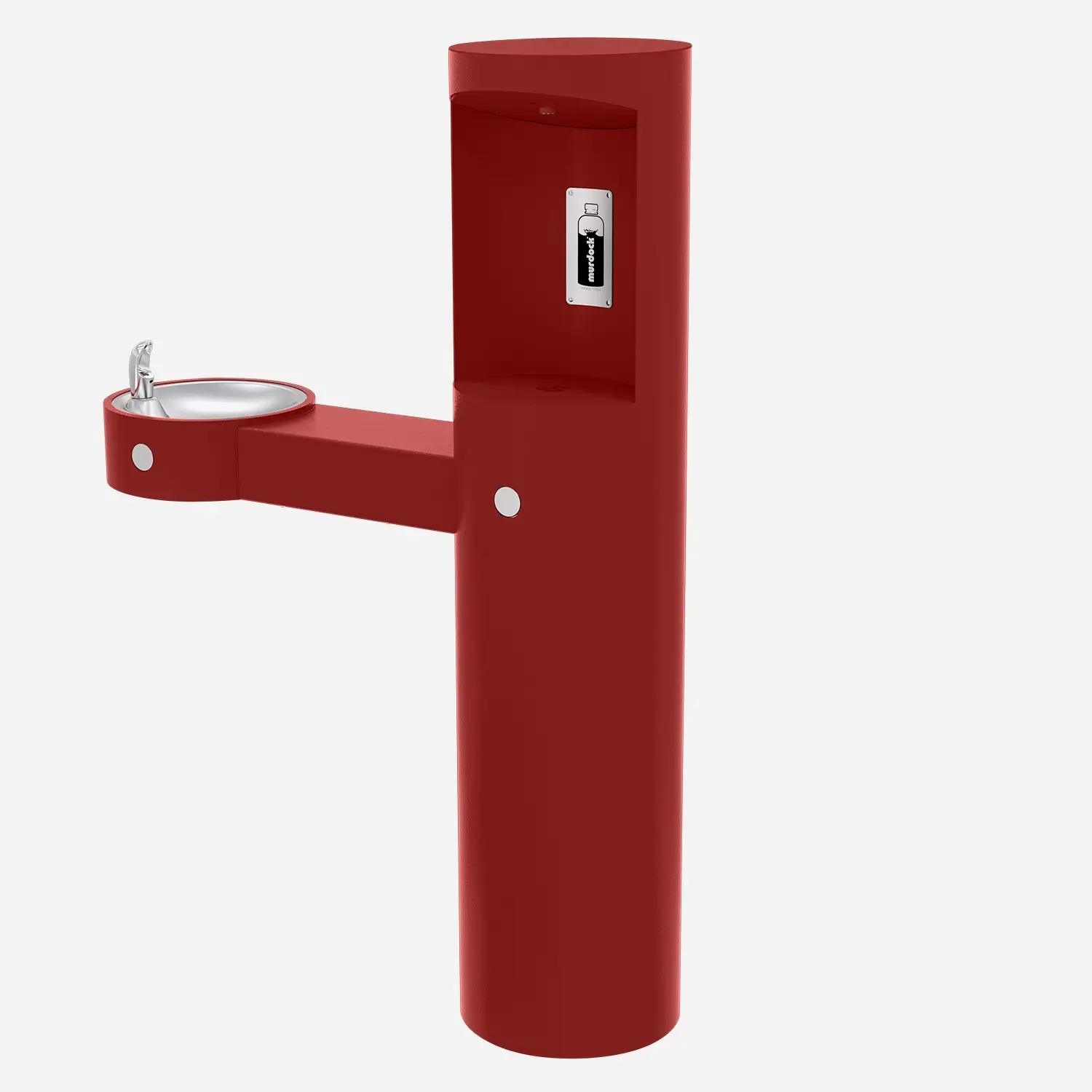

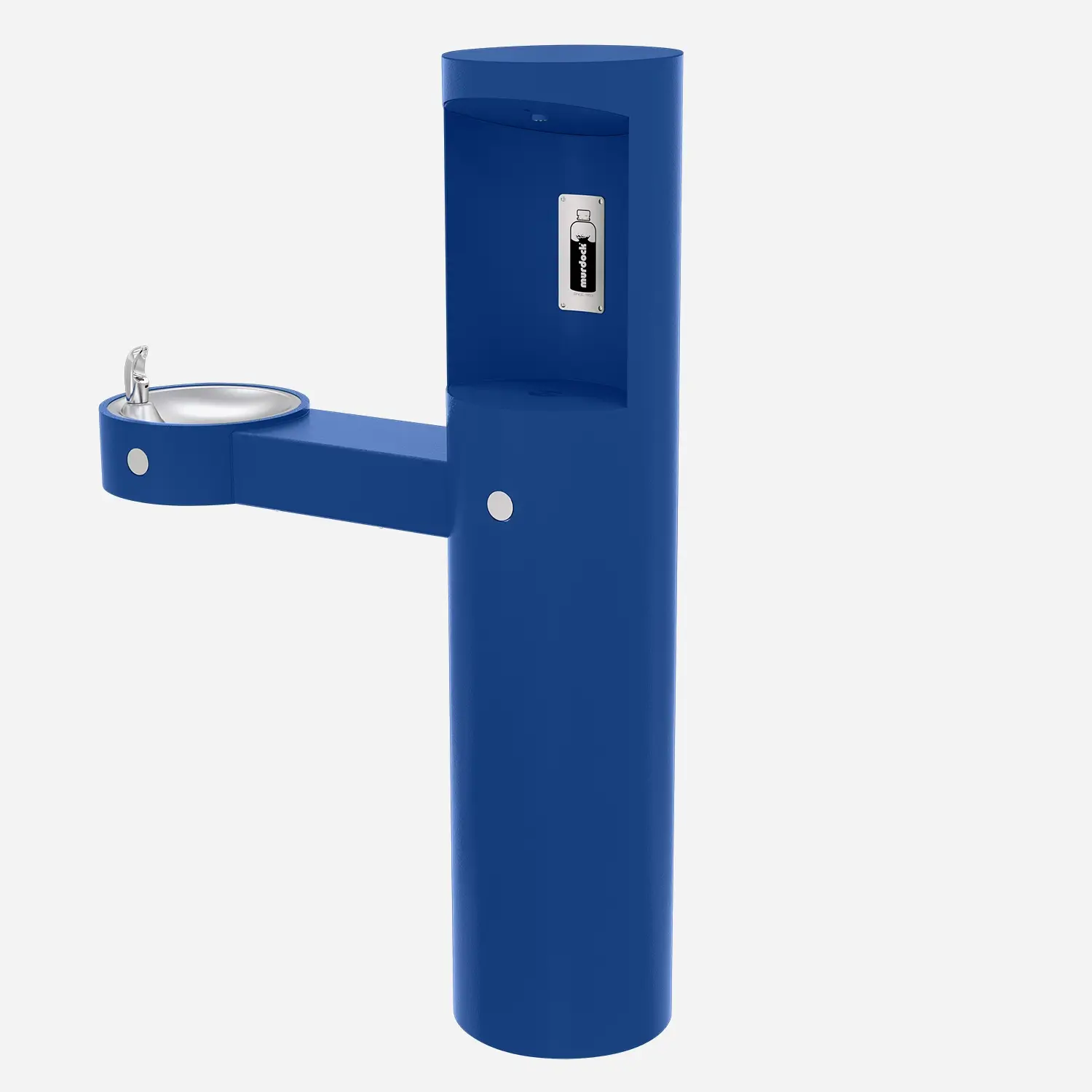

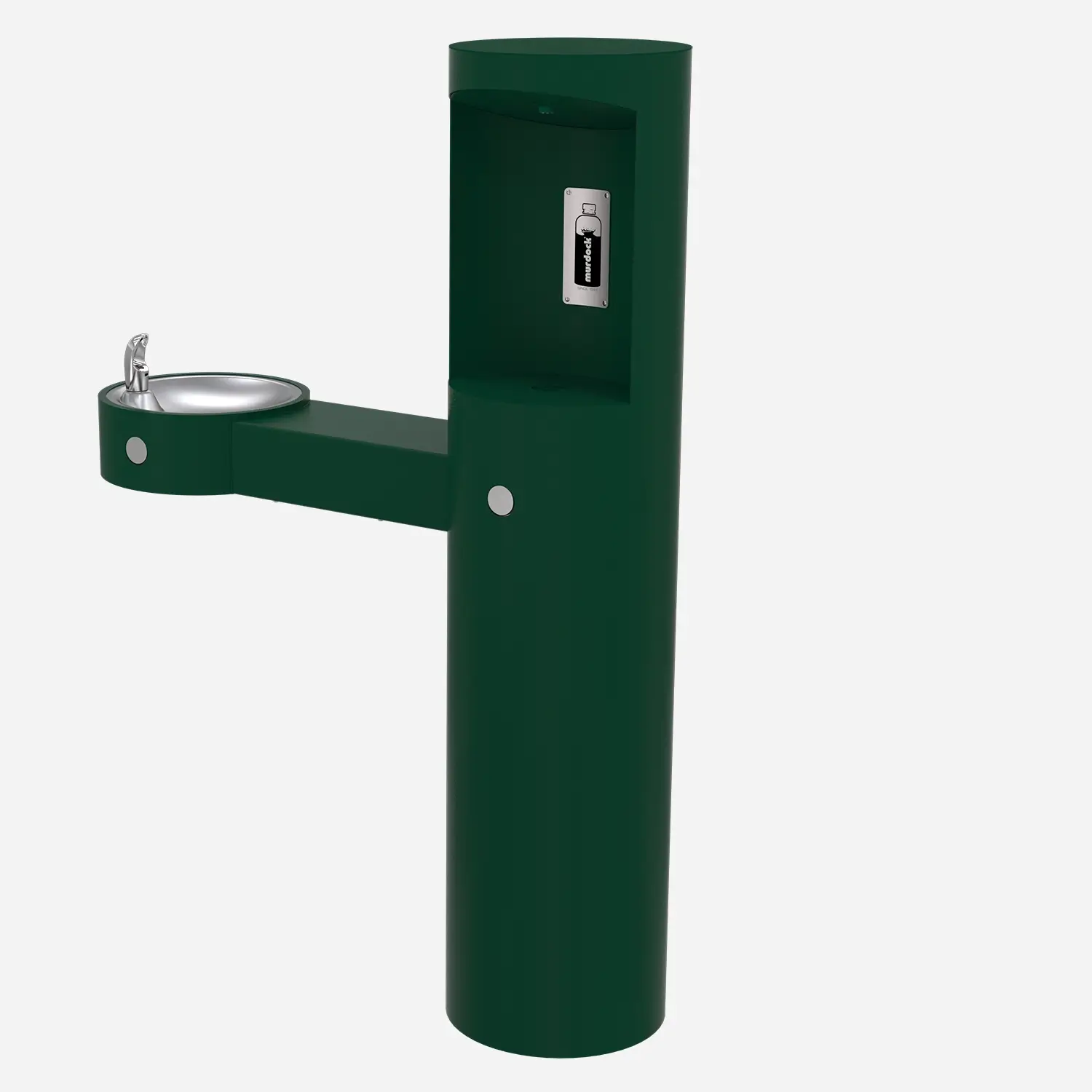

| Variations | GYM74: Satin Stainless Steel, GYM75: Green Powder Coated Stainless Steel, GYM76: Red Powder Coated Stainless Steel, GYM77: Blue Powder Coated Stainless Steel |
| Legacy Model | GYM55, GYM54, GYM56, GYM57 |
| Accessibility | ADA Compliant |
| Usage | Outdoor |
| Compliances | cUPC, Lead-Free Federal Law 111-380, NSF/ANSI/CAN 61 |
| Product Features | Front-Access Drinking Fountain |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AP | Accessory: Auto-Purge Function Controller |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -CH30 | Option: Child 30" Bubbler Height Drinking Fountain | ||
 | -FRU1 | Option: Below Ground, Freeze Resistant Valve, Single Station | ||
 | -FRU2 | Option: Below Ground, Freeze Resistant Valve, Two Station | ||
 | -FRU3 | Option: Below Ground, Freeze Resistant Valve, Three Station | ||
 | -FRU4 | Option: Below Ground, Freeze-Resistant Valve, Four-Station | ||
 | -FS | Option: Foot Spray, Outdoor Pedestal Drinking Fountain/Hand Wash/Shower | ||
 | -HB1 | Option: Compression Hose Bibb Faucet with Vacuum Breaker and Wheel Handle | ||
 | -HB3 | Option: Compression Hose Bibb Faucet with Vacuum Breaker, Wheel Handle, and Lockable Steel Box | ||
 | -IAP (Drinking Fountain) | Option: In-Ground Anchor Plate for Drinking Fountain | ||
 | -IGM | Option: In-ground 14" mounting | ||
 | -JF1 | Option: Jug Filler with Lever Handle | ||
 | -JF2 | Option: Recessed Jug Filler with Push Button | ||
 | -JFFR1 | Option: Freeze-Resistant Recessed Jug Filler with Push Button | ||
 | -MO | Bottle Filler Activated by Push Button Only | ||
 | -NP2 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Two Station | ||
 | -NP3 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Three Station | ||
 | -NP4 | Option: SafeWater® Non-Pollutable, Freeze Resistant Drinking Fountain, Four Station | ||
 | -PF | Option: Contemporary Round Pet Fountain | ||
 | LOGO | Option: Customize Graphics | ||
 | LSR | Option: Leaf and Debris Strainer for Round Outdoor Drinking Fountains | ||
 | SLPT | Option: 10° Bottle Filler Sloped Top |
Models
 |
 |
 |
 |
|
| GYM74-FW | GYM75-FW | GYM76-FW | GYM77-FW | |
 |
GYM74-FW-SLTP | GYM75-FW-SLTP | GYM76-FW-SLTP | GYM77-FW-SLTP |
 |
GYM74-FW-PF | GYM75-FW-PF | GYM76-FW-PF | GYM77-FW-PF |
Popular Options/Accessories include:
-AP | Auto-Purge Sensor Function Controller
-CH30 | Child height, 30" bubbler height
-FRU2, -FRU3, -FRU4 | Freeze-Resistance
-NP2, -NP3, -NP4 | Non-Polutable Freeze-Resistance
-FS | Foot shower
-HB1, -HB3 | Hose bibbs
-JF1,-JF2, -JFFR1 | Jug filler
-LSR | Leaf and Debris Strainer
-MO | Bottle filler operated by pushbutton only (Standard with freeze-resistant valves)
-WF3000 | 3000-Gallon PFAS Water Filter1 NSF/ANSI, PFAS, Lead, Bacteria, Chlorine, Microplastics
Other options may be available. See Options List and/or Submittal
