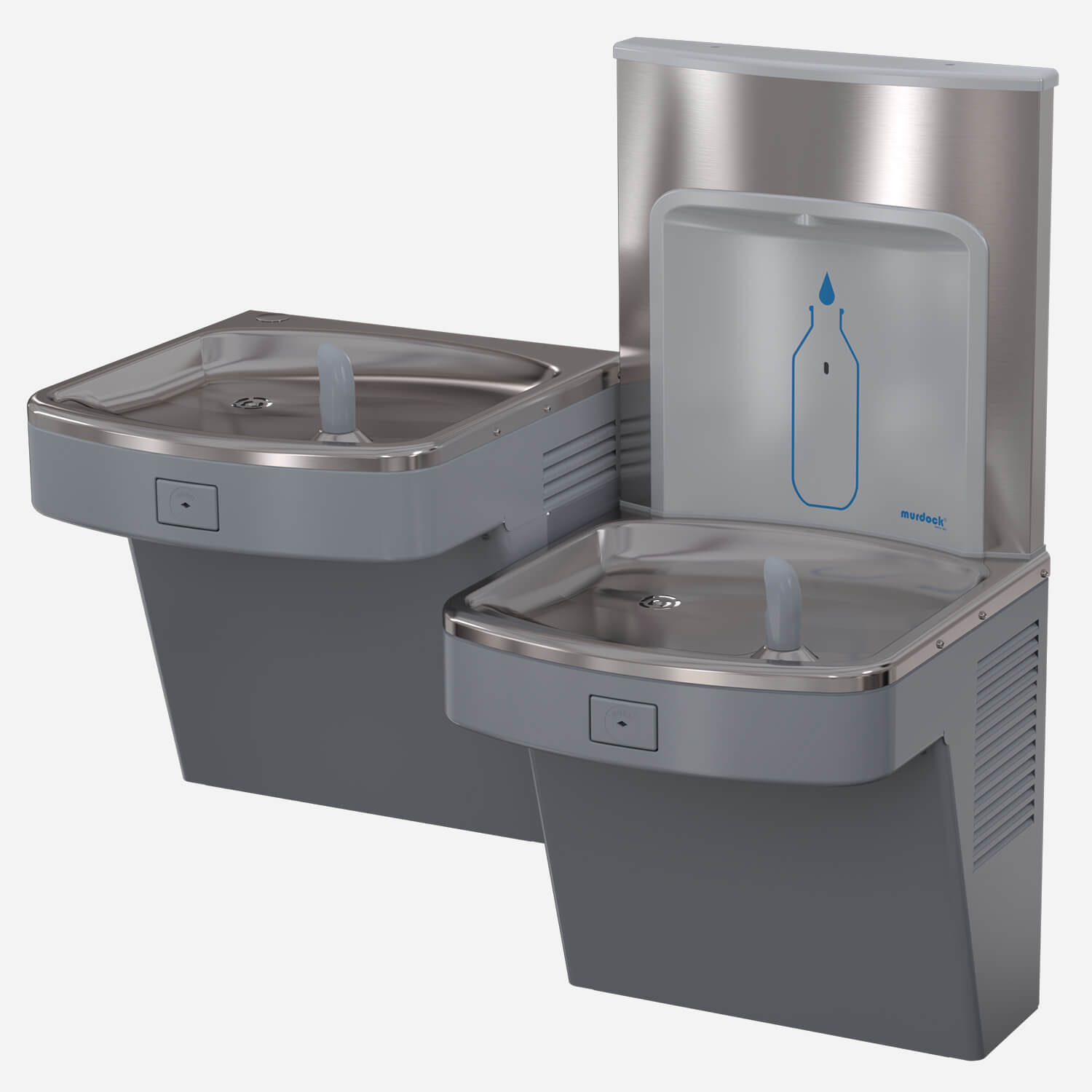

Wall-Mounted, Bi-Level, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
In StockThis product is available for quick shipment nationwide.
Model A172.8-UG-BF12 Series
Installation Instructions
2 available
Submittal
Submittal A172.8-UG-BF Water Cooler-Bottle Filler (pdf)
Model A172.8-UG-BF12 Series
Wall-Mounted, Bi-Level, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
Fill up. Cool down. Get going. Our barrier-free, bi-level water cooler has been redesigned in both form and function to work seamlessly with our H2O-to-Go! sensor-activated water bottle filling station.
The H2O-to-Go! is an eco-friendly alternative to single-use plastic. With a slimmer body and more inviting aesthetics than a traditional bottle filler, it ensures maximum style, functionality, and hydration.
Rough-ins match other manufacturers’ water coolers for easy replacement, and Maintenance Advantage ® design makes access and service a breeze.
Electric Water Cooler Features
- In-unit 8 GPH refrigeration
- Flexible, antimicrobial, non-squirt bubbler
- Available in galvanized steel with grey powder coat or all stainless steel
- Child or Adult ADA Compliant when properly installed
- Chiller includes Water Leak Detection Auto Shut-Off Valve
H2O-To-Go!® Water Bottle Filling Station Features
- 1 Gallon (3.79 Liters) Per Minute fill rate
- Anti-microbial backsplash
- Pushbutton or sensor activation
- ADA compliant

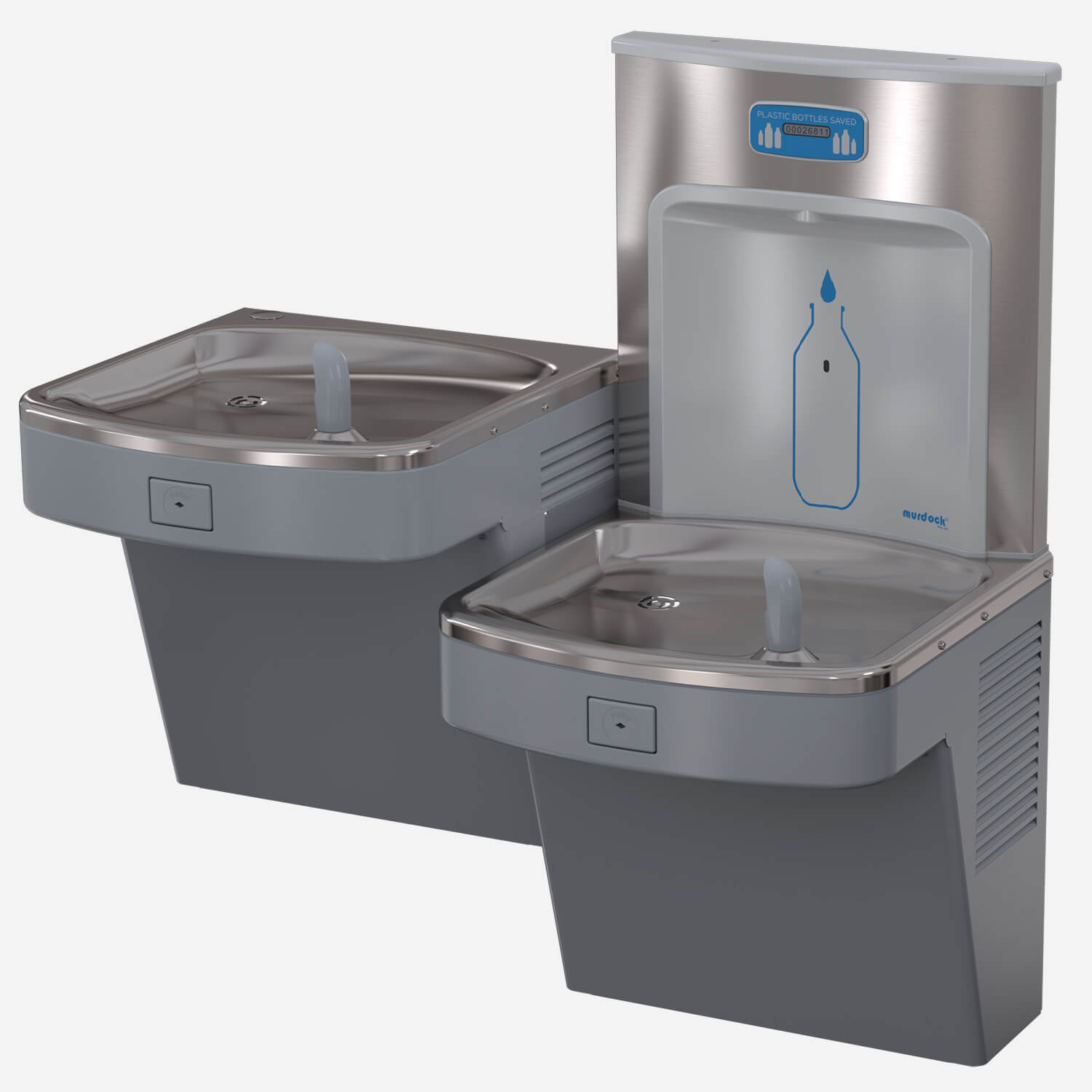

- Optional display (-BCD) for number of plastic bottles saved
Water Filter
Popular option provides a water filter for A171 and A172 Series water coolers. WF3EZ provides a 3,000 gallon (11,356 liters) capacity filter. This EZ Door® Filter option features a panel assembly which allows for fast and easy water filter changes without removing the shroud.
- Chlorine Reduction greater than 97.3%, 10,000 gallons (37,854.12 liters) @ 1.67 gallon (6.32 liters) per minute
- Lead Reduction Greater than 99.7%, 2,500 gallons (9,463.53 liters) @ 1.67 gallons (6.32 liters) per minute, lead reduction to one micron
- Complies with NSF/ANSI Standard 42+53
- Complies to NSF 42 - the standard regulates non-health related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
- Complies to NSF 53 - the standard regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
- Cyst, Cryptosporidium, Giardia Reduction greater than 94.95%
- Total PFAS Reduction includes PFOA, PFOS, PFHpA, PFHxS, and PFNA
- Replacement filters are sold through Murdock
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Murdock Mfg - Pressure Water Coolers | 146 KB | ||

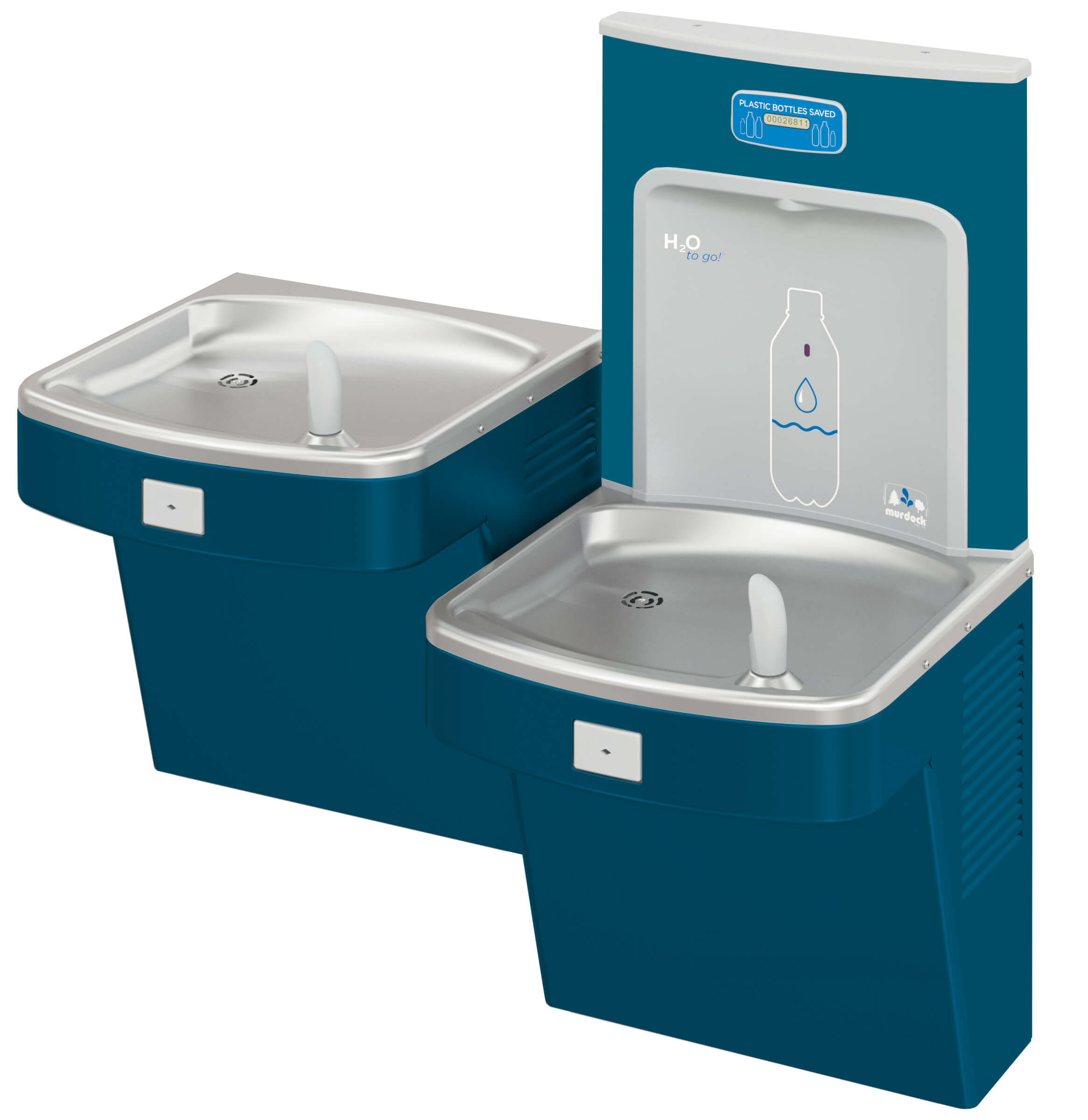

 | | Barrier-Free, Wall Mount Universal Bi-Level Water Cooler with H2O to go!™ Deck Mount Sensor Activated Bottle Filler - Custom Blue Finish | 125 KB | ||
| | H2O to go!™ Deck Mount Sensor Operated Bottle Filler | 228 KB | ||
 | | ADA Self-Contained Universal Bi-Level Wall Mount Water Coolers [Model A172.8-UG | Standard (Rectangular Pushbutton), A172.8-UG-SO | Sensor-Activated, A172.8-UG-VR | Vandal Resistant Push Button] - includes parts manuals | 3 MB | ||
| | ADA Self-Contained Universal Bi-Level Wall Mount Water Cooler with H2O-To-Go! Bottle Filler | 294 KB | ||
| | H2O-To-Go!® Deck Mount Pushbutton Activated (BF11) or Sensor Activated (BF12) Bottle Filler; includes Parts Manual | 2 MB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 95 KB | ||
| | Murdock Mfg - Pressure Water Coolers | 219 KB | ||
| | Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing. | 2 MB | ||
| | Kwik Ship Brands: Murdock Mfg (pdf) | 401 KB | ||
| | Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay. | 4 MB | ||
| | Kwik Ship® Brands: Commercial Engineering Approval Form | 1 MB | ||
| | MM - Maintenace Advantage (pdf) | 6 MB | ||
| | Custom Colors, Logos & Graphics Brochure (pdf) | 671 KB | ||
| | H2O-to-Go!® Bottle Filler Brochure (pdf) | 991 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 202 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 3 MB | ||
| | Murdock Kwik Ship® vs Elkay, Oasis [A171108F-UG-BF12-BCD, A171408F-UG-BF12-BCD, A171108F-UG-BF12-BCD-WF3EZ, A171408F-UG-BF12-BCD-WF3EZ, A171408S-UG-BF12S-BCD, A171408S-UG-BF12S-BCD-WF3EZ, A172108F-UG-BF12-BCD, A172108F-UG-BF12-BCD-WF3EZ, A172408F-UG-BF12-BCD-WF3EZ, A172408S-UG-BF12S-BCD, A172408S-UG-BF12S-BCD-WF3EZ, A172408F-UG-BF12S-BCD-WF3EZ, A0004000-SK5, A000G000-SK5, WF3EZ, WF3000, RWF3000, RWF3000-20] Lit # L1001748 6/26 | 444 KB | ||
 | | Wall-Mounted, Bi-Level, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel | 2 MB | ||
| | Wall-Mounted, Bi-Level, Push Button Drinking Fountain with H2O-to-Go!® Touchless Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel | 564 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 134 KB | ||
| | A water bottle filling station designed with you in mind! When combined with Murdock Water Coolers, H2O to go!® Indoor Bottle Fillers provide endless refreshing water, with or without the bottle! | 134 KB |
Specifications
| Brand | H2O-To-Go!®, Maintenance Advantage®, EZ Door™ |
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, ANSI/ASHRAE 18, UL Listed (US and Canada), cUPC, NSF/ANSI/CAN 61 |
| Refrigeration | In-Unit 8 GPH Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Chiller includes Water Leak Detection Auto Shut-Off Valve, Universal bi-level - can be installed left high or right high |
| Activation | Push Button, Bottle filler - sensor, Bottle filler - battery-powered sensor, Bottle filler - hemispherical pushbutton |
| Accessibility | ADA Compliant |
| Style | A17 Series, H2O-to-Go!® |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler) |
| No. of Stations | 2 |
| Usage | School Campus, Corporate Campus, Indoor |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SK5 | Accessory: Skirt Assembly for ADA Bi-Level Water Cooler | ||
 | WB2-BF | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler with Bottle Filler- Orientation Right Unit Low | ||
 | WB3-BF | Accessory: Wall Panel for Wall Mounted ADA Universal Bi-Level Handicap Fountain/Cooler with Bottle Filler- Orientation Left Unit Low |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -220V | Option: Electrical 220 Volts | ||
 | -BAT | Option: Battery power for Sensor Operation Only | ||
 | BCD | Option: Bottle Counter Display | ||
 | BF11 | Deck-Mounted H2O-to-Go!® Push Button Water Bottle Filling Station (A17 Series Add-On) - ADA, Stainless Steel | ||
 | BF12 | Deck-Mounted H2O-to-Go!® Touchless Water Bottle Filling Station - A17 Series Add-On, ADA, Stainless Steel | ||
 | LOGO | Option: Customize Graphics | ||
 | WF3EZ | Option: 3,000-Gallon Capacity EZ Door® Filter |
Models
Typical water bottle filling station and water cooler configurations
A172108F-UG Textured Grey Finish/ Flexible Bubblers
A172108S-UG Textured Grey Finish/ Stainless Steel Bubblers
A172408F-UG All-Stainless Steel/ Flexible Bubblers
A172408S-UG All-Stainless Steel/ Stainless Steel Bubblers
Installation Manual A172.8-UG Water Cooler
-BF12 Add H2O-To-Go! ® Bottle Filler, Sensor (Plug-In)
-BF12-BAT Add H2O-To-Go! ® Bottle Filler, Sensor (Battery)
-BF12-BCD Add H2O-To-Go! ® Bottle Filler, Sensor (Plug-In)/ Bottle Counter Display
-BF11 Add H2O-To-Go! ® Bottle Filler, Pushbutton (Non-Electric)
