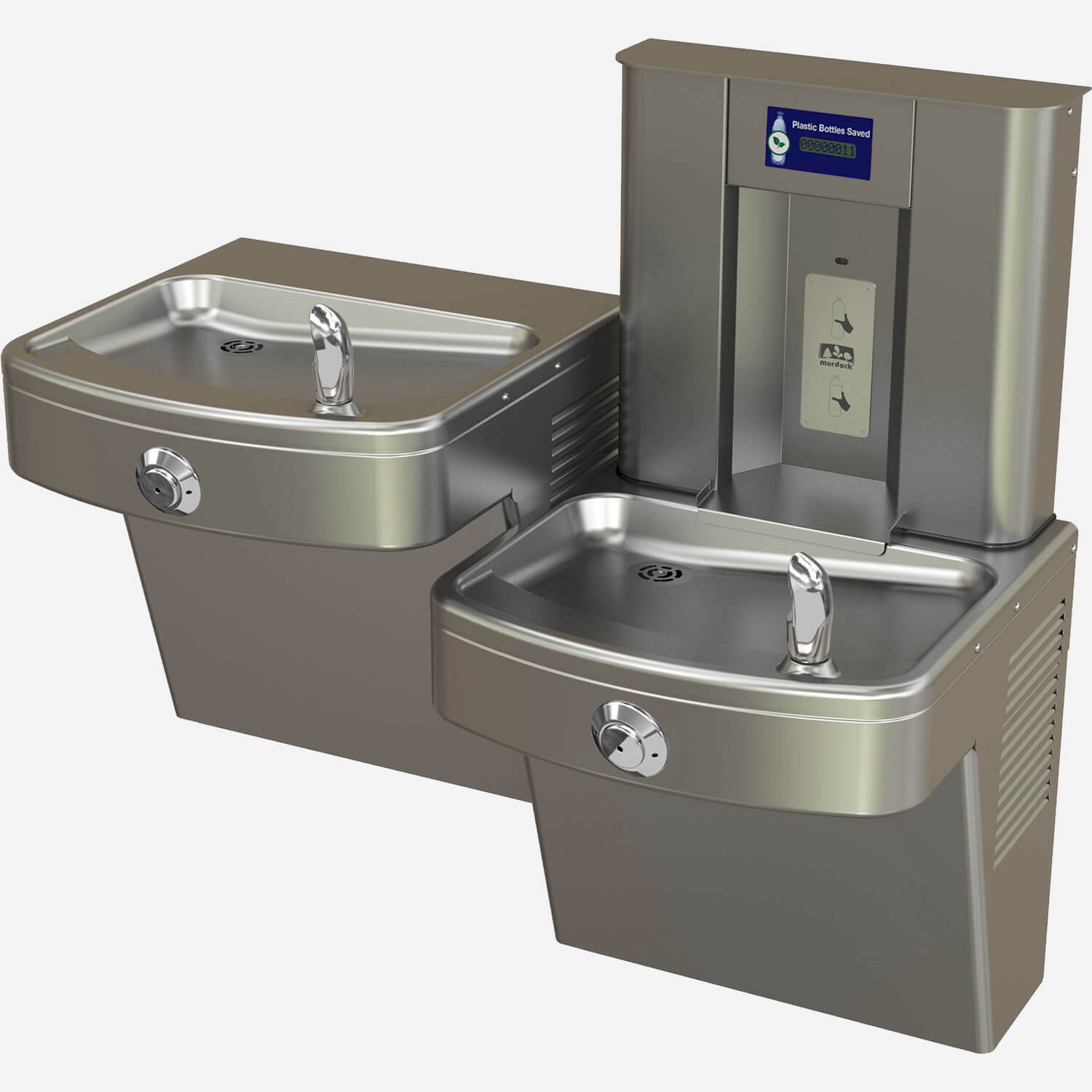

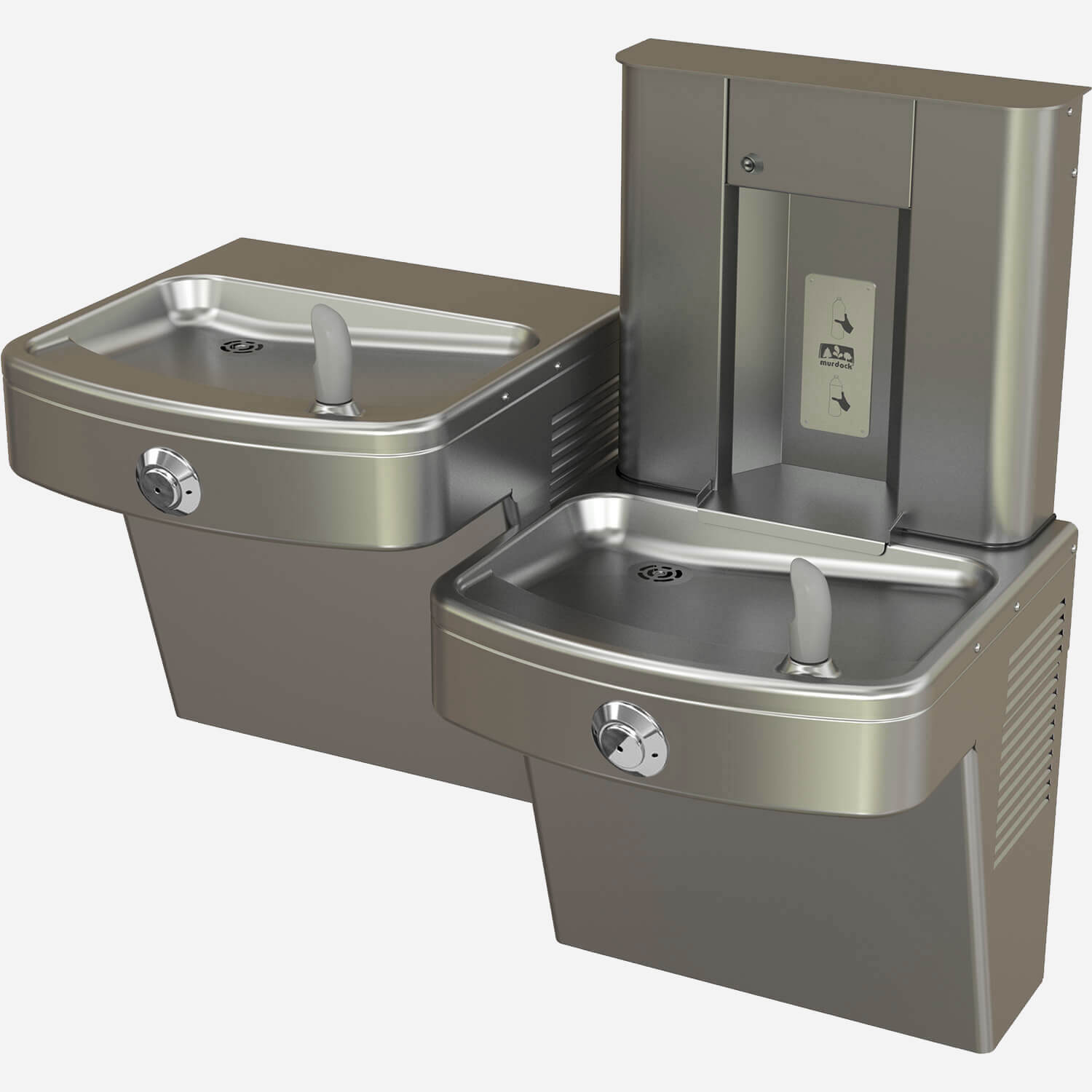

Name: Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain with Heavy-Duty Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel
Brand: Murdock Manufacturing
SKU: A172.8-UG-VR-D1-BFS Series

Model A172.8-UG-VR-D1-BFS Series

Vandal-Resistant, Wall-Mounted, Universal Bi-Level Push Button Drinking Fountain with Heavy-Duty Water Bottle Filling Station - In-Unit Refrigeration (8GPH), ADA, Stainless Steel

This durable, barrier-free, wall mounted, bi-level water cooler with deck mounted bottle filler is suitable for just about any application. The bi-level water cooler features chillers rated at 8 gallon (30.3 liters) per hour. The cabinet shall be stainless steel. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Murdock's Maintenance Advantage design allows for easy maintenance and installation. The each of the water coolers features a round vandal-resistant push button for activation. The unit is a univeral bi-level, allowing the lower ADA unit to be mounted on left or right side. Bottle Filler, typically mounted on the lower water cooler, can be specified as sensor activated (plug-in or battery powered) or push button. Chiller in the water cooler shall include a factory installed Water Leak Detection Auto Shut-Off Valve.

Water Filter

A 3,000 gallon (11356.24 liter) capacity is available with the EZ Door® Filter option, which allows for fast and easy water filter changes without removing the shroud. Filters are NSF 42 and 53 certified.

NSF 42 NSF 42 standard regulates nonhealth related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).

NSF 53 NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 224716, Pressure Water Coolers (doc)	Murdock Mfg - Pressure Water Coolers	146 KB
Installation Instructions	Manual A172.8-UG-VR-D1-BFS Series Water Cooler-Bottle Filler (pdf)	ADA Self-Contained Bi-Level Wall Mount Water Coolers with Vandal-Resistant Button and Heavy Bottle Filler [BF2S Sensor, BF1S Push Button] - includes parts manuals	2 MB
Submittals	Submittal A172.8-UG-VR-D1-BFS Series Water Cooler-Bottle Filler (pdf)	ADA Self-Contained Universal Bi-Level Wall Mount Water Cooler with Vandal Resistant Push Buttons and Heavy Duty Sensor Bottle Filler	238 KB
Technical Data Sheets	Murdock Care and Cleaning Guide	Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products	95 KB
Product MasterSpec	MasterSpec: 224716, Pressure Water Coolers (pdf)	Murdock Mfg - Pressure Water Coolers	219 KB
Brochures/Flyers	Kwik Ship Brands: Murdock Mfg (pdf)	Kwik Ship Brands: Murdock Mfg (pdf)	401 KB
Brochures/Flyers	MM - Maintenace Advantage (pdf)	MM - Maintenace Advantage (pdf)	6 MB
Brochures/Flyers	Custom Colors, Logos & Graphics Brochure (pdf)	Custom Colors, Logos & Graphics Brochure (pdf)	671 KB
Brochures/Flyers	Enviro-Glaze Color Chart	Enviro-Glaze Color Chart Flyer (pdf)	202 KB
Brochures/Flyers	Bottle Fillers, Water Coolers and Drinking Fountains Brochure (pdf)	Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf)	3 MB
Videos	How to Easily Sanitize & Clean Water Fountains, Bottle Fillers & Hand Washing Stations	Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect.	134 KB
Videos	Video - Replace Filter on Maintenance Advantage Drinking Fountain	Video showing how to replace water filter on a Murdock Maintenance Advantage Drinking Fountain Models A17 Series)	101 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Mounting	Wall-Mounted
Material	Stainless Steel
Material Detail	All-Stainless Steel
Compliances	ANSI/ASHRAE 18, IAPMO tested to NSF/ANSI 61, Section 9, UL Listed (US and Canada), CE complaint for 220 V electrical, Lead-Free Federal Law 111-380, cUPC
Refrigeration	In-Unit 8 GPH Refrigeration
Product Features	Auto-Stop (Servicing Strainer Shuts Off Water Supply), Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Round Vandal-Resistant Pushbutton, Maintenance Advantage® – Easy Maintenance Design, Heavy Duty Deck Mount Bottle Filler, Chiller includes Water Leak Detection Auto Shut-Off Valve
Activation	Bottle filler - sensor, Drinking fountain - round vandal-resistant button, Bottle filler - battery-powered sensor, Bottle filler - hemispherical pushbutton
Accessibility	ADA Compliant
Style	VR-D1-BFS Series, A17 Series
Patent	US 10,100,933 B2 (Auto-Stop Feature), US D718,971 S (Ornamental Design of Heavy-Duty Deck-Mounted Bottle Filler), US 12,410,592 B2 (Drop-down Filter)
No. of Stations	2
Usage	Outdoor

Options

Accessories

	Image	Model	Description	Downloads
		SK5	Accessory: Skirt Assembly for ADA Bi-Level Water Cooler

Miscellaneous

	Image	Model	Description	Downloads
		-220V	Option: Electrical 220 Volts
		-BAT	Option: Battery power for Sensor Operation Only
		BCD	Option: Bottle Counter Display
		BF1S	Deck-Mounted, Heavy-Duty, Push Button Water Bottle Filling Station (A17 Series Add-On) - Stainless Steel
		BF2S Series	Heavy-Duty, Deck-Mounted, Touchless Water Bottle Filling Station - Stainless Steel
		LOGO	Option: Customize Graphics
		WF3EZ	Option: 3,000-Gallon Capacity EZ Door® Filter
