Deck-Mounted SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - A17 Series Add-On, ADA

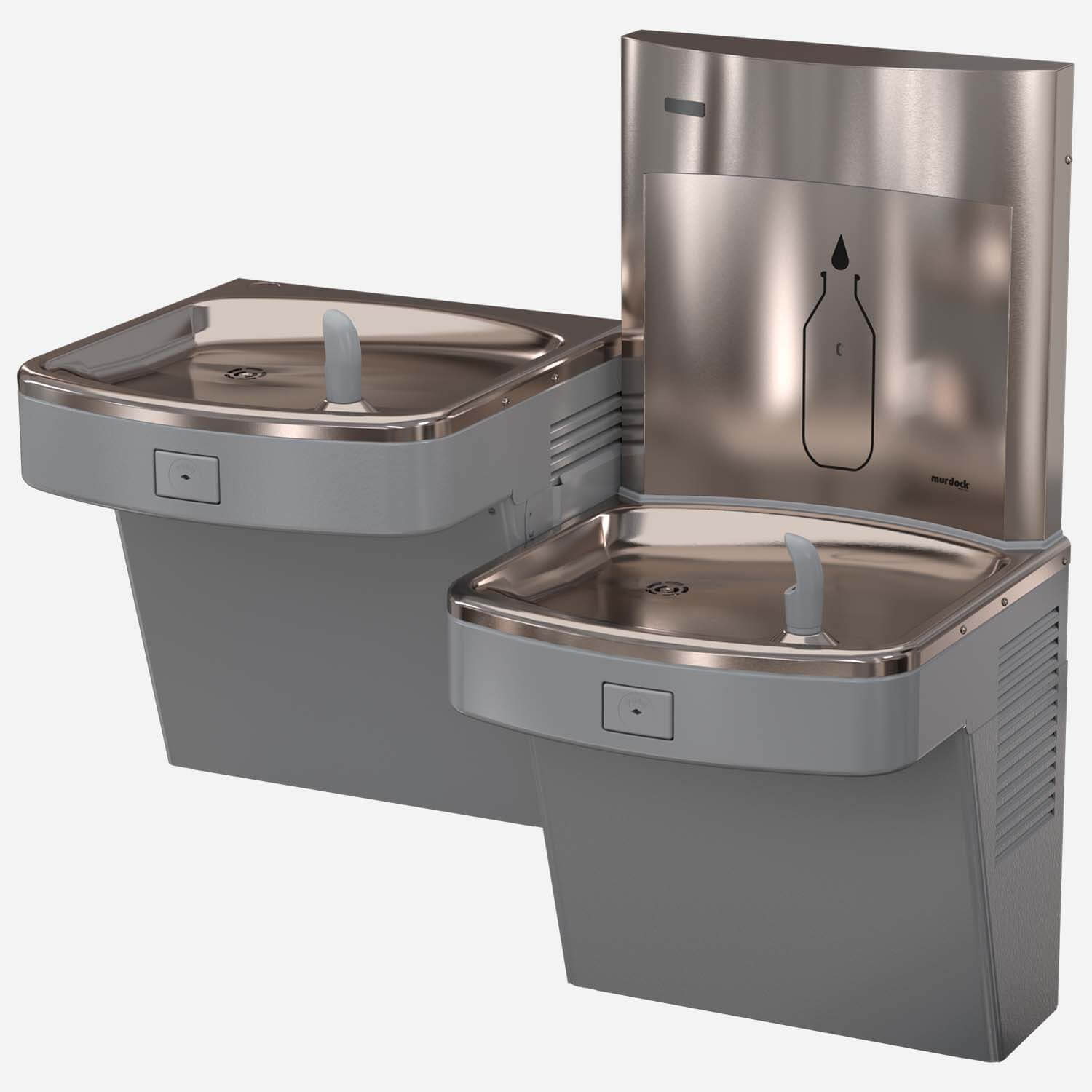

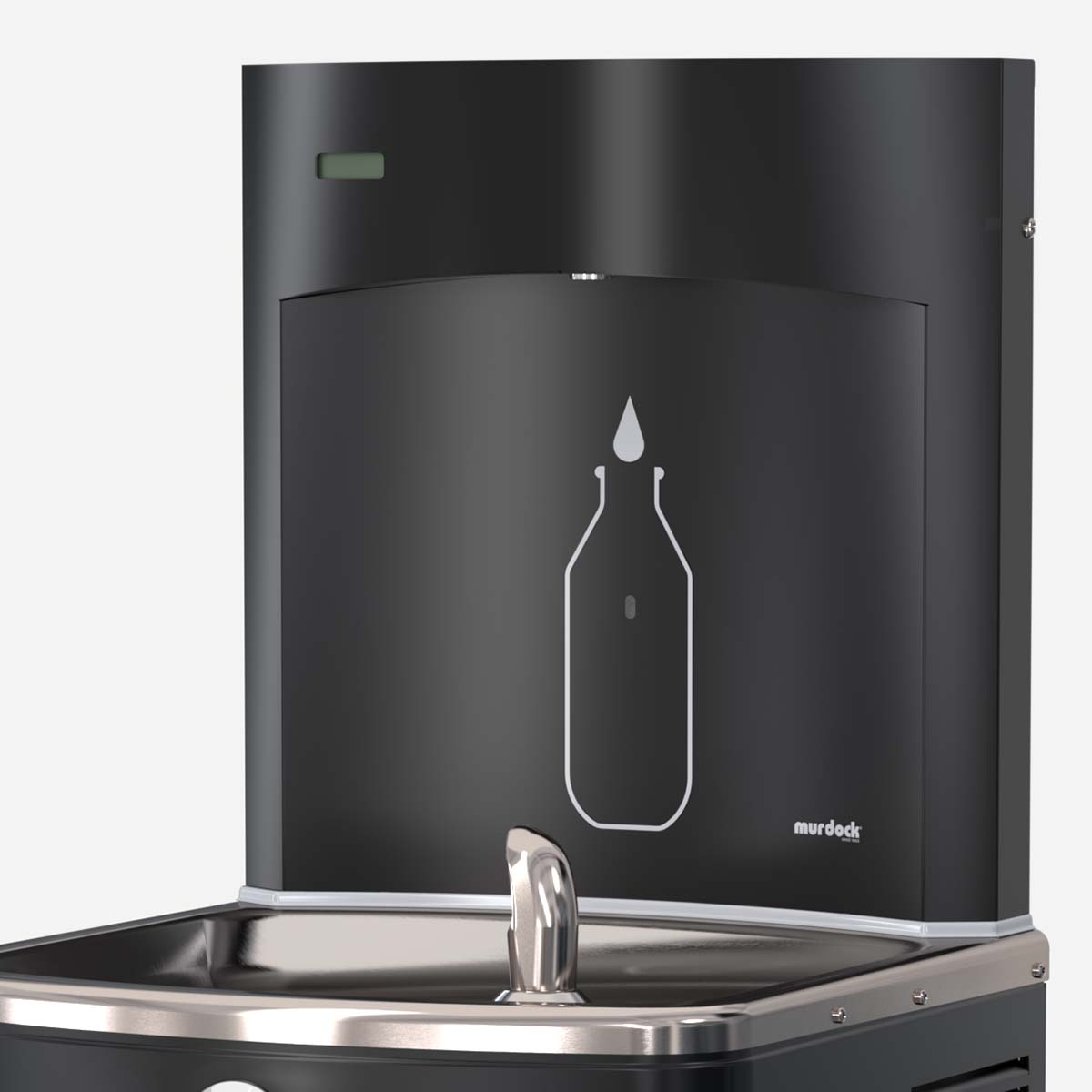

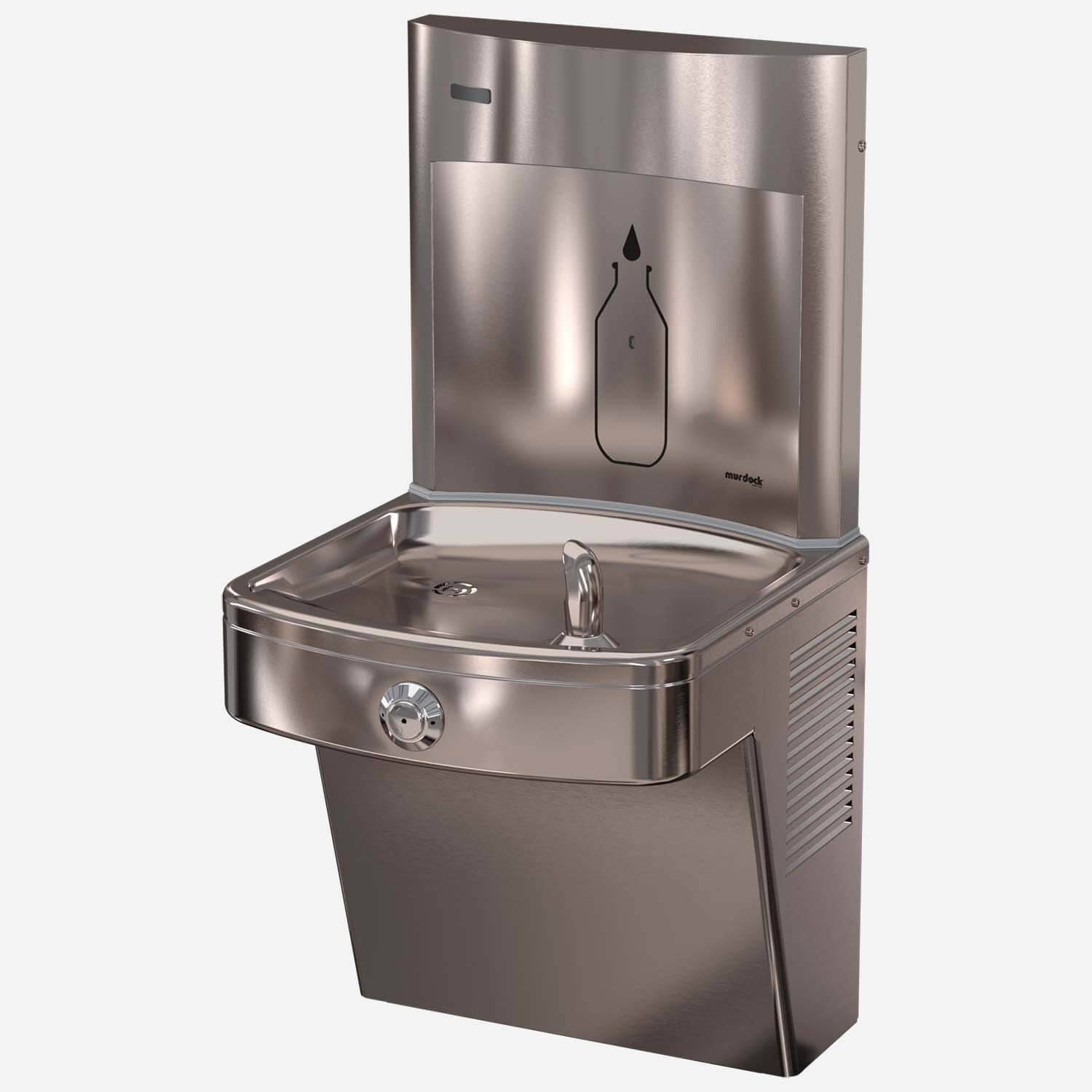

The SpringH20® BF12S Bottle Filler is a sensor-activated stainless steel bottle filler that can be added to enhance any Murdock® A17 series drinking fountain. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.
Standard Features
- Heavy-gauge type 304 stainless steel polished to #4 satin finish
- Vandal-resistant, seamless alcove
- ADA compliant
- Touchless sensor operation
- 120V AC/9V DC plug-in transformer
- 1.2 gallon (4.54 liters) per minute laminar flow nozzle
- 20-second maximum run time
- Bottle counter display with LED illumination and filter status lights (optional)
- Designed to enhance Murdock A171 and A172 Series Units
- May be used with specific competitor fixture models (contact for more information)
- Auto-Purge Sensor function shall activate Bottle Filler for a 10-second duration 24 hours after last activation as standard, and allows a purge-cycle adjustment. (Optional remote to change intervals available.)
- Rated for indoor and outdoor use
Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes an LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Deck-Mounted SpringH2O® All-Stainless Steel Bottle Filling Station - A17 Add-On, ADA [BF12S | Sensor-Activated, Plug-in; BF12S-BAT | Sensor-Activated, Battery-Powered; BF12S-BCD | Sensor Activated, Plug-in, With Bottle Counter Display; BF11S | Pushbutton] | 3 MB | ||
| | Deck-Mounted SpringH2O® All-Stainless Steel Water Bottle Filling Station - A17 Series Add-On, ADA [BF12S | Sensor-Activated, Plug-in; BF12S-BAT | Sensor-Activated, Battery-Powered; BF12S-BCD | Sensor Activated, Plug-in, With Bottle Counter Display] | 398 KB | ||
| | Option Auto-Purge Flyer (pdf) | 371 KB | ||
| | SpringH2O® bottle fillers are stainless steel, providing upscale aesthetics with the vandal-resistant durability Murdock is known for. They feature an industry-leading 1.2 GPM laminar water flow. | 5 MB | ||
| | Murdock Kwik Ship® vs Elkay, Oasis [A171108F-UG, A172108F-UG, A171408F-UG, A171408S-UG, A172408F-UG, A172408S-UG, BF11, BF12, BF12-BCD, BF11S, BF12S, BF12S-BCD, BFEZS168, BFEZS168-BCD, BF15, BF16, BF16-BCD, BF15S, BF16S, BF16S-BCD, A0004000-SK5, A000G000-SK5, WF3EZ, WF3000, RWF3000, RWF3000-20] Lit# L1001747 6/26 | 665 KB | ||
 | | Deck-Mounted SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - A17 Series Add-On, ADA | 488 KB | ||
| | Deck-Mounted SpringH2O® Touchless All-Stainless Steel Water Bottle Filling Station - A17 Series Add-On, ADA | 824 KB |
Specifications
| Brand | SpringH2O® |
| Mounting | Deck-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel |
| Activation | Bottle filler - sensor, Bottle filler - battery-powered sensor |
| Product Features | Bottle Filler - Heavy Duty All-Stainless Steel, Electrical required for sensor, Bottle Filler Shares Drinking Fountain/Water Cooler Supply |
| Usage | Indoor, Corporate Campus, Outdoor, School Campus, Train Station |
| Accessibility | ADA Compliant |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, Lead-Free Federal Law 111-380 |
| Patent | US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler) |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|

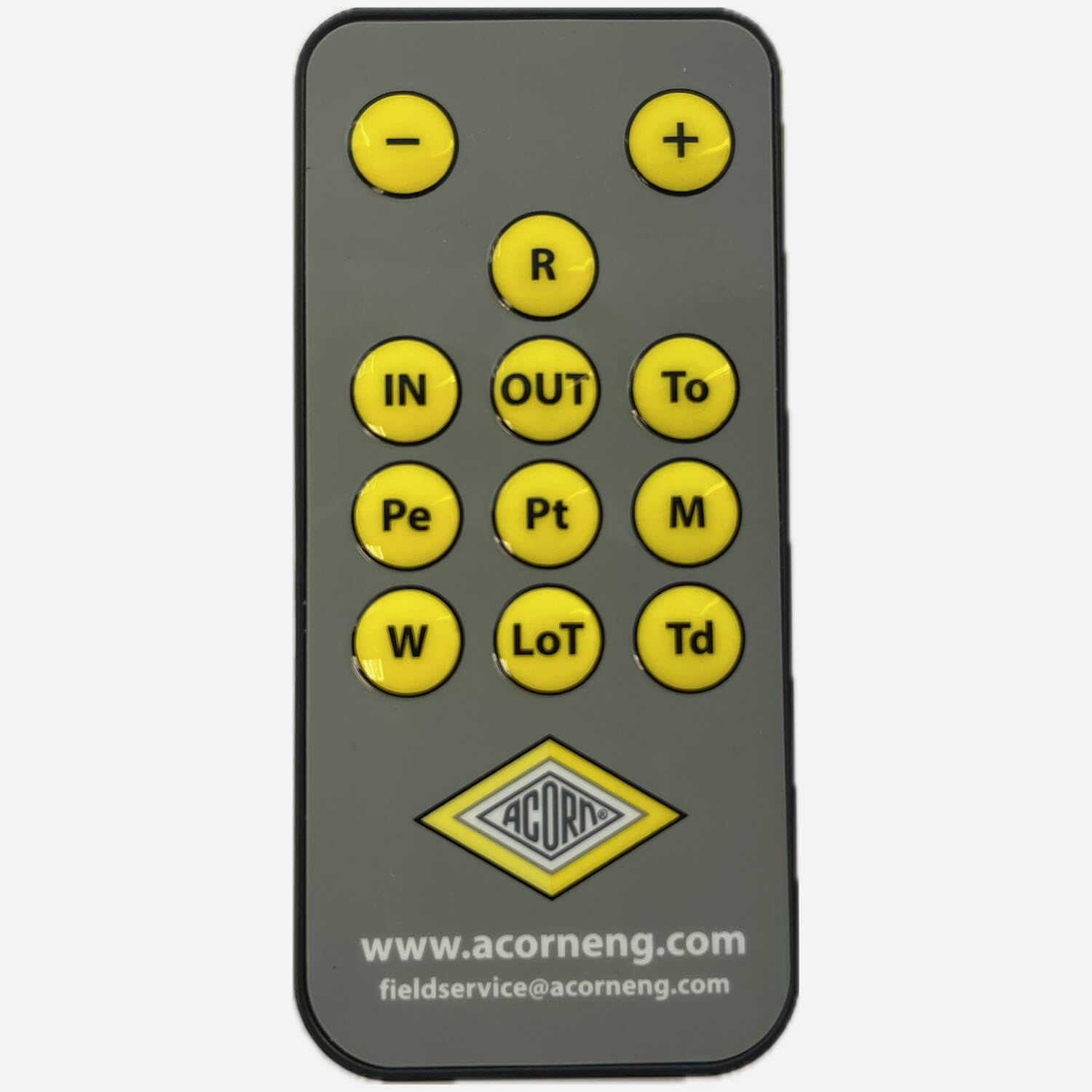

 | AP | Accessory: Auto-Purge Function Controller | ||
 | WF3000 | Accessory: 3,000 Gallon PFAS Water Filter |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EG | Option: Enviro-Glaze® Powder Coating |
Models
Typical models are shown below
BF12S Powered with 120 VAC/9 VDC Plug-in Transformer, Bottle Filler only BF12S-BAT Powered with battery, Bottle Filler only
BF12S-BCD Powered with 120 VAC/9 VDC Plug-in Transformer, Bottle Filler only; Display for Bottle Count of Saved Bottles and Filter Status
