Barrier-Free, Concealed Sensor-Activated Wall Mounted Universal Bi-Level Water Cooler with Optional Sensor-Activated Bottle Filler

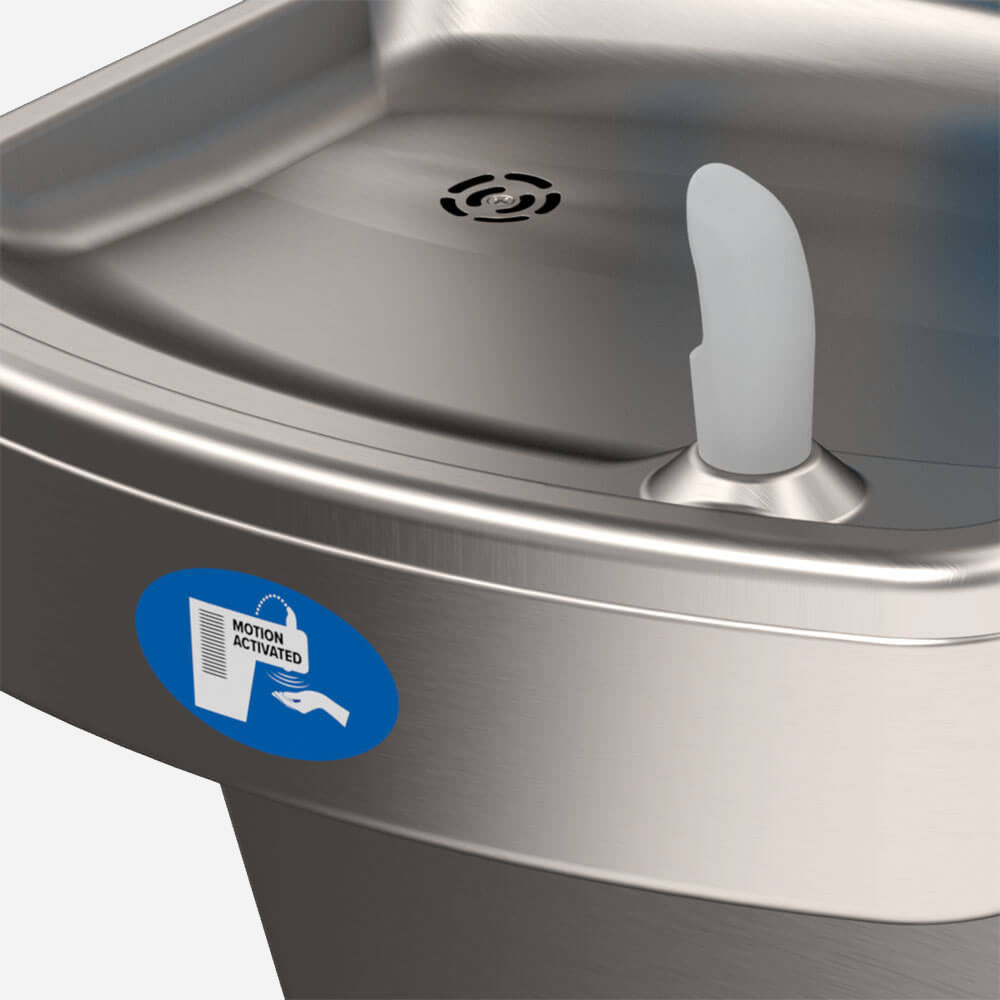

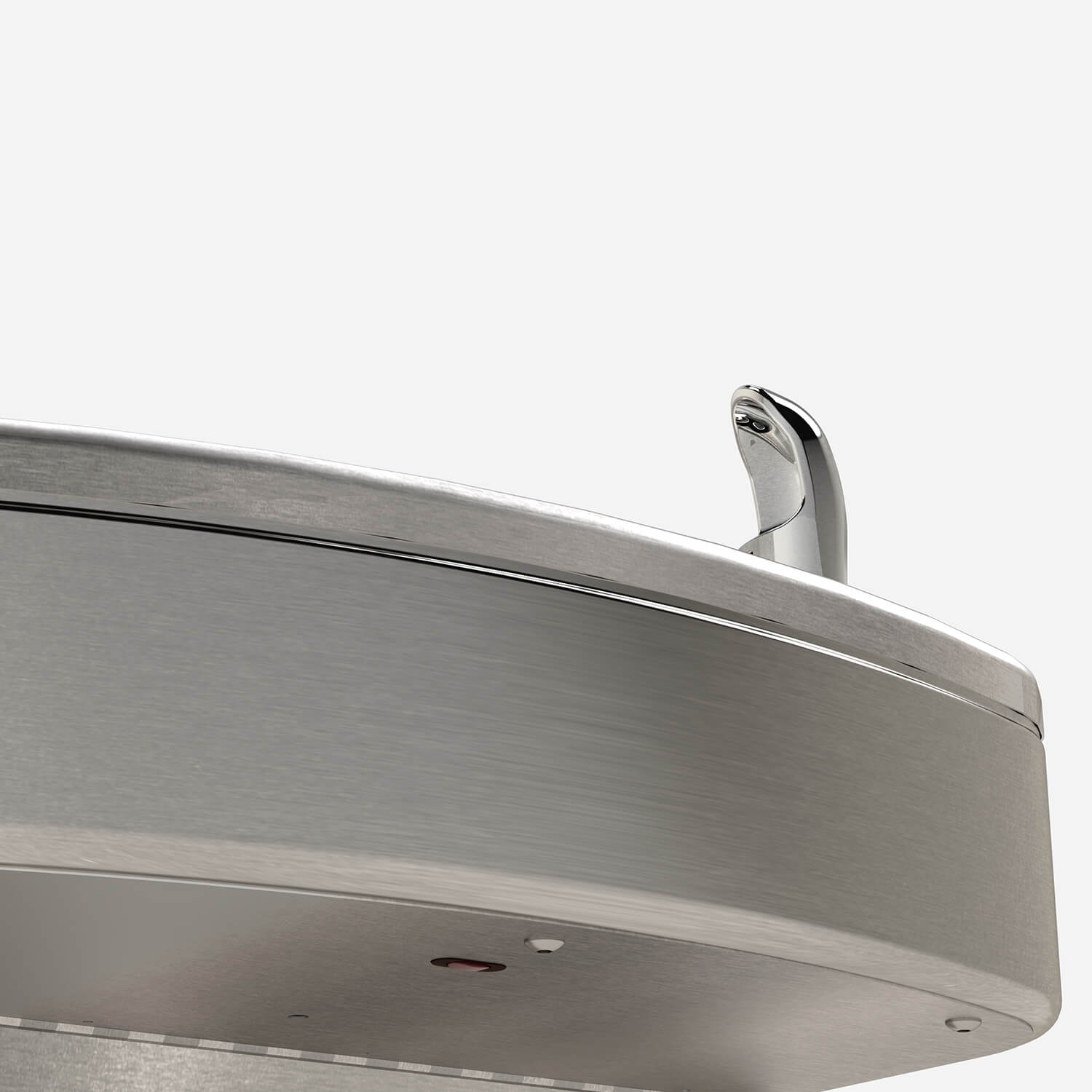

A172.8-UG-SOC Series provides a unique hands-free variation on the A17 Water Cooler. Sensor activation is provided where you can't see it. The sensor eye is under each of the basins. A simple wave provides a refrigerated drink of water. Want a refill station to go along with the water cooler? A sensor-activated H2O-To-Go!® bottle filler can easily be added to make a completely hand-free unit to take a sip and take your water to go.

Electric Water Cooler

• Lead-Free self-contained refrigeration rated at 8 gallons (30.3 liters) per minute
• Hands-Free Sensor with Easy Reach, Wave-on / Wave-off Operation
• Sensor with a maximum run time of 10 seconds or less
• Child or Adult ADA Compliant (when properly installed)
• Apron, One-Piece Bottom Wrapper is Satin or Gray Powder Coat Finish
• Flexible, Low Flow, Antimicrobial, Anti-Rotation, Non-Squirt Bubbler
• Universal Bi-level can be installed Left High or Right High with no additional parts
• Rough-Ins Match Other
• Chiller Includes Water Leak Detection Auto Shut-Off Valve

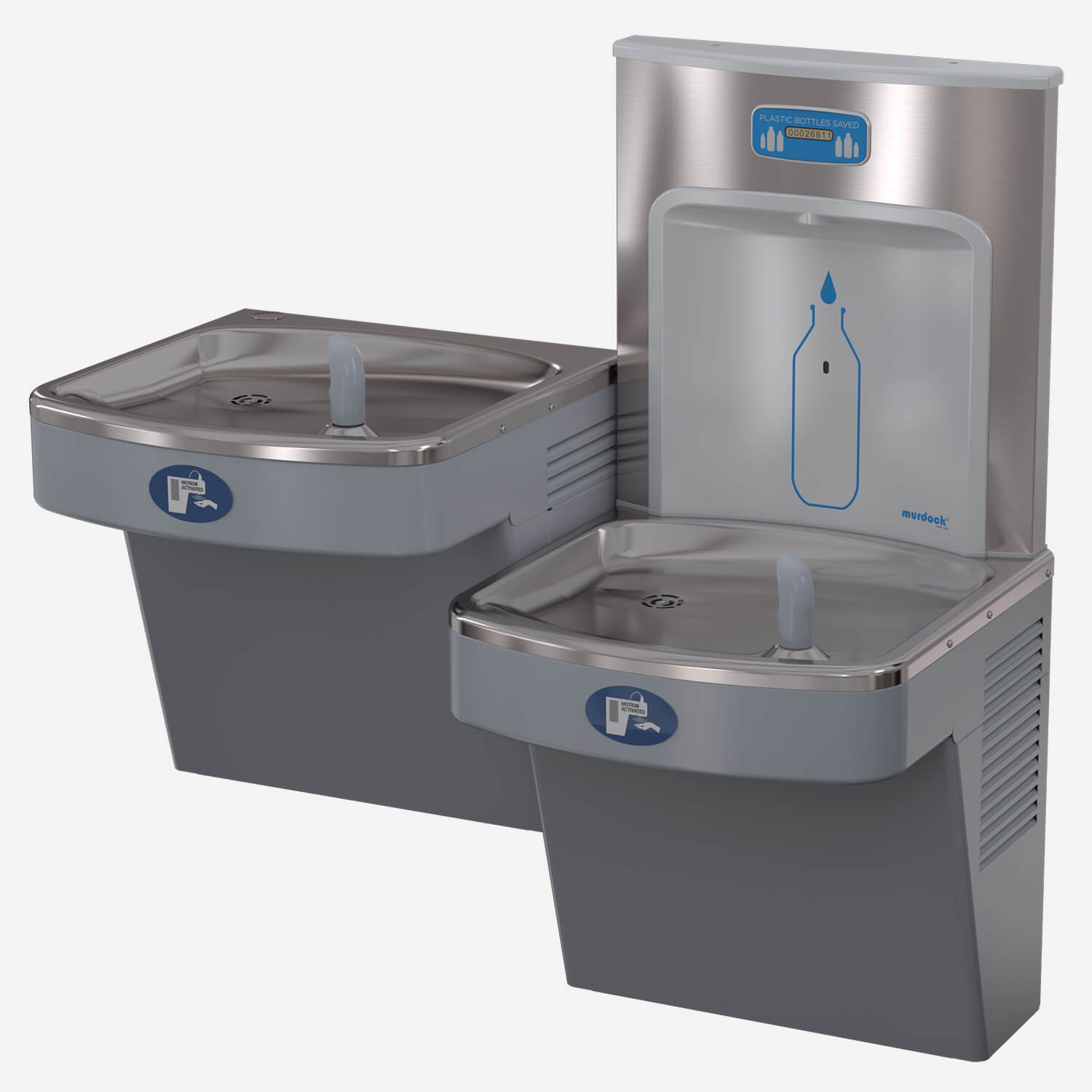

Optional Bottle Filler

• Hands-Free Sensor Operation
• ADA Compliant
• 120 VAC/9.0 VDC Plug-In Transformer
• Laminar flow water supply from the water cooler
• 1 gallon (3.79 liters) per minute fill rate
• -BF12 Sensor has a 20 seconds maximum run time
• 100-mesh inlet strainer

Water Filter

A 3,000 gallon (11,356.24 liter) Capacity Filter option can be supplied. The filters are NSF 42 and 53 certified. Mounting bracket is provided.

• NSF 42NSF 42 standard regulates nonhealth related contaminant reductions, including reduction of chlorine, taste and odor, chloramine, particulate, iron, manganese, zinc and total dissolved solids (TDS).
• NSF 53NSF 53 regulates the reduction of over 50 health-related contaminants, including lead, Cryptosporidium, VOCs and chromium.
