Model M-824 Series
Flush Wall Mounted Bottle Filler and Jug Filler

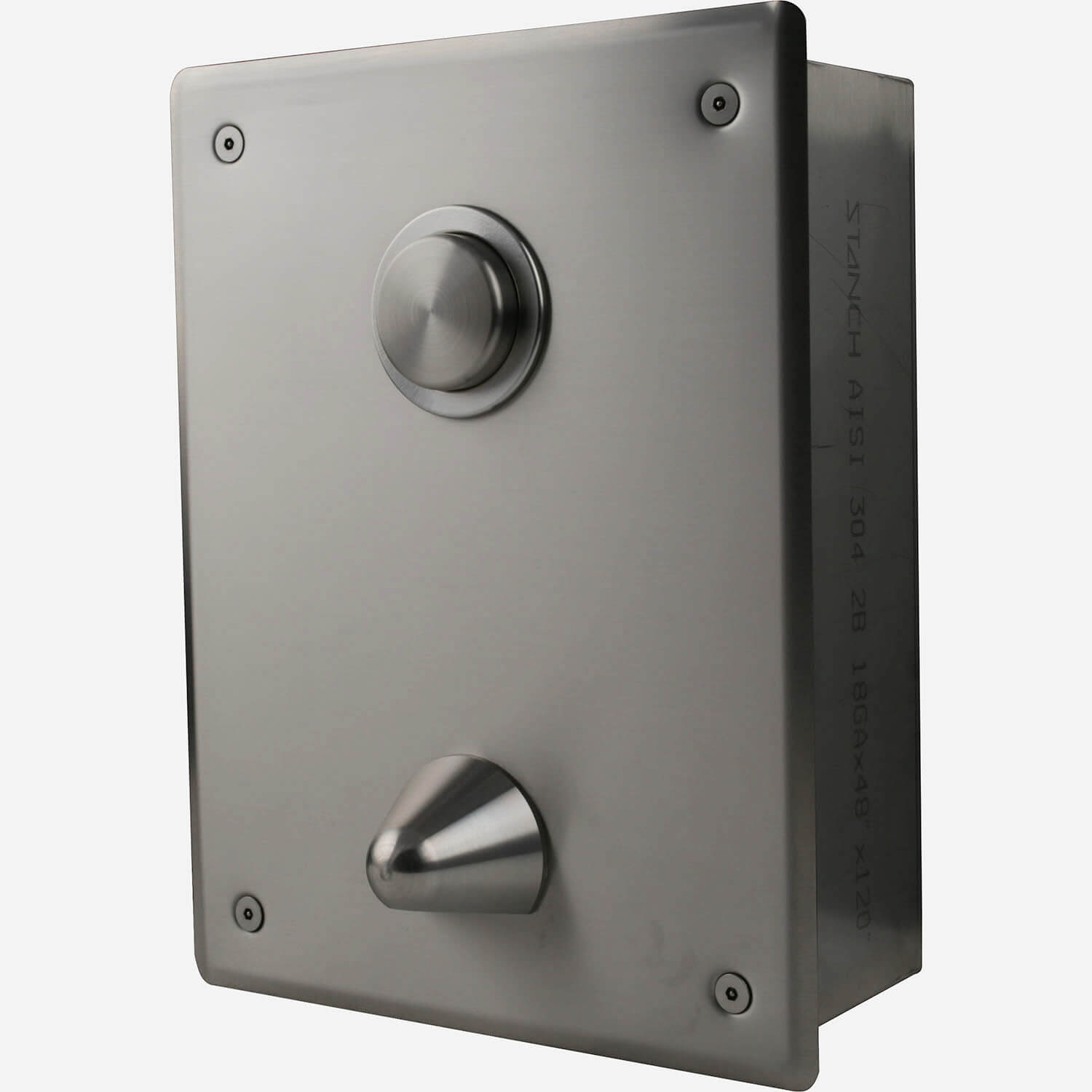

Murdock provides this recessed stainless steel jug filler and water refill station in flush mount cabinet. It features a large push button on top with a conical spout. Connection is in the wall on the bottom side.
The jug filler features an Air-Control“ pneumatic valve housed in a 4" front-to-back x 9" wide x 12" high (102 x 229 x 305 mm) in-wall cabinet. A 2" (51 mm) diameter push button and 1.23" (31.24 mm) radius conical spout is mounted on a 10" wide x 13" high (254 x 330 mm) flush mounted panel.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Wall Mounted Bottle Filler and Jug Filler [M-824 | All-Stainless Steel; M-825 | Fairway Green Powder Coating; M-826 | Firehouse Red Powder Coating; M-827 | Alpine Blue Powder Coating] | 0 | 770 KB | ||
| | Recessed wall mounted outdoor bottle & jug filler | 0 | 215 KB |
Specifications
| Material | Stainless Steel |
| Mounting | Flush Wall-Mounted |
| Usage | Outdoor |
| Activation | Bottle filler - round button |
Options
Models
M-824 - All-Stainless SteelM-825 - Textured Fairway GreenM-826 - Textured Firehouse RedM-827 - Textured Alpine Blue
