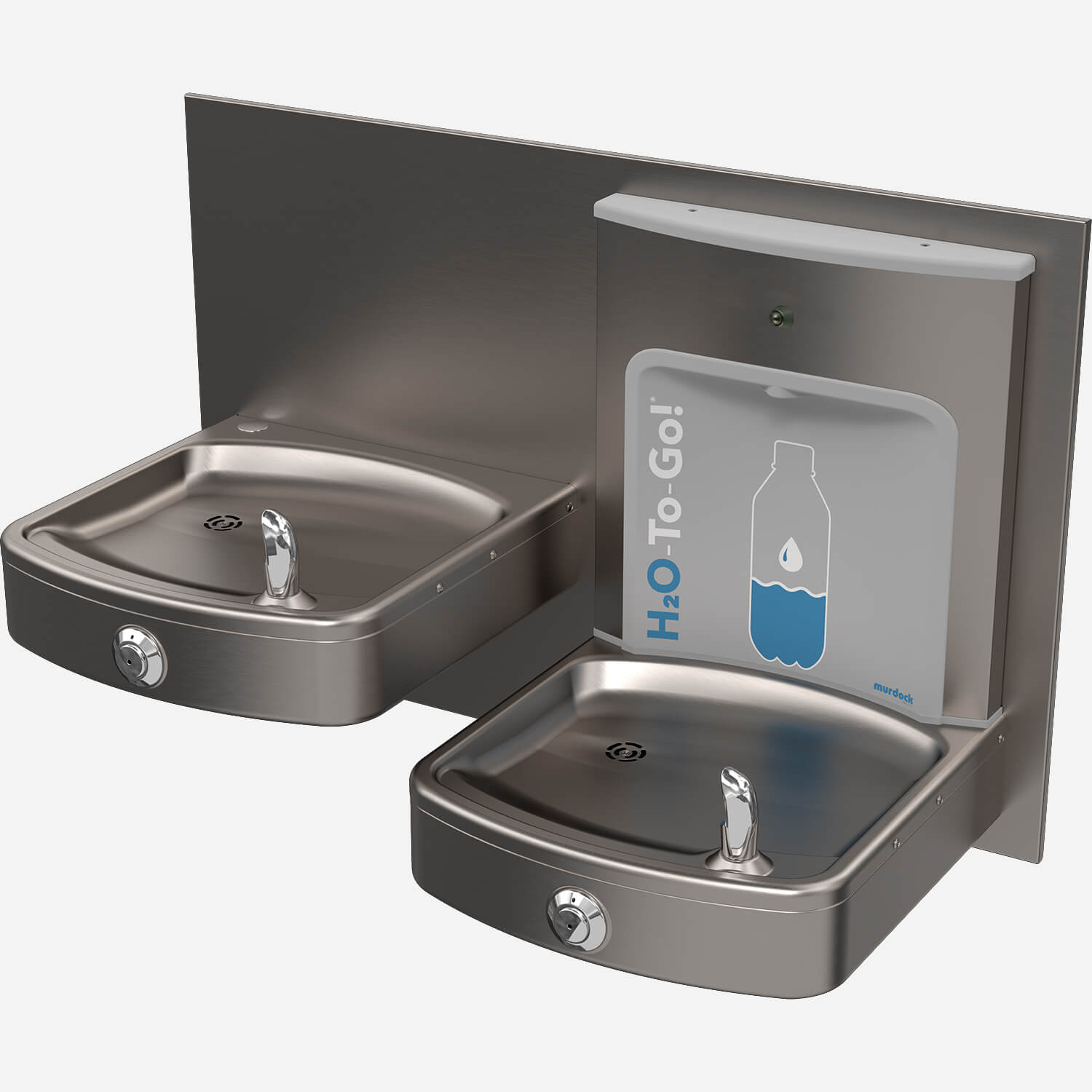

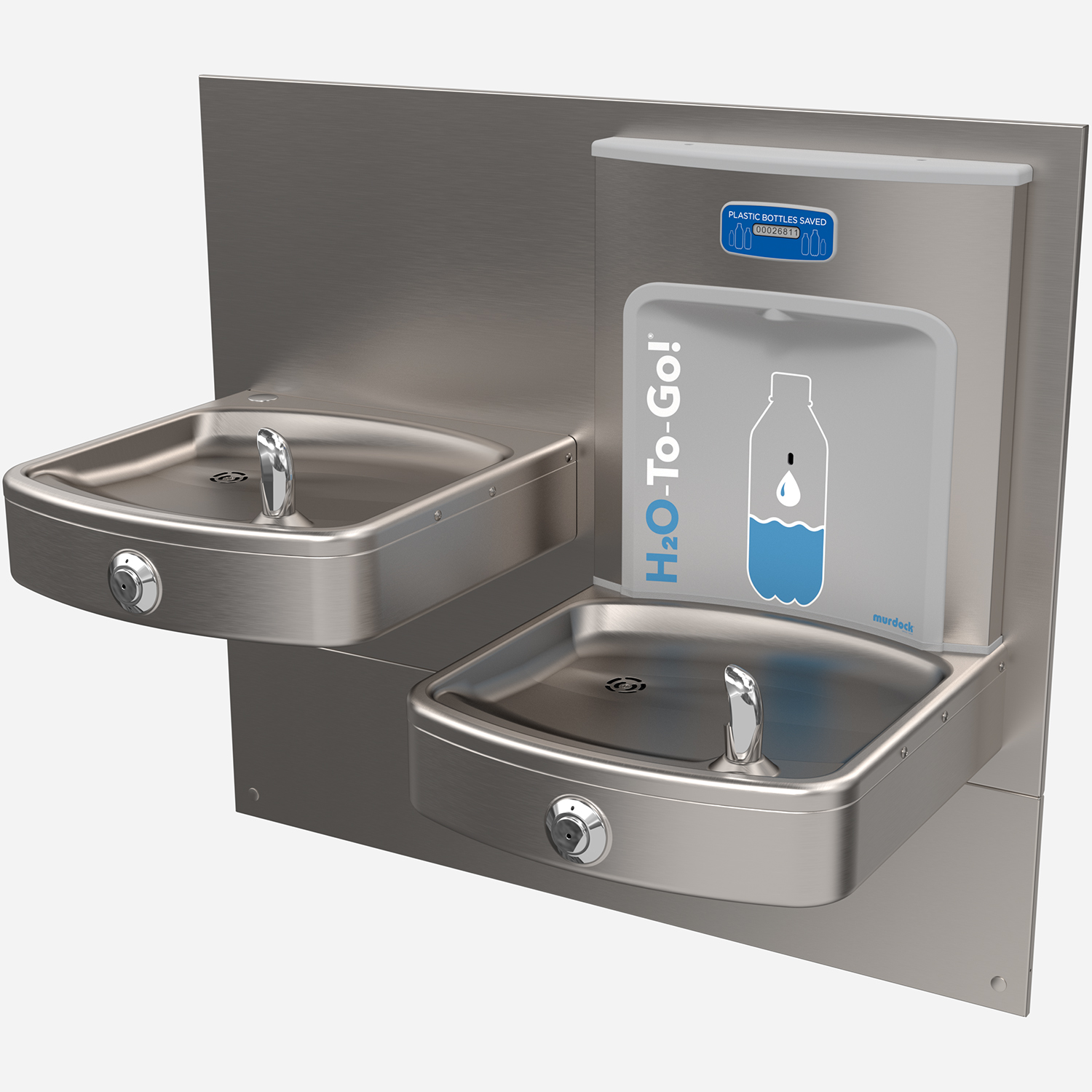

Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel
This combination unit includes two Barrier-Free drinking fountain decks similar to Murdock's A17 Series. Each drinking fountain features a round vandal-resistant push button. It also includes an H2O-To-Go! Bottle Filler that sits on the lower drinking fountain deck. A mounting frame with a trim panel is provided. This unit does not provide refrigerated water.
Electrical is necessary for sensor-operated bottle fillers. The patented push-button auto stop feature seamlessly incorporates the heavy-duty vandal-resistant button for additional security while allowing easy access to the push button for routine maintenance. The stream height exiting the bubbler is easily adjusted right from the front of the button. All this simple, routine maintenance can be done without the time-consuming disassembly of the unit!
Unit is certified to ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875, and NSF/ANSI 61, Section 9. Fixture meets ADA, ADA Standing Person, and ADA Child requirements when mounted appropriately. Accessibility compliance is subject to the local code enforcement authority.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel | 0 | 2 MB | ||
| | Barrier-Free, Bi-Level Wide Drinking Fountain with H2O to go!® Deck Mount Bottle Filler | 0 | 211 KB | ||
 | | Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel | 0 | 2 MB | ||
| | Wall-Mounted, Square, Bi-Level, Push Button Drinking Fountain with Wide Basin & H2O-to-Go!® Touchless Water Filling Station - Non-Refrigerated, ADA, Stainless Steel | 0 | 534 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Re-Open Safely and Quickly with Commercial Hand Sinks and Water Refill Stations from Murdock Manufacturing. | 0 | 2 MB | ||
| | MM - Maintenace Advantage (pdf) | 0 | 6 MB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
| | Flyer - Barrier-Free, Bi-Level Drinking Fountain with Vandal Resistant Buttons and H2O-to-Go!® Deck Mount Sensor Bottle Filler | 0 | 436 KB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Brand | H2O-To-Go!® |
| Material | Stainless Steel |
| Mounting | Wall-Mounted |
| Product Features | Wide Basin, Bottle Filler Shares Drinking Fountain/Water Cooler Supply, Auto-Stop (Servicing Strainer Shuts Off Water Supply), Round Vandal-Resistant Pushbutton |
| Activation | Push Button, Bottle filler - sensor |
| Refrigeration | No Refrigeration |
| No. of Stations | 2 |
| Patent | US 10,100,933 B2 (Auto-Stop Feature), US D873,606 S (Ornamental Design of Deck-Mounted Bottle Filler) |
Options
Accessories
Miscellaneous
Models
A192400 -
Drinking Fountain Configuration
A192400 S All-Stainless Steel Lead-Free Stainless Steel Bubbler Round Vandal-Resistant Pushbutton
A192400 F All-Stainless Steel Flexible Bubbler Round Vandal-Resistant Pushbutton
Bottle Filler Configuration
-BF12 Plug-in Sensor Activated
-BF12-BAT Battery Powered Sernser Activated
-BF12-BCD Plug-in Sensor Activated Bottle Counter Display
-BF11 Pushbutton Activated (no electrical)
Popular Options include:

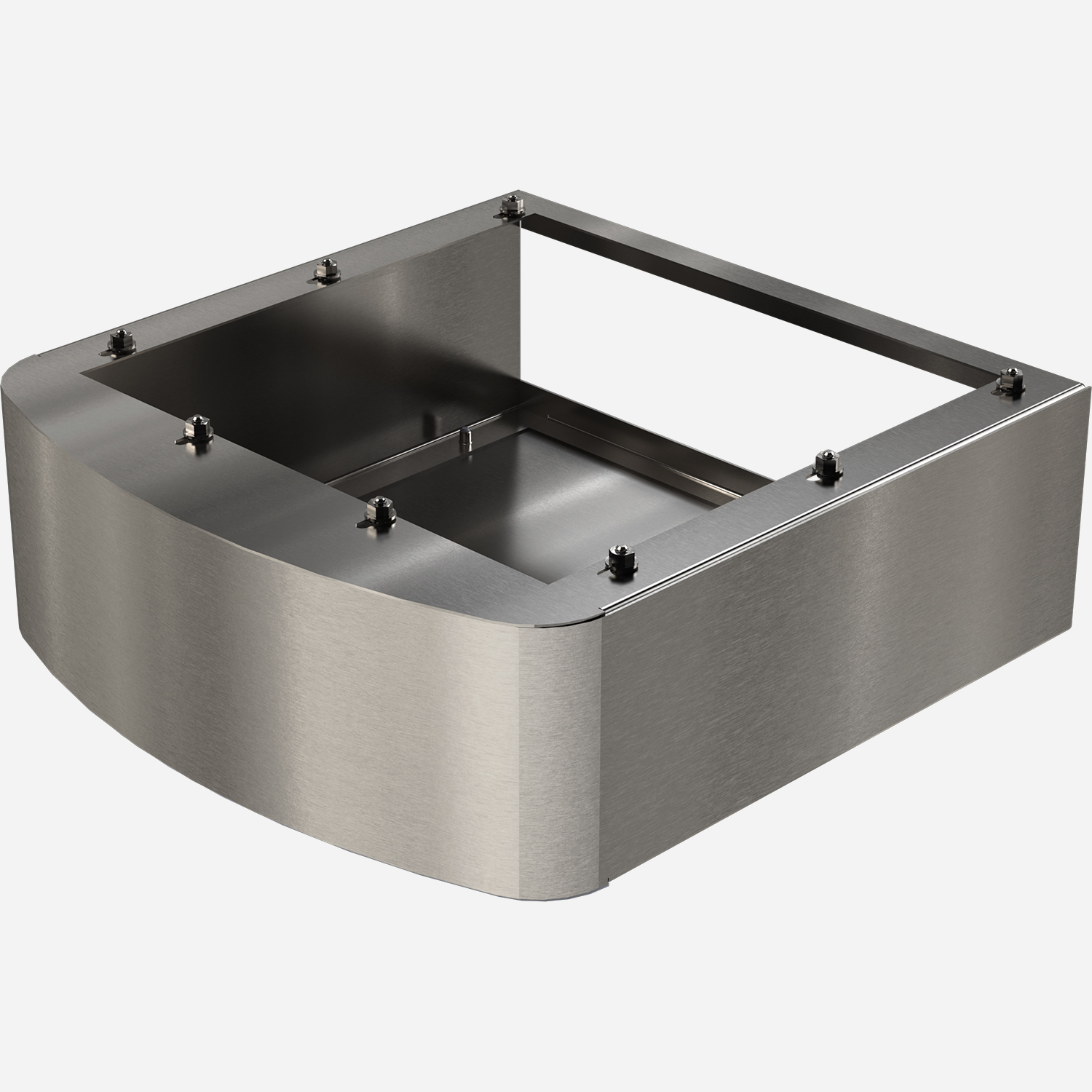

-WF1 | 1500-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter -WF3 | 3000-gallon capacity, NSF 42+53, 1 micron Lead Reduction Filter -SK11 | Cane Detection Skirt Kit for Upper Unit -RBL | Reverse Bi-Level (Bottle Filler Opposite) Mounting Plate
Other options may be available. See Options List and/or Submittal
